yocto_pressure.h File Reference

#include "yocto_api.h"
#include <cfloat>
#include <cmath>
#include <map>

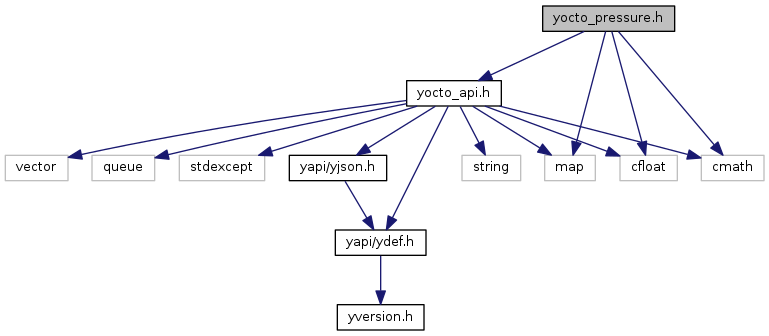

Include dependency graph for yocto_pressure.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	YPressure

Typedefs
typedef void(*	YPressureTimedReportCallback) (YPressure *func, YMeasure measure)
typedef void(*	YPressureValueCallback) (YPressure *func, const string &functionValue)

Functions
YPressure *	yFindPressure (const string &func)
YPressure *	yFirstPressure (void)

Typedef Documentation

typedef void(* YPressureTimedReportCallback) (YPressure *func, YMeasure measure)

Definition at line 56 of file yocto_pressure.h.

typedef void(* YPressureValueCallback) (YPressure *func, const string &functionValue)

Definition at line 54 of file yocto_pressure.h.

Function Documentation

YPressure* yFindPressure ( const string &  func )

inline

Retrieves a pressure sensor for a given identifier. The identifier can be specified using several formats:

• FunctionLogicalName
• ModuleSerialNumber.FunctionIdentifier
• ModuleSerialNumber.FunctionLogicalName
• ModuleLogicalName.FunctionIdentifier
• ModuleLogicalName.FunctionLogicalName

This function does not require that the pressure sensor is online at the time it is invoked. The returned object is nevertheless valid. Use the method YPressure.isOnline() to test if the pressure sensor is indeed online at a given time. In case of ambiguity when looking for a pressure sensor by logical name, no error is notified: the first instance found is returned. The search is performed first by hardware name, then by logical name.

If a call to this object's is_online() method returns FALSE although you are certain that the matching device is plugged, make sure that you did call registerHub() at application initialization time.

Parameters

func	: a string that uniquely characterizes the pressure sensor

Returns

a YPressure object allowing you to drive the pressure sensor.

Definition at line 213 of file yocto_pressure.h.

YPressure* yFirstPressure ( void  )

inline

Starts the enumeration of pressure sensors currently accessible. Use the method YPressure.nextPressure() to iterate on next pressure sensors.

Returns

a pointer to a YPressure object, corresponding to the first pressure sensor currently online, or a NULL pointer if there are none.

Definition at line 224 of file yocto_pressure.h.
