Storage and manipulation of parametric functions collection. More...

#include <param_func.h>

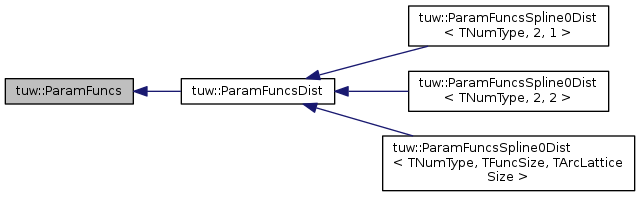

Inheritance diagram for tuw::ParamFuncs:

[legend]

Classes
struct	FuncCtrlPt
	Control point variable. More...

struct	ParamFuncsStructure
	Containts parametric function initialization data. More...

Public Types
enum	CtrlPtDim { CtrlPtDim::VAL, CtrlPtDim::ARC }
	Control point variable dimension. More...

enum	EvalArcGuarantee { EvalArcGuarantee::NONE, EvalArcGuarantee::AFTER_LAST, EvalArcGuarantee::BEFORE_LAST, EvalArcGuarantee::AT_BEGIN, EvalArcGuarantee::AT_END }
	Flags if any guarantees about evaluation arc relative to last evaluation arc are present. More...

enum	FuncEvalMode { FuncEvalMode::DIFF1, FuncEvalMode::DIFF2, FuncEvalMode::INT1, FuncEvalMode::INT2, FuncEvalMode::FUNC, FuncEvalMode::ENUM_SIZE }
	Required type of computation relative to the parametric function. More...

using	FuncEvalModesFlags = std::array< bool, nrModesMax_ >

Public Member Functions
virtual double	computeFuncDiff1 (const std::size_t &_funcIdx) const =0
	Computes 1st derivative of parametric function with index _funcIdx at parametric arc set by setEvalArc. More...

virtual double	computeFuncDiff2 (const std::size_t &_funcIdx) const =0
	Computes 2nd derivative of parametric function with index _funcIdx at parametric arc set by setEvalArc. More...

virtual double	computeFuncInt1 (const std::size_t &_funcIdx) const =0
	Computes integral of parametric function with index _funcIdx on interval [funcsArcBegin_, funcsArcEnd_]. More...

virtual double	computeFuncInt2 (const std::size_t &_funcIdx) const =0
	Computes double integral of parametric function with index _funcIdx on interval [funcsArcBegin_, funcsArcEnd_]. More...

virtual double	computeFuncVal (const std::size_t &_funcIdx) const =0
	Computes value of parametric function with index _funcIdx at parametric arc set by setEvalArc. More...

FuncCtrlPt &	ctrlPt (const std::size_t &_funcIdx, const std::size_t &_funcCtrlPtIdx)
	Access of a parametric function control point. More...

const FuncCtrlPt &	ctrlPt (const std::size_t &_funcIdx, const std::size_t &_funcCtrlPtIdx) const
	Const access of a parametric function control point. More...

double &	ctrlPtVal (const std::size_t &_funcIdx, const std::size_t &_funcCtrlPtIdx, const CtrlPtDim &_ctrlPtDim=CtrlPtDim::VAL)
	Access of a parametric function control point dimension. More...

const double &	ctrlPtVal (const std::size_t &_funcIdx, const std::size_t &_funcCtrlPtIdx, const CtrlPtDim &_ctrlPtDim=CtrlPtDim::VAL) const
	Const of a parametric function control point dimension. More...

std::size_t	funcCtrlPtSize (const std::size_t &_i) const
	Number of control points for a parametric function. More...

double &	funcsArc (const std::size_t &_i, const std::size_t &_j)
	Access to the arc parameter vector at index _i, control point _j. More...

const double &	funcsArc (const std::size_t &_i, const std::size_t &_j) const
	Const access the arc parameter vector at index _i, control point _j. More...

double &	funcsArcBegin ()
	Access to the initial value of the arc parametrization. More...

const double &	funcsArcBegin () const
	Const access to the initial value of the arc parametrization. More...

double &	funcsArcEnd ()
	Access to the final value of the arc parametrization. More...

const double &	funcsArcEnd () const
	Const access to the finall value of the arc parametrization. More...

const double &	funcsArcEval () const
	Const access to the active evaluation point arc parametrization. More...

std::size_t	funcsArcSize () const
	Number of arc parametrizations. More...

std::size_t	funcsArcSize (const std::size_t &_i) const
	Number of control points of parametrization _i. More...

std::size_t	funcsSize () const
	Number of parametric functions. More...

void	init (const std::vector< tuw::ParamFuncs::ParamFuncsStructure > &_paramFuncsStructure)
	Initializes the control structure. More...

ParamFuncs &	operator= (const ParamFuncs &)

ParamFuncs &	operator= (ParamFuncs &&)=delete

	ParamFuncs ()=default

	ParamFuncs (const ParamFuncs &)

	ParamFuncs (ParamFuncs &&)=delete

virtual void	precompute ()=0
	Precomputes cached data. More...

virtual void	setEvalArc (const double &_funcsArcEval, const EvalArcGuarantee &_evalArcGuarantee=EvalArcGuarantee::NONE)=0
	Sets parametric function evaluation arc. More...

void	shiftStartCtrlPt (const double &_dt)

virtual	~ParamFuncs ()=default

Static Public Attributes
static constexpr const std::size_t	nrModesMax_ = asInt(FuncEvalMode::ENUM_SIZE) - 1
	Maximum number of computation modes (except the parametric function itself FUNC). Currently 4 other choices supported. More...

Protected Member Functions
virtual void	initImpl ()=0
	Called at end of init. To be used by extended classes. More...

Protected Attributes
std::vector< std::size_t >	func2Arc_
	Maps the parametrized functions to their afferent arc parametrizations. More...

std::vector< std::vector< FuncCtrlPt > >	funcCtrlPt_
	Stores the control points for all the parametrized functions. More...

std::vector< FuncEvalModesFlags >	funcEvalReq_
	Flags for required function computation modes. More...

double	funcsArcBegin_
	Arc parametrization at the beginning of the functions domain definitions (common for all functions). More...

double	funcsArcEnd_
	Arc parametrization at the end of the functions domain definitions (common for all functions). More...

double	funcsArcEval_
	Arc parametrization at the evaluation point (set by setEvalArc)/. More...

std::vector< ParamFuncsStructure >	paramFuncsStructure_
	Initialization structure "store" variable. More...

Private Member Functions
void	initBase (const std::vector< tuw::ParamFuncs::ParamFuncsStructure > &_paramFuncsStructure)
	Initializes the control structure for the base class. More...

Private Attributes
std::vector< std::vector< double > >	funcCtrlPtArc_
	Stores the control points arc parameters for all the parametrized functions. More...

Detailed Description

Storage and manipulation of parametric functions collection.

Todo:

Making rules for unconsistent arcs (works only with nondecreasing function arcs) and document what the functions assume before and stuff.

Making rules for initial conditions (either tBegin should be allways 0 or something)

cout the control points and their arc parametrizations

Definition at line 57 of file param_func.h.

Member Typedef Documentation

using tuw::ParamFuncs::FuncEvalModesFlags = std::array<bool, nrModesMax_>

Definition at line 95 of file param_func.h.

Member Enumeration Documentation

enum tuw::ParamFuncs::CtrlPtDim

strong

Control point variable dimension.

Enumerator
VAL	control point value
ARC	control point arc parameter

Definition at line 73 of file param_func.h.

enum tuw::ParamFuncs::EvalArcGuarantee

strong

Flags if any guarantees about evaluation arc relative to last evaluation arc are present.

Enumerator
NONE
AFTER_LAST	previous evaluation arc <= this evaluation arc
BEFORE_LAST	previous evaluation arc >= this evaluation arc
AT_BEGIN	this evaluation arc is at the arc parametrization begin
AT_END	this evaluation arc is at the arc parametrization end

Definition at line 80 of file param_func.h.

enum tuw::ParamFuncs::FuncEvalMode

strong

Required type of computation relative to the parametric function.

Enumerator
DIFF1	function first derivative
DIFF2	function second derivative
INT1	function single integral
INT2	function double integral
FUNC	function value (always assumed to have the highest integer value of the enum)
ENUM_SIZE

Definition at line 62 of file param_func.h.

Constructor & Destructor Documentation

tuw::ParamFuncs::ParamFuncs ( )

default

virtual tuw::ParamFuncs::~ParamFuncs ( )

virtualdefault

ParamFuncs::ParamFuncs ( const ParamFuncs & _other )

Definition at line 102 of file param_func.cpp.

tuw::ParamFuncs::ParamFuncs ( ParamFuncs && )

delete

Member Function Documentation

virtual double tuw::ParamFuncs::computeFuncDiff1 ( const std::size_t & _funcIdx ) const

pure virtual

Computes 1st derivative of parametric function with index _funcIdx at parametric arc set by setEvalArc.

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

virtual double tuw::ParamFuncs::computeFuncDiff2 ( const std::size_t & _funcIdx ) const

pure virtual

Computes 2nd derivative of parametric function with index _funcIdx at parametric arc set by setEvalArc.

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

virtual double tuw::ParamFuncs::computeFuncInt1 ( const std::size_t & _funcIdx ) const

pure virtual

Computes integral of parametric function with index _funcIdx on interval [funcsArcBegin_, funcsArcEnd_].

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

virtual double tuw::ParamFuncs::computeFuncInt2 ( const std::size_t & _funcIdx ) const

pure virtual

Computes double integral of parametric function with index _funcIdx on interval [funcsArcBegin_, funcsArcEnd_].

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

virtual double tuw::ParamFuncs::computeFuncVal ( const std::size_t & _funcIdx ) const

pure virtual

Computes value of parametric function with index _funcIdx at parametric arc set by setEvalArc.

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

FuncCtrlPt& tuw::ParamFuncs::ctrlPt	(	const std::size_t &	_funcIdx,
		const std::size_t &	_funcCtrlPtIdx
	)

Access of a parametric function control point.

const FuncCtrlPt& tuw::ParamFuncs::ctrlPt	(	const std::size_t &	_funcIdx,
		const std::size_t &	_funcCtrlPtIdx
	)		const

Const access of a parametric function control point.

double& tuw::ParamFuncs::ctrlPtVal	(	const std::size_t &	_funcIdx,
		const std::size_t &	_funcCtrlPtIdx,
		const CtrlPtDim &	_ctrlPtDim = `CtrlPtDim::VAL`
	)

Access of a parametric function control point dimension.

const double& tuw::ParamFuncs::ctrlPtVal	(	const std::size_t &	_funcIdx,
		const std::size_t &	_funcCtrlPtIdx,
		const CtrlPtDim &	_ctrlPtDim = `CtrlPtDim::VAL`
	)		const

Const of a parametric function control point dimension.

size_t ParamFuncs::funcCtrlPtSize ( const std::size_t & _i ) const

Number of control points for a parametric function.

Definition at line 188 of file param_func.cpp.

double& tuw::ParamFuncs::funcsArc	(	const std::size_t &	_i,
		const std::size_t &	_j
	)

Access to the arc parameter vector at index _i, control point _j.

const double& tuw::ParamFuncs::funcsArc	(	const std::size_t &	_i,
		const std::size_t &	_j
	)		const

Const access the arc parameter vector at index _i, control point _j.

double & ParamFuncs::funcsArcBegin ( )

Access to the initial value of the arc parametrization.

Definition at line 197 of file param_func.cpp.

const double & ParamFuncs::funcsArcBegin ( ) const

Const access to the initial value of the arc parametrization.

Definition at line 201 of file param_func.cpp.

double & ParamFuncs::funcsArcEnd ( )

Access to the final value of the arc parametrization.

Definition at line 205 of file param_func.cpp.

const double & ParamFuncs::funcsArcEnd ( ) const

Const access to the finall value of the arc parametrization.

Definition at line 209 of file param_func.cpp.

const double & ParamFuncs::funcsArcEval ( ) const

Const access to the active evaluation point arc parametrization.

Definition at line 213 of file param_func.cpp.

size_t ParamFuncs::funcsArcSize ( ) const

Number of arc parametrizations.

Definition at line 192 of file param_func.cpp.

std::size_t tuw::ParamFuncs::funcsArcSize ( const std::size_t & _i ) const

Number of control points of parametrization _i.

size_t ParamFuncs::funcsSize ( ) const

Number of parametric functions.

Definition at line 184 of file param_func.cpp.

void ParamFuncs::init ( const std::vector< tuw::ParamFuncs::ParamFuncsStructure > & _paramFuncsStructure )

Initializes the control structure.

Parameters

_paramFuncsStructure parametric functions structure

Note: _paramFuncsStructure[].ctrlPtsArcRefIdx has to be consistent (first function has to have value 0. Next functions can only reference previous referenced indexes or increse maximum reference index by 1). Some examples:

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,0,0] ok! means one arc parameter set for all 3 functions;

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,1,0] ok! means one arc parameter set for function 0 and 2 and another arc parameter set for function 1;

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,1,2] ok! means separate arc parameter set for each function;

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,2,1] inconsistent! indexes not consistent step-increasing;

Definition at line 96 of file param_func.cpp.

void ParamFuncs::initBase ( const std::vector< tuw::ParamFuncs::ParamFuncsStructure > & _paramFuncsStructure )

private

Initializes the control structure for the base class.

Parameters

_paramFuncsStructure parametric functions structure

Note: _paramFuncsStructure[].ctrlPtsArcRefIdx has to be consistent (first function has to have value 0. Next functions can only reference previous referenced indexes or increse maximum reference index by 1). Some examples:

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,0,0] ok! means one arc parameter set for all 3 functions;

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,1,0] ok! means one arc parameter set for function 0 and 2 and another arc parameter set for function 1;

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,1,2] ok! means separate arc parameter set for each function;

_paramFuncsStructure[].ctrlPtsArcRefIdx = [0,2,1] inconsistent! indexes not consistent step-increasing;

Definition at line 41 of file param_func.cpp.

virtual void tuw::ParamFuncs::initImpl ( )

protectedpure virtual

Called at end of init. To be used by extended classes.

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

ParamFuncs & ParamFuncs::operator= ( const ParamFuncs & _other )

Definition at line 122 of file param_func.cpp.

ParamFuncs& tuw::ParamFuncs::operator= ( ParamFuncs && )

delete

virtual void tuw::ParamFuncs::precompute ( )

pure virtual

Precomputes cached data.

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

virtual void tuw::ParamFuncs::setEvalArc	(	const double &	_funcsArcEval,
		const EvalArcGuarantee &	_evalArcGuarantee = `EvalArcGuarantee::NONE`
	)

pure virtual

Sets parametric function evaluation arc.

Implemented in tuw::ParamFuncsSpline0Dist< TNumType, TFuncSize, TArcLatticeSize >, tuw::ParamFuncsSpline0Dist< TNumType, 2, 2 >, and tuw::ParamFuncsSpline0Dist< TNumType, 2, 1 >.

void ParamFuncs::shiftStartCtrlPt ( const double & _dt )

Todo:: not nice

Definition at line 148 of file param_func.cpp.

Member Data Documentation

std::vector<std::size_t> tuw::ParamFuncs::func2Arc_

protected

Maps the parametrized functions to their afferent arc parametrizations.

Definition at line 243 of file param_func.h.

std::vector<std::vector<FuncCtrlPt> > tuw::ParamFuncs::funcCtrlPt_

protected

Stores the control points for all the parametrized functions.

Definition at line 237 of file param_func.h.

std::vector<std::vector<double> > tuw::ParamFuncs::funcCtrlPtArc_

private

Stores the control points arc parameters for all the parametrized functions.

Definition at line 240 of file param_func.h.

std::vector<FuncEvalModesFlags> tuw::ParamFuncs::funcEvalReq_

protected

Flags for required function computation modes.

Definition at line 234 of file param_func.h.

double tuw::ParamFuncs::funcsArcBegin_

protected

Arc parametrization at the beginning of the functions domain definitions (common for all functions).

Definition at line 246 of file param_func.h.

double tuw::ParamFuncs::funcsArcEnd_

protected

Arc parametrization at the end of the functions domain definitions (common for all functions).

Definition at line 249 of file param_func.h.

double tuw::ParamFuncs::funcsArcEval_

protected

Arc parametrization at the evaluation point (set by setEvalArc)/.

Definition at line 252 of file param_func.h.

constexpr const std::size_t tuw::ParamFuncs::nrModesMax_ = asInt(FuncEvalMode::ENUM_SIZE) - 1

static

Maximum number of computation modes (except the parametric function itself FUNC). Currently 4 other choices supported.

See also: FuncEvalMode.

Definition at line 92 of file param_func.h.

std::vector<ParamFuncsStructure> tuw::ParamFuncs::paramFuncsStructure_

protected

Initialization structure "store" variable.

Definition at line 255 of file param_func.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
