#include "fec_ecat.h"
#include <dev.h>
#include <kern.h>
#include <string.h>
#include <uassert.h>
#include <eth/fec_buffer.h>
#include <eth/phy/mii.h>
#include <bsp.h>
#include <config.h>

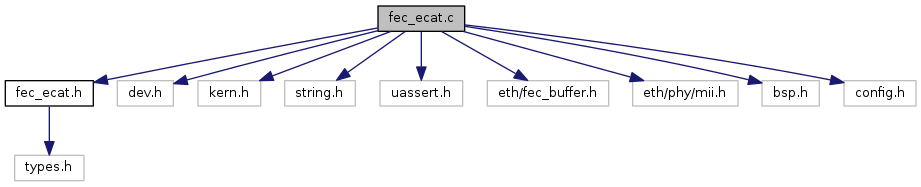

Include dependency graph for fec_ecat.c:

Classes
struct	fec

struct	fec_cfg

struct	fec_mac_t

struct	fec_mib

struct	reg_fec

Macros
#define	DELAY(ms) task_delay (tick_from_ms (ms) + 1)

#define	DPRINT(...)

#define	DUMP_PACKET(p, l)

#define	ETH_PHY_ADDRESS 0x1 /* Default jumper setting on TWR-K60F */

#define	ETHERNET_FCS_SIZE_IN_BYTES 4 /* Frame Check Sequence (32-bit CRC) */

#define	FEC_ALLIGNED __attribute__((section(".dma"),aligned(16)))

#define	FEC_ECR_DBSWP (0x00000100)

#define	FEC_ECR_ETHER_EN (0x00000002)

#define	FEC_ECR_RESET (0x00000001)

#define	FEC_EIR_BABR (0x40000000)

#define	FEC_EIR_BABT (0x20000000)

#define	FEC_EIR_CLEAR_ALL (0xFFF80000)

#define	FEC_EIR_EBERR (0x00400000)

#define	FEC_EIR_GRA (0x10000000)

#define	FEC_EIR_HBERR (0x80000000)

#define	FEC_EIR_LC (0x00200000)

#define	FEC_EIR_MII (0x00800000)

#define	FEC_EIR_RL (0x00100000)

#define	FEC_EIR_RXB (0x01000000)

#define	FEC_EIR_RXF (0x02000000)

#define	FEC_EIR_TXB (0x04000000)

#define	FEC_EIR_TXF (0x08000000)

#define	FEC_EIR_UN (0x00080000)

#define	FEC_EMRBR_R_BUF_SIZE(x) (((x)&0x7F)<<4)

#define	FEC_ERDSR_R_DES_START(x) (((x)&0x3FFFFFFF)<<2)

#define	FEC_ETDSR_X_DES_START(x) (((x)&0x3FFFFFFF)<<2)

#define	FEC_FRBR_R_BOUND(x) (((x)&0xFF)<<2)

#define	FEC_FRSR_R_FSTART(x) (((x)&0xFF)<<2)

#define	FEC_MIBC_MIB_DISABLE (0x80000000)

#define	FEC_MIBC_MIB_IDLE (0x40000000)

#define	FEC_MII_DATA_MASK 0x0000FFFF

#define	FEC_MII_DATA_OFF 0

#define	FEC_MII_FRAME (FEC_MII_ST \| FEC_MII_TA)

#define	FEC_MII_GET_DATA(v) (((v) >> FEC_MII_DATA_OFF) & FEC_MII_DATA_MASK)

#define	FEC_MII_OP(x) (((x) & FEC_MII_OP_MASK) << FEC_MII_OP_OFF)

#define	FEC_MII_OP_MASK 0x03

#define	FEC_MII_OP_OFF 28

#define	FEC_MII_OP_RD 0x02

#define	FEC_MII_OP_WR 0x01

#define	FEC_MII_PA(pa) (((pa) & FEC_MII_PA_MASK) << FEC_MII_PA_OFF)

#define	FEC_MII_PA_MASK 0xFF

#define	FEC_MII_PA_OFF 23

#define	FEC_MII_RA(ra) (((ra) & FEC_MII_RA_MASK) << FEC_MII_RA_OFF)

#define	FEC_MII_RA_MASK 0xFF

#define	FEC_MII_RA_OFF 18

#define	FEC_MII_READ(pa, ra)

#define	FEC_MII_SET_DATA(v) (((v) & FEC_MII_DATA_MASK) << FEC_MII_DATA_OFF)

#define	FEC_MII_ST 0x40000000

#define	FEC_MII_TA 0x00020000

#define	FEC_MII_TICK 1

#define	FEC_MII_TIMEOUT 10

#define	FEC_MII_WRITE(pa, ra, v)

#define	FEC_MIN_MODULE_CLOCK_Hz (25 * 1000 * 1000)

#define	FEC_MMFR_DATA(x) (((x)&0xFFFF))

#define	FEC_MMFR_OP_RD (0x20000000)

#define	FEC_MMFR_OP_WR (0x10000000)

#define	FEC_MMFR_PA(x) (((x)&0x1F)<<23)

#define	FEC_MMFR_RA(x) (((x)&0x1F)<<18)

#define	FEC_MMFR_ST(x) (((x)&0x03)<<30)

#define	FEC_MMFR_ST_01 (0x40000000)

#define	FEC_MMFR_TA(x) (((x)&0x03)<<16)

#define	FEC_MMFR_TA_10 (0x00020000)

#define	FEC_MODULE_CLOCK_Hz CFG_IPG_CLOCK

#define	FEC_MSCR_DIS_PREAMBLE (0x00000080)

#define	FEC_MSCR_MII_SPEED(x) (((x)&0x3F)<<1)

#define	FEC_OPD_OPCODE(x) (((x)&0x0000FFFF)<<16)

#define	FEC_OPD_PAUSE_DUR(x) (((x)&0x0000FFFF)<<0)

#define	FEC_PAUR_PADDR2(x) (((x)&0xFFFF)<<16)

#define	FEC_PAUR_TYPE(x) ((x)&0xFFFF)

#define	FEC_RCR_BC_REJ (0x00000010)

#define	FEC_RCR_CNTL_FRM_ENA (0x00008000)

#define	FEC_RCR_CRC_FWD (0x00004000)

#define	FEC_RCR_DRT (0x00000002)

#define	FEC_RCR_FCE (0x00000020)

#define	FEC_RCR_GRS (0x80000000)

#define	FEC_RCR_LOOP (0x00000001)

#define	FEC_RCR_MAX_FL(x) (((x)&0x7FF)<<16)

#define	FEC_RCR_MII_MODE (0x00000004)

#define	FEC_RCR_NO_LGTH_CHECK (0x40000000)

#define	FEC_RCR_PAD_EN (0x00001000)

#define	FEC_RCR_PAUSE_FWD (0x00002000)

#define	FEC_RCR_PROM (0x00000008)

#define	FEC_RCR_RGMII_ENA (0x00000040)

#define	FEC_RCR_RMII_10T (0x00000200)

#define	FEC_RCR_RMII_ECHO (0x00000800)

#define	FEC_RCR_RMII_LOOP (0x00000400)

#define	FEC_RCR_RMII_MODE (0x00000100)

#define	FEC_RCR_SGMII_ENA (0x00000080)

#define	FEC_RDAR_R_DES_ACTIVE (0x01000000)

#define	FEC_TCR_FDEN (0x00000004)

#define	FEC_TCR_GTS (0x00000001)

#define	FEC_TCR_HBC (0x00000002)

#define	FEC_TCR_RFC_PAUSE (0x00000010)

#define	FEC_TCR_TFC_PAUSE (0x00000008)

#define	FEC_TDAR_X_DES_ACTIVE (0x01000000)

#define	FEC_TFWR_STR_FWD BIT (8) /* Present on ENET but not on FEC */

#define	FEC_TFWR_X_WMRK(x) ((x)&0x03)

#define	FEC_TFWR_X_WMRK_128 (0x02)

#define	FEC_TFWR_X_WMRK_192 (0x03)

#define	FEC_TFWR_X_WMRK_64 (0x01)

#define	NUM_BUFFERS 2

#define	PKT_MAXBUF_SIZE 1518

Typedefs
typedef struct fec_cfg	fec_cfg_t

typedef struct fec_mac_t	fec_mac_t

typedef struct fec_mib	fec_mib_t

typedef enum fec_phy_inteface	fec_phy_inteface_t

typedef struct fec	fec_t

typedef struct reg_fec	reg_fec_t

Enumerations
enum	fec_phy_inteface { FEC_PHY_MII, FEC_PHY_RMII, FEC_PHY_RGMII }

Functions
	COMPILETIME_ASSERT (sizeof(fec_mib_t)==0x100)

	COMPILETIME_ASSERT (offsetof(reg_fec_t, emrbr)==0x188)

	COMPILETIME_ASSERT (offsetof(reg_fec_t, tx_almost_full)==0x1A8)

	COMPILETIME_ASSERT (offsetof(reg_fec_t, fec_miigsk_cfgr)==0x300)

	COMPILETIME_ASSERT (offsetof(reg_fec_t, smac)==0x500)

	COMPILETIME_ASSERT (offsetof(reg_fec_t, smac[3])==0x518)

	COMPILETIME_ASSERT (FEC_MODULE_CLOCK_Hz >=FEC_MIN_MODULE_CLOCK_Hz)

static void	fec_ecat_hotplug (void)

int	fec_ecat_init (const fec_mac_address_t *mac_address, bool phy_loopback_mode)

static void	fec_ecat_init_hw (const fec_mac_address_t *mac_address)

static dev_state_t	fec_ecat_probe (void)

static uint16_t	fec_ecat_read_phy (void *arg, uint8_t address, uint8_t reg)

int	fec_ecat_recv (void *buffer, size_t buffer_length)

int	fec_ecat_send (const void *payload, size_t tot_len)

static void	fec_ecat_write_phy (void *arg, uint8_t address, uint8_t reg, uint16_t value)

Variables
static fec_t *	fec

static fec_buffer_bd_t fec_tx_bd[NUM_BUFFERS]	FEC_ALLIGNED

Macro Definition Documentation

#define DELAY ( ms ) task_delay (tick_from_ms (ms) + 1)

Definition at line 49 of file fec_ecat.c.

#define DPRINT ( ... )

Definition at line 38 of file fec_ecat.c.

#define DUMP_PACKET	(	p,
		l
	)

Definition at line 44 of file fec_ecat.c.

#define ETH_PHY_ADDRESS 0x1 /* Default jumper setting on TWR-K60F */

Definition at line 51 of file fec_ecat.c.

#define ETHERNET_FCS_SIZE_IN_BYTES 4 /* Frame Check Sequence (32-bit CRC) */

Definition at line 47 of file fec_ecat.c.

#define FEC_ALLIGNED __attribute__((section(".dma"),aligned(16)))

Definition at line 54 of file fec_ecat.c.

#define FEC_ECR_DBSWP (0x00000100)

Definition at line 225 of file fec_ecat.c.

#define FEC_ECR_ETHER_EN (0x00000002)

Definition at line 226 of file fec_ecat.c.

#define FEC_ECR_RESET (0x00000001)

Definition at line 227 of file fec_ecat.c.

#define FEC_EIR_BABR (0x40000000)

Definition at line 205 of file fec_ecat.c.

#define FEC_EIR_BABT (0x20000000)

Definition at line 206 of file fec_ecat.c.

#define FEC_EIR_CLEAR_ALL (0xFFF80000)

Definition at line 203 of file fec_ecat.c.

#define FEC_EIR_EBERR (0x00400000)

Definition at line 213 of file fec_ecat.c.

#define FEC_EIR_GRA (0x10000000)

Definition at line 207 of file fec_ecat.c.

#define FEC_EIR_HBERR (0x80000000)

Definition at line 204 of file fec_ecat.c.

#define FEC_EIR_LC (0x00200000)

Definition at line 214 of file fec_ecat.c.

#define FEC_EIR_MII (0x00800000)

Definition at line 212 of file fec_ecat.c.

#define FEC_EIR_RL (0x00100000)

Definition at line 215 of file fec_ecat.c.

#define FEC_EIR_RXB (0x01000000)

Definition at line 211 of file fec_ecat.c.

#define FEC_EIR_RXF (0x02000000)

Definition at line 210 of file fec_ecat.c.

#define FEC_EIR_TXB (0x04000000)

Definition at line 209 of file fec_ecat.c.

#define FEC_EIR_TXF (0x08000000)

Definition at line 208 of file fec_ecat.c.

#define FEC_EIR_UN (0x00080000)

Definition at line 216 of file fec_ecat.c.

#define FEC_EMRBR_R_BUF_SIZE ( x ) (((x)&0x7F)<<4)

Definition at line 304 of file fec_ecat.c.

#define FEC_ERDSR_R_DES_START ( x ) (((x)&0x3FFFFFFF)<<2)

Definition at line 298 of file fec_ecat.c.

#define FEC_ETDSR_X_DES_START ( x ) (((x)&0x3FFFFFFF)<<2)

Definition at line 301 of file fec_ecat.c.

#define FEC_FRBR_R_BOUND ( x ) (((x)&0xFF)<<2)

Definition at line 292 of file fec_ecat.c.

#define FEC_FRSR_R_FSTART ( x ) (((x)&0xFF)<<2)

Definition at line 295 of file fec_ecat.c.

#define FEC_MIBC_MIB_DISABLE (0x80000000)

Definition at line 245 of file fec_ecat.c.

#define FEC_MIBC_MIB_IDLE (0x40000000)

Definition at line 246 of file fec_ecat.c.

#define FEC_MII_DATA_MASK 0x0000FFFF

Definition at line 320 of file fec_ecat.c.

#define FEC_MII_DATA_OFF 0

Definition at line 319 of file fec_ecat.c.

#define FEC_MII_FRAME (FEC_MII_ST | FEC_MII_TA)

Definition at line 322 of file fec_ecat.c.

#define FEC_MII_GET_DATA ( v ) (((v) >> FEC_MII_DATA_OFF) & FEC_MII_DATA_MASK)

Definition at line 327 of file fec_ecat.c.

#define FEC_MII_OP ( x ) (((x) & FEC_MII_OP_MASK) << FEC_MII_OP_OFF)

Definition at line 323 of file fec_ecat.c.

#define FEC_MII_OP_MASK 0x03

Definition at line 311 of file fec_ecat.c.

#define FEC_MII_OP_OFF 28

Definition at line 310 of file fec_ecat.c.

#define FEC_MII_OP_RD 0x02

Definition at line 312 of file fec_ecat.c.

#define FEC_MII_OP_WR 0x01

Definition at line 313 of file fec_ecat.c.

#define FEC_MII_PA ( pa ) (((pa) & FEC_MII_PA_MASK) << FEC_MII_PA_OFF)

Definition at line 324 of file fec_ecat.c.

#define FEC_MII_PA_MASK 0xFF

Definition at line 315 of file fec_ecat.c.

#define FEC_MII_PA_OFF 23

Definition at line 314 of file fec_ecat.c.

#define FEC_MII_RA ( ra ) (((ra) & FEC_MII_RA_MASK) << FEC_MII_RA_OFF)

Definition at line 325 of file fec_ecat.c.

#define FEC_MII_RA_MASK 0xFF

Definition at line 317 of file fec_ecat.c.

#define FEC_MII_RA_OFF 18

Definition at line 316 of file fec_ecat.c.

#define FEC_MII_READ	(	pa,
		ra
	)

Value:

((FEC_MII_FRAME | FEC_MII_OP(FEC_MII_OP_RD)) |\

FEC_MII_PA(pa) | FEC_MII_RA(ra))

FEC_MII_FRAME

#define FEC_MII_FRAME

Definition: fec_ecat.c:322

FEC_MII_OP

#define FEC_MII_OP(x)

Definition: fec_ecat.c:323

FEC_MII_RA

#define FEC_MII_RA(ra)

Definition: fec_ecat.c:325

FEC_MII_OP_RD

#define FEC_MII_OP_RD

Definition: fec_ecat.c:312

FEC_MII_PA

#define FEC_MII_PA(pa)

Definition: fec_ecat.c:324

Definition at line 328 of file fec_ecat.c.

#define FEC_MII_SET_DATA ( v ) (((v) & FEC_MII_DATA_MASK) << FEC_MII_DATA_OFF)

Definition at line 326 of file fec_ecat.c.

#define FEC_MII_ST 0x40000000

Definition at line 309 of file fec_ecat.c.

#define FEC_MII_TA 0x00020000

Definition at line 318 of file fec_ecat.c.

#define FEC_MII_TICK 1

Definition at line 334 of file fec_ecat.c.

#define FEC_MII_TIMEOUT 10

Definition at line 333 of file fec_ecat.c.

#define FEC_MII_WRITE	(	pa,
		ra,
		v
	)

Value:

(FEC_MII_FRAME | FEC_MII_OP(FEC_MII_OP_WR)|\

FEC_MII_PA(pa) | FEC_MII_RA(ra) | FEC_MII_SET_DATA(v))

FEC_MII_FRAME

#define FEC_MII_FRAME

Definition: fec_ecat.c:322

FEC_MII_OP

#define FEC_MII_OP(x)

Definition: fec_ecat.c:323

FEC_MII_RA

#define FEC_MII_RA(ra)

Definition: fec_ecat.c:325

FEC_MII_SET_DATA

#define FEC_MII_SET_DATA(v)

Definition: fec_ecat.c:326

FEC_MII_PA

#define FEC_MII_PA(pa)

Definition: fec_ecat.c:324

FEC_MII_OP_WR

#define FEC_MII_OP_WR

Definition: fec_ecat.c:313

Definition at line 330 of file fec_ecat.c.

#define FEC_MIN_MODULE_CLOCK_Hz (25 * 1000 * 1000)

Definition at line 63 of file fec_ecat.c.

#define FEC_MMFR_DATA ( x ) (((x)&0xFFFF))

Definition at line 230 of file fec_ecat.c.

#define FEC_MMFR_OP_RD (0x20000000)

Definition at line 233 of file fec_ecat.c.

#define FEC_MMFR_OP_WR (0x10000000)

Definition at line 234 of file fec_ecat.c.

#define FEC_MMFR_PA ( x ) (((x)&0x1F)<<23)

Definition at line 235 of file fec_ecat.c.

#define FEC_MMFR_RA ( x ) (((x)&0x1F)<<18)

Definition at line 236 of file fec_ecat.c.

#define FEC_MMFR_ST ( x ) (((x)&0x03)<<30)

Definition at line 231 of file fec_ecat.c.

#define FEC_MMFR_ST_01 (0x40000000)

Definition at line 232 of file fec_ecat.c.

#define FEC_MMFR_TA ( x ) (((x)&0x03)<<16)

Definition at line 237 of file fec_ecat.c.

#define FEC_MMFR_TA_10 (0x00020000)

Definition at line 238 of file fec_ecat.c.

#define FEC_MODULE_CLOCK_Hz CFG_IPG_CLOCK

Definition at line 66 of file fec_ecat.c.

#define FEC_MSCR_DIS_PREAMBLE (0x00000080)

Definition at line 241 of file fec_ecat.c.

#define FEC_MSCR_MII_SPEED ( x ) (((x)&0x3F)<<1)

Definition at line 242 of file fec_ecat.c.

#define FEC_OPD_OPCODE ( x ) (((x)&0x0000FFFF)<<16)

Definition at line 282 of file fec_ecat.c.

#define FEC_OPD_PAUSE_DUR ( x ) (((x)&0x0000FFFF)<<0)

Definition at line 281 of file fec_ecat.c.

#define FEC_PAUR_PADDR2 ( x ) (((x)&0xFFFF)<<16)

Definition at line 277 of file fec_ecat.c.

#define FEC_PAUR_TYPE ( x ) ((x)&0xFFFF)

Definition at line 278 of file fec_ecat.c.

#define FEC_RCR_BC_REJ (0x00000010)

Definition at line 263 of file fec_ecat.c.

#define FEC_RCR_CNTL_FRM_ENA (0x00008000)

Definition at line 252 of file fec_ecat.c.

#define FEC_RCR_CRC_FWD (0x00004000)

Definition at line 253 of file fec_ecat.c.

#define FEC_RCR_DRT (0x00000002)

Definition at line 266 of file fec_ecat.c.

#define FEC_RCR_FCE (0x00000020)

Definition at line 262 of file fec_ecat.c.

#define FEC_RCR_GRS (0x80000000)

Definition at line 249 of file fec_ecat.c.

#define FEC_RCR_LOOP (0x00000001)

Definition at line 267 of file fec_ecat.c.

#define FEC_RCR_MAX_FL ( x ) (((x)&0x7FF)<<16)

Definition at line 251 of file fec_ecat.c.

#define FEC_RCR_MII_MODE (0x00000004)

Definition at line 265 of file fec_ecat.c.

#define FEC_RCR_NO_LGTH_CHECK (0x40000000)

Definition at line 250 of file fec_ecat.c.

#define FEC_RCR_PAD_EN (0x00001000)

Definition at line 255 of file fec_ecat.c.

#define FEC_RCR_PAUSE_FWD (0x00002000)

Definition at line 254 of file fec_ecat.c.

#define FEC_RCR_PROM (0x00000008)

Definition at line 264 of file fec_ecat.c.

#define FEC_RCR_RGMII_ENA (0x00000040)

Definition at line 261 of file fec_ecat.c.

#define FEC_RCR_RMII_10T (0x00000200)

Definition at line 258 of file fec_ecat.c.

#define FEC_RCR_RMII_ECHO (0x00000800)

Definition at line 256 of file fec_ecat.c.

#define FEC_RCR_RMII_LOOP (0x00000400)

Definition at line 257 of file fec_ecat.c.

#define FEC_RCR_RMII_MODE (0x00000100)

Definition at line 259 of file fec_ecat.c.

#define FEC_RCR_SGMII_ENA (0x00000080)

Definition at line 260 of file fec_ecat.c.

#define FEC_RDAR_R_DES_ACTIVE (0x01000000)

Definition at line 219 of file fec_ecat.c.

#define FEC_TCR_FDEN (0x00000004)

Definition at line 272 of file fec_ecat.c.

#define FEC_TCR_GTS (0x00000001)

Definition at line 274 of file fec_ecat.c.

#define FEC_TCR_HBC (0x00000002)

Definition at line 273 of file fec_ecat.c.

#define FEC_TCR_RFC_PAUSE (0x00000010)

Definition at line 270 of file fec_ecat.c.

#define FEC_TCR_TFC_PAUSE (0x00000008)

Definition at line 271 of file fec_ecat.c.

#define FEC_TDAR_X_DES_ACTIVE (0x01000000)

Definition at line 222 of file fec_ecat.c.

#define FEC_TFWR_STR_FWD BIT (8) /* Present on ENET but not on FEC */

Definition at line 285 of file fec_ecat.c.

#define FEC_TFWR_X_WMRK ( x ) ((x)&0x03)

Definition at line 286 of file fec_ecat.c.

#define FEC_TFWR_X_WMRK_128 (0x02)

Definition at line 288 of file fec_ecat.c.

#define FEC_TFWR_X_WMRK_192 (0x03)

Definition at line 289 of file fec_ecat.c.

#define FEC_TFWR_X_WMRK_64 (0x01)

Definition at line 287 of file fec_ecat.c.

#define NUM_BUFFERS 2

Definition at line 53 of file fec_ecat.c.

#define PKT_MAXBUF_SIZE 1518

Definition at line 339 of file fec_ecat.c.

Typedef Documentation

typedef struct fec_cfg fec_cfg_t

typedef struct fec_mac_t fec_mac_t

typedef struct fec_mib fec_mib_t

typedef enum fec_phy_inteface fec_phy_inteface_t

typedef struct fec fec_t

typedef struct reg_fec reg_fec_t

Enumeration Type Documentation

enum fec_phy_inteface

Enumerator
FEC_PHY_MII	MII, Media Independent Interface 4-bit operating at 25 Mhz
FEC_PHY_RMII	RMII, Reduced Media Independent Interface 2-bit operating at 50 Mhz
FEC_PHY_RGMII

Definition at line 343 of file fec_ecat.c.

Function Documentation

COMPILETIME_ASSERT ( sizeof(fec_mib_t) = =0x100 )

COMPILETIME_ASSERT ( offsetof(reg_fec_t, emrbr) = =0x188 )

COMPILETIME_ASSERT ( offsetof(reg_fec_t, tx_almost_full) = =0x1A8 )

COMPILETIME_ASSERT ( offsetof(reg_fec_t, fec_miigsk_cfgr) = =0x300 )

COMPILETIME_ASSERT ( offsetof(reg_fec_t, smac) = =0x500 )

COMPILETIME_ASSERT ( offsetof(reg_fec_t, smac[3]) = =0x518 )

COMPILETIME_ASSERT ( FEC_MODULE_CLOCK_Hz >= FEC_MIN_MODULE_CLOCK_Hz )

static void fec_ecat_hotplug ( void )

static

Definition at line 666 of file fec_ecat.c.

static void fec_ecat_init_hw ( const fec_mac_address_t * mac_address )

static

Definition at line 501 of file fec_ecat.c.

static dev_state_t fec_ecat_probe ( void )

static

Definition at line 742 of file fec_ecat.c.

static uint16_t fec_ecat_read_phy	(	void *	arg,
		uint8_t	address,
		uint8_t	reg
	)

static

Definition at line 476 of file fec_ecat.c.

static void fec_ecat_write_phy	(	void *	arg,
		uint8_t	address,
		uint8_t	reg,
		uint16_t	value
	)

static

Definition at line 489 of file fec_ecat.c.

Variable Documentation

fec_t* fec

static

Definition at line 385 of file fec_ecat.c.

uint8_t fec_rx_data [NUM_BUFFERS * RX_BUFFER_SIZE] FEC_ALLIGNED

static

Definition at line 378 of file fec_ecat.c.

Classes

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

Typedef Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation
