demo-velocity-acceleration.cpp File Reference

Very simple demonstration program using the SDHLibrary-CPP: Make an attached SDH move one finger in "velocity with acceleration ramp" control mode. See __help__ and online help ("-h" or "--help") for available options. More...

#include <iostream>
#include <vector>
#include "sdh/sdh.h"
#include "sdh/util.h"
#include "sdh/sdhlibrary_settings.h"
#include "sdh/basisdef.h"
#include "sdhoptions.h"

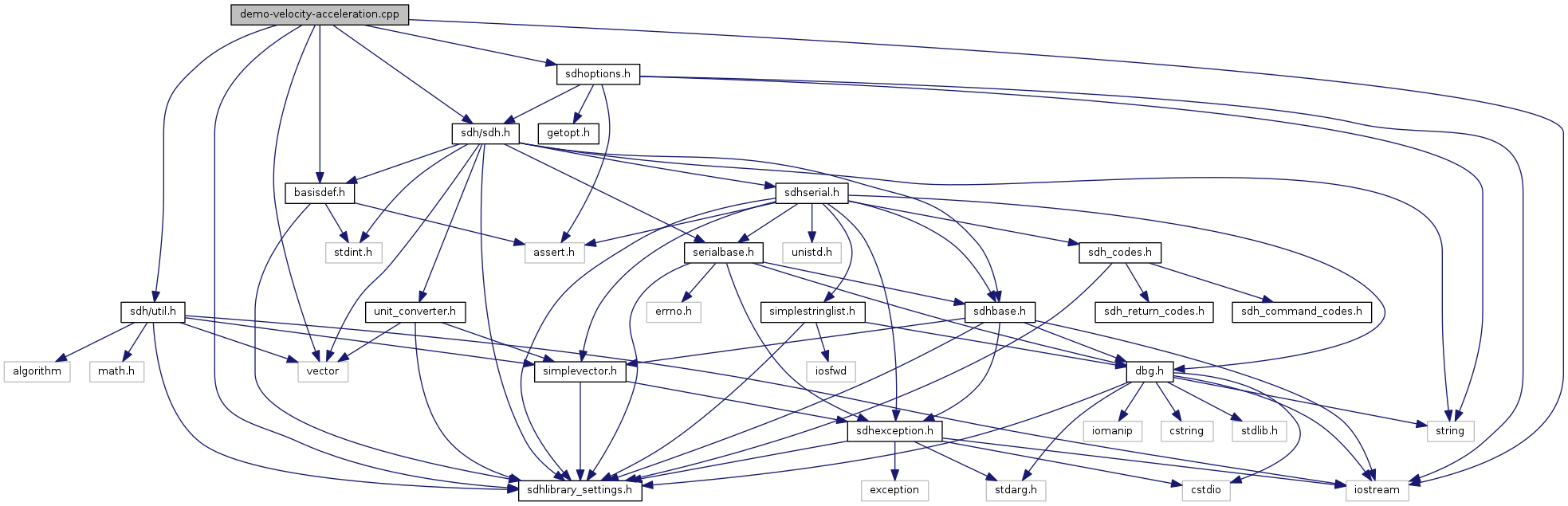

Include dependency graph for demo-velocity-acceleration.cpp:

Go to the source code of this file.

Functions
int	main (int argc, char **argv)

Variables
char const *	usage
Some informative variables
char const *	__help__
char const *	__author__ = "Dirk Osswald: dirk.osswald@de.schunk.com"
char const *	__url__ = "http://www.schunk.com"
char const *	__version__ = "$Id: demo-velocity-acceleration.cpp 10351 2013-06-18 16:28:14Z Osswald2 $"
char const *	__copyright__ = "Copyright (c) 2007 SCHUNK GmbH & Co. KG"

Detailed Description

Very simple demonstration program using the SDHLibrary-CPP: Make an attached SDH move one finger in "velocity with acceleration ramp" control mode. See __help__ and online help ("-h" or "--help") for available options.

General file information

Author

Dirk Osswald

Date

2007-01-18

Copyright

Copyright (c) 2007 SCHUNK GmbH & Co. KG

---

Definition in file demo-velocity-acceleration.cpp.

Function Documentation

int main	(	int	argc,
		char **	argv
	)

Definition at line 99 of file demo-velocity-acceleration.cpp.

Variable Documentation

char const* __author__ = "Dirk Osswald: dirk.osswald@de.schunk.com"

Definition at line 87 of file demo-velocity-acceleration.cpp.

char const* __copyright__ = "Copyright (c) 2007 SCHUNK GmbH & Co. KG"

Definition at line 90 of file demo-velocity-acceleration.cpp.

char const* __help__

Initial value:

=
    "Make the SDH move one finger in \"velocity with acceleration ramp\" control mode.\n(C++ demo application using the SDHLibrary-CPP library.)\n"
    "\n"
    "  - Make SDH connected via Ethernet move.\n"
    "    The SDH has IP-Address 192.168.1.42 and is attached to TCP port 23.\n"
    "    (Requires at least SDH-firmware v0.0.3.1)\n"
    "    > demo-velocity-acceleration --tcp=192.168.1.42:23\n"
    "     \n"
    "- Example usage:\n"
    "  - Make SDH connected to port 2 = COM3 move:\n"
    "    > demo-velocity-acceleration -p 2\n"
    "     \n"
    "  - Make SDH connected to USB to RS232 converter 0 move:\n"
    "    > demo-velocity-acceleration --sdh_rs_device=/dev/ttyUSB0 \n"
    "     \n"
    "  - Get the version info of both the joint controllers and the tactile \n"
    "    sensor firmware from an SDH connected via Ethernet.\n"
    "    The joint controllers and the tactile sensors have a common IP-Address,\n"
    "    here 192.168.1.42. The SDH controller is attached to the \n"
    "    default TCP port 23 and the tactile sensors to the default TCP port 13000.\n"
    "    (Requires at least SDH-firmware v0.0.3.2)\n"
    "    > demo-velocity-acceleration --tcp=192.168.1.42 --dsa_tcp -v\n"
    "     \n"
    "  - Get the version info of an SDH connected to port 2 = COM3 \n"
    "    > demo-velocity-acceleration --port=2 -v\n"

Definition at line 61 of file demo-velocity-acceleration.cpp.

char const* __url__ = "http://www.schunk.com"

Definition at line 88 of file demo-velocity-acceleration.cpp.

char const* __version__ = "$Id: demo-velocity-acceleration.cpp 10351 2013-06-18 16:28:14Z Osswald2 $"

Definition at line 89 of file demo-velocity-acceleration.cpp.

char const* usage

Initial value:

=
  "usage: demo-velocity-acceleration [options]\n"

Definition at line 95 of file demo-velocity-acceleration.cpp.
