#include <OutPortConnector.h>

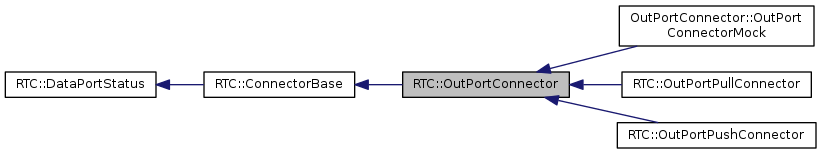

Inheritance diagram for RTC::OutPortConnector:

[legend]

Public Member Functions
virtual ReturnCode	disconnect ()=0
	Disconnect connection. More...

virtual CdrBufferBase *	getBuffer ()=0
	Getting Buffer. More...

const char *	id ()
	Getting Connector ID. More...

virtual bool	isLittleEndian ()
	return it whether endian setting. More...

const char *	name ()
	Getting Connector name. More...

DATAPORTSTATUS_ENUM	OutPortConnector (ConnectorInfo &info)
	Constructor. More...

const ConnectorInfo &	profile ()
	Getting Profile. More...

virtual void	setEndian (const bool endian_type)
	Setting an endian type. More...

virtual ReturnCode	write (const cdrMemoryStream &data)=0
	Destructor. More...

template<class DataType >
ReturnCode	write (const DataType &data)
	The conversion template of the data type. More...

virtual	~OutPortConnector ()
	Destructor. More...

Public Member Functions inherited from RTC::ConnectorBase
virtual void	activate ()=0
	Connector activation. More...

virtual void	deactivate ()=0
	Connector deactivation. More...

virtual	~ConnectorBase ()
	Destructor. More...

Protected Attributes
cdrMemoryStream	m_cdr
	CDR stream. More...

bool	m_littleEndian
	Connected Endian. More...

ConnectorInfo	m_profile
	PortProfile of the Port. More...

Logger	rtclog
	Logger stream. More...

Additional Inherited Members
Public Types inherited from RTC::DataPortStatus
enum	Enum { PORT_OK = 0, PORT_ERROR, BUFFER_ERROR, BUFFER_FULL, BUFFER_EMPTY, BUFFER_TIMEOUT, SEND_FULL, SEND_TIMEOUT, RECV_EMPTY, RECV_TIMEOUT, INVALID_ARGS, PRECONDITION_NOT_MET, CONNECTION_LOST, UNKNOWN_ERROR }
	DataPortStatus return codes. More...

Static Public Member Functions inherited from RTC::DataPortStatus
static const char *	toString (DataPortStatus::Enum status)
	Convert DataPortStatus into the string. More...

Detailed Description

OutPortConnector base class.

The base class to derive subclasses for OutPort's Push/Pull Connectors

Since: 1.0.0

Definition at line 48 of file OutPortConnector.h.

Constructor & Destructor Documentation

RTC::OutPortConnector::OutPortConnector ( ConnectorInfo & info )

Constructor.

Definition at line 31 of file OutPortConnector.cpp.

RTC::OutPortConnector::~OutPortConnector ( )

virtual

Destructor.

Definition at line 43 of file OutPortConnector.cpp.

Member Function Documentation

virtual ReturnCode RTC::OutPortConnector::disconnect ( )

pure virtual

Disconnect connection.

This operation disconnect this connection

Implements RTC::ConnectorBase.

Implemented in RTC::OutPortPushConnector, RTC::OutPortPullConnector, and OutPortConnector::OutPortConnectorMock.

virtual CdrBufferBase* RTC::OutPortConnector::getBuffer ( )

pure virtual

Getting Buffer.

This operation returns this connector's buffer

Implements RTC::ConnectorBase.

Implemented in RTC::OutPortPushConnector, RTC::OutPortPullConnector, and OutPortConnector::OutPortConnectorMock.

const char * RTC::OutPortConnector::id ( )

virtual

Getting Connector ID.

This operation returns Connector ID

Implements RTC::ConnectorBase.

Definition at line 78 of file OutPortConnector.cpp.

bool RTC::OutPortConnector::isLittleEndian ( )

virtual

return it whether endian setting.

return it whether endian setting is little

Returns: Return true in the case of "little", false in "big" than it.

Definition at line 129 of file OutPortConnector.cpp.

const char * RTC::OutPortConnector::name ( )

virtual

Getting Connector name.

This operation returns Connector name

Implements RTC::ConnectorBase.

Definition at line 97 of file OutPortConnector.cpp.

const ConnectorInfo & RTC::OutPortConnector::profile ( )

virtual

Getting Profile.

Getting ConnectorInfo.

This operation returns Connector Profile

This operation returns ConnectorInfo

Implements RTC::ConnectorBase.

Definition at line 59 of file OutPortConnector.cpp.

void RTC::OutPortConnector::setEndian ( const bool endian_type )

virtual

Setting an endian type.

This operation set this connector's endian type

Definition at line 116 of file OutPortConnector.cpp.

virtual ReturnCode RTC::OutPortConnector::write ( const cdrMemoryStream & data )

pure virtual

Destructor.

The write function to write data from OutPort to Buffer

Implemented in RTC::OutPortPushConnector, RTC::OutPortPullConnector, and OutPortConnector::OutPortConnectorMock.

template<class DataType >

ReturnCode RTC::OutPortConnector::write ( const DataType & data )

inline

The conversion template of the data type.

This is convert it from Timed* into CdrStream.

Definition at line 209 of file OutPortConnector.h.

Member Data Documentation

cdrMemoryStream RTC::OutPortConnector::m_cdr

protected

CDR stream.

Definition at line 250 of file OutPortConnector.h.

bool RTC::OutPortConnector::m_littleEndian

protected

Connected Endian.

Definition at line 242 of file OutPortConnector.h.

ConnectorInfo RTC::OutPortConnector::m_profile

protected

PortProfile of the Port.

Definition at line 234 of file OutPortConnector.h.

Logger RTC::OutPortConnector::rtclog

protected

Logger stream.

Definition at line 226 of file OutPortConnector.h.

The documentation for this class was generated from the following files:
