The ManipulatedCameraFrame class represents a ManipulatedFrame with Camera specific mouse bindings. More...

#include <QGLViewer/manipulatedCameraFrame.h>

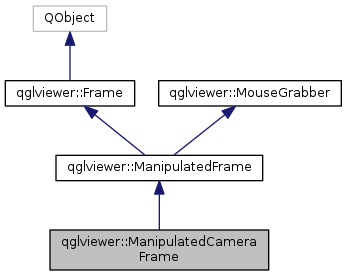

Inheritance diagram for qglviewer::ManipulatedCameraFrame:

Public Member Functions
	ManipulatedCameraFrame ()

	ManipulatedCameraFrame (const ManipulatedCameraFrame &mcf)

ManipulatedCameraFrame &	operator= (const ManipulatedCameraFrame &mcf)

virtual	~ManipulatedCameraFrame ()

Public Member Functions inherited from qglviewer::ManipulatedFrame
	ManipulatedFrame ()

	ManipulatedFrame (const ManipulatedFrame &mf)

ManipulatedFrame &	operator= (const ManipulatedFrame &mf)

virtual	~ManipulatedFrame ()

void	setTranslationSensitivity (float sensitivity)

void	setSpinningSensitivity (float sensitivity)

void	setWheelSensitivity (float sensitivity)

float	rotationSensitivity () const

float	translationSensitivity () const

float	spinningSensitivity () const

float	wheelSensitivity () const

bool	isSpinning () const

Quaternion	spinningQuaternion () const

bool	isManipulated () const

virtual void	checkIfGrabsMouse (int x, int y, const Camera *const camera)

Public Member Functions inherited from qglviewer::Frame
	Frame ()

	Frame (const Frame &frame)

Frame &	operator= (const Frame &frame)

virtual	~Frame ()

	Frame (const Vec &position, const Quaternion &orientation)

void	setPosition (const Vec &position)

void	setPosition (float x, float y, float z)

void	setPositionWithConstraint (Vec &position)

void	setOrientation (const Quaternion &orientation)

void	setOrientation (double q0, double q1, double q2, double q3)

void	setOrientationWithConstraint (Quaternion &orientation)

void	setPositionAndOrientation (const Vec &position, const Quaternion &orientation)

void	setPositionAndOrientationWithConstraint (Vec &position, Quaternion &orientation)

Vec	position () const

Quaternion	orientation () const

void	getPosition (float &x, float &y, float &z) const

void	getOrientation (double &q0, double &q1, double &q2, double &q3) const

void	setTranslation (const Vec &translation)

void	setTranslation (float x, float y, float z)

void	setTranslationWithConstraint (Vec &translation)

void	setRotation (const Quaternion &rotation)

void	setRotation (double q0, double q1, double q2, double q3)

void	setRotationWithConstraint (Quaternion &rotation)

void	setTranslationAndRotation (const Vec &translation, const Quaternion &rotation)

void	setTranslationAndRotationWithConstraint (Vec &translation, Quaternion &rotation)

Vec	translation () const

Quaternion	rotation () const

void	getTranslation (float &x, float &y, float &z) const

void	getRotation (double &q0, double &q1, double &q2, double &q3) const

const Frame *	referenceFrame () const

void	setReferenceFrame (const Frame *const refFrame)

bool	settingAsReferenceFrameWillCreateALoop (const Frame *const frame)

void	translate (Vec &t)

void	translate (const Vec &t)

void	translate (float x, float y, float z)

void	translate (float &x, float &y, float &z)

void	rotate (Quaternion &q)

void	rotate (const Quaternion &q)

void	rotate (double q0, double q1, double q2, double q3)

void	rotate (double &q0, double &q1, double &q2, double &q3)

void	rotateAroundPoint (Quaternion &rotation, const Vec &point)

void	rotateAroundPoint (const Quaternion &rotation, const Vec &point)

void	alignWithFrame (const Frame *const frame, bool move=false, float threshold=0.85f)

void	projectOnLine (const Vec &origin, const Vec &direction)

Vec	coordinatesOf (const Vec &src) const

Vec	inverseCoordinatesOf (const Vec &src) const

Vec	localCoordinatesOf (const Vec &src) const

Vec	localInverseCoordinatesOf (const Vec &src) const

Vec	coordinatesOfIn (const Vec &src, const Frame *const in) const

Vec	coordinatesOfFrom (const Vec &src, const Frame *const from) const

void	getCoordinatesOf (const float src[3], float res[3]) const

void	getInverseCoordinatesOf (const float src[3], float res[3]) const

void	getLocalCoordinatesOf (const float src[3], float res[3]) const

void	getLocalInverseCoordinatesOf (const float src[3], float res[3]) const

void	getCoordinatesOfIn (const float src[3], float res[3], const Frame *const in) const

void	getCoordinatesOfFrom (const float src[3], float res[3], const Frame *const from) const

Vec	transformOf (const Vec &src) const

Vec	inverseTransformOf (const Vec &src) const

Vec	localTransformOf (const Vec &src) const

Vec	localInverseTransformOf (const Vec &src) const

Vec	transformOfIn (const Vec &src, const Frame *const in) const

Vec	transformOfFrom (const Vec &src, const Frame *const from) const

void	getTransformOf (const float src[3], float res[3]) const

void	getInverseTransformOf (const float src[3], float res[3]) const

void	getLocalTransformOf (const float src[3], float res[3]) const

void	getLocalInverseTransformOf (const float src[3], float res[3]) const

void	getTransformOfIn (const float src[3], float res[3], const Frame *const in) const

void	getTransformOfFrom (const float src[3], float res[3], const Frame *const from) const

Constraint *	constraint () const

void	setConstraint (Constraint *const constraint)

const GLdouble *	matrix () const

void	getMatrix (GLdouble m[4][4]) const

void	getMatrix (GLdouble m[16]) const

const GLdouble *	worldMatrix () const

void	getWorldMatrix (GLdouble m[4][4]) const

void	getWorldMatrix (GLdouble m[16]) const

void	setFromMatrix (const GLdouble m[4][4])

void	setFromMatrix (const GLdouble m[16])

Frame	inverse () const

Frame	worldInverse () const

Public Member Functions inherited from qglviewer::MouseGrabber
	MouseGrabber ()

virtual	~MouseGrabber ()

bool	grabsMouse () const

bool	isInMouseGrabberPool () const

void	addInMouseGrabberPool ()

void	removeFromMouseGrabberPool ()

void	clearMouseGrabberPool (bool autoDelete=false)

Protected Member Functions
virtual void	startAction (int ma, bool withConstraint=true)

Protected Member Functions inherited from qglviewer::ManipulatedFrame
void	computeMouseSpeed (const QMouseEvent *const e)

Quaternion	deformedBallQuaternion (int x, int y, float cx, float cy, const Camera *const camera)

int	mouseOriginalDirection (const QMouseEvent *const e)

virtual void	mousePressEvent (QMouseEvent const event, Camera const camera)

virtual void	mouseDoubleClickEvent (QMouseEvent const event, Camera const camera)

Protected Member Functions inherited from qglviewer::MouseGrabber
void	setGrabsMouse (bool grabs)

Private Slots
virtual void	flyUpdate ()

Private Member Functions
Quaternion	pitchYawQuaternion (int x, int y, const Camera *const camera)

Quaternion	turnQuaternion (int x, const Camera *const camera)

void	updateFlyUpVector ()

Private Attributes
float	driveSpeed_

float	flySpeed_

QTimer	flyTimer_

Vec	flyUpVector_

Vec	revolveAroundPoint_

Friends
class	::QGLViewer

class	Camera

Revolve around point
Vec	revolveAroundPoint () const

void	setRevolveAroundPoint (const Vec &revolveAroundPoint)

Fly parameters
void	setFlyUpVector (const Vec &up)

float	flySpeed () const

Vec	flyUpVector () const

void	setFlySpeed (float speed)

Mouse event handlers
virtual void	mouseReleaseEvent (QMouseEvent const event, Camera const camera)

virtual void	mouseMoveEvent (QMouseEvent const event, Camera const camera)

virtual void	wheelEvent (QWheelEvent const event, Camera const camera)

Spinning
virtual void	spin ()

XML representation
virtual QDomElement	domElement (const QString &name, QDomDocument &document) const

virtual void	initFromDOMElement (const QDomElement &element)

Additional Inherited Members
Public Slots inherited from qglviewer::ManipulatedFrame
void	setRotationSensitivity (float sensitivity)

void	setSpinningQuaternion (const Quaternion &spinningQuaternion)

virtual void	startSpinning (int updateInterval)

virtual void	stopSpinning ()

virtual void	initFromDOMElement (const QDomElement &element)

Public Slots inherited from qglviewer::Frame
virtual void	initFromDOMElement (const QDomElement &element)

Signals inherited from qglviewer::ManipulatedFrame
void	manipulated ()

void	spun ()

Signals inherited from qglviewer::Frame
void	interpolated ()

void	modified ()

Static Public Member Functions inherited from qglviewer::MouseGrabber
static const QList< MouseGrabber > &	MouseGrabberPool ()

Protected Slots inherited from qglviewer::ManipulatedFrame
virtual void	spin ()

Protected Attributes inherited from qglviewer::ManipulatedFrame
int	action_

QPoint	pressPos_

Constraint *	previousConstraint_

QPoint	prevPos_

Detailed Description

The ManipulatedCameraFrame class represents a ManipulatedFrame with Camera specific mouse bindings.

A ManipulatedCameraFrame is a specialization of a ManipulatedFrame, designed to be set as the Camera::frame(). Mouse motions are basically interpreted in a negated way: when the mouse goes to the right, the ManipulatedFrame translation goes to the right, while the ManipulatedCameraFrame has to go to the left, so that the scene seems to move to the right.

A ManipulatedCameraFrame rotates around its revolveAroundPoint(), which corresponds to the associated Camera::revolveAroundPoint().

A ManipulatedCameraFrame can also "fly" in the scene. It basically moves forward, and turns according to the mouse motion. See flySpeed(), flyUpVector() and the QGLViewer::MOVE_FORWARD and QGLViewer::MOVE_BACKWARD QGLViewer::MouseAction.

See the mouse page for a description of the possible actions that can be performed using the mouse and their bindings.

Definition at line 47 of file manipulatedCameraFrame.h.

Constructor & Destructor Documentation

ManipulatedCameraFrame::ManipulatedCameraFrame ( )

Default constructor.

flySpeed() is set to 0.0 and flyUpVector() is (0,1,0). The revolveAroundPoint() is set to (0,0,0).

Attention: Created object is removeFromMouseGrabberPool().

Definition at line 39 of file manipulatedCameraFrame.cpp.

virtual qglviewer::ManipulatedCameraFrame::~ManipulatedCameraFrame ( )

inlinevirtual

Virtual destructor. Empty.

Definition at line 59 of file manipulatedCameraFrame.h.

ManipulatedCameraFrame::ManipulatedCameraFrame ( const ManipulatedCameraFrame & mcf )

Copy constructor. Performs a deep copy of all members using operator=().

Definition at line 60 of file manipulatedCameraFrame.cpp.

Member Function Documentation

QDomElement ManipulatedCameraFrame::domElement	(	const QString &	name,
		QDomDocument &	document
	)		const

virtual

Returns an XML QDomElement that represents the ManipulatedCameraFrame.

Adds to the ManipulatedFrame::domElement() the ManipulatedCameraFrame specific informations in a ManipulatedCameraParameters child QDomElement.

name is the name of the QDomElement tag. doc is the QDomDocument factory used to create QDomElement.

Use initFromDOMElement() to restore the ManipulatedCameraFrame state from the resulting QDomElement.

See Vec::domElement() for a complete example. See also Quaternion::domElement(), Frame::domElement(), Camera::domElement()...

Reimplemented from qglviewer::ManipulatedFrame.

Definition at line 132 of file manipulatedCameraFrame.cpp.

float qglviewer::ManipulatedCameraFrame::flySpeed ( ) const

inline

Returns the fly speed, expressed in OpenGL units.

It corresponds to the incremental displacement that is periodically applied to the ManipulatedCameraFrame position when a QGLViewer::MOVE_FORWARD or QGLViewer::MOVE_BACKWARD QGLViewer::MouseAction is proceeded.

Attention: When the ManipulatedCameraFrame is set as the Camera::frame(), this value is set according to the QGLViewer::sceneRadius() by QGLViewer::setSceneRadius().

Definition at line 104 of file manipulatedCameraFrame.h.

void ManipulatedCameraFrame::flyUpdate ( )

privatevirtualslot

Called for continuous frame motion in fly mode (see QGLViewer::MOVE_FORWARD). Emits manipulated().

Definition at line 81 of file manipulatedCameraFrame.cpp.

Vec qglviewer::ManipulatedCameraFrame::flyUpVector ( ) const

inline

Returns the up vector used in fly mode, expressed in the world coordinate system.

Fly mode corresponds to the QGLViewer::MOVE_FORWARD and QGLViewer::MOVE_BACKWARD QGLViewer::MouseAction bindings. In these modes, horizontal displacements of the mouse rotate the ManipulatedCameraFrame around this vector. Vertical displacements rotate always around the Camera X axis.

Default value is (0,1,0), but it is updated by the Camera when set as its Camera::frame(). Camera::setOrientation() and Camera::setUpVector()) modify this value and should be used instead.

Definition at line 116 of file manipulatedCameraFrame.h.

void ManipulatedCameraFrame::initFromDOMElement ( const QDomElement & element )

virtualslot

Restores the ManipulatedCameraFrame state from a QDomElement created by domElement().

First calls ManipulatedFrame::initFromDOMElement() and then initializes ManipulatedCameraFrame specific parameters.

Definition at line 146 of file manipulatedCameraFrame.cpp.

void ManipulatedCameraFrame::mouseMoveEvent	(	QMouseEvent *const	event,
		Camera *const	camera
	)

protectedvirtual

Overloading of ManipulatedFrame::mouseMoveEvent().

Motion depends on mouse binding (see mouse page for details). The resulting displacements are basically inverted from those of a ManipulatedFrame.

Reimplemented from qglviewer::ManipulatedFrame.

Definition at line 204 of file manipulatedCameraFrame.cpp.

void ManipulatedCameraFrame::mouseReleaseEvent	(	QMouseEvent *const	event,
		Camera *const	camera
	)

protectedvirtual

This is an overload of ManipulatedFrame::mouseReleaseEvent(). The QGLViewer::MouseAction is terminated.

Reimplemented from qglviewer::ManipulatedFrame.

Definition at line 360 of file manipulatedCameraFrame.cpp.

ManipulatedCameraFrame & ManipulatedCameraFrame::operator= ( const ManipulatedCameraFrame & mcf )

Equal operator. Calls ManipulatedFrame::operator=() and then copy attributes.

Definition at line 49 of file manipulatedCameraFrame.cpp.

Quaternion ManipulatedCameraFrame::pitchYawQuaternion	(	int	x,
		int	y,
		const Camera *const	camera
	)

private

Returns a Quaternion that is the composition of two rotations, inferred from the mouse pitch (X axis) and yaw (flyUpVector() axis).

Definition at line 436 of file manipulatedCameraFrame.cpp.

Vec qglviewer::ManipulatedCameraFrame::revolveAroundPoint ( ) const

inline

Returns the point the ManipulatedCameraFrame revolves around when rotated.

It is defined in the world coordinate system. Default value is (0,0,0).

When the ManipulatedCameraFrame is associated to a Camera, Camera::revolveAroundPoint() also returns this value. This point can interactively be changed using the mouse (see QGLViewer::RAP_FROM_PIXEL and QGLViewer::RAP_IS_CENTER in the mouse page).

Definition at line 75 of file manipulatedCameraFrame.h.

void qglviewer::ManipulatedCameraFrame::setFlySpeed ( float speed )

inlineslot

Sets the flySpeed(), defined in OpenGL units.

Default value is 0.0, but it is modified according to the QGLViewer::sceneRadius() when the ManipulatedCameraFrame is set as the Camera::frame().

Definition at line 87 of file manipulatedCameraFrame.h.

void qglviewer::ManipulatedCameraFrame::setFlyUpVector ( const Vec & up )

inline

Sets the flyUpVector(), defined in the world coordinate system.

Default value is (0,1,0), but it is updated by the Camera when set as its Camera::frame(). Use Camera::setUpVector() instead in that case.

Definition at line 93 of file manipulatedCameraFrame.h.

void qglviewer::ManipulatedCameraFrame::setRevolveAroundPoint ( const Vec & revolveAroundPoint )

inline

Sets the revolveAroundPoint(), defined in the world coordinate system.

Definition at line 77 of file manipulatedCameraFrame.h.

void ManipulatedCameraFrame::spin ( )

protectedvirtualslot

Overloading of ManipulatedFrame::spin().

Rotates the ManipulatedCameraFrame around its revolveAroundPoint() instead of its origin.

Definition at line 73 of file manipulatedCameraFrame.cpp.

void ManipulatedCameraFrame::startAction	(	int	ma,
		bool	withConstraint = `true`
	)

protectedvirtual

Protected internal method used to handle mouse events.

Reimplemented from qglviewer::ManipulatedFrame.

Definition at line 180 of file manipulatedCameraFrame.cpp.

Quaternion ManipulatedCameraFrame::turnQuaternion	(	int	x,
		const Camera *const	camera
	)

private

Returns a Quaternion that is a rotation around current camera Y, proportionnal to the horizontal mouse position.

Definition at line 429 of file manipulatedCameraFrame.cpp.

void ManipulatedCameraFrame::updateFlyUpVector ( )

private

This method will be called by the Camera when its orientation is changed, so that the flyUpVector (private) is changed accordingly. You should not need to call this method.

Definition at line 110 of file manipulatedCameraFrame.cpp.

void ManipulatedCameraFrame::wheelEvent	(	QWheelEvent *const	event,
		Camera *const	camera
	)

protectedvirtual

This is an overload of ManipulatedFrame::wheelEvent().

The wheel behavior depends on the wheel binded action. Current possible actions are QGLViewer::ZOOM, QGLViewer::MOVE_FORWARD, QGLViewer::MOVE_BACKWARD. QGLViewer::ZOOM speed depends on wheelSensitivity() while QGLViewer::MOVE_FORWARD and QGLViewer::MOVE_BACKWARD depend on flySpeed(). See QGLViewer::setWheelBinding() to customize the binding.

Reimplemented from qglviewer::ManipulatedFrame.

Definition at line 377 of file manipulatedCameraFrame.cpp.

Friends And Related Function Documentation

friend class ::QGLViewer

friend

Definition at line 51 of file manipulatedCameraFrame.h.

friend class Camera

friend

Definition at line 50 of file manipulatedCameraFrame.h.

Member Data Documentation

float qglviewer::ManipulatedCameraFrame::driveSpeed_

private

Definition at line 157 of file manipulatedCameraFrame.h.

float qglviewer::ManipulatedCameraFrame::flySpeed_

private

Definition at line 156 of file manipulatedCameraFrame.h.

QTimer qglviewer::ManipulatedCameraFrame::flyTimer_

private

Definition at line 159 of file manipulatedCameraFrame.h.

Vec qglviewer::ManipulatedCameraFrame::flyUpVector_

private

Definition at line 158 of file manipulatedCameraFrame.h.

Vec qglviewer::ManipulatedCameraFrame::revolveAroundPoint_

private

Definition at line 161 of file manipulatedCameraFrame.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Slots

Private Member Functions

Private Attributes

Friends

Revolve around point

Fly parameters

Mouse event handlers

Spinning

XML representation

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
