Eigen::MatrixPowerReturnValue< Derived > Class Template Reference

Proxy for the matrix power of some matrix (expression). More...

#include <ForwardDeclarations.h>

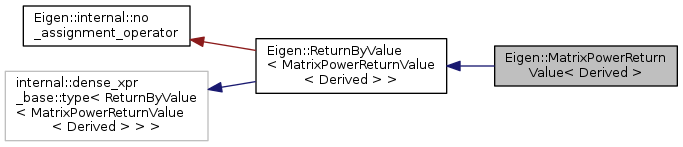

Inheritance diagram for Eigen::MatrixPowerReturnValue< Derived >:
Inheritance graph
[legend]

Public Types

typedef Derived::Index Index

typedef Derived::PlainObject PlainObject

typedef Derived::RealScalar RealScalar

- Public Types inherited from Eigen::ReturnByValue< MatrixPowerReturnValue< Derived > >
typedef internal::dense_xpr_base< ReturnByValue >::type Base

typedef internal::traits< MatrixPowerReturnValue< Derived > >::ReturnType ReturnType


Public Member Functions

Index cols () const

template<typename ResultType >
void evalTo (ResultType &res) const
 Compute the matrix power. More...

 MatrixPowerReturnValue (const Derived &A, RealScalar p)
 Constructor. More...

Index rows () const

- Public Member Functions inherited from Eigen::ReturnByValue< MatrixPowerReturnValue< Derived > >
const Unusablecoeff (Index) const

const Unusablecoeff (Index, Index) const

UnusablecoeffRef (Index)

UnusablecoeffRef (Index, Index)

Index cols () const

void evalTo (Dest &dst) const

Index rows () const


Private Member Functions

MatrixPowerReturnValueoperator= (const MatrixPowerReturnValue &)


Private Attributes

const Derived & m_A

const RealScalar m_p


Detailed Description

template<typename Derived>
class Eigen::MatrixPowerReturnValue< Derived >

Proxy for the matrix power of some matrix (expression).

Template Parameters
Derivedtype of the base, a matrix (expression).

This class holds the arguments to the matrix power until it is assigned or evaluated for some other reason (so the argument should not be changed in the meantime). It is the return type of MatrixBase::pow() and related functions and most of the time this is the only way it is used.

Definition at line 273 of file ForwardDeclarations.h.

Member Typedef Documentation

template<typename Derived>
typedef Derived::Index Eigen::MatrixPowerReturnValue< Derived >::Index

Definition at line 461 of file MatrixPower.h.

template<typename Derived>
typedef Derived::PlainObject Eigen::MatrixPowerReturnValue< Derived >::PlainObject

Definition at line 459 of file MatrixPower.h.

template<typename Derived>
typedef Derived::RealScalar Eigen::MatrixPowerReturnValue< Derived >::RealScalar

Definition at line 460 of file MatrixPower.h.

Constructor & Destructor Documentation

template<typename Derived>
Eigen::MatrixPowerReturnValue< Derived >::MatrixPowerReturnValue ( const Derived &  A,
RealScalar  p
)
inline

Constructor.

Parameters
[in]AMatrix (expression), the base of the matrix power.
[in]pscalar, the exponent of the matrix power.

Definition at line 469 of file MatrixPower.h.

Member Function Documentation

template<typename Derived>
Index Eigen::MatrixPowerReturnValue< Derived >::cols ( void  ) const
inline

Definition at line 483 of file MatrixPower.h.

template<typename Derived>
template<typename ResultType >
void Eigen::MatrixPowerReturnValue< Derived >::evalTo ( ResultType &  res) const
inline

Compute the matrix power.

Parameters
[out]result$ A^p $ where A and p are as in the constructor.

Definition at line 479 of file MatrixPower.h.

template<typename Derived>
MatrixPowerReturnValue& Eigen::MatrixPowerReturnValue< Derived >::operator= ( const MatrixPowerReturnValue< Derived > &  )
private
template<typename Derived>
Index Eigen::MatrixPowerReturnValue< Derived >::rows ( void  ) const
inline

Definition at line 482 of file MatrixPower.h.

Member Data Documentation

template<typename Derived>
const Derived& Eigen::MatrixPowerReturnValue< Derived >::m_A
private

Definition at line 486 of file MatrixPower.h.

template<typename Derived>
const RealScalar Eigen::MatrixPowerReturnValue< Derived >::m_p
private

Definition at line 487 of file MatrixPower.h.


The documentation for this class was generated from the following files:
