tango_gl::DrawableObject Class Reference

#include <drawable_object.h>

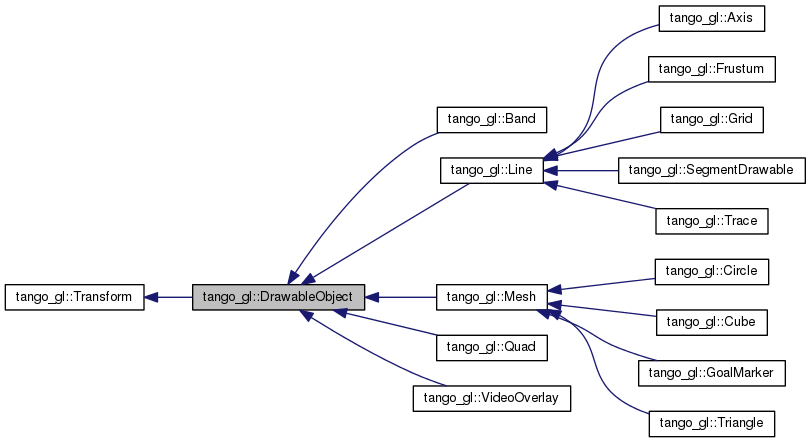

Inheritance diagram for tango_gl::DrawableObject:

List of all members.

Public Member Functions
void	DeleteGlResources ()
	DrawableObject ()
	DrawableObject (const DrawableObject &other)
const DrawableObject &	operator= (const DrawableObject &)
virtual void	Render (const glm::mat4 &projection_mat, const glm::mat4 &view_mat) const =0
void	SetAlpha (const float alpha)
void	SetColor (const Color &color)
void	SetColor (const float red, const float green, const float blue)
void	SetShader ()
void	SetVertices (const std::vector< GLfloat > &vertices)
void	SetVertices (const std::vector< GLfloat > &vertices, const std::vector< GLushort > &indices)
void	SetVertices (const std::vector< GLfloat > &vertices, const std::vector< GLfloat > &normals)
Protected Attributes
float	alpha_
GLuint	attrib_normals_
GLuint	attrib_vertices_
float	blue_
float	green_
std::vector< GLushort >	indices_
std::vector< GLfloat >	normals_
float	red_
GLenum	render_mode_
GLuint	shader_program_
GLuint	uniform_color_
GLuint	uniform_mvp_mat_
std::vector< GLfloat >	vertices_

---

Detailed Description

Definition at line 27 of file drawable_object.h.

---

Constructor & Destructor Documentation

tango_gl::DrawableObject::DrawableObject

(

)

[inline]

Definition at line 29 of file drawable_object.h.

tango_gl::DrawableObject::DrawableObject

(

const DrawableObject &

other

)

---

Member Function Documentation

void tango_gl::DrawableObject::DeleteGlResources

(

)

Definition at line 34 of file drawable_object.cpp.

const DrawableObject& tango_gl::DrawableObject::operator=

(

const DrawableObject &

)

virtual void tango_gl::DrawableObject::Render	(	const glm::mat4 &	projection_mat,
		const glm::mat4 &	view_mat
	)		const [pure virtual]

Implemented in tango_gl::Band, tango_gl::Mesh, tango_gl::Quad, tango_gl::Line, tango_gl::Axis, and tango_gl::VideoOverlay.

void tango_gl::DrawableObject::SetAlpha

(

const float

alpha

)

Definition at line 49 of file drawable_object.cpp.

void tango_gl::DrawableObject::SetColor

(

const Color &

color

)

Definition at line 45 of file drawable_object.cpp.

void tango_gl::DrawableObject::SetColor	(	const float	red,
		const float	green,
		const float	blue
	)

Definition at line 40 of file drawable_object.cpp.

void tango_gl::DrawableObject::SetShader

(

)

Reimplemented in tango_gl::Mesh.

Definition at line 22 of file drawable_object.cpp.

void tango_gl::DrawableObject::SetVertices

(

const std::vector< GLfloat > &

vertices

)

Definition at line 51 of file drawable_object.cpp.

void tango_gl::DrawableObject::SetVertices	(	const std::vector< GLfloat > &	vertices,
		const std::vector< GLushort > &	indices
	)

Definition at line 55 of file drawable_object.cpp.

void tango_gl::DrawableObject::SetVertices	(	const std::vector< GLfloat > &	vertices,
		const std::vector< GLfloat > &	normals
	)

Definition at line 61 of file drawable_object.cpp.

---

Member Data Documentation

float tango_gl::DrawableObject::alpha_ [protected]

Definition at line 50 of file drawable_object.h.

GLuint tango_gl::DrawableObject::attrib_normals_ [protected]

Definition at line 60 of file drawable_object.h.

GLuint tango_gl::DrawableObject::attrib_vertices_ [protected]

Reimplemented in tango_gl::Quad.

Definition at line 59 of file drawable_object.h.

float tango_gl::DrawableObject::blue_ [protected]

Definition at line 49 of file drawable_object.h.

float tango_gl::DrawableObject::green_ [protected]

Definition at line 48 of file drawable_object.h.

std::vector<GLushort> tango_gl::DrawableObject::indices_ [protected]

Definition at line 51 of file drawable_object.h.

std::vector<GLfloat> tango_gl::DrawableObject::normals_ [protected]

Definition at line 53 of file drawable_object.h.

float tango_gl::DrawableObject::red_ [protected]

Definition at line 47 of file drawable_object.h.

GLenum tango_gl::DrawableObject::render_mode_ [protected]

Definition at line 55 of file drawable_object.h.

GLuint tango_gl::DrawableObject::shader_program_ [protected]

Reimplemented in tango_gl::Quad.

Definition at line 56 of file drawable_object.h.

GLuint tango_gl::DrawableObject::uniform_color_ [protected]

Definition at line 57 of file drawable_object.h.

GLuint tango_gl::DrawableObject::uniform_mvp_mat_ [protected]

Reimplemented in tango_gl::Quad.

Definition at line 58 of file drawable_object.h.

std::vector<GLfloat> tango_gl::DrawableObject::vertices_ [protected]

Definition at line 52 of file drawable_object.h.

---

The documentation for this class was generated from the following files:

• drawable_object.h
• drawable_object.cpp
