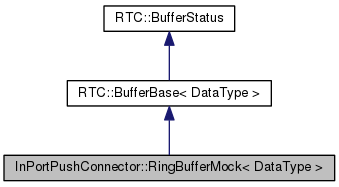

Inheritance diagram for InPortPushConnector::RingBufferMock< DataType >:

Public Member Functions
virtual ReturnCode	advanceRptr (long int n=1)
	Forward n reading pointers.
virtual ReturnCode	advanceWptr (long int n=1)
	Forward n writing pointers.
virtual bool	empty (void) const
	Check on whether the buffer is empty.
virtual bool	full (void) const
	Check on whether the buffer is full.
virtual ReturnCode	get (DataType &value)
	Read data from the buffer.
virtual DataType &	get ()
	Read data from the buffer.
virtual void	init (const coil::Properties &prop)
	Set the buffer.
virtual size_t	length (void) const
	Get the buffer length.
virtual ReturnCode	length (size_t n)
	Set the buffer length.
virtual ReturnCode	put (const DataType &value)
	Write data into the buffer.
virtual ReturnCode	read (DataType &value, long int sec=-1, long int nsec=-1)
	Read data from the buffer.
virtual size_t	readable () const
	Write data into the buffer.
virtual ReturnCode	reset ()
	Reset the buffer status.
BUFFERSTATUS_ENUM	RingBufferMock (long int length=8)
virtual DataType *	rptr (long int n=0)
	Get the reading pointer.
void	set_read_return_value (::RTC::BufferStatus::Enum value)
void	setLogger (Logger *logger)
virtual DataType *	wptr (long int n=0)
	Get the writing pointer.
virtual size_t	writable () const
	Get a writable number.
virtual ReturnCode	write (const DataType &value, long int sec=-1, long int nsec=-1)
	Write data into the buffer.
virtual	~RingBufferMock (void)
Static Public Attributes
static Logger	logger
Private Attributes
std::vector< DataType >	m_buffer
DataType	m_data
Logger *	m_logger
::RTC::BufferStatus::Enum	m_read_return_value

Detailed Description

template<class DataType>
class InPortPushConnector::RingBufferMock< DataType >

Definition at line 133 of file InPortPushConnectorTests.cpp.

Constructor & Destructor Documentation

template<class DataType >

BUFFERSTATUS_ENUM InPortPushConnector::RingBufferMock< DataType >::RingBufferMock ( long int length = 8 ) [inline]

Definition at line 138 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual InPortPushConnector::RingBufferMock< DataType >::~RingBufferMock ( void ) [inline, virtual]

Definition at line 144 of file InPortPushConnectorTests.cpp.

Member Function Documentation

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::advanceRptr ( long int n = 1 ) [inline, virtual]

Forward n reading pointers.

Pure virtual function to forward n reading pointers.

Returns:: BUFFER_OK: Successful BUFFER_ERROR: Failed

Implements RTC::BufferBase< DataType >.

Definition at line 249 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::advanceWptr ( long int n = 1 ) [inline, virtual]

Forward n writing pointers.

Pure virtual function to forward n writing pointers.

Returns:: BUFFER_OK: Successful BUFFER_ERROR: Failed

Implements RTC::BufferBase< DataType >.

Definition at line 200 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual bool InPortPushConnector::RingBufferMock< DataType >::empty ( void ) const [inline, virtual]

Check on whether the buffer is empty.

Pure virtual function to check on whether the buffer is empty.

Returns:: True if the buffer is empty, else false.

Implements RTC::BufferBase< DataType >.

Definition at line 295 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual bool InPortPushConnector::RingBufferMock< DataType >::full ( void ) const [inline, virtual]

Check on whether the buffer is full.

Pure virtual function to check on whether the buffer is full.

Returns:: True if the buffer is full, else false.

Implements RTC::BufferBase< DataType >.

Definition at line 233 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::get ( DataType & value ) [inline, virtual]

Read data from the buffer.

Pure virtual function to read data form the buffer.

Parameters:

value Data to read.

Returns:: BUFFER_OK: Successful BUFFER_ERROR: Failed

Implements RTC::BufferBase< DataType >.

Definition at line 257 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual DataType& InPortPushConnector::RingBufferMock< DataType >::get ( ) [inline, virtual]

Read data from the buffer.

Pure virtual function to read data from the buffer.

Returns:: Data got from buffer.

Implements RTC::BufferBase< DataType >.

Definition at line 265 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual void InPortPushConnector::RingBufferMock< DataType >::init ( const coil::Properties & prop ) [inline, virtual]

Set the buffer.

Implements RTC::BufferBase< DataType >.

Definition at line 161 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual size_t InPortPushConnector::RingBufferMock< DataType >::length ( void ) const [inline, virtual]

Get the buffer length.

Pure virtual function to get the buffer length.

Returns:: buffer length

Implements RTC::BufferBase< DataType >.

Definition at line 168 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::length ( size_t n ) [inline, virtual]

Set the buffer length.

Pure virtual function to set the buffer length.

Returns:: BUFFER_OK: Successful NOT_SUPPORTED: The buffer length cannot be set. BUFFER_ERROR: Failed

Implements RTC::BufferBase< DataType >.

Definition at line 176 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::put ( const DataType & value ) [inline, virtual]

Write data into the buffer.

Pure virtual function to write data into the buffer.

Parameters:

value Target data to write.

Returns:: BUFFER_OK: Successful BUFFER_ERROR: Failed

Implements RTC::BufferBase< DataType >.

Definition at line 208 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::read	(	DataType &	value,
		long int	sec = `-1`,
		long int	nsec = `-1`
	)		`[inline, virtual]`

Read data from the buffer.

Pure virtual function to read data from the buffer.

Parameters:

value Read data.

Returns:: Result of having read (true:Successful, false:Failed)

Implements RTC::BufferBase< DataType >.

Definition at line 273 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual size_t InPortPushConnector::RingBufferMock< DataType >::readable ( ) const [inline, virtual]

Write data into the buffer.

Pure virtual function to get a reading number.

Returns:: readable number

Implements RTC::BufferBase< DataType >.

Definition at line 287 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::reset ( ) [inline, virtual]

Reset the buffer status.

Pure virtual function to reset the buffer status.

Returns:: BUFFER_OK: Successful NOT_SUPPORTED: The buffer status cannot be reset. BUFFER_ERROR: Failed

Implements RTC::BufferBase< DataType >.

Definition at line 184 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual DataType* InPortPushConnector::RingBufferMock< DataType >::rptr ( long int n = 0 ) [inline, virtual]

Get the reading pointer.

Pure virtual function to get the reading pointer.

Returns:: reading pointer

Implements RTC::BufferBase< DataType >.

Definition at line 241 of file InPortPushConnectorTests.cpp.

template<class DataType >

void InPortPushConnector::RingBufferMock< DataType >::set_read_return_value ( ::RTC::BufferStatus::Enum value ) [inline]

Definition at line 153 of file InPortPushConnectorTests.cpp.

template<class DataType >

void InPortPushConnector::RingBufferMock< DataType >::setLogger ( Logger * logger ) [inline]

Definition at line 303 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual DataType* InPortPushConnector::RingBufferMock< DataType >::wptr ( long int n = 0 ) [inline, virtual]

Get the writing pointer.

Pure virtual function to get the writing pointer.

Parameters:

writeing pinter or n previous pointer

Returns:: writing pointer

Implements RTC::BufferBase< DataType >.

Definition at line 192 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual size_t InPortPushConnector::RingBufferMock< DataType >::writable ( ) const [inline, virtual]

Get a writable number.

Pure virtual function to get a writable number.

Returns:: value writable number

Implements RTC::BufferBase< DataType >.

Definition at line 225 of file InPortPushConnectorTests.cpp.

template<class DataType >

virtual ReturnCode InPortPushConnector::RingBufferMock< DataType >::write	(	const DataType &	value,
		long int	sec = `-1`,
		long int	nsec = `-1`
	)		`[inline, virtual]`
