Classes | Typedefs | Enumerations | Functions
laser_data_drawing.h File Reference
#include "laser_data.h"

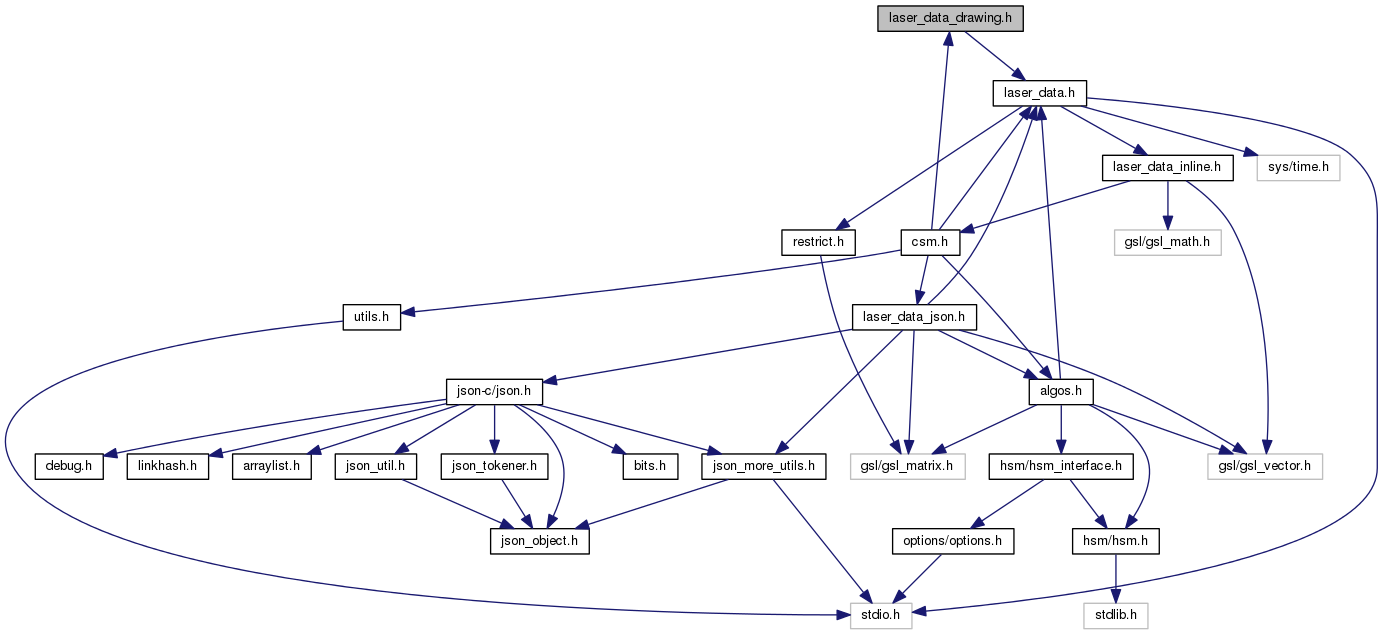

Include dependency graph for laser_data_drawing.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  oriented_bbox
struct  stroke_sequence

Typedefs

typedef oriented_bboxBB2
typedef struct bbfind_imp bbfind

Enumerations

enum  ld_reference { Invalid = 0, Odometry = 1, Estimate = 2, True_pose = 3 }

Functions

int bbfind_add_bbox (bbfind *, const BB2)
int bbfind_add_point (bbfind *, double point[2])
int bbfind_add_point2 (bbfind *, double x, double y)
int bbfind_compute (bbfind *, BB2)
void bbfind_free (bbfind *)
bbfindbbfind_new ()
void compute_stroke_sequence (LDP ld, struct stroke_sequence *, double horizon, double connect_threshold)
int ld_get_bounding_box (LDP ld, double bb_min[2], double bb_max[2], double pose[3], double horizon)
void ld_get_oriented_bbox (LDP ld, double horizon, BB2)
double * ld_get_reference_pose (LDP ld, ld_reference use_reference)
double * ld_get_reference_pose_silent (LDP ld, ld_reference use_reference)
int ld_read_some_scans_distance (FILE *file, LDP **array, int *num, ld_reference which, double d_xy, double d_th)
const char * ld_reference_to_string (ld_reference)
ld_reference ld_string_to_reference (const char *string)
void lda_get_bounding_box (LDP *ld, int nld, double bb_min[2], double bb_max[2], double offset[3], ld_reference use_reference, double horizon)
void oriented_bbox_compute_corners (const BB2, double ul[2], double ur[2], double ll[2], double lr[2])

Typedef Documentation

typedef oriented_bbox* BB2

Definition at line 30 of file laser_data_drawing.h.

typedef struct bbfind_imp bbfind

Definition at line 50 of file laser_data_drawing.h.


Enumeration Type Documentation

Enumerator:
Invalid
Odometry
Estimate
True_pose

Definition at line 6 of file laser_data_drawing.h.


Function Documentation

int bbfind_add_bbox ( bbfind ,
const BB2
)

Definition at line 74 of file laser_data_bbox.c.

int bbfind_add_point ( bbfind ,
double  point[2]
)

Definition at line 42 of file laser_data_bbox.c.

int bbfind_add_point2 ( bbfind ,
double  x,
double  y
)

Definition at line 46 of file laser_data_bbox.c.

int bbfind_compute ( bbfind ,
BB2
)

Definition at line 85 of file laser_data_bbox.c.

void bbfind_free ( bbfind )

Definition at line 116 of file laser_data_bbox.c.

Definition at line 34 of file laser_data_bbox.c.

void compute_stroke_sequence ( LDP  ld,
struct stroke_sequence ,
double  horizon,
double  connect_threshold
)

Definition at line 114 of file laser_data_drawing.c.

int ld_get_bounding_box ( LDP  ld,
double  bb_min[2],
double  bb_max[2],
double  pose[3],
double  horizon
)

Returns != 0 if enough points were found

Definition at line 22 of file laser_data_drawing.c.

void ld_get_oriented_bbox ( LDP  ld,
double  horizon,
BB2
)
double* ld_get_reference_pose ( LDP  ld,
ld_reference  use_reference
)

Same as ld_get_reference_pose_silent(), but it also checks that the pose is valid (no NANs inside).

Definition at line 103 of file laser_data_drawing.c.

double* ld_get_reference_pose_silent ( LDP  ld,
ld_reference  use_reference
)

Gets a pointer to the pose specified by 'use_reference', or 0 if use_reference is invalid.

Definition at line 90 of file laser_data_drawing.c.

int ld_read_some_scans_distance ( FILE *  file,
LDP **  array,
int *  num,
ld_reference  which,
double  d_xy,
double  d_th
)

Definition at line 115 of file laser_data_load.c.

Definition at line 9 of file laser_data_drawing.c.

ld_reference ld_string_to_reference ( const char *  string)

Definition at line 13 of file laser_data_drawing.c.

void lda_get_bounding_box ( LDP ld,
int  nld,
double  bb_min[2],
double  bb_max[2],
double  offset[3],
ld_reference  use_reference,
double  horizon
)

Definition at line 60 of file laser_data_drawing.c.

void oriented_bbox_compute_corners ( const BB2  ,
double  ul[2],
double  ur[2],
double  ll[2],
double  lr[2]
)

Definition at line 60 of file laser_data_bbox.c.



csm
Author(s): Andrea Censi
autogenerated on Mon Jan 16 2017 03:48:29
