#include <pos.h>
Public Types | |
| typedef Pos< TetraType > | BasePosType |
| The HEdgePos type. | |
| typedef TetraType::VertexType::CoordType | CoordType |
| The coordinate type. | |
| typedef MTTYPE | TetraType |
| The tetrahedron type. | |
| typedef TetraType::VertexType | VertexType |
| The vertex type. | |
Public Member Functions | |
| void | Assert () |
| char & | E () |
| Return the index of face as seen from the tetrahedron. | |
| const char & | E () const |
| Return the index of face as seen from the tetrahedron. | |
| char & | F () |
| Return the index of face as seen from the tetrahedron. | |
| const char & | F () const |
| Return the index of face as seen from the tetrahedron. | |
| void | FlipE () |
| Changes edge maintaining the same face and the same vertex. | |
| void | FlipF () |
| Changes face maintaining the same vertex and the same edge. | |
| void | FlipT () |
| Changes tetrahedron maintaining the same face edge and vertex'... to finish. | |
| void | FlipV () |
| Changes vertex maintaining the same face and the same edge. | |
| bool | IsNull () const |
| Check if the half-edge is null. | |
| void | NextT () |
| returns the next half edge on the same edge | |
| bool | operator!= (BasePosType const &p) const |
| Operator to compare two half-edge. | |
| bool | operator== (BasePosType const &p) const |
| Operator to compare two half-edge. | |
| Pos () | |
| Default constructor. | |
| Pos (TetraType *const tp, char const fap, char const ep, char const vp) | |
| Constructor which associates the half-edge elementet with a face, its edge and its vertex. | |
| void | SetNull () |
| Set to null the half-edge. | |
| TetraType *& | T () |
| Return the tetrahedron stored in the half edge. | |
| TetraType *const & | T () const |
| Return the tetrahedron stored in the half edge. | |
| char & | V () |
| Return the index of vertex as seen from the tetrahedron. | |
| const char & | V () const |
| Return the index of vertex as seen from the tetrahedron. | |
| ~Pos () | |
Private Attributes | |
| char | _e |
| Index of the edge. | |
| char | _f |
| Index of the face. | |
| TetraType * | _t |
| Pointer to the tetrahedron of the half-edge. | |
| char | _v |
| Pointer to the vertex. | |
Detailed Description
template<class MTTYPE>
class vcg::tetra::Pos< MTTYPE >
Templated over the class tetrahedron, it stores a position over a tetrahedron in a mesh. It contain a pointer to the current tetrahedron, the index of one face,edge and a edge's incident vertex.
Definition at line 106 of file vcg/simplex/tetrahedron/pos.h.
Member Typedef Documentation
| typedef Pos<TetraType> vcg::tetra::Pos< MTTYPE >::BasePosType |
The HEdgePos type.
Definition at line 117 of file vcg/simplex/tetrahedron/pos.h.
| typedef TetraType::VertexType::CoordType vcg::tetra::Pos< MTTYPE >::CoordType |
The coordinate type.
Definition at line 115 of file vcg/simplex/tetrahedron/pos.h.
| typedef MTTYPE vcg::tetra::Pos< MTTYPE >::TetraType |
The tetrahedron type.

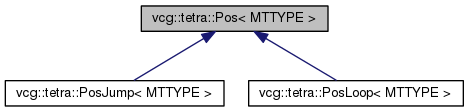

Reimplemented in vcg::tetra::PosLoop< MTTYPE >, and vcg::tetra::PosJump< MTTYPE >.
Definition at line 111 of file vcg/simplex/tetrahedron/pos.h.
| typedef TetraType::VertexType vcg::tetra::Pos< MTTYPE >::VertexType |
The vertex type.
Definition at line 113 of file vcg/simplex/tetrahedron/pos.h.
Constructor & Destructor Documentation
| vcg::tetra::Pos< MTTYPE >::Pos | ( | ) | [inline] |
Default constructor.
Definition at line 131 of file vcg/simplex/tetrahedron/pos.h.
| vcg::tetra::Pos< MTTYPE >::Pos | ( | TetraType *const | tp, |
| char const | fap, | ||
| char const | ep, | ||
| char const | vp | ||
| ) | [inline] |
Constructor which associates the half-edge elementet with a face, its edge and its vertex.
Definition at line 133 of file vcg/simplex/tetrahedron/pos.h.
| vcg::tetra::Pos< MTTYPE >::~Pos | ( | ) | [inline] |
Definition at line 136 of file vcg/simplex/tetrahedron/pos.h.
Member Function Documentation
| void vcg::tetra::Pos< MTTYPE >::Assert | ( | ) | [inline] |
Definition at line 336 of file vcg/simplex/tetrahedron/pos.h.
| char& vcg::tetra::Pos< MTTYPE >::E | ( | ) | [inline] |
Return the index of face as seen from the tetrahedron.
Definition at line 163 of file vcg/simplex/tetrahedron/pos.h.
| const char& vcg::tetra::Pos< MTTYPE >::E | ( | ) | const [inline] |
Return the index of face as seen from the tetrahedron.
Definition at line 169 of file vcg/simplex/tetrahedron/pos.h.
| char& vcg::tetra::Pos< MTTYPE >::F | ( | ) | [inline] |
Return the index of face as seen from the tetrahedron.
Definition at line 151 of file vcg/simplex/tetrahedron/pos.h.
| const char& vcg::tetra::Pos< MTTYPE >::F | ( | ) | const [inline] |
Return the index of face as seen from the tetrahedron.
Definition at line 157 of file vcg/simplex/tetrahedron/pos.h.
| void vcg::tetra::Pos< MTTYPE >::FlipE | ( | ) | [inline] |
Changes edge maintaining the same face and the same vertex.
Definition at line 211 of file vcg/simplex/tetrahedron/pos.h.
| void vcg::tetra::Pos< MTTYPE >::FlipF | ( | ) | [inline] |
Changes face maintaining the same vertex and the same edge.
Definition at line 251 of file vcg/simplex/tetrahedron/pos.h.
| void vcg::tetra::Pos< MTTYPE >::FlipT | ( | ) | [inline] |
Changes tetrahedron maintaining the same face edge and vertex'... to finish.
Definition at line 262 of file vcg/simplex/tetrahedron/pos.h.
| void vcg::tetra::Pos< MTTYPE >::FlipV | ( | ) | [inline] |
Changes vertex maintaining the same face and the same edge.
Definition at line 239 of file vcg/simplex/tetrahedron/pos.h.
| bool vcg::tetra::Pos< MTTYPE >::IsNull | ( | ) | const [inline] |
Check if the half-edge is null.
Definition at line 205 of file vcg/simplex/tetrahedron/pos.h.
| void vcg::tetra::Pos< MTTYPE >::NextT | ( | ) | [inline] |
returns the next half edge on the same edge
Reimplemented in vcg::tetra::PosLoop< MTTYPE >, and vcg::tetra::PosJump< MTTYPE >.
Definition at line 323 of file vcg/simplex/tetrahedron/pos.h.
| bool vcg::tetra::Pos< MTTYPE >::operator!= | ( | BasePosType const & | p | ) | const [inline] |
Operator to compare two half-edge.
Definition at line 192 of file vcg/simplex/tetrahedron/pos.h.
| bool vcg::tetra::Pos< MTTYPE >::operator== | ( | BasePosType const & | p | ) | const [inline] |
Operator to compare two half-edge.
Definition at line 187 of file vcg/simplex/tetrahedron/pos.h.
| void vcg::tetra::Pos< MTTYPE >::SetNull | ( | ) | [inline] |
Set to null the half-edge.
Definition at line 197 of file vcg/simplex/tetrahedron/pos.h.
| TetraType* & vcg::tetra::Pos< MTTYPE >::T | ( | ) | [inline] |
Return the tetrahedron stored in the half edge.
Definition at line 139 of file vcg/simplex/tetrahedron/pos.h.
| TetraType* const& vcg::tetra::Pos< MTTYPE >::T | ( | ) | const [inline] |
Return the tetrahedron stored in the half edge.
Definition at line 145 of file vcg/simplex/tetrahedron/pos.h.
| char& vcg::tetra::Pos< MTTYPE >::V | ( | ) | [inline] |
Return the index of vertex as seen from the tetrahedron.
Definition at line 175 of file vcg/simplex/tetrahedron/pos.h.
| const char& vcg::tetra::Pos< MTTYPE >::V | ( | ) | const [inline] |
Return the index of vertex as seen from the tetrahedron.
Definition at line 181 of file vcg/simplex/tetrahedron/pos.h.
Member Data Documentation
char vcg::tetra::Pos< MTTYPE >::_e [private] |
Index of the edge.
Definition at line 125 of file vcg/simplex/tetrahedron/pos.h.
char vcg::tetra::Pos< MTTYPE >::_f [private] |
Index of the face.
Definition at line 123 of file vcg/simplex/tetrahedron/pos.h.
TetraType* vcg::tetra::Pos< MTTYPE >::_t [private] |
Pointer to the tetrahedron of the half-edge.
Definition at line 121 of file vcg/simplex/tetrahedron/pos.h.
char vcg::tetra::Pos< MTTYPE >::_v [private] |
Pointer to the vertex.
Definition at line 127 of file vcg/simplex/tetrahedron/pos.h.
The documentation for this class was generated from the following file:
