Classes | Functions
b2TimeOfImpact.h File Reference
#include <Box2D/Common/b2Math.h>
#include <Box2D/Collision/b2Distance.h>

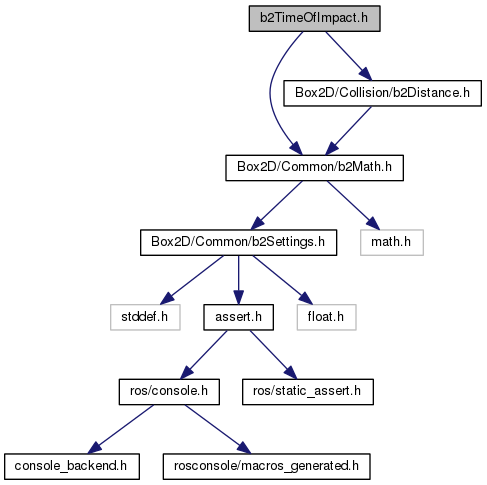

Include dependency graph for b2TimeOfImpact.h:

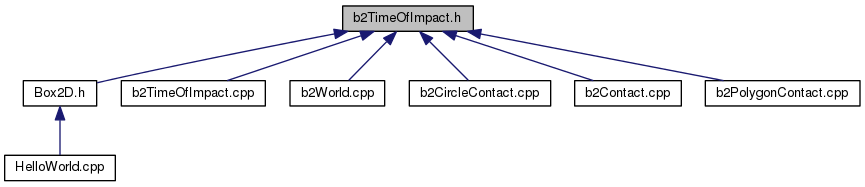

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  b2TOIInput
 Input parameters for b2TimeOfImpact. More...
struct  b2TOIOutput

Functions

void b2TimeOfImpact (b2TOIOutput *output, const b2TOIInput *input)

Function Documentation

void b2TimeOfImpact ( b2TOIOutput output,
const b2TOIInput input
)

Compute the upper bound on time before two shapes penetrate. Time is represented as a fraction between [0,tMax]. This uses a swept separating axis and may miss some intermediate, non-tunneling collision. If you change the time interval, you should call this function again. Note: use b2Distance to compute the contact point and normal at the time of impact.

Definition at line 254 of file b2TimeOfImpact.cpp.
