b2Collision.h File Reference
#include <Box2D/Common/b2Math.h>
#include <limits.h>

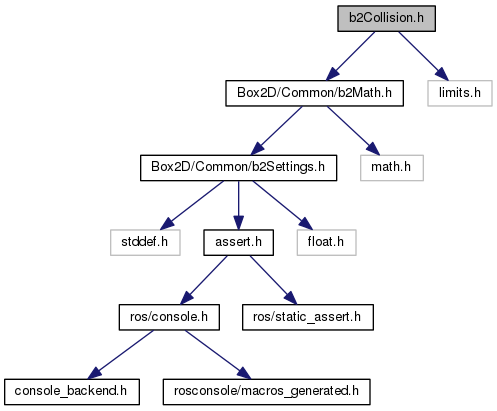

Include dependency graph for b2Collision.h:

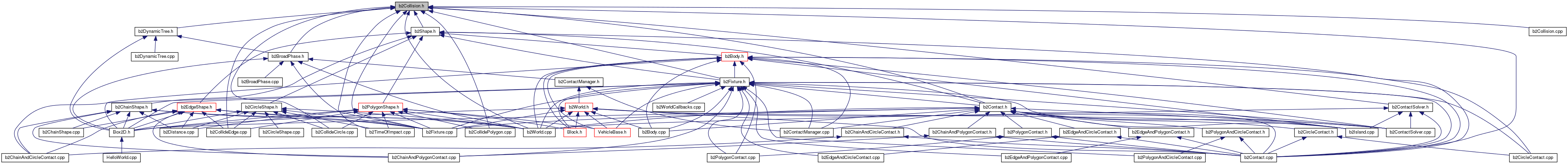

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  b2AABB
 An axis aligned bounding box. More...
struct  b2ClipVertex
 Used for computing contact manifolds. More...
struct  b2ContactFeature
union  b2ContactID
 Contact ids to facilitate warm starting. More...
struct  b2Manifold
struct  b2ManifoldPoint
struct  b2RayCastInput
 Ray-cast input data. The ray extends from p1 to p1 + maxFraction * (p2 - p1). More...
struct  b2RayCastOutput
struct  b2WorldManifold
 This is used to compute the current state of a contact manifold. More...

Enumerations

enum  b2PointState { b2_nullState, b2_addState, b2_persistState, b2_removeState }
 This is used for determining the state of contact points. More...

Functions

int32 b2ClipSegmentToLine (b2ClipVertex vOut[2], const b2ClipVertex vIn[2], const b2Vec2 &normal, float32 offset, int32 vertexIndexA)
 Clipping for contact manifolds.
void b2CollideCircles (b2Manifold *manifold, const b2CircleShape *circleA, const b2Transform &xfA, const b2CircleShape *circleB, const b2Transform &xfB)
 Compute the collision manifold between two circles.
void b2CollideEdgeAndCircle (b2Manifold *manifold, const b2EdgeShape *polygonA, const b2Transform &xfA, const b2CircleShape *circleB, const b2Transform &xfB)
 Compute the collision manifold between an edge and a circle.
void b2CollideEdgeAndPolygon (b2Manifold *manifold, const b2EdgeShape *edgeA, const b2Transform &xfA, const b2PolygonShape *circleB, const b2Transform &xfB)
 Compute the collision manifold between an edge and a circle.
void b2CollidePolygonAndCircle (b2Manifold *manifold, const b2PolygonShape *polygonA, const b2Transform &xfA, const b2CircleShape *circleB, const b2Transform &xfB)
 Compute the collision manifold between a polygon and a circle.
void b2CollidePolygons (b2Manifold *manifold, const b2PolygonShape *polygonA, const b2Transform &xfA, const b2PolygonShape *polygonB, const b2Transform &xfB)
 Compute the collision manifold between two polygons.
void b2GetPointStates (b2PointState state1[b2_maxManifoldPoints], b2PointState state2[b2_maxManifoldPoints], const b2Manifold *manifold1, const b2Manifold *manifold2)
bool b2TestOverlap (const b2Shape *shapeA, int32 indexA, const b2Shape *shapeB, int32 indexB, const b2Transform &xfA, const b2Transform &xfB)
 Determine if two generic shapes overlap.
bool b2TestOverlap (const b2AABB &a, const b2AABB &b)

Variables

const uint8 b2_nullFeature = UCHAR_MAX

Detailed Description

Structures and functions used for computing contact points, distance queries, and TOI queries.

Definition in file b2Collision.h.


Enumeration Type Documentation

This is used for determining the state of contact points.

Enumerator:
b2_nullState

point does not exist

b2_addState

point was added in the update

b2_persistState

point persisted across the update

b2_removeState

point was removed in the update

Definition at line 126 of file b2Collision.h.


Function Documentation

int32 b2ClipSegmentToLine ( b2ClipVertex  vOut[2],
const b2ClipVertex  vIn[2],
const b2Vec2 normal,
float32  offset,
int32  vertexIndexA
)

Clipping for contact manifolds.

Definition at line 201 of file b2Collision.cpp.

void b2CollideCircles ( b2Manifold manifold,
const b2CircleShape circleA,
const b2Transform xfA,
const b2CircleShape circleB,
const b2Transform xfB
)

Compute the collision manifold between two circles.

Definition at line 23 of file b2CollideCircle.cpp.

void b2CollideEdgeAndCircle ( b2Manifold manifold,
const b2EdgeShape polygonA,
const b2Transform xfA,
const b2CircleShape circleB,
const b2Transform xfB
)

Compute the collision manifold between an edge and a circle.

Definition at line 27 of file b2CollideEdge.cpp.

void b2CollideEdgeAndPolygon ( b2Manifold manifold,
const b2EdgeShape edgeA,
const b2Transform xfA,
const b2PolygonShape circleB,
const b2Transform xfB
)

Compute the collision manifold between an edge and a circle.

Definition at line 692 of file b2CollideEdge.cpp.

void b2CollidePolygonAndCircle ( b2Manifold manifold,
const b2PolygonShape polygonA,
const b2Transform xfA,
const b2CircleShape circleB,
const b2Transform xfB
)

Compute the collision manifold between a polygon and a circle.

Definition at line 51 of file b2CollideCircle.cpp.

void b2CollidePolygons ( b2Manifold manifold,
const b2PolygonShape polygonA,
const b2Transform xfA,
const b2PolygonShape polygonB,
const b2Transform xfB
)

Compute the collision manifold between two polygons.

Definition at line 116 of file b2CollidePolygon.cpp.

void b2GetPointStates ( b2PointState  state1[b2_maxManifoldPoints],
b2PointState  state2[b2_maxManifoldPoints],
const b2Manifold manifold1,
const b2Manifold manifold2
)

Compute the point states given two manifolds. The states pertain to the transition from manifold1 to manifold2. So state1 is either persist or remove while state2 is either add or persist.

Definition at line 88 of file b2Collision.cpp.

bool b2TestOverlap ( const b2Shape shapeA,
int32  indexA,
const b2Shape shapeB,
int32  indexB,
const b2Transform xfA,
const b2Transform xfB
)

Determine if two generic shapes overlap.

Definition at line 233 of file b2Collision.cpp.

bool b2TestOverlap ( const b2AABB a,
const b2AABB b
) [inline]

Definition at line 262 of file b2Collision.h.


Variable Documentation

const uint8 b2_nullFeature = UCHAR_MAX

Definition at line 34 of file b2Collision.h.
