generic-driver.h File Reference

#include <vl/generic.h>
#include <vl/stringop.h>
#include <stdio.h>
#include <assert.h>

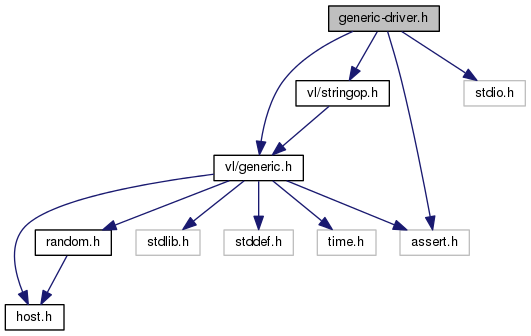

Include dependency graph for generic-driver.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_VlFileMeta
	Support for command line drivers - Definition. More...
Typedefs
typedef struct _VlFileMeta	VlFileMeta
	File meta information type.
Functions
static void	vl_file_meta_close (VlFileMeta *self)
	Close the file associated to meta information.
VL_INLINE int	vl_file_meta_get_double (VlFileMeta *self, double *x)
	Read double from file.
static int	vl_file_meta_open (VlFileMeta *self, char const *basename, char const *mode)
	Open the file associated to meta information.
static int	vl_file_meta_parse (VlFileMeta *self, char const *optarg)
	Parse argument for file meta information.
VL_INLINE int	vl_file_meta_put_double (VlFileMeta *self, double x)
	Write double to file.
VL_INLINE int	vl_file_meta_put_uint8 (VlFileMeta *self, vl_uint8 x)
	Write uint8 to file.

---

Typedef Documentation

typedef struct _VlFileMeta VlFileMeta

File meta information type.

See also:

_VlFileMeta

Definition at line 42 of file generic-driver.h.

---

Function Documentation

static void vl_file_meta_close

(

VlFileMeta *

self

)

[static]

Close the file associated to meta information.

Parameters:

self	File meta information.

Definition at line 145 of file generic-driver.h.

VL_INLINE int vl_file_meta_get_double	(	VlFileMeta *	self,
		double *	x
	)

Read double from file.

Parameters:

self	File meta information.
x	Datum read.

Returns:

error code. The function returns VL_ERR_EOF if the end-of-file is reached and VL_ERR_BAD_ARG if the file is malformed.

Definition at line 236 of file generic-driver.h.

static int vl_file_meta_open	(	VlFileMeta *	self,
		char const *	basename,
		char const *	mode
	)		[static]

Open the file associated to meta information.

Parameters:

self	File meta information.
basename	Basename.
mode	Opening mode (as in fopen).

Returns:

error code. The error may be either either VL_ERR_OVERFLOW if the file name is too long or to VL_ERR_IO if the file cannot be opened.

Definition at line 112 of file generic-driver.h.

static int vl_file_meta_parse	(	VlFileMeta *	self,
		char const *	optarg
	)		[static]

Parse argument for file meta information.

Parameters:

optarg	argument to parse.
self	structure to initalize.

The function parses the string optarg to fill the structure self. optarg is supposed to be composed of two parts: a file protocol specification and a file pattern. Then the function:

• Sets VlFileMeta::active to true.
• Sets VlFileMeta::protocol to the file protocol id (if any).
• Sets VlFileMeta::pattern to the file pattern (if any).

Returns:

error code. The funciton may fail either because the file protocol is not recognized (VL_ERR_BAD_ARG) or because the file pattern is too long to be stored (VL_ERR_OVERFLOW).

Definition at line 63 of file generic-driver.h.

VL_INLINE int vl_file_meta_put_double	(	VlFileMeta *	self,
		double	x
	)

Write double to file.

Parameters:

self	File meta information.
x	Datum to write.

Returns:

error code. The function returns VL_ERR_ALLOC if the datum cannot be written.

Definition at line 164 of file generic-driver.h.

VL_INLINE int vl_file_meta_put_uint8	(	VlFileMeta *	self,
		vl_uint8	x
	)

Write uint8 to file.

Parameters:

self	File meta information.
x	Datum to write.

Returns:

error code. The function returns VL_ERR_ALLOC if the datum cannot be written.

Definition at line 200 of file generic-driver.h.
