transmission_interface::FourBarLinkageTransmission Class Reference

Implementation of a four-bar-linkage transmission. More...

#include <four_bar_linkage_transmission.h>

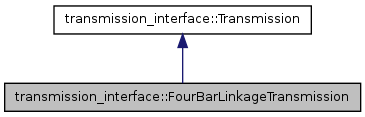

Inheritance diagram for transmission_interface::FourBarLinkageTransmission:
Inheritance graph
[legend]

List of all members.

Public Member Functions

void actuatorToJointEffort (const ActuatorData &act_data, JointData &jnt_data)
 Transform effort variables from actuator to joint space.
void actuatorToJointPosition (const ActuatorData &act_data, JointData &jnt_data)
 Transform position variables from actuator to joint space.
void actuatorToJointVelocity (const ActuatorData &act_data, JointData &jnt_data)
 Transform velocity variables from actuator to joint space.
 FourBarLinkageTransmission (const std::vector< double > &actuator_reduction, const std::vector< double > &joint_offset=std::vector< double >(2, 0.0))
const std::vector< double > & getActuatorReduction () const
const std::vector< double > & getJointOffset () const
void jointToActuatorEffort (const JointData &jnt_data, ActuatorData &act_data)
 Transform effort variables from joint to actuator space.
void jointToActuatorPosition (const JointData &jnt_data, ActuatorData &act_data)
 Transform position variables from joint to actuator space.
void jointToActuatorVelocity (const JointData &jnt_data, ActuatorData &act_data)
 Transform velocity variables from joint to actuator space.
std::size_t numActuators () const
std::size_t numJoints () const

Protected Attributes

std::vector< double > act_reduction_
std::vector< double > jnt_offset_

Detailed Description

Implementation of a four-bar-linkage transmission.

This transmission relates two actuators and two joints through a mechanism in which the state of the first joint only depends on the first actuator, while the second joint depends on both actuators, as illustrated below. Although the class name makes specific reference to the four-bar-linkage, there are other mechanical layouts that yield the same behavior, such as the remote actuation example also depicted below.

Effort
Velocity
Position
Actuator to joint

\begin{eqnarray*} \tau_{j_1} & = & n_{a_1} \tau_{a_1} \\ \tau_{j_2} & = & n_{a_2} \tau_{a_2} - n_{a_1} \tau_{a_1} \end{eqnarray*}

\begin{eqnarray*} \dot{x}_{j_1} & = & \dot{x}_{a_1} / n_{a_1} \\ \dot{x}_{j_2} & = & \dot{x}_{a_2} / n_{a_2} - \dot{x}_{a_1} / n_{a_1} \end{eqnarray*}

\begin{eqnarray*} x_{j_1} & = & x_{a_1} / n_{a_1} + x_{off_1} \\ x_{j_2} & = & x_{a_2} / n_{a_2} - x_{a_1} / n_{a_1} + x_{off_2} \end{eqnarray*}

Joint to actuator

\begin{eqnarray*} \tau_{a_1} & = & \tau_{j_1} / n_{a_1} \\ \tau_{a_2} & = & (\tau_{j_1} + \tau_{j_2}) / n_{a_2} \end{eqnarray*}

\begin{eqnarray*} \dot{x}_{a_1} & = & n_{a_1} \dot{x}_{j_1} \\ \dot{x}_{a_2} & = & n_{a_2} (\dot{x}_{j_1} + \dot{x}_{j_2}) \end{eqnarray*}

\begin{eqnarray*} x_{a_1} & = & n_{a_1} (x_{j_1} - x_{off_1}) \\ x_{a_2} & = & n_{a_2} \left[(x_{j_1} - x_{off_1}) + (x_{j_2} - x_{off_2})\right] \end{eqnarray*}

where:

Definition at line 117 of file four_bar_linkage_transmission.h.


Constructor & Destructor Documentation

transmission_interface::FourBarLinkageTransmission::FourBarLinkageTransmission ( const std::vector< double > &  actuator_reduction,
const std::vector< double > &  joint_offset = std::vector<double>(2, 0.0)
) [inline]
Parameters:
actuator_reductionReduction ratio of actuators.
joint_offsetJoint position offset used in the position mappings.
Precondition:
Nonzero actuator reduction values.

Definition at line 199 of file four_bar_linkage_transmission.h.


Member Function Documentation

void transmission_interface::FourBarLinkageTransmission::actuatorToJointEffort ( const ActuatorData act_data,
JointData jnt_data
) [inline, virtual]

Transform effort variables from actuator to joint space.

Parameters:
[in]act_dataActuator-space variables.
[out]jnt_dataJoint-space variables.
Precondition:
Actuator and joint effort vectors must have size 2 and point to valid data. To call this method it is not required that all other data vectors contain valid data, and can even remain empty.

Implements transmission_interface::Transmission.

Definition at line 217 of file four_bar_linkage_transmission.h.

void transmission_interface::FourBarLinkageTransmission::actuatorToJointPosition ( const ActuatorData act_data,
JointData jnt_data
) [inline, virtual]

Transform position variables from actuator to joint space.

Parameters:
[in]act_dataActuator-space variables.
[out]jnt_dataJoint-space variables.
Precondition:
Actuator and joint position vectors must have size 2 and point to valid data. To call this method it is not required that all other data vectors contain valid data, and can even remain empty.

Implements transmission_interface::Transmission.

Definition at line 241 of file four_bar_linkage_transmission.h.

void transmission_interface::FourBarLinkageTransmission::actuatorToJointVelocity ( const ActuatorData act_data,
JointData jnt_data
) [inline, virtual]

Transform velocity variables from actuator to joint space.

Parameters:
[in]act_dataActuator-space variables.
[out]jnt_dataJoint-space variables.
Precondition:
Actuator and joint velocity vectors must have size 2 and point to valid data. To call this method it is not required that all other data vectors contain valid data, and can even remain empty.

Implements transmission_interface::Transmission.

Definition at line 229 of file four_bar_linkage_transmission.h.

const std::vector<double>& transmission_interface::FourBarLinkageTransmission::getActuatorReduction ( ) const [inline]

Definition at line 191 of file four_bar_linkage_transmission.h.

const std::vector<double>& transmission_interface::FourBarLinkageTransmission::getJointOffset ( ) const [inline]

Definition at line 192 of file four_bar_linkage_transmission.h.

void transmission_interface::FourBarLinkageTransmission::jointToActuatorEffort ( const JointData jnt_data,
ActuatorData act_data
) [inline, virtual]

Transform effort variables from joint to actuator space.

Parameters:
[in]jnt_dataJoint-space variables.
[out]act_dataActuator-space variables.
Precondition:
Actuator and joint effort vectors must have size 2 and point to valid data. To call this method it is not required that all other data vectors contain valid data, and can even remain empty.

Implements transmission_interface::Transmission.

Definition at line 253 of file four_bar_linkage_transmission.h.

void transmission_interface::FourBarLinkageTransmission::jointToActuatorPosition ( const JointData jnt_data,
ActuatorData act_data
) [inline, virtual]

Transform position variables from joint to actuator space.

Parameters:
[in]jnt_dataJoint-space variables.
[out]act_dataActuator-space variables.
Precondition:
Actuator and joint position vectors must have size 2 and point to valid data. To call this method it is not required that all other data vectors contain valid data, and can even remain empty.

Implements transmission_interface::Transmission.

Definition at line 277 of file four_bar_linkage_transmission.h.

void transmission_interface::FourBarLinkageTransmission::jointToActuatorVelocity ( const JointData jnt_data,
ActuatorData act_data
) [inline, virtual]

Transform velocity variables from joint to actuator space.

Parameters:
[in]jnt_dataJoint-space variables.
[out]act_dataActuator-space variables.
Precondition:
Actuator and joint velocity vectors must have size 2 and point to valid data. To call this method it is not required that all other data vectors contain valid data, and can even remain empty.

Implements transmission_interface::Transmission.

Definition at line 265 of file four_bar_linkage_transmission.h.

Returns:
Number of actuators managed by transmission, ie. the dimension of the actuator space.

Implements transmission_interface::Transmission.

Definition at line 188 of file four_bar_linkage_transmission.h.

std::size_t transmission_interface::FourBarLinkageTransmission::numJoints ( ) const [inline, virtual]
Returns:
Number of joints managed by transmission, ie. the dimension of the joint space.

Implements transmission_interface::Transmission.

Definition at line 189 of file four_bar_linkage_transmission.h.


Member Data Documentation

Definition at line 195 of file four_bar_linkage_transmission.h.

Definition at line 196 of file four_bar_linkage_transmission.h.


The documentation for this class was generated from the following file:


transmission_interface
Author(s): Adolfo Rodriguez Tsouroukdissian
