rtsprofile.targets.TargetComponent Class Reference

TargetComponent object. More...

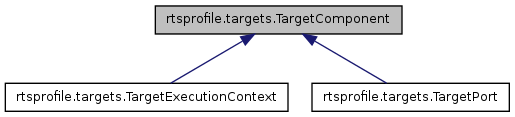

Inheritance diagram for rtsprofile.targets.TargetComponent:

List of all members.

Public Member Functions
def	__init__
def	__str__
def	component_id
def	component_id
def	instance_name
def	instance_name
def	parse_xml_node
def	parse_yaml
def	properties
def	properties
def	save_xml
def	to_dict
Public Attributes
	component_id
	instance_name
Private Attributes
	_component_id
	_instance_name
	_properties

---

Detailed Description

TargetComponent object.

Stores enough information to uniquely identify a component in the RT
system. Used to specify target components, for example the components
participating in a group or running in an execution context, or the
execution order of components.

Definition at line 37 of file targets.py.

---

Constructor & Destructor Documentation

def rtsprofile.targets.TargetComponent.__init__	(		self,
			component_id = '',
			instance_name = ''
	)

Constructor.

@param component_id The ID of the target component.
@type component_id str
@param instance_name The instance name of the target component.
@type instance_name str

Definition at line 45 of file targets.py.

---

Member Function Documentation

def rtsprofile.targets.TargetComponent.__str__

(

self

)

Reimplemented in rtsprofile.targets.TargetExecutionContext, and rtsprofile.targets.TargetPort.

Definition at line 62 of file targets.py.

def rtsprofile.targets.TargetComponent.component_id

(

self

)

The ID of the target component.

RT components can be uniquely identified using the component ID and the
instance name.

Definition at line 72 of file targets.py.

def rtsprofile.targets.TargetComponent.component_id	(		self,
			component_id
	)

Definition at line 82 of file targets.py.

def rtsprofile.targets.TargetComponent.instance_name

(

self

)

The instance name of the target component.

RT components can be uniquely identified using the component ID and the
instance name.

Definition at line 88 of file targets.py.

def rtsprofile.targets.TargetComponent.instance_name	(		self,
			instance_name
	)

Definition at line 98 of file targets.py.

def rtsprofile.targets.TargetComponent.parse_xml_node	(		self,
			node
	)

Parse an xml.dom Node object representing a target component into
this object.

Reimplemented in rtsprofile.targets.TargetExecutionContext, and rtsprofile.targets.TargetPort.

Definition at line 120 of file targets.py.

def rtsprofile.targets.TargetComponent.parse_yaml	(		self,
			y
	)

Parse a YAML specification of a target component into this
object.

Reimplemented in rtsprofile.targets.TargetExecutionContext, and rtsprofile.targets.TargetPort.

Definition at line 132 of file targets.py.

def rtsprofile.targets.TargetComponent.properties

(

self

)

Miscellaneous properties.

Stores key/value pair properties.

Part of the extended profile.

Reimplemented in rtsprofile.targets.TargetExecutionContext.

Definition at line 104 of file targets.py.

def rtsprofile.targets.TargetComponent.properties	(		self,
			properties
	)

Reimplemented in rtsprofile.targets.TargetExecutionContext.

Definition at line 115 of file targets.py.

def rtsprofile.targets.TargetComponent.save_xml	(		self,
			doc,
			element
	)

Save this target component into an xml.dom.Element object.

Reimplemented in rtsprofile.targets.TargetExecutionContext, and rtsprofile.targets.TargetPort.

Definition at line 148 of file targets.py.

def rtsprofile.targets.TargetComponent.to_dict

(

self

)

Save this target component into a dictionary.

Reimplemented in rtsprofile.targets.TargetExecutionContext, and rtsprofile.targets.TargetPort.

Definition at line 160 of file targets.py.

---

Member Data Documentation

rtsprofile::targets.TargetComponent::_component_id [private]

Definition at line 52 of file targets.py.

rtsprofile::targets.TargetComponent::_instance_name [private]

Definition at line 52 of file targets.py.

rtsprofile::targets.TargetComponent::_properties [private]

Reimplemented in rtsprofile.targets.TargetExecutionContext.

Definition at line 52 of file targets.py.

rtsprofile::targets.TargetComponent::component_id

Definition at line 123 of file targets.py.

rtsprofile::targets.TargetComponent::instance_name

Definition at line 123 of file targets.py.

---

The documentation for this class was generated from the following file:

• targets.py
