Classes | Typedefs | Functions | Variables
ethercat_frame.h File Reference
#include "ros_ethercat_eml/ethercat_telegram.h"
#include "ros_ethercat_eml/netif.h"

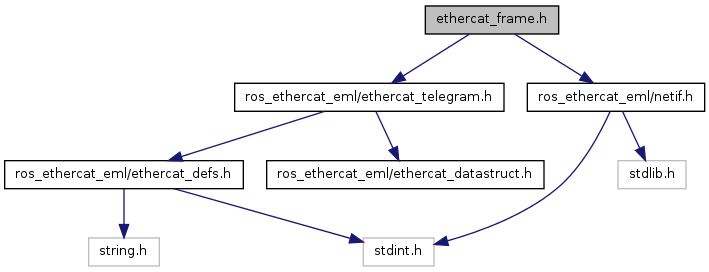

Include dependency graph for ethercat_frame.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  EC_Ethernet_Frame
 Class representing EtherCAT Frames in "raw" ethernet mode. More...
class  EC_Frame
 EtherCAT Frame base class. More...
struct  EtherCAT_Frame
 EtherCAT Frame Interface (we need a C interface) More...

Typedefs

typedef struct EtherCAT_Frame ECFrame
 EtherCAT Frame Interface (we need a C interface)

Functions

int framebuild (struct EtherCAT_Frame *frame, const unsigned char *buffer)
int framedump (const struct EtherCAT_Frame *frame, unsigned char *buffer, size_t bufferlength)

Variables

static const size_t ETHERCAT_ETHERNET_FRAME_HEADER_SIZE = 2
 Ethercat Ethernet_mode frame.

Typedef Documentation

typedef struct EtherCAT_Frame ECFrame

EtherCAT Frame Interface (we need a C interface)

Due to the fact that this is a C-interface, this class does not herit from EC_Datastruct, although it has the same needs


Function Documentation

int framebuild ( struct EtherCAT_Frame frame,
const unsigned char *  buffer
)

Build an EtherCAT frame from an array of bytes (for receiving).

Parameters:
framepointer to the frame where data can be put in
bufferpointer to an array of unsigned chars that contain the necessary info
Returns:
zero on succes, -1 otherwise
int framedump ( const struct EtherCAT_Frame frame,
unsigned char *  buffer,
size_t  bufferlength
)

"Dump" an EtherCAT frame into an array of bytes (for transmitting).

Parameters:
framepointer to the frame to be dumped
bufferpointer to an array of unsigned chars that can be put into an ethernet frame
bufferlengththe maximum length that the frame may have
Returns:
the length of the buffer expressed as a number of bytes, if smaller than bufferlength, 0 otherwise

Variable Documentation

const size_t ETHERCAT_ETHERNET_FRAME_HEADER_SIZE = 2 [static]

Ethercat Ethernet_mode frame.

Definition at line 139 of file ethercat_frame.h.



ros_ethercat_eml
Author(s): Tom Panis, Klaas Gadeyne, Bob Koninckx, Austin Hendrix, Manos Nikolaidis
autogenerated on Thu Aug 27 2015 14:47:07
