arbotix_python.linear_controller.LinearJoint Class Reference

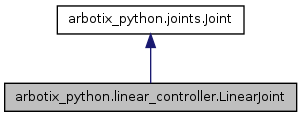

Inheritance diagram for arbotix_python.linear_controller.LinearJoint:

List of all members.

Public Member Functions
def	__init__
	Constructs a Joint instance.
def	commandCb
def	getDiagnostics
def	interpolate
def	readingToPosition
def	setControlOutput
def	setCurrentFeedback
	Set the current position from feedback data.
Public Attributes
	cal
	cal_raw
	desired
	dirty
	keys
	last
	max
	max_speed
	min
	position
	velocity

---

Detailed Description

Definition at line 40 of file linear_controller.py.

---

Constructor & Destructor Documentation

def arbotix_python.linear_controller.LinearJoint.__init__	(		self,
			device,
			name
	)

Constructs a Joint instance.

Parameters:

device	The arbotix instance.
name	The joint name.

Reimplemented from arbotix_python.joints.Joint.

Definition at line 41 of file linear_controller.py.

---

Member Function Documentation

def arbotix_python.linear_controller.LinearJoint.commandCb	(		self,
			req
	)

Float64 style command input.

Definition at line 116 of file linear_controller.py.

def arbotix_python.linear_controller.LinearJoint.getDiagnostics

(

self

)

Get a diagnostics status.

Reimplemented from arbotix_python.joints.Joint.

Definition at line 104 of file linear_controller.py.

def arbotix_python.linear_controller.LinearJoint.interpolate	(		self,
			frame
	)

Get new output: 1 = increase position, -1 is decrease position.

Reimplemented from arbotix_python.joints.Joint.

Definition at line 65 of file linear_controller.py.

def arbotix_python.linear_controller.LinearJoint.readingToPosition	(		self,
			reading
	)

Definition at line 127 of file linear_controller.py.

def arbotix_python.linear_controller.LinearJoint.setControlOutput	(		self,
			position
	)

Set the position that controller is moving to.
    Returns output value in raw_data format.

Reimplemented from arbotix_python.joints.Joint.

Definition at line 94 of file linear_controller.py.

def arbotix_python.linear_controller.LinearJoint.setCurrentFeedback	(		self,
			raw_data
	)

Set the current position from feedback data.

Parameters:

raw_data

The current feedback.

Returns:

The current position, in radians/meters.

Reimplemented from arbotix_python.joints.Joint.

Definition at line 83 of file linear_controller.py.

---

Member Data Documentation

arbotix_python::linear_controller.LinearJoint::cal

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::cal_raw

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::desired

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::dirty

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::keys

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::last

Reimplemented from arbotix_python.joints.Joint.

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::max

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::max_speed

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::min

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::position

Reimplemented from arbotix_python.joints.Joint.

Definition at line 41 of file linear_controller.py.

arbotix_python::linear_controller.LinearJoint::velocity

Reimplemented from arbotix_python.joints.Joint.

Definition at line 41 of file linear_controller.py.

---

The documentation for this class was generated from the following file:

• linear_controller.py
