Abstract base class for interfacing tailored matrix-vector operations. More...

#include <Matrices.hpp>

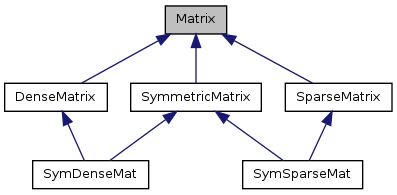

Inheritance diagram for Matrix:

Public Member Functions
virtual returnValue	addToDiag (real_t alpha)=0
virtual real_t	diag (int i) const =0
void	doFreeMemory ()
void	doNotFreeMemory ()
virtual Matrix *	duplicate () const =0
virtual void	free ()=0
virtual returnValue	getCol (int cNum, const Indexlist const irows, real_t alpha, real_t col) const =0
virtual returnValue	getRow (int rNum, const Indexlist const icols, real_t alpha, real_t row) const =0
virtual BooleanType	isDiag () const =0
	Matrix ()
BooleanType	needToFreeMemory () const
virtual returnValue	print () const =0
virtual returnValue	times (int xN, real_t alpha, const real_t x, int xLD, real_t beta, real_t y, int yLD) const =0
virtual returnValue	times (const Indexlist const irows, const Indexlist const icols, int xN, real_t alpha, const real_t x, int xLD, real_t beta, real_t y, int yLD, BooleanType yCompr=BT_TRUE) const =0
virtual returnValue	transTimes (int xN, real_t alpha, const real_t x, int xLD, real_t beta, real_t y, int yLD) const =0
virtual returnValue	transTimes (const Indexlist const irows, const Indexlist const icols, int xN, real_t alpha, const real_t x, int xLD, real_t beta, real_t y, int yLD) const =0
virtual	~Matrix ()
Protected Attributes
BooleanType	freeMemory

Detailed Description

Abstract base class for interfacing tailored matrix-vector operations.

Abstract base matrix class. Supplies interface to matrix vector products, including products with submatrices given by (ordered) working set index lists (see SubjectTo).

Author:: Andreas Potschka, Christian Kirches, Hans Joachim Ferreau

Version:: 3.0beta

Date:: 2011

Definition at line 112 of file Matrices.hpp.

Constructor & Destructor Documentation

Matrix::Matrix ( ) [inline]

Default constructor.

Definition at line 116 of file Matrices.hpp.

virtual Matrix::~Matrix ( ) [inline, virtual]

Destructor.

Definition at line 119 of file Matrices.hpp.

Member Function Documentation

virtual returnValue Matrix::addToDiag ( real_t alpha ) [pure virtual]

Adds given offset to diagonal of matrix.

Returns:: SUCCESSFUL_RETURN
RET_NO_DIAGONAL_AVAILABLE

Parameters:

alpha Diagonal offset.

Implemented in SparseMatrix, and DenseMatrix.

virtual real_t Matrix::diag ( int i ) const [pure virtual]

Returns i-th diagonal entry.

Returns:: i-th diagonal entry

Parameters:

i Index.

Implemented in SparseMatrix, and DenseMatrix.

void Matrix::doFreeMemory ( ) [inline]

Enables de-allocation of internal memory.

Definition at line 224 of file Matrices.hpp.

void Matrix::doNotFreeMemory ( ) [inline]

Disables de-allocation of internal memory.

Definition at line 227 of file Matrices.hpp.

virtual Matrix* Matrix::duplicate ( ) const [pure virtual]

Returns a deep-copy of the Matrix object.

Returns:: Deep-copy of Matrix object

Implemented in SymSparseMat, SparseMatrix, SymDenseMat, and DenseMatrix.

virtual void Matrix::free ( ) [pure virtual]

Frees all internal memory.

Implemented in SparseMatrix, and DenseMatrix.

virtual returnValue Matrix::getCol	(	int	cNum,
		const Indexlist *const	irows,
		real_t	alpha,
		real_t *	col
	)		const `[pure virtual]`

Retrieve indexed entries of matrix column multiplied by alpha.

Returns:: SUCCESSFUL_RETURN

Parameters:

cNum	Column number.
irows	Index list specifying rows.
alpha	Scalar factor.
col	Output column vector.

Implemented in SparseMatrix, and DenseMatrix.

virtual returnValue Matrix::getRow	(	int	rNum,
		const Indexlist *const	icols,
		real_t	alpha,
		real_t *	row
	)		const `[pure virtual]`

Retrieve indexed entries of matrix row multiplied by alpha.

Returns:: SUCCESSFUL_RETURN

Parameters:

rNum	Row number.
icols	Index list specifying columns.
alpha	Scalar factor.
row	Output row vector.

Implemented in SparseMatrix, and DenseMatrix.

virtual BooleanType Matrix::isDiag ( ) const [pure virtual]

Checks whether matrix is square and diagonal.

Returns:: BT_TRUE iff matrix is square and diagonal;
BT_FALSE otherwise.

Implemented in SparseMatrix, and DenseMatrix.

BooleanType Matrix::needToFreeMemory ( ) const [inline]

Returns whether internal memory needs to be de-allocated.

Returns:: BT_TRUE iff internal memory needs to be de-allocated,
BT_FALSE otherwise

Definition at line 221 of file Matrices.hpp.

virtual returnValue Matrix::print ( ) const [pure virtual]

Prints matrix to screen.

Returns:: SUCCESSFUL_RETURN
RET_NOT_YET_IMPLEMENTED

Implemented in SparseMatrix, and DenseMatrix.

virtual returnValue Matrix::times	(	int	xN,
		real_t	alpha,
		const real_t *	x,
		int	xLD,
		real_t	beta,
		real_t *	y,
		int	yLD
	)		const `[pure virtual]`

Evaluate Y=alpha*A*X + beta*Y.

Returns:: SUCCESSFUL_RETURN

Parameters:

xN	Number of vectors to multiply.
alpha	Scalar factor for matrix vector product.
x	Input vector to be multiplied.
xLD	Leading dimension of input x.
beta	Scalar factor for y.
y	Output vector of results.
yLD	Leading dimension of output y.

Implemented in SparseMatrix, and DenseMatrix.

virtual returnValue Matrix::times	(	const Indexlist *const	irows,
		const Indexlist *const	icols,
		int	xN,
		real_t	alpha,
		const real_t *	x,
		int	xLD,
		real_t	beta,
		real_t *	y,
		int	yLD,
		BooleanType	yCompr = `BT_TRUE`
	)		const `[pure virtual]`

Evaluate matrix vector product with submatrix given by Indexlist.

Returns:: SUCCESSFUL_RETURN

Parameters:

irows	Index list specifying rows.
icols	Index list specifying columns.
xN	Number of vectors to multiply.
alpha	Scalar factor for matrix vector product.
x	Input vector to be multiplied.
xLD	Leading dimension of input x.
beta	Scalar factor for y.
y	Output vector of results.
yLD	Leading dimension of output y.
yCompr	Compressed storage for y.

Implemented in SparseMatrix, and DenseMatrix.

virtual returnValue Matrix::transTimes	(	int	xN,
		real_t	alpha,
		const real_t *	x,
		int	xLD,
		real_t	beta,
		real_t *	y,
		int	yLD
	)		const `[pure virtual]`

Evaluate Y=alpha*A'*X + beta*Y.

Returns:: SUCCESSFUL_RETURN

Parameters:

xN	Number of vectors to multiply.
alpha	Scalar factor for matrix vector product.
x	Input vector to be multiplied.
xLD	Leading dimension of input x.
beta	Scalar factor for y.
y	Output vector of results.
yLD	Leading dimension of output y.

Implemented in SparseMatrix, and DenseMatrix.

virtual returnValue Matrix::transTimes	(	const Indexlist *const	irows,
		const Indexlist *const	icols,
		int	xN,
		real_t	alpha,
		const real_t *	x,
		int	xLD,
		real_t	beta,
		real_t *	y,
		int	yLD
	)		const `[pure virtual]`

Evaluate matrix transpose vector product.

Returns:: SUCCESSFUL_RETURN

Parameters:

irows	Index list specifying rows.
icols	Index list specifying columns.
xN	Number of vectors to multiply.
alpha	Scalar factor for matrix vector product.
x	Input vector to be multiplied.
xLD	Leading dimension of input x.
beta	Scalar factor for y.
y	Output vector of results.
yLD	Leading dimension of output y.

Implemented in SparseMatrix, and DenseMatrix.

Member Data Documentation

BooleanType Matrix::freeMemory [protected]

Indicating whether internal memory needs to be de-allocated.

Definition at line 227 of file Matrices.hpp.

The documentation for this class was generated from the following file:

Matrices.hpp
