driver_atmel.c File Reference

#include "includes.h"
#include <sys/ioctl.h>
#include "wireless_copy.h"
#include "common.h"
#include "driver.h"
#include "driver_wext.h"

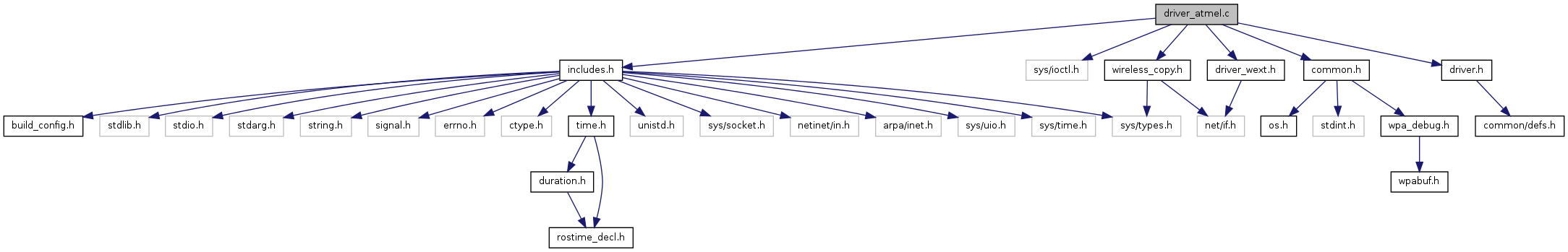

Include dependency graph for driver_atmel.c:

Go to the source code of this file.

Classes
struct	atmel_param
struct	wpa_driver_atmel_data
Defines
#define	ATMEL_WPA_IOCTL   (SIOCIWFIRSTPRIV + 2)
#define	ATMEL_WPA_IOCTL_GET_PARAM   (SIOCIWFIRSTPRIV + 4)
#define	ATMEL_WPA_IOCTL_PARAM   (SIOCIWFIRSTPRIV + 3)
#define	MAX_KEY_LENGTH   40
Enumerations
enum	{ SET_WPA_ENCRYPTION = 1, SET_CIPHER_SUITES = 2, MLME_STA_DEAUTH = 3, MLME_STA_DISASSOC = 4 }
enum	{ ATMEL_PARAM_WPA = 1, ATMEL_PARAM_PRIVACY_INVOKED = 2, ATMEL_PARAM_WPA_TYPE = 3 }
Functions
static int	atmel2param (struct wpa_driver_atmel_data *drv, int param, int value)
static int	atmel_ioctl (struct wpa_driver_atmel_data *drv, struct atmel_param *param, int len, int show_err)
static int	wpa_driver_atmel_associate (void *priv, struct wpa_driver_associate_params *params)
static int	wpa_driver_atmel_deauthenticate (void *priv, const u8 *addr, int reason_code)
static void	wpa_driver_atmel_deinit (void *priv)
static int	wpa_driver_atmel_disassociate (void *priv, const u8 *addr, int reason_code)
static int	wpa_driver_atmel_get_bssid (void *priv, u8 *bssid)
static struct wpa_scan_results *	wpa_driver_atmel_get_scan_results (void *priv)
static int	wpa_driver_atmel_get_ssid (void *priv, u8 *ssid)
static void *	wpa_driver_atmel_init (void *ctx, const char *ifname)
static int	wpa_driver_atmel_mlme (void *priv, const u8 *addr, int cmd, int reason_code)
static int	wpa_driver_atmel_scan (void *priv, struct wpa_driver_scan_params *params)
static int	wpa_driver_atmel_set_countermeasures (void *priv, int enabled)
static int	wpa_driver_atmel_set_key (const char *ifname, void *priv, enum wpa_alg alg, const u8 *addr, int key_idx, int set_tx, const u8 *seq, size_t seq_len, const u8 *key, size_t key_len)
static int	wpa_driver_atmel_set_operstate (void *priv, int state)
static int	wpa_driver_atmel_set_wpa (void *priv, int enabled)
Variables
struct wpa_driver_ops	wpa_driver_atmel_ops

---

Define Documentation

#define ATMEL_WPA_IOCTL   (SIOCIWFIRSTPRIV + 2)

Definition at line 58 of file driver_atmel.c.

#define ATMEL_WPA_IOCTL_GET_PARAM   (SIOCIWFIRSTPRIV + 4)

Definition at line 60 of file driver_atmel.c.

#define ATMEL_WPA_IOCTL_PARAM   (SIOCIWFIRSTPRIV + 3)

Definition at line 59 of file driver_atmel.c.

#define MAX_KEY_LENGTH   40

Definition at line 78 of file driver_atmel.c.

---

Enumeration Type Documentation

anonymous enum

Enumerator:

SET_WPA_ENCRYPTION
SET_CIPHER_SUITES
MLME_STA_DEAUTH
MLME_STA_DISASSOC

Definition at line 64 of file driver_atmel.c.

anonymous enum

Enumerator:

ATMEL_PARAM_WPA
ATMEL_PARAM_PRIVACY_INVOKED
ATMEL_PARAM_WPA_TYPE

Definition at line 72 of file driver_atmel.c.

---

Function Documentation

static int atmel2param	(	struct wpa_driver_atmel_data *	drv,
		int	param,
		int	value
	)		[static]

Definition at line 124 of file driver_atmel.c.

static int atmel_ioctl	(	struct wpa_driver_atmel_data *	drv,
		struct atmel_param *	param,
		int	len,
		int	show_err
	)		[static]

Definition at line 101 of file driver_atmel.c.

static int wpa_driver_atmel_associate	(	void *	priv,
		struct wpa_driver_associate_params *	params
	)		[static]

Definition at line 371 of file driver_atmel.c.

static int wpa_driver_atmel_deauthenticate	(	void *	priv,
		const u8 *	addr,
		int	reason_code
	)		[static]

Definition at line 315 of file driver_atmel.c.

static void wpa_driver_atmel_deinit

(

void *

priv

)

[static]

Definition at line 474 of file driver_atmel.c.

static int wpa_driver_atmel_disassociate	(	void *	priv,
		const u8 *	addr,
		int	reason_code
	)		[static]

Definition at line 327 of file driver_atmel.c.

static int wpa_driver_atmel_get_bssid	(	void *	priv,
		u8 *	bssid
	)		[static]

Definition at line 410 of file driver_atmel.c.

static struct wpa_scan_results* wpa_driver_atmel_get_scan_results

(

void *

priv

)

[static, read]

Definition at line 432 of file driver_atmel.c.

static int wpa_driver_atmel_get_ssid	(	void *	priv,
		u8 *	ssid
	)		[static]

Definition at line 417 of file driver_atmel.c.

static void* wpa_driver_atmel_init	(	void *	ctx,
		const char *	ifname
	)		[static]

Definition at line 446 of file driver_atmel.c.

static int wpa_driver_atmel_mlme	(	void *	priv,
		const u8 *	addr,
		int	cmd,
		int	reason_code
	)		[static]

Definition at line 277 of file driver_atmel.c.

static int wpa_driver_atmel_scan	(	void *	priv,
		struct wpa_driver_scan_params *	params
	)		[static]

Definition at line 424 of file driver_atmel.c.

static int wpa_driver_atmel_set_countermeasures	(	void *	priv,
		int	enabled
	)		[static]

Definition at line 267 of file driver_atmel.c.

static int wpa_driver_atmel_set_key	(	const char *	ifname,
		void *	priv,
		enum wpa_alg	alg,
		const u8 *	addr,
		int	key_idx,
		int	set_tx,
		const u8 *	seq,
		size_t	seq_len,
		const u8 *	key,
		size_t	key_len
	)		[static]

Definition at line 191 of file driver_atmel.c.

static int wpa_driver_atmel_set_operstate	(	void *	priv,
		int	state
	)		[static]

Definition at line 439 of file driver_atmel.c.

static int wpa_driver_atmel_set_wpa	(	void *	priv,
		int	enabled
	)		[static]

Definition at line 169 of file driver_atmel.c.

---

Variable Documentation

struct wpa_driver_ops wpa_driver_atmel_ops

Initial value:

 {
        .name = "atmel",
        .desc = "ATMEL AT76C5XXx (USB, PCMCIA)",
        .get_bssid = wpa_driver_atmel_get_bssid,
        .get_ssid = wpa_driver_atmel_get_ssid,
        .set_key = wpa_driver_atmel_set_key,
        .init = wpa_driver_atmel_init,
        .deinit = wpa_driver_atmel_deinit,
        .set_countermeasures = wpa_driver_atmel_set_countermeasures,
        .scan2 = wpa_driver_atmel_scan,
        .get_scan_results2 = wpa_driver_atmel_get_scan_results,
        .deauthenticate = wpa_driver_atmel_deauthenticate,
        .disassociate = wpa_driver_atmel_disassociate,
        .associate = wpa_driver_atmel_associate,
        .set_operstate = wpa_driver_atmel_set_operstate,
}

Definition at line 484 of file driver_atmel.c.
