wireless_copy.h File Reference
#include <sys/types.h>
#include <net/if.h>
Include dependency graph for wireless_copy.h:

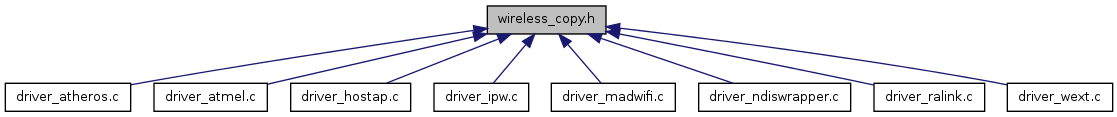

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  iw_discarded
struct  iw_encode_ext
struct  iw_event
struct  iw_freq
struct  iw_michaelmicfailure
struct  iw_missed
struct  iw_mlme
struct  iw_param
struct  iw_pmkid_cand
struct  iw_pmksa
struct  iw_point
struct  iw_priv_args
struct  iw_quality
struct  iw_range
struct  iw_scan_req
struct  iw_statistics
struct  iw_thrspy
struct  iwreq
union  iwreq_data

Defines

#define IW_AUTH_80211_AUTH_ALG   6
#define IW_AUTH_ALG_LEAP   0x00000004
#define IW_AUTH_ALG_OPEN_SYSTEM   0x00000001
#define IW_AUTH_ALG_SHARED_KEY   0x00000002
#define IW_AUTH_CIPHER_CCMP   0x00000008
#define IW_AUTH_CIPHER_GROUP   2
#define IW_AUTH_CIPHER_GROUP_MGMT   11
#define IW_AUTH_CIPHER_NONE   0x00000001
#define IW_AUTH_CIPHER_PAIRWISE   1
#define IW_AUTH_CIPHER_TKIP   0x00000004
#define IW_AUTH_CIPHER_WEP104   0x00000010
#define IW_AUTH_CIPHER_WEP40   0x00000002
#define IW_AUTH_DROP_UNENCRYPTED   5
#define IW_AUTH_FLAGS   0xF000
#define IW_AUTH_INDEX   0x0FFF
#define IW_AUTH_KEY_MGMT   3
#define IW_AUTH_KEY_MGMT_802_1X   1
#define IW_AUTH_KEY_MGMT_PSK   2
#define IW_AUTH_MFP   12
#define IW_AUTH_MFP_DISABLED   0 /* MFP disabled */
#define IW_AUTH_MFP_OPTIONAL   1 /* MFP optional */
#define IW_AUTH_MFP_REQUIRED   2 /* MFP required */
#define IW_AUTH_PRIVACY_INVOKED   10
#define IW_AUTH_ROAMING_CONTROL   9
#define IW_AUTH_ROAMING_DISABLE
#define IW_AUTH_ROAMING_ENABLE   0 /* driver/firmware based roaming */
#define IW_AUTH_RX_UNENCRYPTED_EAPOL   8
#define IW_AUTH_TKIP_COUNTERMEASURES   4
#define IW_AUTH_WPA_ENABLED   7
#define IW_AUTH_WPA_VERSION   0
#define IW_AUTH_WPA_VERSION_DISABLED   0x00000001
#define IW_AUTH_WPA_VERSION_WPA   0x00000002
#define IW_AUTH_WPA_VERSION_WPA2   0x00000004
#define IW_CUSTOM_MAX   256 /* In bytes */
#define IW_ENC_CAPA_4WAY_HANDSHAKE   0x00000010
#define IW_ENC_CAPA_CIPHER_CCMP   0x00000008
#define IW_ENC_CAPA_CIPHER_TKIP   0x00000004
#define IW_ENC_CAPA_WPA   0x00000001
#define IW_ENC_CAPA_WPA2   0x00000002
#define IW_ENCODE_ALG_AES_CMAC   5
#define IW_ENCODE_ALG_CCMP   3
#define IW_ENCODE_ALG_NONE   0
#define IW_ENCODE_ALG_PMK   4
#define IW_ENCODE_ALG_TKIP   2
#define IW_ENCODE_ALG_WEP   1
#define IW_ENCODE_DISABLED   0x8000 /* Encoding disabled */
#define IW_ENCODE_ENABLED   0x0000 /* Encoding enabled */
#define IW_ENCODE_EXT_GROUP_KEY   0x00000004
#define IW_ENCODE_EXT_RX_SEQ_VALID   0x00000002
#define IW_ENCODE_EXT_SET_TX_KEY   0x00000008
#define IW_ENCODE_EXT_TX_SEQ_VALID   0x00000001
#define IW_ENCODE_FLAGS   0xFF00 /* Flags defined below */
#define IW_ENCODE_INDEX   0x00FF /* Token index (if needed) */
#define IW_ENCODE_MODE   0xF000 /* Modes defined below */
#define IW_ENCODE_NOKEY   0x0800 /* Key is write only, so not present */
#define IW_ENCODE_OPEN   0x2000 /* Accept non-encoded packets */
#define IW_ENCODE_RESTRICTED   0x4000 /* Refuse non-encoded packets */
#define IW_ENCODE_SEQ_MAX_SIZE   8
#define IW_ENCODE_TEMP   0x0400 /* Temporary key */
#define IW_ENCODING_TOKEN_MAX   64 /* 512 bits (for now) */
#define IW_ESSID_MAX_SIZE   32
#define IW_EV_ADDR_LEN   (IW_EV_LCP_LEN + sizeof(struct sockaddr))
#define IW_EV_CHAR_LEN   (IW_EV_LCP_LEN + IFNAMSIZ)
#define IW_EV_FREQ_LEN   (IW_EV_LCP_LEN + sizeof(struct iw_freq))
#define IW_EV_LCP_LEN   (sizeof(struct iw_event) - sizeof(union iwreq_data))
#define IW_EV_PARAM_LEN   (IW_EV_LCP_LEN + sizeof(struct iw_param))
#define IW_EV_POINT_LEN
#define IW_EV_POINT_OFF
#define IW_EV_QUAL_LEN   (IW_EV_LCP_LEN + sizeof(struct iw_quality))
#define IW_EV_UINT_LEN   (IW_EV_LCP_LEN + sizeof(__u32))
#define IW_EVENT_CAPA_BASE(cmd)
#define IW_EVENT_CAPA_INDEX(cmd)   (IW_EVENT_CAPA_BASE(cmd) >> 5)
#define IW_EVENT_CAPA_K_0
#define IW_EVENT_CAPA_K_1   (IW_EVENT_CAPA_MASK(0x8B2A))
#define IW_EVENT_CAPA_MASK(cmd)   (1 << (IW_EVENT_CAPA_BASE(cmd) & 0x1F))
#define IW_EVENT_CAPA_SET(event_capa, cmd)   (event_capa[IW_EVENT_CAPA_INDEX(cmd)] |= IW_EVENT_CAPA_MASK(cmd))
#define IW_EVENT_CAPA_SET_KERNEL(event_capa)   {event_capa[0] |= IW_EVENT_CAPA_K_0; event_capa[1] |= IW_EVENT_CAPA_K_1; }
#define IW_EVENT_IDX(cmd)   ((cmd) - IWEVFIRST)
#define IW_FREQ_AUTO   0x00 /* Let the driver decides */
#define IW_FREQ_FIXED   0x01 /* Force a specific value */
#define IW_GENERIC_IE_MAX   1024
#define IW_IOCTL_IDX(cmd)   ((cmd) - SIOCIWFIRST)
#define IW_IS_GET(cmd)   ((cmd) & 0x1)
#define IW_IS_SET(cmd)   (!((cmd) & 0x1))
#define IW_MAX_AP   64
#define IW_MAX_BITRATES   32
#define IW_MAX_ENCODING_SIZES   8
#define IW_MAX_FREQUENCIES   32
#define IW_MAX_SPY   8
#define IW_MAX_TXPOWER   8
#define IW_MICFAILURE_COUNT
#define IW_MICFAILURE_GROUP   0x00000004
#define IW_MICFAILURE_KEY_ID   0x00000003 /* Key ID 0..3 */
#define IW_MICFAILURE_PAIRWISE   0x00000008
#define IW_MICFAILURE_STAKEY   0x00000010
#define IW_MLME_DEAUTH   0
#define IW_MLME_DISASSOC   1
#define IW_MODE_ADHOC   1 /* Single cell network */
#define IW_MODE_AUTO   0 /* Let the driver decides */
#define IW_MODE_INFRA   2 /* Multi cell network, roaming, ... */
#define IW_MODE_MASTER   3 /* Synchronisation master or Access Point */
#define IW_MODE_MONITOR   6 /* Passive monitor (listen only) */
#define IW_MODE_REPEAT   4 /* Wireless Repeater (forwarder) */
#define IW_MODE_SECOND   5 /* Secondary master/repeater (backup) */
#define IW_PMKID_CAND_PREAUTH   0x00000001 /* RNS pre-authentication enabled */
#define IW_PMKID_LEN   16
#define IW_PMKSA_ADD   1
#define IW_PMKSA_FLUSH   3
#define IW_PMKSA_REMOVE   2
#define IW_POWER_ALL_R   0x0300 /* Receive all messages though PM */
#define IW_POWER_FORCE_S   0x0400 /* Force PM procedure for sending unicast */
#define IW_POWER_MAX   0x0002 /* Value is a maximum */
#define IW_POWER_MIN   0x0001 /* Value is a minimum */
#define IW_POWER_MODE   0x0F00 /* Power Management mode */
#define IW_POWER_MODIFIER   0x000F /* Modify a parameter */
#define IW_POWER_MULTICAST_R   0x0200 /* Receive only multicast messages */
#define IW_POWER_ON   0x0000 /* No details... */
#define IW_POWER_PERIOD   0x1000 /* Value is a period/duration of */
#define IW_POWER_RELATIVE   0x0004 /* Value is not in seconds/ms/us */
#define IW_POWER_REPEATER   0x0800 /* Repeat broadcast messages in PM period */
#define IW_POWER_TIMEOUT   0x2000 /* Value is a timeout (to go asleep) */
#define IW_POWER_TYPE   0xF000 /* Type of parameter */
#define IW_POWER_UNICAST_R   0x0100 /* Receive only unicast messages */
#define IW_PRIV_SIZE_FIXED   0x0800 /* Variable or fixed number of args */
#define IW_PRIV_SIZE_MASK   0x07FF /* Max number of those args */
#define IW_PRIV_TYPE_ADDR   0x6000 /* struct sockaddr */
#define IW_PRIV_TYPE_BYTE   0x1000 /* Char as number */
#define IW_PRIV_TYPE_CHAR   0x2000 /* Char as character */
#define IW_PRIV_TYPE_FLOAT   0x5000 /* struct iw_freq */
#define IW_PRIV_TYPE_INT   0x4000 /* 32 bits int */
#define IW_PRIV_TYPE_MASK   0x7000 /* Type of arguments */
#define IW_PRIV_TYPE_NONE   0x0000
#define IW_QUAL_ALL_INVALID   0x70
#define IW_QUAL_ALL_UPDATED   0x07
#define IW_QUAL_DBM   0x08 /* Level + Noise are dBm */
#define IW_QUAL_LEVEL_INVALID   0x20
#define IW_QUAL_LEVEL_UPDATED   0x02
#define IW_QUAL_NOISE_INVALID   0x40
#define IW_QUAL_NOISE_UPDATED   0x04
#define IW_QUAL_QUAL_INVALID   0x10 /* Driver doesn't provide value */
#define IW_QUAL_QUAL_UPDATED   0x01 /* Value was updated since last read */
#define IW_RETRY_LIFETIME   0x2000 /* Maximum duration of retries in us */
#define IW_RETRY_LIMIT   0x1000 /* Maximum number of retries*/
#define IW_RETRY_MAX   0x0002 /* Value is a maximum */
#define IW_RETRY_MIN   0x0001 /* Value is a minimum */
#define IW_RETRY_MODIFIER   0x000F /* Modify a parameter */
#define IW_RETRY_ON   0x0000 /* No details... */
#define IW_RETRY_RELATIVE   0x0004 /* Value is not in seconds/ms/us */
#define IW_RETRY_TYPE   0xF000 /* Type of parameter */
#define IW_SCAN_ALL_ESSID   0x0001 /* Scan all ESSIDs */
#define IW_SCAN_ALL_FREQ   0x0004 /* Scan all Frequencies */
#define IW_SCAN_ALL_MODE   0x0010 /* Scan all Modes */
#define IW_SCAN_ALL_RATE   0x0040 /* Scan all Bit-Rates */
#define IW_SCAN_DEFAULT   0x0000 /* Default scan of the driver */
#define IW_SCAN_MAX_DATA   4096 /* In bytes */
#define IW_SCAN_THIS_ESSID   0x0002 /* Scan only this ESSID */
#define IW_SCAN_THIS_FREQ   0x0008 /* Scan only this Frequency */
#define IW_SCAN_THIS_MODE   0x0020 /* Scan only this Mode */
#define IW_SCAN_THIS_RATE   0x0080 /* Scan only this Bit-Rate */
#define IW_SCAN_TYPE_ACTIVE   0
#define IW_SCAN_TYPE_PASSIVE   1
#define IW_TXPOW_DBM   0x0000 /* Value is in dBm */
#define IW_TXPOW_MWATT   0x0001 /* Value is in mW */
#define IW_TXPOW_RANGE   0x1000 /* Range of value between min/max */
#define IW_TXPOW_RELATIVE   0x0002 /* Value is in arbitrary units */
#define IW_TXPOW_TYPE   0x00FF /* Type of value */
#define IWEVASSOCREQIE
#define IWEVASSOCRESPIE
#define IWEVCUSTOM   0x8C02 /* Driver specific ascii string */
#define IWEVEXPIRED   0x8C04 /* Expired a node (AP mode) */
#define IWEVFIRST   0x8C00
#define IWEVGENIE
#define IWEVMICHAELMICFAILURE
#define IWEVPMKIDCAND
#define IWEVQUAL   0x8C01 /* Quality part of statistics (scan) */
#define IWEVREGISTERED   0x8C03 /* Discovered a new node (AP mode) */
#define IWEVTXDROP   0x8C00 /* Packet dropped to excessive retry */
#define SIOCGIWAP   0x8B15 /* get access point MAC addresses */
#define SIOCGIWAPLIST   0x8B17 /* Deprecated in favor of scanning */
#define SIOCGIWAUTH   0x8B33 /* get authentication mode params */
#define SIOCGIWENCODE   0x8B2B /* get encoding token & mode */
#define SIOCGIWENCODEEXT   0x8B35 /* get encoding token & mode */
#define SIOCGIWESSID   0x8B1B /* get ESSID */
#define SIOCGIWFRAG   0x8B25 /* get fragmentation thr (bytes) */
#define SIOCGIWFREQ   0x8B05 /* get channel/frequency (Hz) */
#define SIOCGIWGENIE   0x8B31 /* get generic IE */
#define SIOCGIWMODE   0x8B07 /* get operation mode */
#define SIOCGIWNAME   0x8B01 /* get name == wireless protocol */
#define SIOCGIWNICKN   0x8B1D /* get node name/nickname */
#define SIOCGIWNWID   0x8B03 /* get network id (the cell) */
#define SIOCGIWPOWER   0x8B2D /* get Power Management settings */
#define SIOCGIWPRIV   0x8B0D /* get private ioctl interface info */
#define SIOCGIWRANGE   0x8B0B /* Get range of parameters */
#define SIOCGIWRATE   0x8B21 /* get default bit rate (bps) */
#define SIOCGIWRETRY   0x8B29 /* get retry limits and lifetime */
#define SIOCGIWRTS   0x8B23 /* get RTS/CTS threshold (bytes) */
#define SIOCGIWSCAN   0x8B19 /* get scanning results */
#define SIOCGIWSENS   0x8B09 /* get sensitivity (dBm) */
#define SIOCGIWSPY   0x8B11 /* get spy info (quality of link) */
#define SIOCGIWSTATS   0x8B0F /* Get /proc/net/wireless stats */
#define SIOCGIWTHRSPY   0x8B13 /* get spy threshold */
#define SIOCGIWTXPOW   0x8B27 /* get transmit power (dBm) */
#define SIOCIWFIRST   0x8B00
#define SIOCIWFIRSTPRIV   0x8BE0
#define SIOCIWLAST   SIOCIWLASTPRIV /* 0x8BFF */
#define SIOCIWLASTPRIV   0x8BFF
#define SIOCSIWAP   0x8B14 /* set access point MAC addresses */
#define SIOCSIWAUTH   0x8B32 /* set authentication mode params */
#define SIOCSIWCOMMIT   0x8B00 /* Commit pending changes to driver */
#define SIOCSIWENCODE   0x8B2A /* set encoding token & mode */
#define SIOCSIWENCODEEXT   0x8B34 /* set encoding token & mode */
#define SIOCSIWESSID   0x8B1A /* set ESSID (network name) */
#define SIOCSIWFRAG   0x8B24 /* set fragmentation thr (bytes) */
#define SIOCSIWFREQ   0x8B04 /* set channel/frequency (Hz) */
#define SIOCSIWGENIE   0x8B30 /* set generic IE */
#define SIOCSIWMLME
#define SIOCSIWMODE   0x8B06 /* set operation mode */
#define SIOCSIWNICKN   0x8B1C /* set node name/nickname */
#define SIOCSIWNWID   0x8B02 /* set network id (pre-802.11) */
#define SIOCSIWPMKSA   0x8B36 /* PMKSA cache operation */
#define SIOCSIWPOWER   0x8B2C /* set Power Management settings */
#define SIOCSIWPRIV   0x8B0C /* Unused */
#define SIOCSIWRANGE   0x8B0A /* Unused */
#define SIOCSIWRATE   0x8B20 /* set default bit rate (bps) */
#define SIOCSIWRETRY   0x8B28 /* set retry limits and lifetime */
#define SIOCSIWRTS   0x8B22 /* set RTS/CTS threshold (bytes) */
#define SIOCSIWSCAN   0x8B18 /* trigger scanning (list cells) */
#define SIOCSIWSENS   0x8B08 /* set sensitivity (dBm) */
#define SIOCSIWSPY   0x8B10 /* set spy addresses */
#define SIOCSIWSTATS   0x8B0E /* Unused */
#define SIOCSIWTHRSPY   0x8B12 /* set spy threshold (spy event) */
#define SIOCSIWTXPOW   0x8B26 /* set transmit power (dBm) */
#define WIRELESS_EXT   19

Typedefs

typedef __int16_t __s16
typedef __int32_t __s32
typedef __uint16_t __u16
typedef __uint32_t __u32
typedef __uint8_t __u8

Define Documentation

#define IW_AUTH_80211_AUTH_ALG   6

Definition at line 542 of file wireless_copy.h.

#define IW_AUTH_ALG_LEAP   0x00000004

Definition at line 569 of file wireless_copy.h.

#define IW_AUTH_ALG_OPEN_SYSTEM   0x00000001

Definition at line 567 of file wireless_copy.h.

#define IW_AUTH_ALG_SHARED_KEY   0x00000002

Definition at line 568 of file wireless_copy.h.

#define IW_AUTH_CIPHER_CCMP   0x00000008

Definition at line 559 of file wireless_copy.h.

#define IW_AUTH_CIPHER_GROUP   2

Definition at line 538 of file wireless_copy.h.

#define IW_AUTH_CIPHER_GROUP_MGMT   11

Definition at line 547 of file wireless_copy.h.

#define IW_AUTH_CIPHER_NONE   0x00000001

Definition at line 556 of file wireless_copy.h.

#define IW_AUTH_CIPHER_PAIRWISE   1

Definition at line 537 of file wireless_copy.h.

#define IW_AUTH_CIPHER_TKIP   0x00000004

Definition at line 558 of file wireless_copy.h.

#define IW_AUTH_CIPHER_WEP104   0x00000010

Definition at line 560 of file wireless_copy.h.

#define IW_AUTH_CIPHER_WEP40   0x00000002

Definition at line 557 of file wireless_copy.h.

#define IW_AUTH_DROP_UNENCRYPTED   5

Definition at line 541 of file wireless_copy.h.

#define IW_AUTH_FLAGS   0xF000

Definition at line 531 of file wireless_copy.h.

#define IW_AUTH_INDEX   0x0FFF

Definition at line 530 of file wireless_copy.h.

#define IW_AUTH_KEY_MGMT   3

Definition at line 539 of file wireless_copy.h.

#define IW_AUTH_KEY_MGMT_802_1X   1

Definition at line 563 of file wireless_copy.h.

#define IW_AUTH_KEY_MGMT_PSK   2

Definition at line 564 of file wireless_copy.h.

#define IW_AUTH_MFP   12

Definition at line 548 of file wireless_copy.h.

#define IW_AUTH_MFP_DISABLED   0 /* MFP disabled */

Definition at line 576 of file wireless_copy.h.

#define IW_AUTH_MFP_OPTIONAL   1 /* MFP optional */

Definition at line 577 of file wireless_copy.h.

#define IW_AUTH_MFP_REQUIRED   2 /* MFP required */

Definition at line 578 of file wireless_copy.h.

#define IW_AUTH_PRIVACY_INVOKED   10

Definition at line 546 of file wireless_copy.h.

#define IW_AUTH_ROAMING_CONTROL   9

Definition at line 545 of file wireless_copy.h.

Value:
1       /* user space program used for roaming
                                         * control */

Definition at line 573 of file wireless_copy.h.

#define IW_AUTH_ROAMING_ENABLE   0 /* driver/firmware based roaming */

Definition at line 572 of file wireless_copy.h.

Definition at line 544 of file wireless_copy.h.

Definition at line 540 of file wireless_copy.h.

#define IW_AUTH_WPA_ENABLED   7

Definition at line 543 of file wireless_copy.h.

#define IW_AUTH_WPA_VERSION   0

Definition at line 536 of file wireless_copy.h.

#define IW_AUTH_WPA_VERSION_DISABLED   0x00000001

Definition at line 551 of file wireless_copy.h.

#define IW_AUTH_WPA_VERSION_WPA   0x00000002

Definition at line 552 of file wireless_copy.h.

#define IW_AUTH_WPA_VERSION_WPA2   0x00000004

Definition at line 553 of file wireless_copy.h.

#define IW_CUSTOM_MAX   256 /* In bytes */

Definition at line 520 of file wireless_copy.h.

#define IW_ENC_CAPA_4WAY_HANDSHAKE   0x00000010

Definition at line 607 of file wireless_copy.h.

#define IW_ENC_CAPA_CIPHER_CCMP   0x00000008

Definition at line 606 of file wireless_copy.h.

#define IW_ENC_CAPA_CIPHER_TKIP   0x00000004

Definition at line 605 of file wireless_copy.h.

#define IW_ENC_CAPA_WPA   0x00000001

Definition at line 603 of file wireless_copy.h.

#define IW_ENC_CAPA_WPA2   0x00000002

Definition at line 604 of file wireless_copy.h.

#define IW_ENCODE_ALG_AES_CMAC   5

Definition at line 588 of file wireless_copy.h.

#define IW_ENCODE_ALG_CCMP   3

Definition at line 586 of file wireless_copy.h.

#define IW_ENCODE_ALG_NONE   0

Definition at line 583 of file wireless_copy.h.

#define IW_ENCODE_ALG_PMK   4

Definition at line 587 of file wireless_copy.h.

#define IW_ENCODE_ALG_TKIP   2

Definition at line 585 of file wireless_copy.h.

#define IW_ENCODE_ALG_WEP   1

Definition at line 584 of file wireless_copy.h.

#define IW_ENCODE_DISABLED   0x8000 /* Encoding disabled */

Definition at line 463 of file wireless_copy.h.

#define IW_ENCODE_ENABLED   0x0000 /* Encoding enabled */

Definition at line 464 of file wireless_copy.h.

#define IW_ENCODE_EXT_GROUP_KEY   0x00000004

Definition at line 592 of file wireless_copy.h.

#define IW_ENCODE_EXT_RX_SEQ_VALID   0x00000002

Definition at line 591 of file wireless_copy.h.

#define IW_ENCODE_EXT_SET_TX_KEY   0x00000008

Definition at line 593 of file wireless_copy.h.

#define IW_ENCODE_EXT_TX_SEQ_VALID   0x00000001

Definition at line 590 of file wireless_copy.h.

#define IW_ENCODE_FLAGS   0xFF00 /* Flags defined below */

Definition at line 461 of file wireless_copy.h.

#define IW_ENCODE_INDEX   0x00FF /* Token index (if needed) */

Definition at line 460 of file wireless_copy.h.

#define IW_ENCODE_MODE   0xF000 /* Modes defined below */

Definition at line 462 of file wireless_copy.h.

#define IW_ENCODE_NOKEY   0x0800 /* Key is write only, so not present */

Definition at line 467 of file wireless_copy.h.

#define IW_ENCODE_OPEN   0x2000 /* Accept non-encoded packets */

Definition at line 466 of file wireless_copy.h.

#define IW_ENCODE_RESTRICTED   0x4000 /* Refuse non-encoded packets */

Definition at line 465 of file wireless_copy.h.

#define IW_ENCODE_SEQ_MAX_SIZE   8

Definition at line 581 of file wireless_copy.h.

#define IW_ENCODE_TEMP   0x0400 /* Temporary key */

Definition at line 468 of file wireless_copy.h.

#define IW_ENCODING_TOKEN_MAX   64 /* 512 bits (for now) */

Definition at line 457 of file wireless_copy.h.

#define IW_ESSID_MAX_SIZE   32

Definition at line 426 of file wireless_copy.h.

#define IW_EV_ADDR_LEN   (IW_EV_LCP_LEN + sizeof(struct sockaddr))

Definition at line 1062 of file wireless_copy.h.

#define IW_EV_CHAR_LEN   (IW_EV_LCP_LEN + IFNAMSIZ)

Definition at line 1058 of file wireless_copy.h.

#define IW_EV_FREQ_LEN   (IW_EV_LCP_LEN + sizeof(struct iw_freq))

Definition at line 1060 of file wireless_copy.h.

#define IW_EV_LCP_LEN   (sizeof(struct iw_event) - sizeof(union iwreq_data))

Definition at line 1056 of file wireless_copy.h.

#define IW_EV_PARAM_LEN   (IW_EV_LCP_LEN + sizeof(struct iw_param))

Definition at line 1061 of file wireless_copy.h.

#define IW_EV_POINT_LEN
Value:
(IW_EV_LCP_LEN + sizeof(struct iw_point) - \
                         IW_EV_POINT_OFF)

Definition at line 1070 of file wireless_copy.h.

#define IW_EV_POINT_OFF
Value:
(((char *) &(((struct iw_point *) NULL)->length)) - \
                          (char *) NULL)

Definition at line 1068 of file wireless_copy.h.

#define IW_EV_QUAL_LEN   (IW_EV_LCP_LEN + sizeof(struct iw_quality))

Definition at line 1063 of file wireless_copy.h.

#define IW_EV_UINT_LEN   (IW_EV_LCP_LEN + sizeof(__u32))

Definition at line 1059 of file wireless_copy.h.

#define IW_EVENT_CAPA_BASE (   cmd)
Value:
((cmd >= SIOCIWFIRSTPRIV) ? \
                                         (cmd - SIOCIWFIRSTPRIV + 0x60) : \
                                         (cmd - SIOCSIWCOMMIT))

Definition at line 612 of file wireless_copy.h.

#define IW_EVENT_CAPA_INDEX (   cmd)    (IW_EVENT_CAPA_BASE(cmd) >> 5)

Definition at line 615 of file wireless_copy.h.

Value:
(IW_EVENT_CAPA_MASK(0x8B04) | \
                                 IW_EVENT_CAPA_MASK(0x8B06) | \
                                 IW_EVENT_CAPA_MASK(0x8B1A))

Definition at line 619 of file wireless_copy.h.

#define IW_EVENT_CAPA_K_1   (IW_EVENT_CAPA_MASK(0x8B2A))

Definition at line 622 of file wireless_copy.h.

#define IW_EVENT_CAPA_MASK (   cmd)    (1 << (IW_EVENT_CAPA_BASE(cmd) & 0x1F))

Definition at line 616 of file wireless_copy.h.

#define IW_EVENT_CAPA_SET (   event_capa,
  cmd
)    (event_capa[IW_EVENT_CAPA_INDEX(cmd)] |= IW_EVENT_CAPA_MASK(cmd))

Definition at line 624 of file wireless_copy.h.

#define IW_EVENT_CAPA_SET_KERNEL (   event_capa)    {event_capa[0] |= IW_EVENT_CAPA_K_0; event_capa[1] |= IW_EVENT_CAPA_K_1; }

Definition at line 625 of file wireless_copy.h.

#define IW_EVENT_IDX (   cmd)    ((cmd) - IWEVFIRST)

Definition at line 376 of file wireless_copy.h.

#define IW_FREQ_AUTO   0x00 /* Let the driver decides */

Definition at line 449 of file wireless_copy.h.

#define IW_FREQ_FIXED   0x01 /* Force a specific value */

Definition at line 450 of file wireless_copy.h.

#define IW_GENERIC_IE_MAX   1024

Definition at line 523 of file wireless_copy.h.

#define IW_IOCTL_IDX (   cmd)    ((cmd) - SIOCIWFIRST)

Definition at line 354 of file wireless_copy.h.

#define IW_IS_GET (   cmd)    ((cmd) & 0x1)

Definition at line 358 of file wireless_copy.h.

#define IW_IS_SET (   cmd)    (!((cmd) & 0x1))

Definition at line 357 of file wireless_copy.h.

#define IW_MAX_AP   64

Definition at line 423 of file wireless_copy.h.

#define IW_MAX_BITRATES   32

Definition at line 411 of file wireless_copy.h.

#define IW_MAX_ENCODING_SIZES   8

Definition at line 454 of file wireless_copy.h.

#define IW_MAX_FREQUENCIES   32

Definition at line 405 of file wireless_copy.h.

#define IW_MAX_SPY   8

Definition at line 419 of file wireless_copy.h.

#define IW_MAX_TXPOWER   8

Definition at line 414 of file wireless_copy.h.

Value:
0x00000060 /* 1 or 2 (0 = count not supported)
                                            */

Definition at line 600 of file wireless_copy.h.

#define IW_MICFAILURE_GROUP   0x00000004

Definition at line 597 of file wireless_copy.h.

#define IW_MICFAILURE_KEY_ID   0x00000003 /* Key ID 0..3 */

Definition at line 596 of file wireless_copy.h.

#define IW_MICFAILURE_PAIRWISE   0x00000008

Definition at line 598 of file wireless_copy.h.

#define IW_MICFAILURE_STAKEY   0x00000010

Definition at line 599 of file wireless_copy.h.

#define IW_MLME_DEAUTH   0

Definition at line 526 of file wireless_copy.h.

#define IW_MLME_DISASSOC   1

Definition at line 527 of file wireless_copy.h.

#define IW_MODE_ADHOC   1 /* Single cell network */

Definition at line 430 of file wireless_copy.h.

#define IW_MODE_AUTO   0 /* Let the driver decides */

Definition at line 429 of file wireless_copy.h.

#define IW_MODE_INFRA   2 /* Multi cell network, roaming, ... */

Definition at line 431 of file wireless_copy.h.

#define IW_MODE_MASTER   3 /* Synchronisation master or Access Point */

Definition at line 432 of file wireless_copy.h.

#define IW_MODE_MONITOR   6 /* Passive monitor (listen only) */

Definition at line 435 of file wireless_copy.h.

#define IW_MODE_REPEAT   4 /* Wireless Repeater (forwarder) */

Definition at line 433 of file wireless_copy.h.

#define IW_MODE_SECOND   5 /* Secondary master/repeater (backup) */

Definition at line 434 of file wireless_copy.h.

#define IW_PMKID_CAND_PREAUTH   0x00000001 /* RNS pre-authentication enabled */

Definition at line 834 of file wireless_copy.h.

#define IW_PMKID_LEN   16

Definition at line 816 of file wireless_copy.h.

#define IW_PMKSA_ADD   1

Definition at line 812 of file wireless_copy.h.

#define IW_PMKSA_FLUSH   3

Definition at line 814 of file wireless_copy.h.

#define IW_PMKSA_REMOVE   2

Definition at line 813 of file wireless_copy.h.

#define IW_POWER_ALL_R   0x0300 /* Receive all messages though PM */

Definition at line 478 of file wireless_copy.h.

#define IW_POWER_FORCE_S   0x0400 /* Force PM procedure for sending unicast */

Definition at line 479 of file wireless_copy.h.

#define IW_POWER_MAX   0x0002 /* Value is a maximum */

Definition at line 483 of file wireless_copy.h.

#define IW_POWER_MIN   0x0001 /* Value is a minimum */

Definition at line 482 of file wireless_copy.h.

#define IW_POWER_MODE   0x0F00 /* Power Management mode */

Definition at line 475 of file wireless_copy.h.

#define IW_POWER_MODIFIER   0x000F /* Modify a parameter */

Definition at line 481 of file wireless_copy.h.

#define IW_POWER_MULTICAST_R   0x0200 /* Receive only multicast messages */

Definition at line 477 of file wireless_copy.h.

#define IW_POWER_ON   0x0000 /* No details... */

Definition at line 471 of file wireless_copy.h.

#define IW_POWER_PERIOD   0x1000 /* Value is a period/duration of */

Definition at line 473 of file wireless_copy.h.

#define IW_POWER_RELATIVE   0x0004 /* Value is not in seconds/ms/us */

Definition at line 484 of file wireless_copy.h.

#define IW_POWER_REPEATER   0x0800 /* Repeat broadcast messages in PM period */

Definition at line 480 of file wireless_copy.h.

#define IW_POWER_TIMEOUT   0x2000 /* Value is a timeout (to go asleep) */

Definition at line 474 of file wireless_copy.h.

#define IW_POWER_TYPE   0xF000 /* Type of parameter */

Definition at line 472 of file wireless_copy.h.

#define IW_POWER_UNICAST_R   0x0100 /* Receive only unicast messages */

Definition at line 476 of file wireless_copy.h.

#define IW_PRIV_SIZE_FIXED   0x0800 /* Variable or fixed number of args */

Definition at line 393 of file wireless_copy.h.

#define IW_PRIV_SIZE_MASK   0x07FF /* Max number of those args */

Definition at line 395 of file wireless_copy.h.

#define IW_PRIV_TYPE_ADDR   0x6000 /* struct sockaddr */

Definition at line 391 of file wireless_copy.h.

#define IW_PRIV_TYPE_BYTE   0x1000 /* Char as number */

Definition at line 387 of file wireless_copy.h.

#define IW_PRIV_TYPE_CHAR   0x2000 /* Char as character */

Definition at line 388 of file wireless_copy.h.

#define IW_PRIV_TYPE_FLOAT   0x5000 /* struct iw_freq */

Definition at line 390 of file wireless_copy.h.

#define IW_PRIV_TYPE_INT   0x4000 /* 32 bits int */

Definition at line 389 of file wireless_copy.h.

#define IW_PRIV_TYPE_MASK   0x7000 /* Type of arguments */

Definition at line 385 of file wireless_copy.h.

#define IW_PRIV_TYPE_NONE   0x0000

Definition at line 386 of file wireless_copy.h.

#define IW_QUAL_ALL_INVALID   0x70

Definition at line 446 of file wireless_copy.h.

#define IW_QUAL_ALL_UPDATED   0x07

Definition at line 441 of file wireless_copy.h.

#define IW_QUAL_DBM   0x08 /* Level + Noise are dBm */

Definition at line 442 of file wireless_copy.h.

#define IW_QUAL_LEVEL_INVALID   0x20

Definition at line 444 of file wireless_copy.h.

#define IW_QUAL_LEVEL_UPDATED   0x02

Definition at line 439 of file wireless_copy.h.

#define IW_QUAL_NOISE_INVALID   0x40

Definition at line 445 of file wireless_copy.h.

#define IW_QUAL_NOISE_UPDATED   0x04

Definition at line 440 of file wireless_copy.h.

#define IW_QUAL_QUAL_INVALID   0x10 /* Driver doesn't provide value */

Definition at line 443 of file wireless_copy.h.

#define IW_QUAL_QUAL_UPDATED   0x01 /* Value was updated since last read */

Definition at line 438 of file wireless_copy.h.

#define IW_RETRY_LIFETIME   0x2000 /* Maximum duration of retries in us */

Definition at line 497 of file wireless_copy.h.

#define IW_RETRY_LIMIT   0x1000 /* Maximum number of retries*/

Definition at line 496 of file wireless_copy.h.

#define IW_RETRY_MAX   0x0002 /* Value is a maximum */

Definition at line 500 of file wireless_copy.h.

#define IW_RETRY_MIN   0x0001 /* Value is a minimum */

Definition at line 499 of file wireless_copy.h.

#define IW_RETRY_MODIFIER   0x000F /* Modify a parameter */

Definition at line 498 of file wireless_copy.h.

#define IW_RETRY_ON   0x0000 /* No details... */

Definition at line 494 of file wireless_copy.h.

#define IW_RETRY_RELATIVE   0x0004 /* Value is not in seconds/ms/us */

Definition at line 501 of file wireless_copy.h.

#define IW_RETRY_TYPE   0xF000 /* Type of parameter */

Definition at line 495 of file wireless_copy.h.

#define IW_SCAN_ALL_ESSID   0x0001 /* Scan all ESSIDs */

Definition at line 505 of file wireless_copy.h.

#define IW_SCAN_ALL_FREQ   0x0004 /* Scan all Frequencies */

Definition at line 507 of file wireless_copy.h.

#define IW_SCAN_ALL_MODE   0x0010 /* Scan all Modes */

Definition at line 509 of file wireless_copy.h.

#define IW_SCAN_ALL_RATE   0x0040 /* Scan all Bit-Rates */

Definition at line 511 of file wireless_copy.h.

#define IW_SCAN_DEFAULT   0x0000 /* Default scan of the driver */

Definition at line 504 of file wireless_copy.h.

#define IW_SCAN_MAX_DATA   4096 /* In bytes */

Definition at line 517 of file wireless_copy.h.

#define IW_SCAN_THIS_ESSID   0x0002 /* Scan only this ESSID */

Definition at line 506 of file wireless_copy.h.

#define IW_SCAN_THIS_FREQ   0x0008 /* Scan only this Frequency */

Definition at line 508 of file wireless_copy.h.

#define IW_SCAN_THIS_MODE   0x0020 /* Scan only this Mode */

Definition at line 510 of file wireless_copy.h.

#define IW_SCAN_THIS_RATE   0x0080 /* Scan only this Bit-Rate */

Definition at line 512 of file wireless_copy.h.

#define IW_SCAN_TYPE_ACTIVE   0

Definition at line 514 of file wireless_copy.h.

#define IW_SCAN_TYPE_PASSIVE   1

Definition at line 515 of file wireless_copy.h.

#define IW_TXPOW_DBM   0x0000 /* Value is in dBm */

Definition at line 488 of file wireless_copy.h.

#define IW_TXPOW_MWATT   0x0001 /* Value is in mW */

Definition at line 489 of file wireless_copy.h.

#define IW_TXPOW_RANGE   0x1000 /* Range of value between min/max */

Definition at line 491 of file wireless_copy.h.

#define IW_TXPOW_RELATIVE   0x0002 /* Value is in arbitrary units */

Definition at line 490 of file wireless_copy.h.

#define IW_TXPOW_TYPE   0x00FF /* Type of value */

Definition at line 487 of file wireless_copy.h.

#define IWEVASSOCREQIE
Value:
0x8C07          /* IEs used in (Re)Association Request.
                                         * The data includes id and length
                                         * fields and may contain more than one
                                         * IE. This event is required in
                                         * Managed mode if the driver
                                         * generates its own WPA/RSN IE. This
                                         * should be sent just before
                                         * IWEVREGISTERED event for the
                                         * association. */

Definition at line 371 of file wireless_copy.h.

#define IWEVASSOCRESPIE
Value:
0x8C08          /* IEs used in (Re)Association
                                         * Response. The data includes id and
                                         * length fields and may contain more
                                         * than one IE. This may be sent
                                         * between IWEVASSOCREQIE and
                                         * IWEVREGISTERED events for the
                                         * association. */

Definition at line 372 of file wireless_copy.h.

#define IWEVCUSTOM   0x8C02 /* Driver specific ascii string */

Definition at line 366 of file wireless_copy.h.

#define IWEVEXPIRED   0x8C04 /* Expired a node (AP mode) */

Definition at line 368 of file wireless_copy.h.

#define IWEVFIRST   0x8C00

Definition at line 375 of file wireless_copy.h.

#define IWEVGENIE
Value:
0x8C05          /* Generic IE (WPA, RSN, WMM, ..)
                                         * (scan results); This includes id and
                                         * length fields. One IWEVGENIE may
                                         * contain more than one IE. Scan
                                         * results may contain one or more
                                         * IWEVGENIE events. */

Definition at line 369 of file wireless_copy.h.

Value:
0x8C06  /* Michael MIC failure
                                         * (struct iw_michaelmicfailure)
                                         */

Definition at line 370 of file wireless_copy.h.

#define IWEVPMKIDCAND
Value:
0x8C09          /* PMKID candidate for RSN
                                         * pre-authentication
                                         * (struct iw_pmkid_cand) */

Definition at line 373 of file wireless_copy.h.

#define IWEVQUAL   0x8C01 /* Quality part of statistics (scan) */

Definition at line 365 of file wireless_copy.h.

#define IWEVREGISTERED   0x8C03 /* Discovered a new node (AP mode) */

Definition at line 367 of file wireless_copy.h.

#define IWEVTXDROP   0x8C00 /* Packet dropped to excessive retry */

Definition at line 364 of file wireless_copy.h.

#define SIOCGIWAP   0x8B15 /* get access point MAC addresses */

Definition at line 271 of file wireless_copy.h.

#define SIOCGIWAPLIST   0x8B17 /* Deprecated in favor of scanning */

Definition at line 272 of file wireless_copy.h.

#define SIOCGIWAUTH   0x8B33 /* get authentication mode params */

Definition at line 318 of file wireless_copy.h.

#define SIOCGIWENCODE   0x8B2B /* get encoding token & mode */

Definition at line 299 of file wireless_copy.h.

#define SIOCGIWENCODEEXT   0x8B35 /* get encoding token & mode */

Definition at line 322 of file wireless_copy.h.

#define SIOCGIWESSID   0x8B1B /* get ESSID */

Definition at line 278 of file wireless_copy.h.

#define SIOCGIWFRAG   0x8B25 /* get fragmentation thr (bytes) */

Definition at line 291 of file wireless_copy.h.

#define SIOCGIWFREQ   0x8B05 /* get channel/frequency (Hz) */

Definition at line 247 of file wireless_copy.h.

#define SIOCGIWGENIE   0x8B31 /* get generic IE */

Definition at line 312 of file wireless_copy.h.

#define SIOCGIWMODE   0x8B07 /* get operation mode */

Definition at line 249 of file wireless_copy.h.

#define SIOCGIWNAME   0x8B01 /* get name == wireless protocol */

Definition at line 238 of file wireless_copy.h.

#define SIOCGIWNICKN   0x8B1D /* get node name/nickname */

Definition at line 280 of file wireless_copy.h.

#define SIOCGIWNWID   0x8B03 /* get network id (the cell) */

Definition at line 245 of file wireless_copy.h.

#define SIOCGIWPOWER   0x8B2D /* get Power Management settings */

Definition at line 302 of file wireless_copy.h.

#define SIOCGIWPRIV   0x8B0D /* get private ioctl interface info */

Definition at line 257 of file wireless_copy.h.

#define SIOCGIWRANGE   0x8B0B /* Get range of parameters */

Definition at line 255 of file wireless_copy.h.

#define SIOCGIWRATE   0x8B21 /* get default bit rate (bps) */

Definition at line 287 of file wireless_copy.h.

#define SIOCGIWRETRY   0x8B29 /* get retry limits and lifetime */

Definition at line 295 of file wireless_copy.h.

#define SIOCGIWRTS   0x8B23 /* get RTS/CTS threshold (bytes) */

Definition at line 289 of file wireless_copy.h.

#define SIOCGIWSCAN   0x8B19 /* get scanning results */

Definition at line 274 of file wireless_copy.h.

#define SIOCGIWSENS   0x8B09 /* get sensitivity (dBm) */

Definition at line 251 of file wireless_copy.h.

#define SIOCGIWSPY   0x8B11 /* get spy info (quality of link) */

Definition at line 265 of file wireless_copy.h.

#define SIOCGIWSTATS   0x8B0F /* Get /proc/net/wireless stats */

Definition at line 259 of file wireless_copy.h.

#define SIOCGIWTHRSPY   0x8B13 /* get spy threshold */

Definition at line 267 of file wireless_copy.h.

#define SIOCGIWTXPOW   0x8B27 /* get transmit power (dBm) */

Definition at line 293 of file wireless_copy.h.

#define SIOCIWFIRST   0x8B00

Definition at line 352 of file wireless_copy.h.

#define SIOCIWFIRSTPRIV   0x8BE0

Definition at line 336 of file wireless_copy.h.

#define SIOCIWLAST   SIOCIWLASTPRIV /* 0x8BFF */

Definition at line 353 of file wireless_copy.h.

#define SIOCIWLASTPRIV   0x8BFF

Definition at line 337 of file wireless_copy.h.

#define SIOCSIWAP   0x8B14 /* set access point MAC addresses */

Definition at line 270 of file wireless_copy.h.

#define SIOCSIWAUTH   0x8B32 /* set authentication mode params */

Definition at line 317 of file wireless_copy.h.

#define SIOCSIWCOMMIT   0x8B00 /* Commit pending changes to driver */

Definition at line 237 of file wireless_copy.h.

#define SIOCSIWENCODE   0x8B2A /* set encoding token & mode */

Definition at line 298 of file wireless_copy.h.

#define SIOCSIWENCODEEXT   0x8B34 /* set encoding token & mode */

Definition at line 321 of file wireless_copy.h.

#define SIOCSIWESSID   0x8B1A /* set ESSID (network name) */

Definition at line 277 of file wireless_copy.h.

#define SIOCSIWFRAG   0x8B24 /* set fragmentation thr (bytes) */

Definition at line 290 of file wireless_copy.h.

#define SIOCSIWFREQ   0x8B04 /* set channel/frequency (Hz) */

Definition at line 246 of file wireless_copy.h.

#define SIOCSIWGENIE   0x8B30 /* set generic IE */

Definition at line 311 of file wireless_copy.h.

#define SIOCSIWMLME
Value:
0x8B16          /* request MLME operation; uses
                                         * struct iw_mlme */

Definition at line 315 of file wireless_copy.h.

#define SIOCSIWMODE   0x8B06 /* set operation mode */

Definition at line 248 of file wireless_copy.h.

#define SIOCSIWNICKN   0x8B1C /* set node name/nickname */

Definition at line 279 of file wireless_copy.h.

#define SIOCSIWNWID   0x8B02 /* set network id (pre-802.11) */

Definition at line 244 of file wireless_copy.h.

#define SIOCSIWPMKSA   0x8B36 /* PMKSA cache operation */

Definition at line 325 of file wireless_copy.h.

#define SIOCSIWPOWER   0x8B2C /* set Power Management settings */

Definition at line 301 of file wireless_copy.h.

#define SIOCSIWPRIV   0x8B0C /* Unused */

Definition at line 256 of file wireless_copy.h.

#define SIOCSIWRANGE   0x8B0A /* Unused */

Definition at line 254 of file wireless_copy.h.

#define SIOCSIWRATE   0x8B20 /* set default bit rate (bps) */

Definition at line 286 of file wireless_copy.h.

#define SIOCSIWRETRY   0x8B28 /* set retry limits and lifetime */

Definition at line 294 of file wireless_copy.h.

#define SIOCSIWRTS   0x8B22 /* set RTS/CTS threshold (bytes) */

Definition at line 288 of file wireless_copy.h.

#define SIOCSIWSCAN   0x8B18 /* trigger scanning (list cells) */

Definition at line 273 of file wireless_copy.h.

#define SIOCSIWSENS   0x8B08 /* set sensitivity (dBm) */

Definition at line 250 of file wireless_copy.h.

#define SIOCSIWSPY   0x8B10 /* set spy addresses */

Definition at line 264 of file wireless_copy.h.

#define SIOCSIWSTATS   0x8B0E /* Unused */

Definition at line 258 of file wireless_copy.h.

#define SIOCSIWTHRSPY   0x8B12 /* set spy threshold (spy event) */

Definition at line 266 of file wireless_copy.h.

#define SIOCSIWTXPOW   0x8B26 /* set transmit power (dBm) */

Definition at line 292 of file wireless_copy.h.

#define WIRELESS_EXT   19

Definition at line 106 of file wireless_copy.h.


Typedef Documentation

typedef __int16_t __s16

Definition at line 92 of file wireless_copy.h.

typedef __int32_t __s32

Definition at line 90 of file wireless_copy.h.

typedef __uint16_t __u16

Definition at line 91 of file wireless_copy.h.

typedef __uint32_t __u32

Definition at line 89 of file wireless_copy.h.

typedef __uint8_t __u8

Definition at line 93 of file wireless_copy.h.



wpa_supplicant
Author(s): Package maintained by Blaise Gassend
autogenerated on Thu Apr 24 2014 15:34:39
