TiXmlNode Class Reference

#include <tinyxml.h>

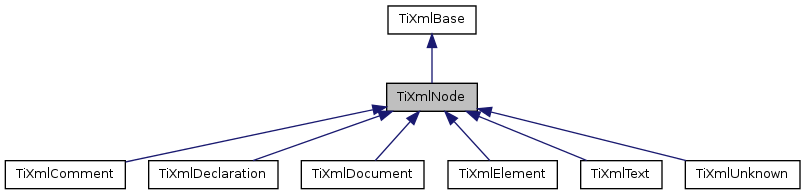

Inheritance diagram for TiXmlNode:

List of all members.

Public Types
enum	NodeType {   TINYXML_DOCUMENT, TINYXML_ELEMENT, TINYXML_COMMENT, TINYXML_UNKNOWN,   TINYXML_TEXT, TINYXML_DECLARATION, TINYXML_TYPECOUNT }
Public Member Functions
virtual bool	Accept (TiXmlVisitor *visitor) const =0
void	Clear ()
	Delete all the children of this node. Does not affect 'this'.
virtual TiXmlNode *	Clone () const =0
const TiXmlNode *	FirstChild () const
	The first child of this node. Will be null if there are no children.
TiXmlNode *	FirstChild ()
const TiXmlNode *	FirstChild (const char *value) const
TiXmlNode *	FirstChild (const char *_value)
	The first child of this node with the matching 'value'. Will be null if none found.
const TiXmlNode *	FirstChild (const std::string &_value) const
	STL std::string form.
TiXmlNode *	FirstChild (const std::string &_value)
	STL std::string form.
const TiXmlElement *	FirstChildElement () const
	Convenience function to get through elements.
TiXmlElement *	FirstChildElement ()
const TiXmlElement *	FirstChildElement (const char *_value) const
	Convenience function to get through elements.
TiXmlElement *	FirstChildElement (const char *_value)
const TiXmlElement *	FirstChildElement (const std::string &_value) const
	STL std::string form.
TiXmlElement *	FirstChildElement (const std::string &_value)
	STL std::string form.
const TiXmlDocument *	GetDocument () const
TiXmlDocument *	GetDocument ()
TiXmlNode *	InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
TiXmlNode *	InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
TiXmlNode *	InsertEndChild (const TiXmlNode &addThis)
const TiXmlNode *	IterateChildren (const TiXmlNode *previous) const
TiXmlNode *	IterateChildren (const TiXmlNode *previous)
const TiXmlNode *	IterateChildren (const char *value, const TiXmlNode *previous) const
	This flavor of IterateChildren searches for children with a particular 'value'.
TiXmlNode *	IterateChildren (const char *_value, const TiXmlNode *previous)
const TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous) const
	STL std::string form.
TiXmlNode *	IterateChildren (const std::string &_value, const TiXmlNode *previous)
	STL std::string form.
const TiXmlNode *	LastChild () const
TiXmlNode *	LastChild ()
	The last child of this node. Will be null if there are no children.
const TiXmlNode *	LastChild (const char *value) const
TiXmlNode *	LastChild (const char *_value)
	The last child of this node matching 'value'. Will be null if there are no children.
const TiXmlNode *	LastChild (const std::string &_value) const
	STL std::string form.
TiXmlNode *	LastChild (const std::string &_value)
	STL std::string form.
TiXmlNode *	LinkEndChild (TiXmlNode *addThis)
const TiXmlNode *	NextSibling (const std::string &_value) const
	STL std::string form.
TiXmlNode *	NextSibling (const std::string &_value)
	STL std::string form.
const TiXmlNode *	NextSibling () const
	Navigate to a sibling node.
TiXmlNode *	NextSibling ()
const TiXmlNode *	NextSibling (const char *) const
	Navigate to a sibling node with the given 'value'.
TiXmlNode *	NextSibling (const char *_next)
const TiXmlElement *	NextSiblingElement () const
TiXmlElement *	NextSiblingElement ()
const TiXmlElement *	NextSiblingElement (const char *) const
TiXmlElement *	NextSiblingElement (const char *_next)
const TiXmlElement *	NextSiblingElement (const std::string &_value) const
	STL std::string form.
TiXmlElement *	NextSiblingElement (const std::string &_value)
	STL std::string form.
bool	NoChildren () const
	Returns true if this node has no children.
TiXmlNode *	Parent ()
	One step up the DOM.
const TiXmlNode *	Parent () const
const TiXmlNode *	PreviousSibling () const
	Navigate to a sibling node.
TiXmlNode *	PreviousSibling ()
const TiXmlNode *	PreviousSibling (const char *) const
	Navigate to a sibling node.
TiXmlNode *	PreviousSibling (const char *_prev)
const TiXmlNode *	PreviousSibling (const std::string &_value) const
	STL std::string form.
TiXmlNode *	PreviousSibling (const std::string &_value)
	STL std::string form.
bool	RemoveChild (TiXmlNode *removeThis)
	Delete a child of this node.
TiXmlNode *	ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
void	SetValue (const char *_value)
void	SetValue (const std::string &_value)
	STL std::string form.
virtual const TiXmlComment *	ToComment () const
	Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlComment *	ToComment ()
	Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlDeclaration *	ToDeclaration () const
	Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDeclaration *	ToDeclaration ()
	Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlDocument *	ToDocument () const
	Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDocument *	ToDocument ()
	Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlElement *	ToElement () const
	Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlElement *	ToElement ()
	Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlText *	ToText () const
	Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlText *	ToText ()
	Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlUnknown *	ToUnknown () const
	Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlUnknown *	ToUnknown ()
	Cast to a more defined type. Will return null if not of the requested type.
int	Type () const
const char *	Value () const
const std::string &	ValueStr () const
const TIXML_STRING &	ValueTStr () const
virtual	~TiXmlNode ()
Protected Member Functions
void	CopyTo (TiXmlNode *target) const
TiXmlNode *	Identify (const char *start, TiXmlEncoding encoding)
virtual void	StreamIn (std::istream *in, TIXML_STRING *tag)=0
	TiXmlNode (NodeType _type)
Protected Attributes
TiXmlNode *	firstChild
TiXmlNode *	lastChild
TiXmlNode *	next
TiXmlNode *	parent
TiXmlNode *	prev
NodeType	type
TIXML_STRING	value
Private Member Functions
void	operator= (const TiXmlNode &base)
	TiXmlNode (const TiXmlNode &)
Friends
std::ostream &	operator<< (std::ostream &out, const TiXmlNode &base)
std::string &	operator<< (std::string &out, const TiXmlNode &base)
	Appends the XML node or attribute to a std::string.
std::istream &	operator>> (std::istream &in, TiXmlNode &base)
class	TiXmlDocument
class	TiXmlElement

---

Detailed Description

The parent class for everything in the Document Object Model. (Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.

Definition at line 428 of file tinyxml.h.

---

Member Enumeration Documentation

enum TiXmlNode::NodeType

The types of XML nodes supported by TinyXml. (All the unsupported types are picked up by UNKNOWN.)

Enumerator:

TINYXML_DOCUMENT
TINYXML_ELEMENT
TINYXML_COMMENT
TINYXML_UNKNOWN
TINYXML_TEXT
TINYXML_DECLARATION
TINYXML_TYPECOUNT

Definition at line 467 of file tinyxml.h.

---

Constructor & Destructor Documentation

TiXmlNode::~TiXmlNode

(

)

[virtual]

Definition at line 147 of file tinyxml.cpp.

TiXmlNode::TiXmlNode

(

NodeType

_type

)

[protected]

Definition at line 136 of file tinyxml.cpp.

TiXmlNode::TiXmlNode

(

const TiXmlNode &

)

[private]

---

Member Function Documentation

virtual bool TiXmlNode::Accept

(

TiXmlVisitor *

visitor

)

const [pure virtual]

Accept a hierchical visit the nodes in the TinyXML DOM. Every node in the XML tree will be conditionally visited and the host will be called back via the TiXmlVisitor interface.

This is essentially a SAX interface for TinyXML. (Note however it doesn't re-parse the XML for the callbacks, so the performance of TinyXML is unchanged by using this interface versus any other.)

The interface has been based on ideas from:

• http://www.saxproject.org/
• http://c2.com/cgi/wiki?HierarchicalVisitorPattern

Which are both good references for "visiting".

An example of using Accept():

		TiXmlPrinter printer;
		tinyxmlDoc.Accept( &printer );
		const char* xmlcstr = printer.CStr();


Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

void TiXmlNode::Clear

(

)

Delete all the children of this node. Does not affect 'this'.

Definition at line 169 of file tinyxml.cpp.

virtual TiXmlNode* TiXmlNode::Clone

(

)

const [pure virtual]

Create an exact duplicate of this node and return it. The memory must be deleted by the caller.

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

void TiXmlNode::CopyTo

(

TiXmlNode *

target

)

const [protected]

Definition at line 161 of file tinyxml.cpp.

const TiXmlNode* TiXmlNode::FirstChild

(

)

const [inline]

The first child of this node. Will be null if there are no children.

Definition at line 527 of file tinyxml.h.

TiXmlNode* TiXmlNode::FirstChild

(

)

[inline]

Definition at line 528 of file tinyxml.h.

const TiXmlNode * TiXmlNode::FirstChild

(

const char *

value

)

const

The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 361 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::FirstChild

(

const char *

_value

)

[inline]

The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 531 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild

(

const std::string &

_value

)

const [inline]

STL std::string form.

Definition at line 545 of file tinyxml.h.

TiXmlNode* TiXmlNode::FirstChild

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 546 of file tinyxml.h.

const TiXmlElement * TiXmlNode::FirstChildElement

(

)

const

Convenience function to get through elements.

Definition at line 452 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::FirstChildElement

(

)

[inline]

Definition at line 670 of file tinyxml.h.

const TiXmlElement * TiXmlNode::FirstChildElement

(

const char *

_value

)

const

Convenience function to get through elements.

Definition at line 467 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::FirstChildElement

(

const char *

_value

)

[inline]

Definition at line 676 of file tinyxml.h.

const TiXmlElement* TiXmlNode::FirstChildElement

(

const std::string &

_value

)

const [inline]

STL std::string form.

Definition at line 681 of file tinyxml.h.

TiXmlElement* TiXmlNode::FirstChildElement

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 682 of file tinyxml.h.

const TiXmlDocument * TiXmlNode::GetDocument

(

)

const

Return a pointer to the Document this node lives in. Returns null if not in a document.

Definition at line 512 of file tinyxml.cpp.

TiXmlDocument* TiXmlNode::GetDocument

(

)

[inline]

Definition at line 695 of file tinyxml.h.

TiXmlNode * TiXmlNode::Identify	(	const char *	start,
		TiXmlEncoding	encoding
	)		[protected]

Definition at line 818 of file tinyxmlparser.cpp.

TiXmlNode * TiXmlNode::InsertAfterChild	(	TiXmlNode *	afterThis,
		const TiXmlNode &	addThis
	)

Add a new node related to this. Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 263 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::InsertBeforeChild	(	TiXmlNode *	beforeThis,
		const TiXmlNode &	addThis
	)

Add a new node related to this. Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 230 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::InsertEndChild

(

const TiXmlNode &

addThis

)

Add a new node related to this. Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 214 of file tinyxml.cpp.

const TiXmlNode * TiXmlNode::IterateChildren

(

const TiXmlNode *

previous

)

const

An alternate way to walk the children of a node. One way to iterate over nodes is:

			for( child = parent->FirstChild(); child; child = child->NextSibling() )


IterateChildren does the same thing with the syntax:

			child = 0;
			while( child = parent->IterateChildren( child ) )


IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 385 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::IterateChildren

(

const TiXmlNode *

previous

)

[inline]

Definition at line 568 of file tinyxml.h.

const TiXmlNode * TiXmlNode::IterateChildren	(	const char *	value,
		const TiXmlNode *	previous
	)		const

This flavor of IterateChildren searches for children with a particular 'value'.

Definition at line 399 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::IterateChildren	(	const char *	_value,
		const TiXmlNode *	previous
	)		[inline]

Definition at line 574 of file tinyxml.h.

const TiXmlNode* TiXmlNode::IterateChildren	(	const std::string &	_value,
		const TiXmlNode *	previous
	)		const [inline]

STL std::string form.

Definition at line 579 of file tinyxml.h.

TiXmlNode* TiXmlNode::IterateChildren	(	const std::string &	_value,
		const TiXmlNode *	previous
	)		[inline]

STL std::string form.

Definition at line 580 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild

(

)

const [inline]

Definition at line 536 of file tinyxml.h.

TiXmlNode* TiXmlNode::LastChild

(

)

[inline]

The last child of this node. Will be null if there are no children.

Definition at line 537 of file tinyxml.h.

const TiXmlNode * TiXmlNode::LastChild

(

const char *

value

)

const

Definition at line 373 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::LastChild

(

const char *

_value

)

[inline]

The last child of this node matching 'value'. Will be null if there are no children.

Definition at line 540 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild

(

const std::string &

_value

)

const [inline]

STL std::string form.

Definition at line 547 of file tinyxml.h.

TiXmlNode* TiXmlNode::LastChild

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 548 of file tinyxml.h.

TiXmlNode * TiXmlNode::LinkEndChild

(

TiXmlNode *

addThis

)

Add a new node related to this. Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also:

InsertEndChild

Definition at line 186 of file tinyxml.cpp.

const TiXmlNode* TiXmlNode::NextSibling

(

const std::string &

_value

)

const [inline]

STL std::string form.

Definition at line 631 of file tinyxml.h.

TiXmlNode* TiXmlNode::NextSibling

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 632 of file tinyxml.h.

const TiXmlNode* TiXmlNode::NextSibling

(

)

const [inline]

Navigate to a sibling node.

Definition at line 636 of file tinyxml.h.

TiXmlNode* TiXmlNode::NextSibling

(

)

[inline]

Definition at line 637 of file tinyxml.h.

const TiXmlNode * TiXmlNode::NextSibling

(

const char *

_value

)

const

Navigate to a sibling node with the given 'value'.

Definition at line 413 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::NextSibling

(

const char *

_next

)

[inline]

Definition at line 641 of file tinyxml.h.

const TiXmlElement * TiXmlNode::NextSiblingElement

(

)

const

Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 482 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::NextSiblingElement

(

)

[inline]

Definition at line 650 of file tinyxml.h.

const TiXmlElement * TiXmlNode::NextSiblingElement

(

const char *

_value

)

const

Convenience function to get through elements. Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 497 of file tinyxml.cpp.

TiXmlElement* TiXmlNode::NextSiblingElement

(

const char *

_next

)

[inline]

Definition at line 659 of file tinyxml.h.

const TiXmlElement* TiXmlNode::NextSiblingElement

(

const std::string &

_value

)

const [inline]

STL std::string form.

Definition at line 664 of file tinyxml.h.

TiXmlElement* TiXmlNode::NextSiblingElement

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 665 of file tinyxml.h.

bool TiXmlNode::NoChildren

(

)

const [inline]

Returns true if this node has no children.

Definition at line 700 of file tinyxml.h.

void TiXmlNode::operator=

(

const TiXmlNode &

base

)

[private]

TiXmlNode* TiXmlNode::Parent

(

)

[inline]

One step up the DOM.

Definition at line 524 of file tinyxml.h.

const TiXmlNode* TiXmlNode::Parent

(

)

const [inline]

Definition at line 525 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling

(

)

const [inline]

Navigate to a sibling node.

Definition at line 619 of file tinyxml.h.

TiXmlNode* TiXmlNode::PreviousSibling

(

)

[inline]

Definition at line 620 of file tinyxml.h.

const TiXmlNode * TiXmlNode::PreviousSibling

(

const char *

_value

)

const

Navigate to a sibling node.

Definition at line 425 of file tinyxml.cpp.

TiXmlNode* TiXmlNode::PreviousSibling

(

const char *

_prev

)

[inline]

Definition at line 624 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling

(

const std::string &

_value

)

const [inline]

STL std::string form.

Definition at line 629 of file tinyxml.h.

TiXmlNode* TiXmlNode::PreviousSibling

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 630 of file tinyxml.h.

bool TiXmlNode::RemoveChild

(

TiXmlNode *

removeThis

)

Delete a child of this node.

Definition at line 335 of file tinyxml.cpp.

TiXmlNode * TiXmlNode::ReplaceChild	(	TiXmlNode *	replaceThis,
		const TiXmlNode &	withThis
	)

Replace a child of this node. Returns a pointer to the new object or NULL if an error occured.

Definition at line 296 of file tinyxml.cpp.

void TiXmlNode::SetValue

(

const char *

_value

)

[inline]

Changes the value of the node. Defined as:

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string


Definition at line 513 of file tinyxml.h.

void TiXmlNode::SetValue

(

const std::string &

_value

)

[inline]

STL std::string form.

Definition at line 517 of file tinyxml.h.

virtual void TiXmlNode::StreamIn	(	std::istream *	in,
		TIXML_STRING *	tag
	)		[protected, pure virtual]

Implemented in TiXmlDocument, TiXmlUnknown, TiXmlDeclaration, TiXmlText, TiXmlComment, and TiXmlElement.

virtual const TiXmlComment* TiXmlNode::ToComment

(

)

const [inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 704 of file tinyxml.h.

virtual TiXmlComment* TiXmlNode::ToComment

(

)

[inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 711 of file tinyxml.h.

virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration

(

)

const [inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 707 of file tinyxml.h.

virtual TiXmlDeclaration* TiXmlNode::ToDeclaration

(

)

[inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 714 of file tinyxml.h.

virtual const TiXmlDocument* TiXmlNode::ToDocument

(

)

const [inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 702 of file tinyxml.h.

virtual TiXmlDocument* TiXmlNode::ToDocument

(

)

[inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 709 of file tinyxml.h.

virtual const TiXmlElement* TiXmlNode::ToElement

(

)

const [inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 703 of file tinyxml.h.

virtual TiXmlElement* TiXmlNode::ToElement

(

)

[inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 710 of file tinyxml.h.

virtual const TiXmlText* TiXmlNode::ToText

(

)

const [inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 706 of file tinyxml.h.

virtual TiXmlText* TiXmlNode::ToText

(

)

[inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 713 of file tinyxml.h.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown

(

)

const [inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 705 of file tinyxml.h.

virtual TiXmlUnknown* TiXmlNode::ToUnknown

(

)

[inline, virtual]

Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 712 of file tinyxml.h.

int TiXmlNode::Type

(

)

const [inline]

Query the type (as an enumerated value, above) of this node. The possible types are: TINYXML_DOCUMENT, TINYXML_ELEMENT, TINYXML_COMMENT, TINYXML_UNKNOWN, TINYXML_TEXT, and TINYXML_DECLARATION.

Definition at line 689 of file tinyxml.h.

const char* TiXmlNode::Value

(

)

const [inline]

The meaning of 'value' changes for the specific type of TiXmlNode.

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string


The subclasses will wrap this function.

Definition at line 492 of file tinyxml.h.

const std::string& TiXmlNode::ValueStr

(

)

const [inline]

Return Value() as a std::string. If you only use STL, this is more efficient than calling Value(). Only available in STL mode.

Definition at line 499 of file tinyxml.h.

const TIXML_STRING& TiXmlNode::ValueTStr

(

)

const [inline]

Definition at line 502 of file tinyxml.h.

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	out,
		const TiXmlNode &	base
	)		[friend]

An output stream operator, for every class. Note that this outputs without any newlines or formatting, as opposed to Print(), which includes tabs and new lines.

The operator<< and operator>> are not completely symmetric. Writing a node to a stream is very well defined. You'll get a nice stream of output, without any extra whitespace or newlines.

But reading is not as well defined. (As it always is.) If you create a TiXmlElement (for example) and read that from an input stream, the text needs to define an element or junk will result. This is true of all input streams, but it's worth keeping in mind.

A TiXmlDocument will read nodes until it reads a root element, and all the children of that root element.

Definition at line 1609 of file tinyxml.cpp.

std::string& operator<<	(	std::string &	out,
		const TiXmlNode &	base
	)		[friend]

Appends the XML node or attribute to a std::string.

Definition at line 1620 of file tinyxml.cpp.

std::istream& operator>>	(	std::istream &	in,
		TiXmlNode &	base
	)		[friend]

An input stream operator, for every class. Tolerant of newlines and formatting, but doesn't expect them.

Definition at line 1596 of file tinyxml.cpp.

friend class TiXmlDocument [friend]

Reimplemented from TiXmlBase.

Definition at line 430 of file tinyxml.h.

friend class TiXmlElement [friend]

Reimplemented from TiXmlBase.

Reimplemented in TiXmlText.

Definition at line 431 of file tinyxml.h.

---

Member Data Documentation

TiXmlNode* TiXmlNode::firstChild [protected]

Definition at line 763 of file tinyxml.h.

TiXmlNode* TiXmlNode::lastChild [protected]

Definition at line 764 of file tinyxml.h.

TiXmlNode* TiXmlNode::next [protected]

Definition at line 769 of file tinyxml.h.

TiXmlNode* TiXmlNode::parent [protected]

Definition at line 760 of file tinyxml.h.

TiXmlNode* TiXmlNode::prev [protected]

Definition at line 768 of file tinyxml.h.

NodeType TiXmlNode::type [protected]

Definition at line 761 of file tinyxml.h.

TIXML_STRING TiXmlNode::value [protected]

Definition at line 766 of file tinyxml.h.

---

The documentation for this class was generated from the following files:

• tinyxml.h
• tinyxml.cpp
• tinyxmlparser.cpp
