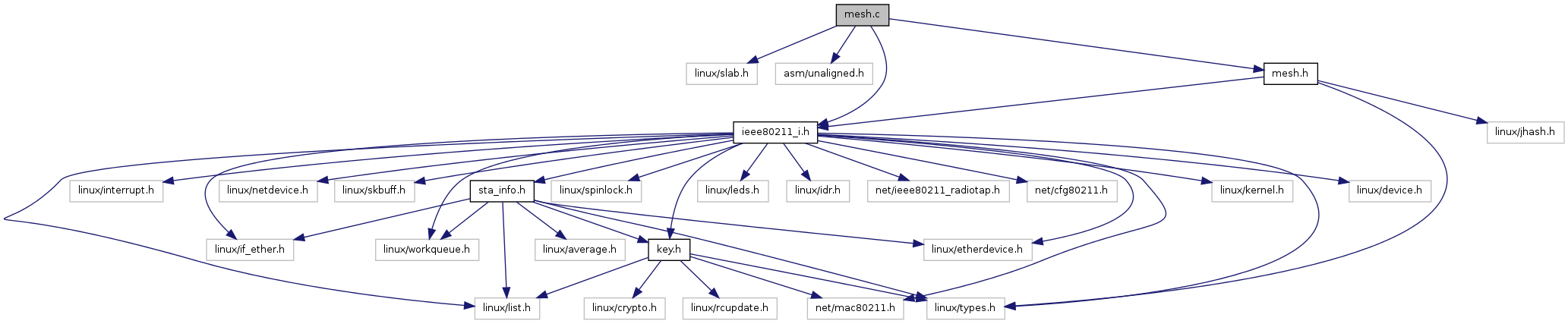

Go to the source code of this file.
Define Documentation
| #define TMR_RUNNING_HK 0 |
Definition at line 16 of file kernel-3.5/mesh.c.
| #define TMR_RUNNING_MP 1 |
Definition at line 17 of file kernel-3.5/mesh.c.
| #define TMR_RUNNING_MPR 2 |
Definition at line 18 of file kernel-3.5/mesh.c.
Function Documentation
| int ieee80211_fill_mesh_addresses | ( | struct ieee80211_hdr * | hdr, |
| __le16 * | fc, | ||
| const u8 * | meshda, | ||
| const u8 * | meshsa | ||
| ) |
ieee80211_fill_mesh_addresses - fill addresses of a locally originated mesh frame : 802.11 frame header : frame control field : destination address in the mesh : source address address in the mesh. Same as TA, as frame is locally originated.
Return the length of the 802.11 (does not include a mesh control header)
Definition at line 465 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_housekeeping | ( | struct ieee80211_sub_if_data * | sdata, |
| struct ieee80211_if_mesh * | ifmsh | ||
| ) | [static] |
Definition at line 521 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_housekeeping_timer | ( | unsigned long | data | ) | [static] |
Definition at line 48 of file kernel-3.5/mesh.c.
| void ieee80211_mesh_init_sdata | ( | struct ieee80211_sub_if_data * | sdata | ) |
Definition at line 769 of file kernel-3.5/mesh.c.
| void ieee80211_mesh_notify_scan_completed | ( | struct ieee80211_local * | local | ) |
Definition at line 758 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_path_root_timer | ( | unsigned long | data | ) | [static] |
Definition at line 427 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_path_timer | ( | unsigned long | data | ) | [static] |
Definition at line 412 of file kernel-3.5/mesh.c.
| void ieee80211_mesh_root_setup | ( | struct ieee80211_if_mesh * | ifmsh | ) |
Definition at line 444 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_rootpath | ( | struct ieee80211_sub_if_data * | sdata | ) | [static] |
Definition at line 542 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_rx_bcn_presp | ( | struct ieee80211_sub_if_data * | sdata, |
| u16 | stype, | ||
| struct ieee80211_mgmt * | mgmt, | ||
| size_t | len, | ||
| struct ieee80211_rx_status * | rx_status | ||
| ) | [static] |
Definition at line 639 of file kernel-3.5/mesh.c.
| static void ieee80211_mesh_rx_mgmt_action | ( | struct ieee80211_sub_if_data * | sdata, |
| struct ieee80211_mgmt * | mgmt, | ||
| size_t | len, | ||
| struct ieee80211_rx_status * | rx_status | ||
| ) | [static] |
Definition at line 688 of file kernel-3.5/mesh.c.
| void ieee80211_mesh_rx_queued_mgmt | ( | struct ieee80211_sub_if_data * | sdata, |
| struct sk_buff * | skb | ||
| ) |
Definition at line 710 of file kernel-3.5/mesh.c.
| void ieee80211_mesh_work | ( | struct ieee80211_sub_if_data * | sdata | ) |
Definition at line 733 of file kernel-3.5/mesh.c.
| int ieee80211_new_mesh_header | ( | struct ieee80211s_hdr * | meshhdr, |
| struct ieee80211_sub_if_data * | sdata, | ||
| char * | addr4or5, | ||
| char * | addr6 | ||
| ) |
ieee80211_new_mesh_header - create a new mesh header : uninitialized mesh header : mesh interface to be used : 1st address in the ae header, which may correspond to address 4 (if addr6 is NULL) or address 5 (if addr6 is present). It may be NULL. : 2nd address in the ae header, which corresponds to addr6 of the mesh frame
Return the header length.
Definition at line 498 of file kernel-3.5/mesh.c.
| void ieee80211_start_mesh | ( | struct ieee80211_sub_if_data * | sdata | ) |
Definition at line 581 of file kernel-3.5/mesh.c.
| void ieee80211_stop_mesh | ( | struct ieee80211_sub_if_data * | sdata | ) |
Definition at line 613 of file kernel-3.5/mesh.c.
| void ieee80211s_init | ( | void | ) |
Definition at line 34 of file kernel-3.5/mesh.c.
| void ieee80211s_stop | ( | void | ) |
Definition at line 42 of file kernel-3.5/mesh.c.
| void mesh_accept_plinks_update | ( | struct ieee80211_sub_if_data * | sdata | ) |
mesh_accept_plinks_update: update accepting_plink in local mesh beacons
: mesh interface in which mesh beacons are going to be updated
Definition at line 140 of file kernel-3.5/mesh.c.
| bool mesh_action_is_path_sel | ( | struct ieee80211_mgmt * | mgmt | ) |
Definition at line 30 of file kernel-3.5/mesh.c.
| int mesh_add_ds_params_ie | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 347 of file kernel-3.5/mesh.c.
| int mesh_add_ht_cap_ie | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 368 of file kernel-3.5/mesh.c.
| int mesh_add_ht_oper_ie | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 389 of file kernel-3.5/mesh.c.
| int mesh_add_meshconf_ie | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 236 of file kernel-3.5/mesh.c.
| int mesh_add_meshid_ie | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 277 of file kernel-3.5/mesh.c.
| int mesh_add_rsn_ie | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 319 of file kernel-3.5/mesh.c.
| int mesh_add_vendor_ies | ( | struct sk_buff * | skb, |
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
Definition at line 295 of file kernel-3.5/mesh.c.
| bool mesh_matches_local | ( | struct ieee80211_sub_if_data * | sdata, |
| struct ieee802_11_elems * | ie | ||
| ) |
mesh_matches_local - check if the config of a mesh point matches ours
: local mesh subif : information elements of a management frame from the mesh peer
This function checks if the mesh configuration of a mesh point matches the local mesh configuration, i.e. if both nodes belong to the same mesh network.
Definition at line 73 of file kernel-3.5/mesh.c.
| bool mesh_peer_accepts_plinks | ( | struct ieee802_11_elems * | ie | ) |
mesh_peer_accepts_plinks - check if an mp is willing to establish peer links
: information elements of a management frame from the mesh peer
Definition at line 129 of file kernel-3.5/mesh.c.
| int mesh_rmc_check | ( | u8 * | sa, |
| struct ieee80211s_hdr * | mesh_hdr, | ||
| struct ieee80211_sub_if_data * | sdata | ||
| ) |
mesh_rmc_check - Check frame in recent multicast cache and add if absent.
- See also:
- : source address : mesh_header
Returns: 0 if the frame is not in the cache, nonzero otherwise.
Checks using the source address and the mesh sequence number if we have received this frame lately. If the frame is not in the cache, it is added to it.
Definition at line 200 of file kernel-3.5/mesh.c.
| void mesh_rmc_free | ( | struct ieee80211_sub_if_data * | sdata | ) |
Definition at line 169 of file kernel-3.5/mesh.c.
| int mesh_rmc_init | ( | struct ieee80211_sub_if_data * | sdata | ) |
Definition at line 156 of file kernel-3.5/mesh.c.
Variable Documentation
| int mesh_allocated |
Definition at line 20 of file kernel-3.5/mesh.c.
struct kmem_cache* rm_cache [static] |
Definition at line 21 of file kernel-3.5/mesh.c.
