Public Types | Public Member Functions | Protected Member Functions
message_transport::SubscriberPlugin< M > Class Template Reference

#include <subscriber_plugin.h>

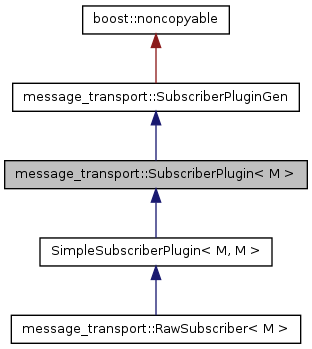

Inheritance diagram for message_transport::SubscriberPlugin< M >:
Inheritance graph
[legend]

List of all members.

Public Types

typedef boost::function< void(const
typename M::ConstPtr &)>
Callback

Public Member Functions

void subscribe (ros::NodeHandle &nh, const std::string &base_topic, uint32_t queue_size, const Callback &callback, const ros::VoidPtr &tracked_object=ros::VoidPtr(), const TransportHints &transport_hints=TransportHints())
 Subscribe to an image topic, version for arbitrary boost::function object.
void subscribe (ros::NodeHandle &nh, const std::string &base_topic, uint32_t queue_size, void(*fp)(const typename M::ConstPtr &), const TransportHints &transport_hints=TransportHints())
 Subscribe to an image topic, version for bare function.
template<class T >
void subscribe (ros::NodeHandle &nh, const std::string &base_topic, uint32_t queue_size, void(T::*fp)(const typename M::ConstPtr &), T *obj, const TransportHints &transport_hints=TransportHints())
 Subscribe to an image topic, version for class member function with bare pointer.
template<class T >
void subscribe (ros::NodeHandle &nh, const std::string &base_topic, uint32_t queue_size, void(T::*fp)(const typename M::ConstPtr &), const boost::shared_ptr< T > &obj, const TransportHints &transport_hints=TransportHints())
 Subscribe to an image topic, version for class member function with shared_ptr.
virtual ~SubscriberPlugin ()

Protected Member Functions

virtual void subscribeImpl (ros::NodeHandle &nh, const std::string &base_topic, uint32_t queue_size, const Callback &callback, const ros::VoidPtr &tracked_object, const TransportHints &transport_hints)=0
 Subscribe to an image transport topic. Must be implemented by the subclass.

Detailed Description

template<class M>
class message_transport::SubscriberPlugin< M >

Definition at line 53 of file subscriber_plugin.h.


Member Typedef Documentation

template<class M>
typedef boost::function<void(const typename M::ConstPtr&)> message_transport::SubscriberPlugin< M >::Callback

Definition at line 56 of file subscriber_plugin.h.


Constructor & Destructor Documentation

template<class M>
virtual message_transport::SubscriberPlugin< M >::~SubscriberPlugin ( ) [inline, virtual]

Definition at line 58 of file subscriber_plugin.h.


Member Function Documentation

template<class M>
void message_transport::SubscriberPlugin< M >::subscribe ( ros::NodeHandle nh,
const std::string &  base_topic,
uint32_t  queue_size,
const Callback callback,
const ros::VoidPtr tracked_object = ros::VoidPtr(),
const TransportHints transport_hints = TransportHints()
) [inline]

Subscribe to an image topic, version for arbitrary boost::function object.

Definition at line 63 of file subscriber_plugin.h.

template<class M>
void message_transport::SubscriberPlugin< M >::subscribe ( ros::NodeHandle nh,
const std::string &  base_topic,
uint32_t  queue_size,
void(*)(const typename M::ConstPtr &)  fp,
const TransportHints transport_hints = TransportHints()
) [inline]

Subscribe to an image topic, version for bare function.

Definition at line 73 of file subscriber_plugin.h.

template<class M>
template<class T >
void message_transport::SubscriberPlugin< M >::subscribe ( ros::NodeHandle nh,
const std::string &  base_topic,
uint32_t  queue_size,
void(T::*)(const typename M::ConstPtr &)  fp,
T *  obj,
const TransportHints transport_hints = TransportHints()
) [inline]

Subscribe to an image topic, version for class member function with bare pointer.

Definition at line 86 of file subscriber_plugin.h.

template<class M>
template<class T >
void message_transport::SubscriberPlugin< M >::subscribe ( ros::NodeHandle nh,
const std::string &  base_topic,
uint32_t  queue_size,
void(T::*)(const typename M::ConstPtr &)  fp,
const boost::shared_ptr< T > &  obj,
const TransportHints transport_hints = TransportHints()
) [inline]

Subscribe to an image topic, version for class member function with shared_ptr.

Definition at line 97 of file subscriber_plugin.h.

template<class M>
virtual void message_transport::SubscriberPlugin< M >::subscribeImpl ( ros::NodeHandle nh,
const std::string &  base_topic,
uint32_t  queue_size,
const Callback callback,
const ros::VoidPtr tracked_object,
const TransportHints transport_hints
) [protected, pure virtual]

Subscribe to an image transport topic. Must be implemented by the subclass.


The documentation for this class was generated from the following file:


message_transport_common
Author(s): Cedric Pradalier
autogenerated on Sun Oct 5 2014 23:48:49
