PIDFFController.h File Reference

#include <labust/control/PIDBase.h>
#include <math.h>

Include dependency graph for PIDFFController.h:

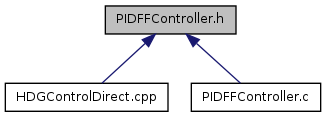

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	PIDFF_dwffStep (PIDBase *self, float Ts, float error, float ff, float ds)
void	PIDFF_ffStep (PIDBase *self, float Ts, float ff)
void	PIDFF_modelTune (PIDBase *self, const PT1Model *const model, float w)
void	PIDFF_step (PIDBase *self, float Ts)
void	PIDFF_tune (PIDBase *self, float w)
void	PIDFF_wffStep (PIDBase *self, float Ts, float error, float ff)
void	PIDFF_wStep (PIDBase *self, float Ts, float error)

---

Function Documentation

void PIDFF_dwffStep	(	PIDBase *	self,
		float	Ts,
		float	error,
		float	ff,
		float	ds
	)

Calculate one step of the PIDFF controller with externally supplied error, feedforward and derivative calculation.

Definition at line 97 of file PIDFFController.c.

void PIDFF_ffStep	(	PIDBase *	self,
		float	Ts,
		float	ff
	)		[inline]

Calculate one step of the PIDFF controller with externally supplied feedforward calculation.

Definition at line 89 of file PIDFFController.h.

void PIDFF_modelTune	(	PIDBase *	self,
		const PT1Model *const	model,
		float	w
	)

Autotune the PIDFF controller based on the supplied PT1Model and desired closed loop frequency.

Todo:

Document the binomial autotuning (pole-placement)

Definition at line 37 of file PIDFFController.c.

void PIDFF_step	(	PIDBase *	self,
		float	Ts
	)		[inline]

Calculate one step of the PIDFF controller.

Definition at line 67 of file PIDFFController.h.

void PIDFF_tune	(	PIDBase *	self,
		float	w
	)

Autotune the PIDFF controller using the plant model 1. Valid for higher level controllers.

Definition at line 51 of file PIDFFController.c.

void PIDFF_wffStep	(	PIDBase *	self,
		float	Ts,
		float	error,
		float	ff
	)

Calculate one step of the PIDFF controller with externally supplied error and feedforward calculation.

Definition at line 58 of file PIDFFController.c.

void PIDFF_wStep	(	PIDBase *	self,
		float	Ts,
		float	error
	)		[inline]

Calculate one step of the PIDFF controller with externally supplied error calculation.

Definition at line 78 of file PIDFFController.h.
