Header file for graphics definitions. More...

#include <sys/types.h>
#include <unistd.h>
#include <stdio.h>
#include <stdexcept>
#include <boost/shared_ptr.hpp>
#include "newmatap.h"
#include "newmatio.h"
#include <sys/stat.h>
#include <sstream>
#include <vector>

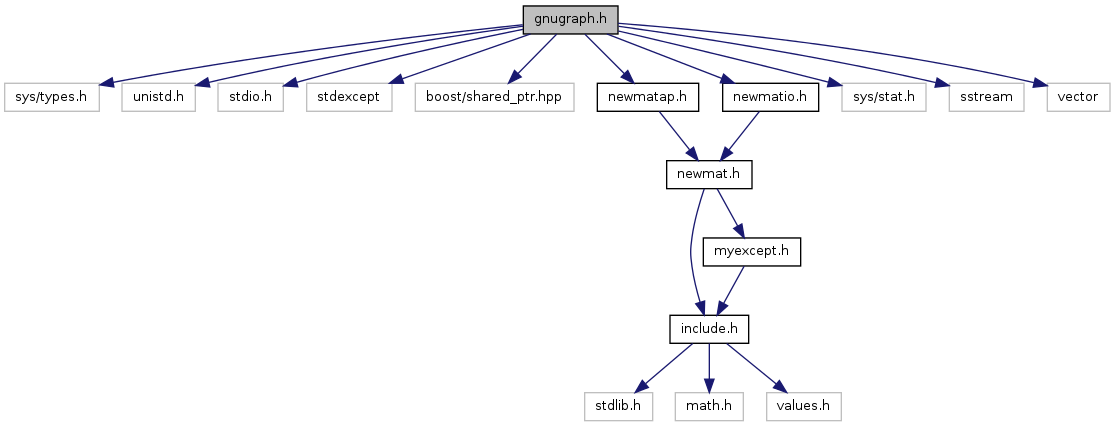

Include dependency graph for gnugraph.h:

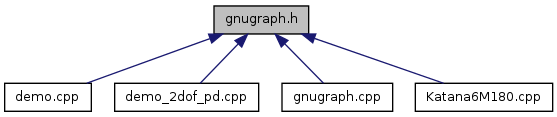

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	GNUcurve
	Object for one curve. More...
class	IO_matrix_file
	Read and write data at every iterations in a file. More...
class	Plot2d
	2d plot object. More...
class	Plot3d
	3d plot object. More...
class	Plot_file
	Creates a graphic from a data file. More...
Defines
#define	GNUPLOT "gnuplot"
#define	IO_COULD_NOT_OPEN_FILE -1
#define	IO_DATA_EMPTY -3
#define	IO_MISMATCH_ELEMENT_NBR -4
#define	IO_MISMATCH_SIZE -2
#define	LABELS_NBR_NO_MATCH -3
#define	NCURVESMAX 10
#define	OUT_OF_MEMORY -1
#define	PROBLEM_FILE_READING -5
#define	WANT_FSTREAM /* include.h will get fstream fns */
#define	WANT_MATH /* include.h will get math fns */
#define	WANT_STREAM /* include.h will get stream fns */
#define	WANT_STRING /* include.h will get string fns */
#define	X_Y_DATA_NO_MATCH -2
Typedefs
typedef boost::shared_ptr < GNUcurve >	PSHR_Curve
typedef std::vector< PSHR_Curve >	VectorCurves
Enumerations
enum	LineType_en { LINES, DATAPOINTS, LINESPOINTS, IMPULSES, DOTS, STEPS, BOXES }
Functions
short	set_plot2d (const char title_graph, const char x_axis_title, const char y_axis_title, const char label, LineType_en enLineType, const Matrix &xdata, const Matrix &ydata, int start_y, int end_y)
short	set_plot2d (const char title_graph, const char x_axis_title, const char y_axis_title, const vector< char > label, LineType_en enLineType, const Matrix &xdata, const Matrix &ydata, const vector< int > &data_select)
short	set_plot3d (const Matrix &xyz, const std::string &title_graph, const std::string &x_axis_title, const std::string &y_axis_title, const std::string &z_axis_title)
Variables
static const char	header_gnugraph_rcsid [] = "$Id: gnugraph.h,v 1.13 2006/05/16 19:24:26 gourdeau Exp $"
	RCS/CVS version.

Detailed Description

Header file for graphics definitions.

Definition in file gnugraph.h.

Define Documentation

#define GNUPLOT "gnuplot"

Definition at line 74 of file gnugraph.h.

#define IO_COULD_NOT_OPEN_FILE -1

Definition at line 190 of file gnugraph.h.

#define IO_DATA_EMPTY -3

Definition at line 192 of file gnugraph.h.

#define IO_MISMATCH_ELEMENT_NBR -4

Definition at line 193 of file gnugraph.h.

#define IO_MISMATCH_SIZE -2

Definition at line 191 of file gnugraph.h.

#define LABELS_NBR_NO_MATCH -3

Definition at line 104 of file gnugraph.h.

#define NCURVESMAX 10

Definition at line 119 of file gnugraph.h.

#define OUT_OF_MEMORY -1

Definition at line 102 of file gnugraph.h.

#define PROBLEM_FILE_READING -5

Definition at line 194 of file gnugraph.h.

#define WANT_FSTREAM /* include.h will get fstream fns */

Definition at line 86 of file gnugraph.h.

#define WANT_MATH /* include.h will get math fns */

Definition at line 87 of file gnugraph.h.

#define WANT_STREAM /* include.h will get stream fns */

Definition at line 85 of file gnugraph.h.

#define WANT_STRING /* include.h will get string fns */

Definition at line 84 of file gnugraph.h.

#define X_Y_DATA_NO_MATCH -2

Definition at line 103 of file gnugraph.h.

Typedef Documentation

typedef boost::shared_ptr<GNUcurve> PSHR_Curve

Definition at line 141 of file gnugraph.h.

typedef std::vector<PSHR_Curve> VectorCurves

Definition at line 142 of file gnugraph.h.

Enumeration Type Documentation

enum LineType_en

Enumerator:

LINES
DATAPOINTS
LINESPOINTS
IMPULSES
DOTS
STEPS
BOXES

Definition at line 108 of file gnugraph.h.

Function Documentation

short set_plot2d	(	const char *	title_graph,
		const char *	x_axis_title,
		const char *	y_axis_title,
		const char *	label,
		LineType_en	enLineType,
		const Matrix &	xdata,
		const Matrix &	ydata,
		int	start_y,
		int	end_y
	)

Definition at line 783 of file gnugraph.cpp.

short set_plot2d	(	const char *	title_graph,
		const char *	x_axis_title,
		const char *	y_axis_title,
		const vector< char * >	label,
		LineType_en	enLineType,
		const Matrix &	xdata,
		const Matrix &	ydata,
		const vector< int > &	data_select
	)

Definition at line 824 of file gnugraph.cpp.

short set_plot3d	(	const Matrix &	xyz,
		const std::string &	title_graph,
		const std::string &	x_axis_title,
		const std::string &	y_axis_title,
		const std::string &	z_axis_title
	)

Variable Documentation

const char header_gnugraph_rcsid[] = "$Id: gnugraph.h,v 1.13 2006/05/16 19:24:26 gourdeau Exp $" [static]

RCS/CVS version.

Definition at line 55 of file gnugraph.h.

Classes

Defines

Typedefs

Enumerations
