ap_mlme.c File Reference

#include "utils/includes.h"
#include "utils/common.h"
#include "common/ieee802_11_defs.h"
#include "ieee802_11.h"
#include "wpa_auth.h"
#include "sta_info.h"
#include "ap_mlme.h"

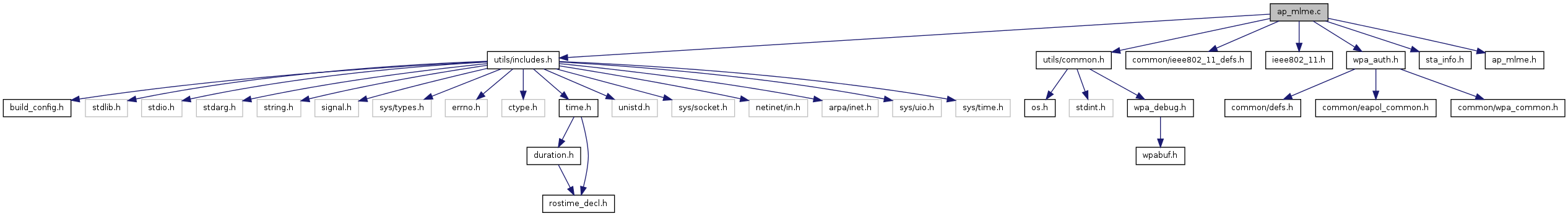

Include dependency graph for ap_mlme.c:

Go to the source code of this file.

Functions
void	mlme_associate_indication (struct hostapd_data *hapd, struct sta_info *sta)
static const char *	mlme_auth_alg_str (int alg)
void	mlme_authenticate_indication (struct hostapd_data *hapd, struct sta_info *sta)
void	mlme_deauthenticate_indication (struct hostapd_data *hapd, struct sta_info *sta, u16 reason_code)
void	mlme_deletekeys_request (struct hostapd_data *hapd, struct sta_info *sta)
void	mlme_disassociate_indication (struct hostapd_data *hapd, struct sta_info *sta, u16 reason_code)
void	mlme_michaelmicfailure_indication (struct hostapd_data *hapd, const u8 *addr)
void	mlme_reassociate_indication (struct hostapd_data *hapd, struct sta_info *sta)

---

Function Documentation

void mlme_associate_indication	(	struct hostapd_data *	hapd,
		struct sta_info *	sta
	)

mlme_associate_indication - Report the establishment of an association with a specific peer MAC entity : BSS data : peer STA data

MLME calls this function as a result of the establishment of an association with a specific peer MAC entity that resulted from an association procedure that was initiated by that specific peer MAC entity.

PeerSTAAddress = sta->addr

Definition at line 105 of file ap_mlme.c.

static const char* mlme_auth_alg_str

(

int

alg

)

[static]

Definition at line 28 of file ap_mlme.c.

void mlme_authenticate_indication	(	struct hostapd_data *	hapd,
		struct sta_info *	sta
	)

mlme_authenticate_indication - Report the establishment of an authentication relationship with a specific peer MAC entity : BSS data : peer STA data

MLME calls this function as a result of the establishment of an authentication relationship with a specific peer MAC entity that resulted from an authentication procedure that was initiated by that specific peer MAC entity.

PeerSTAAddress = sta->addr AuthenticationType = sta->auth_alg (WLAN_AUTH_OPEN / WLAN_AUTH_SHARED_KEY)

Definition at line 58 of file ap_mlme.c.

void mlme_deauthenticate_indication	(	struct hostapd_data *	hapd,
		struct sta_info *	sta,
		u16	reason_code
	)

mlme_deauthenticate_indication - Report the invalidation of an authentication relationship with a specific peer MAC entity : BSS data : Peer STA data : ReasonCode from Deauthentication frame

MLME calls this function as a result of the invalidation of an authentication relationship with a specific peer MAC entity.

PeerSTAAddress = sta->addr

Definition at line 82 of file ap_mlme.c.

void mlme_deletekeys_request	(	struct hostapd_data *	hapd,
		struct sta_info *	sta
	)

Definition at line 175 of file ap_mlme.c.

void mlme_disassociate_indication	(	struct hostapd_data *	hapd,
		struct sta_info *	sta,
		u16	reason_code
	)

mlme_disassociate_indication - Report disassociation with a specific peer MAC entity : BSS data : Peer STA data : ReasonCode from Disassociation frame

MLME calls this function as a result of the invalidation of an association relationship with a specific peer MAC entity.

PeerSTAAddress = sta->addr

Definition at line 154 of file ap_mlme.c.

void mlme_michaelmicfailure_indication	(	struct hostapd_data *	hapd,
		const u8 *	addr
	)

Definition at line 165 of file ap_mlme.c.

void mlme_reassociate_indication	(	struct hostapd_data *	hapd,
		struct sta_info *	sta
	)

mlme_reassociate_indication - Report the establishment of an reassociation with a specific peer MAC entity : BSS data : peer STA data

MLME calls this function as a result of the establishment of an reassociation with a specific peer MAC entity that resulted from a reassociation procedure that was initiated by that specific peer MAC entity.

PeerSTAAddress = sta->addr

sta->previous_ap contains the "Current AP" information from ReassocReq.

Definition at line 130 of file ap_mlme.c.
