Classes | Functions | Variables
l2_packet_winpcap.c File Reference
#include "includes.h"
#include <pcap.h>
#include "common.h"
#include "eloop.h"
#include "l2_packet.h"

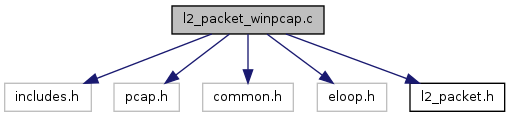

Include dependency graph for l2_packet_winpcap.c:

Go to the source code of this file.

Classes

struct  l2_packet_data

Functions

void l2_packet_deinit (struct l2_packet_data *l2)
static void l2_packet_deinit_timeout (void *eloop_ctx, void *timeout_ctx)
int l2_packet_get_ip_addr (struct l2_packet_data *l2, char *buf, size_t len)
int l2_packet_get_own_addr (struct l2_packet_data *l2, u8 *addr)
struct l2_packet_datal2_packet_init (const char *ifname, const u8 *own_addr, unsigned short protocol, void(*rx_callback)(void *ctx, const u8 *src_addr, const u8 *buf, size_t len), void *rx_callback_ctx, int l2_hdr)
static int l2_packet_init_libpcap (struct l2_packet_data *l2, unsigned short protocol)
void l2_packet_notify_auth_start (struct l2_packet_data *l2)
static void l2_packet_receive_cb (u_char *user, const struct pcap_pkthdr *hdr, const u_char *pkt_data)
static DWORD WINAPI l2_packet_receive_thread (LPVOID arg)
static void l2_packet_rx_event (void *eloop_data, void *user_data)
int l2_packet_send (struct l2_packet_data *l2, const u8 *dst_addr, u16 proto, const u8 *buf, size_t len)

Variables

static const size_t no_wait_count = 750
static const u8 pae_group_addr [ETH_ALEN]

Function Documentation

void l2_packet_deinit ( struct l2_packet_data l2)

l2_packet_deinit - Deinitialize l2_packet interface : Pointer to internal l2_packet data from l2_packet_init()

Definition at line 279 of file l2_packet_winpcap.c.

static void l2_packet_deinit_timeout ( void *  eloop_ctx,
void *  timeout_ctx
) [static]

Definition at line 257 of file l2_packet_winpcap.c.

int l2_packet_get_ip_addr ( struct l2_packet_data l2,
char *  buf,
size_t  len
)

l2_packet_get_ip_addr - Get the current IP address from the interface : Pointer to internal l2_packet data from l2_packet_init() : Buffer for the IP address in text format : Maximum buffer length Returns: 0 on success, -1 on failure

This function can be used to get the current IP address from the interface bound to the l2_packet. This is mainly for status information and the IP address will be stored as an ASCII string. This function is not essential for wpa_supplicant operation, so full implementation is not required. l2_packet implementation will need to define the function, but it can return -1 if the IP address information is not available.

Definition at line 301 of file l2_packet_winpcap.c.

int l2_packet_get_own_addr ( struct l2_packet_data l2,
u8 *  addr
)

l2_packet_get_own_addr - Get own layer 2 address : Pointer to internal l2_packet data from l2_packet_init() : Buffer for the own address (6 bytes) Returns: 0 on success, -1 on failure

Definition at line 71 of file l2_packet_winpcap.c.

struct l2_packet_data* l2_packet_init ( const char *  ifname,
const u8 *  own_addr,
unsigned short  protocol,
void(*)(void *ctx, const u8 *src_addr, const u8 *buf, size_t len rx_callback,
void *  rx_callback_ctx,
int  l2_hdr
) [read]

Definition at line 204 of file l2_packet_winpcap.c.

static int l2_packet_init_libpcap ( struct l2_packet_data l2,
unsigned short  protocol
) [static]

Definition at line 167 of file l2_packet_winpcap.c.

l2_packet_notify_auth_start - Notify l2_packet about start of authentication : Pointer to internal l2_packet data from l2_packet_init()

This function is called when authentication is expected to start, e.g., when association has been completed, in order to prepare l2_packet implementation for EAPOL frames. This function is used mainly if the l2_packet code needs to do polling in which case it can increasing polling frequency. This can also be an empty function if the l2_packet implementation does not benefit from knowing about the starting authentication.

Definition at line 337 of file l2_packet_winpcap.c.

static void l2_packet_receive_cb ( u_char *  user,
const struct pcap_pkthdr *  hdr,
const u_char *  pkt_data
) [static]

Definition at line 108 of file l2_packet_winpcap.c.

static DWORD WINAPI l2_packet_receive_thread ( LPVOID  arg) [static]

Definition at line 134 of file l2_packet_winpcap.c.

static void l2_packet_rx_event ( void *  eloop_data,
void *  user_data
) [static]

Definition at line 157 of file l2_packet_winpcap.c.

int l2_packet_send ( struct l2_packet_data l2,
const u8 *  dst_addr,
u16  proto,
const u8 *  buf,
size_t  len
)

l2_packet_send - Send a packet : Pointer to internal l2_packet data from l2_packet_init() : Destination address for the packet (only used if l2_hdr == 0) : Protocol/ethertype for the packet in host byte order (only used if l2_hdr == 0) : Packet contents to be sent; including layer 2 header if l2_hdr was set to 1 in l2_packet_init() call. Otherwise, only the payload of the packet is included. : Length of the buffer (including l2 header only if l2_hdr == 1) Returns: >=0 on success, <0 on failure

Definition at line 78 of file l2_packet_winpcap.c.


Variable Documentation

const size_t no_wait_count = 750 [static]

Definition at line 51 of file l2_packet_winpcap.c.

const u8 pae_group_addr[ETH_ALEN] [static]
Initial value:
{ 0x01, 0x80, 0xc2, 0x00, 0x00, 0x03 }

Definition at line 43 of file l2_packet_winpcap.c.
