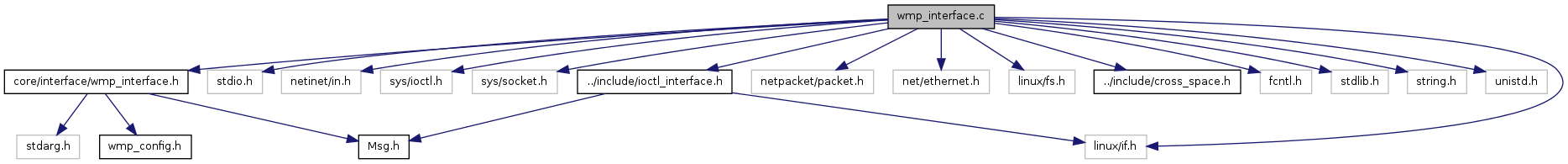

#include "core/interface/wmp_interface.h"
#include <stdio.h>
#include <netinet/in.h>
#include <sys/ioctl.h>
#include <sys/socket.h>
#include <linux/if.h>
#include <netpacket/packet.h>
#include <net/ethernet.h>
#include <linux/fs.h>
#include "../include/cross_space.h"
#include <fcntl.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include "../include/ioctl_interface.h"
Go to the source code of this file.
Functions | |
char | lqm_get_val (int i, int j) |
int | wmp_queue_tx_get_room (void) |
int | wmp_queue_tx_remove_head (void) |
void | wmpClose () |
int | wmpGetActiveSearch (void) |
int | wmpGetCpuDelay () |
int | wmpGetFlowControl () |
short | wmpGetInstanceId () |
int | wmpGetLatestDistances (char *lqm) |
int | wmpGetLatestLQM (char *lqm) |
unsigned int | wmpGetLoopId (void) |
int | wmpGetMessageReschedule () |
unsigned int | wmpGetMTU (void) |
int | wmpGetNetIT (void) |
char | wmpGetNodeId (void) |
int | wmpGetNumOfElementsInRXQueue (int port) |
int | wmpGetNumOfElementsInTXQueue (void) |
char | wmpGetNumOfNodes (void) |
int | wmpGetPrimBasedRouting () |
int | wmpGetRate () |
unsigned int | wmpGetSerial (void) |
int | wmpGetTimeout () |
int | wmpGetWCMult () |
int | wmpInit (char *ifname) |
int | wmpIsKernelSpace () |
int | wmpIsNetworkConnected (void) |
int | wmpIsNetworkConnectedBlocking (int timeout_ms) |
int | wmpNonBlockingPop (Msg *p) |
unsigned int | wmpPop (Msg *p) |
int | wmpPopData (unsigned int port, char **p, unsigned int *size, unsigned char *src, signed char *priority) |
int | wmpPopDataCopy (unsigned int port, char *p, unsigned int *size, unsigned char *src, signed char *priority) |
void | wmpPopDataDone (int id) |
int | wmpPopDataTimeout (unsigned int port, char **p, unsigned int *size, unsigned char *src, signed char *priority, int to) |
int | wmpPopDataTimeoutCopy (unsigned int port, char *p, unsigned int *size, unsigned char *src, signed char *priority, int to) |
int | wmpPush (Msg *p) |
int | wmpPushData (unsigned int port, char *p, unsigned int size, unsigned int dest, signed char priority) |
void | wmpRun () |
void | wmpRunBG () |
void | wmpSetActiveSearch (int val) |
void | wmpSetCpuDelay (int val) |
void | wmpSetFlowControl (int val) |
void | wmpSetInstanceId (short iid) |
void | wmpSetMessageReschedule (int val) |
void | wmpSetPrimBasedRouting (int val) |
void | wmpSetRate (int val) |
void | wmpSetTimeout (int val) |
int | wmpSetup (char p1, char p2) |
void | wmpSetWCMult (int val) |
int | wmpTimedPop (Msg *p, int timeout_ms) |
Variables | |
static int | fp |
static struct ifreq | ifr |
static int | ioctl_sock |
char lqm_get_val | ( | int | i, |
int | j | ||
) |
Definition at line 615 of file wmp_interface.c.
int wmp_queue_tx_get_room | ( | void | ) |
Returns the number of free posiitons in the TX queue
Definition at line 393 of file wmp_interface.c.
int wmp_queue_tx_remove_head | ( | void | ) |
Remove the less priority message from the TX queue
p | the removed message |
Definition at line 285 of file wmp_interface.c.
void wmpClose | ( | ) |
Definition at line 64 of file wmp_interface.c.
int wmpGetActiveSearch | ( | void | ) |
Returns the status of the active search capability
Definition at line 465 of file wmp_interface.c.
int wmpGetCpuDelay | ( | void | ) |
Returns the delay that RT-WMP process waits before transmitting (to leave the processor to other tasks)
Definition at line 309 of file wmp_interface.c.
int wmpGetFlowControl | ( | void | ) |
Definition at line 561 of file wmp_interface.c.
short wmpGetInstanceId | ( | void | ) |
Definition at line 489 of file wmp_interface.c.
int wmpGetLatestDistances | ( | char * | lqm | ) |
Definition at line 247 of file wmp_interface.c.
int wmpGetLatestLQM | ( | char * | lqm | ) |
Returns latest lqm in a buffer. The Matrix should be scanned with a innested for loop:
char lqm[wmpGetNumOfNodes()*wmpGetNumOfNodes()],p; wmpGetLatestLQM(lqm); p = lqm; for (i = 0; i<wmpGetNumOfNodes() ; i++){ for (j = 0; j<wmpGetNumOfNodes() ; j++){ element_ij = *p; p++; }; };
lqm | an (at least) n x n char buffer (output parameter) |
Definition at line 235 of file wmp_interface.c.
unsigned int wmpGetLoopId | ( | void | ) |
Definition at line 585 of file wmp_interface.c.
int wmpGetMessageReschedule | ( | void | ) |
Definition at line 537 of file wmp_interface.c.
unsigned int wmpGetMTU | ( | void | ) |
Returns the Maximum Transmission Unit for USER data
Definition at line 441 of file wmp_interface.c.
int wmpGetNetIT | ( | void | ) |
Returns the network inactivity timeout
Definition at line 429 of file wmp_interface.c.
char wmpGetNodeId | ( | void | ) |
Returns the WMP address of the local node
Definition at line 211 of file wmp_interface.c.
int wmpGetNumOfElementsInRXQueue | ( | int | port | ) |
Returns the number of elements in the RX queue
Definition at line 417 of file wmp_interface.c.
int wmpGetNumOfElementsInTXQueue | ( | void | ) |
Returns the number of elements in the TX queue
Definition at line 405 of file wmp_interface.c.
char wmpGetNumOfNodes | ( | void | ) |
Returns the total number of nodes of the network
Definition at line 223 of file wmp_interface.c.
int wmpGetPrimBasedRouting | ( | void | ) |
Definition at line 513 of file wmp_interface.c.
int wmpGetRate | ( | void | ) |
Returns the network rate (used to calculate delays in frame-hops)
Definition at line 381 of file wmp_interface.c.
unsigned int wmpGetSerial | ( | void | ) |
Definition at line 573 of file wmp_interface.c.
int wmpGetTimeout | ( | void | ) |
Returns the reception timeout
Definition at line 333 of file wmp_interface.c.
int wmpGetWCMult | ( | void | ) |
Returns multiplier for the worst-case loop of the protocol (used to force worse worst-cases and increase QoS performances)
Definition at line 357 of file wmp_interface.c.
int wmpInit | ( | char * | ifname | ) |
Definition at line 48 of file wmp_interface.c.
int wmpIsKernelSpace | ( | void | ) |
Definition at line 611 of file wmp_interface.c.
int wmpIsNetworkConnected | ( | void | ) |
Allows knowing if the network is connected (i.e. all the nodes are up and working and connected among them)
Definition at line 260 of file wmp_interface.c.
int wmpIsNetworkConnectedBlocking | ( | int | timeout_ms | ) |
Allows knowing if the network is connected (i.e. all the nodes are up and working and connected among them and if not, blocks the caller thread until connected
timeout_ms | specify the maximum wait for connection (if timeout_ms = 0 wait forever) |
Definition at line 272 of file wmp_interface.c.
int wmpNonBlockingPop | ( | Msg * | p | ) |
Dequeue a message from the RX Queue if present. If there are not message to dequeue, returns a negative value
p | the message to pop |
Definition at line 80 of file wmp_interface.c.
Dequeue a message from the RX Queue
p | the message to pop |
Definition at line 72 of file wmp_interface.c.
int wmpPopData | ( | unsigned int | port, |
char ** | p, | ||
unsigned int * | size, | ||
unsigned char * | src, | ||
signed char * | priority | ||
) |
Definition at line 170 of file wmp_interface.c.
int wmpPopDataCopy | ( | unsigned int | port, |
char * | p, | ||
unsigned int * | size, | ||
unsigned char * | src, | ||
signed char * | priority | ||
) |
Definition at line 84 of file wmp_interface.c.
void wmpPopDataDone | ( | int | id | ) |
Definition at line 204 of file wmp_interface.c.
int wmpPopDataTimeout | ( | unsigned int | port, |
char ** | p, | ||
unsigned int * | size, | ||
unsigned char * | src, | ||
signed char * | priority, | ||
int | to | ||
) |
Definition at line 174 of file wmp_interface.c.
int wmpPopDataTimeoutCopy | ( | unsigned int | port, |
char * | p, | ||
unsigned int * | size, | ||
unsigned char * | src, | ||
signed char * | priority, | ||
int | to | ||
) |
Definition at line 144 of file wmp_interface.c.
Enqueue a message in the TX Queue
p | the message to push |
Definition at line 68 of file wmp_interface.c.
int wmpPushData | ( | unsigned int | port, |
char * | p, | ||
unsigned int | size, | ||
unsigned int | dest, | ||
signed char | priority | ||
) |
Definition at line 133 of file wmp_interface.c.
void wmpRun | ( | void | ) |
Starts the process in foreground (blocking)
Definition at line 601 of file wmp_interface.c.
void wmpRunBG | ( | void | ) |
Starts the process in background (separate thread)
Definition at line 607 of file wmp_interface.c.
void wmpSetActiveSearch | ( | int | val | ) |
Set / Unset the active search capability (default:on)
Definition at line 453 of file wmp_interface.c.
void wmpSetCpuDelay | ( | int | val | ) |
Sets the delay that RT-WMP process waits before transmitting (to leave the processor to other tasks)
val | time in milliseconds |
Definition at line 297 of file wmp_interface.c.
void wmpSetFlowControl | ( | int | val | ) |
Definition at line 549 of file wmp_interface.c.
void wmpSetInstanceId | ( | short | iid | ) |
Definition at line 477 of file wmp_interface.c.
void wmpSetMessageReschedule | ( | int | val | ) |
Definition at line 525 of file wmp_interface.c.
void wmpSetPrimBasedRouting | ( | int | val | ) |
Definition at line 501 of file wmp_interface.c.
void wmpSetRate | ( | int | val | ) |
Sets network rate (used to calculate delays in frame-hops)
val | rate in Mbps |
Definition at line 369 of file wmp_interface.c.
void wmpSetTimeout | ( | int | val | ) |
Sets the reception timeout
val | time in milliseconds |
Definition at line 321 of file wmp_interface.c.
int wmpSetup | ( | char | node_id, |
char | active_nodes | ||
) |
Sets up the network
node_id | specify the WMP address of the local node |
active_nodes | specify the number of nodes in the network |
Definition at line 597 of file wmp_interface.c.
void wmpSetWCMult | ( | int | val | ) |
Sets multiplier for the worst-case loop of the protocol (used to force worse worst-cases and increase QoS performances)
val | multiplier |
Definition at line 345 of file wmp_interface.c.
int wmpTimedPop | ( | Msg * | p, |
int | timeout_ms | ||
) |
Dequeue a message from the RX Queue if already in the queue or enqueued within timeous_ms milliseconds. If there are not message to dequeue, returns a negative value
p | the message to pop |
timeout_ms | pop timeout in milliseconds |
Definition at line 76 of file wmp_interface.c.
int fp [static] |
Definition at line 45 of file wmp_interface.c.
struct ifreq ifr [static] |
Definition at line 46 of file wmp_interface.c.
int ioctl_sock [static] |
Definition at line 45 of file wmp_interface.c.
