#include <linux/list.h>
#include <linux/types.h>
#include <linux/if_ether.h>
#include <linux/workqueue.h>
#include <linux/average.h>
#include "key.h"

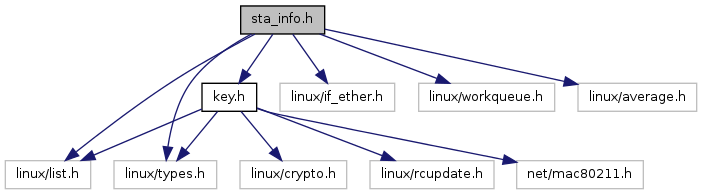

Include dependency graph for kernel-3.2/sta_info.h:

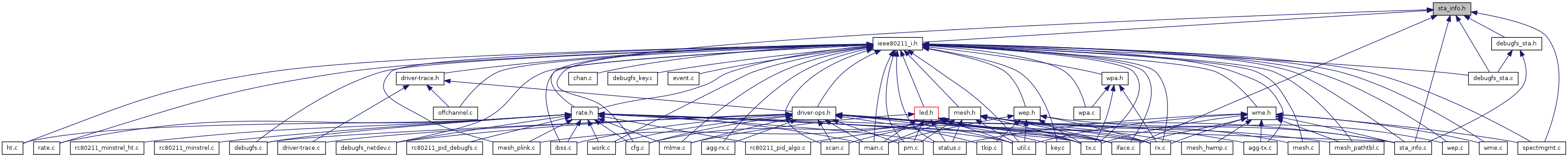

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	sta_ampdu_mlme
struct	sta_info
struct	tid_ampdu_rx
struct	tid_ampdu_tx
Defines
#define	ADDBA_RESP_INTERVAL HZ
#define	for_each_sta_info(local, _addr, _sta, nxt)
#define	for_each_sta_info_rx(local, _addr, _sta, nxt)
#define	HT_AGG_MAX_RETRIES 0x3
#define	HT_AGG_STATE_DRV_READY 0
#define	HT_AGG_STATE_OPERATIONAL 2
#define	HT_AGG_STATE_RESPONSE_RECEIVED 1
#define	HT_AGG_STATE_STOPPING 3
#define	HT_AGG_STATE_WANT_START 4
#define	HT_AGG_STATE_WANT_STOP 5
#define	STA_HASH(sta) (sta[5])
#define	STA_HASH_SIZE 256
#define	STA_INFO_CLEANUP_INTERVAL (10 * HZ)
#define	STA_MAX_TX_BUFFER 64
#define	STA_TID_NUM 16
#define	STA_TX_BUFFER_EXPIRE (10 * HZ)
Enumerations
enum	ieee80211_sta_info_flags { WLAN_STA_AUTH, WLAN_STA_ASSOC, WLAN_STA_PS_STA, WLAN_STA_AUTHORIZED, WLAN_STA_SHORT_PREAMBLE, WLAN_STA_ASSOC_AP, WLAN_STA_WME, WLAN_STA_WDS, WLAN_STA_CLEAR_PS_FILT, WLAN_STA_MFP, WLAN_STA_BLOCK_BA, WLAN_STA_PS_DRIVER, WLAN_STA_PSPOLL, WLAN_STA_TDLS_PEER, WLAN_STA_TDLS_PEER_AUTH, WLAN_STA_UAPSD, WLAN_STA_SP, WLAN_STA_AUTH, WLAN_STA_ASSOC, WLAN_STA_PS_STA, WLAN_STA_AUTHORIZED, WLAN_STA_SHORT_PREAMBLE, WLAN_STA_WME, WLAN_STA_WDS, WLAN_STA_CLEAR_PS_FILT, WLAN_STA_MFP, WLAN_STA_BLOCK_BA, WLAN_STA_PS_DRIVER, WLAN_STA_PSPOLL, WLAN_STA_TDLS_PEER, WLAN_STA_TDLS_PEER_AUTH, WLAN_STA_UAPSD, WLAN_STA_SP, WLAN_STA_4ADDR_EVENT, WLAN_STA_INSERTED, WLAN_STA_RATE_CONTROL, WLAN_STA_TOFFSET_KNOWN }
Functions
static void	clear_sta_flag (struct sta_info *sta, enum ieee80211_sta_info_flags flag)
static void	for_each_sta_info_type_check (struct ieee80211_local local, const u8 addr, struct sta_info sta, struct sta_info nxt)
void	ieee80211_assign_tid_tx (struct sta_info sta, int tid, struct tid_ampdu_tx tid_tx)
void	ieee80211_sta_expire (struct ieee80211_sub_if_data *sdata, unsigned long exp_time)
void	ieee80211_sta_ps_deliver_poll_response (struct sta_info *sta)
void	ieee80211_sta_ps_deliver_uapsd (struct sta_info *sta)
void	ieee80211_sta_ps_deliver_wakeup (struct sta_info *sta)
static struct tid_ampdu_tx *	rcu_dereference_protected_tid_tx (struct sta_info *sta, int tid)
static void	set_sta_flag (struct sta_info *sta, enum ieee80211_sta_info_flags flag)
struct sta_info *	sta_info_alloc (struct ieee80211_sub_if_data sdata, u8 addr, gfp_t gfp)
int	sta_info_destroy_addr (struct ieee80211_sub_if_data sdata, const u8 addr)
int	sta_info_destroy_addr_bss (struct ieee80211_sub_if_data sdata, const u8 addr)
int	sta_info_flush (struct ieee80211_local local, struct ieee80211_sub_if_data sdata)
struct sta_info *	sta_info_get (struct ieee80211_sub_if_data sdata, const u8 addr)
struct sta_info *	sta_info_get_bss (struct ieee80211_sub_if_data sdata, const u8 addr)
struct sta_info *	sta_info_get_bss_rx (struct ieee80211_sub_if_data sdata, const u8 addr)
struct sta_info *	sta_info_get_by_idx (struct ieee80211_sub_if_data *sdata, int idx)
struct sta_info *	sta_info_get_rx (struct ieee80211_sub_if_data sdata, const u8 addr)
void	sta_info_init (struct ieee80211_local *local)
int	sta_info_insert (struct sta_info *sta)
int	sta_info_insert_atomic (struct sta_info *sta)
int	sta_info_insert_rcu (struct sta_info *sta) __acquires(RCU)
void	sta_info_recalc_tim (struct sta_info *sta)
int	sta_info_reinsert (struct sta_info *sta)
void	sta_info_stop (struct ieee80211_local *local)
static enum nl80211_plink_state	sta_plink_state (struct sta_info *sta)
static int	test_and_clear_sta_flag (struct sta_info *sta, enum ieee80211_sta_info_flags flag)
static int	test_sta_flag (struct sta_info *sta, enum ieee80211_sta_info_flags flag)

Define Documentation

#define ADDBA_RESP_INTERVAL HZ

Definition at line 77 of file kernel-3.2/sta_info.h.

#define for_each_sta_info	(	local,
		_addr,
		_sta,
		nxt
	)

Value:

for (   /* initialise loop */                                   \
                _sta = rcu_dereference(local->sta_hash[STA_HASH(_addr)]),\
                nxt = _sta ? rcu_dereference(_sta->hnext) : NULL;       \
                /* typecheck */                                         \
                for_each_sta_info_type_check(local, (_addr), _sta, nxt),\
                /* continue condition */                                \
                _sta;                                                   \
                /* advance loop */                                      \
                _sta = nxt,                                             \
                nxt = _sta ? rcu_dereference(_sta->hnext) : NULL        \
             )                                                          \
        /* run code only if address matches and it's not a dummy sta */ \
        if (memcmp(_sta->sta.addr, (_addr), ETH_ALEN) == 0 &&           \
                !_sta->dummy)

Definition at line 442 of file kernel-3.2/sta_info.h.

#define for_each_sta_info_rx	(	local,
		_addr,
		_sta,
		nxt
	)

Value:

for (   /* initialise loop */                                   \
                _sta = rcu_dereference(local->sta_hash[STA_HASH(_addr)]),\
                nxt = _sta ? rcu_dereference(_sta->hnext) : NULL;       \
                /* typecheck */                                         \
                for_each_sta_info_type_check(local, (_addr), _sta, nxt),\
                /* continue condition */                                \
                _sta;                                                   \
                /* advance loop */                                      \
                _sta = nxt,                                             \
                nxt = _sta ? rcu_dereference(_sta->hnext) : NULL        \
             )                                                          \
        /* compare address and run code only if it matches */           \
        if (memcmp(_sta->sta.addr, (_addr), ETH_ALEN) == 0)

Definition at line 458 of file kernel-3.2/sta_info.h.

#define HT_AGG_MAX_RETRIES 0x3

Definition at line 78 of file kernel-3.2/sta_info.h.

#define HT_AGG_STATE_DRV_READY 0

Definition at line 80 of file kernel-3.2/sta_info.h.

#define HT_AGG_STATE_OPERATIONAL 2

Definition at line 82 of file kernel-3.2/sta_info.h.

#define HT_AGG_STATE_RESPONSE_RECEIVED 1

Definition at line 81 of file kernel-3.2/sta_info.h.

#define HT_AGG_STATE_STOPPING 3

Definition at line 83 of file kernel-3.2/sta_info.h.

#define HT_AGG_STATE_WANT_START 4

Definition at line 84 of file kernel-3.2/sta_info.h.

#define HT_AGG_STATE_WANT_STOP 5

Definition at line 85 of file kernel-3.2/sta_info.h.

#define STA_HASH ( sta ) (sta[5])

Definition at line 405 of file kernel-3.2/sta_info.h.

#define STA_HASH_SIZE 256

Definition at line 404 of file kernel-3.2/sta_info.h.

#define STA_INFO_CLEANUP_INTERVAL (10 * HZ)

Definition at line 417 of file kernel-3.2/sta_info.h.

#define STA_MAX_TX_BUFFER 64

Definition at line 409 of file kernel-3.2/sta_info.h.

#define STA_TID_NUM 16

Definition at line 76 of file kernel-3.2/sta_info.h.

#define STA_TX_BUFFER_EXPIRE (10 * HZ)

Definition at line 413 of file kernel-3.2/sta_info.h.

Enumeration Type Documentation

enum ieee80211_sta_info_flags

enum ieee80211_sta_info_flags - Stations flags

These flags are used with &struct sta_info's member, but only indirectly with set_sta_flag() and friends.

: Station is authenticated. : Station is associated. : Station is in power-save mode : Station is authorized to send/receive traffic. This bit is always checked so needs to be enabled for all stations when virtual port control is not in use. : Station is capable of receiving short-preamble frames. : We're associated to that station, it is an AP. : Station is a QoS-STA. : Station is one of our WDS peers. : Clear PS filter in hardware (using the IEEE80211_TX_CTL_CLEAR_PS_FILT control flag) when the next frame to this station is transmitted. : Management frame protection is used with this STA. : Used to deny ADDBA requests (both TX and RX) during suspend/resume and station removal. : driver requires keeping this station in power-save mode logically to flush frames that might still be in the queues : Station sent PS-poll while driver was keeping station in power-save mode, reply when the driver unblocks. : Station is a TDLS peer. : This TDLS peer is authorized to send direct packets. This means the link is enabled. : Station requested unscheduled SP while driver was keeping station in power-save mode, reply when the driver unblocks the station. : Station is in a service period, so don't try to reply to other uAPSD trigger frames or PS-Poll.

Enumerator:

WLAN_STA_AUTH
WLAN_STA_ASSOC
WLAN_STA_PS_STA
WLAN_STA_AUTHORIZED
WLAN_STA_SHORT_PREAMBLE
WLAN_STA_ASSOC_AP
WLAN_STA_WME
WLAN_STA_WDS
WLAN_STA_CLEAR_PS_FILT
WLAN_STA_MFP
WLAN_STA_BLOCK_BA
WLAN_STA_PS_DRIVER
WLAN_STA_PSPOLL
WLAN_STA_TDLS_PEER
WLAN_STA_TDLS_PEER_AUTH
WLAN_STA_UAPSD
WLAN_STA_SP
WLAN_STA_AUTH
WLAN_STA_ASSOC
WLAN_STA_PS_STA
WLAN_STA_AUTHORIZED
WLAN_STA_SHORT_PREAMBLE
WLAN_STA_WME
WLAN_STA_WDS
WLAN_STA_CLEAR_PS_FILT
WLAN_STA_MFP
WLAN_STA_BLOCK_BA
WLAN_STA_PS_DRIVER
WLAN_STA_PSPOLL
WLAN_STA_TDLS_PEER
WLAN_STA_TDLS_PEER_AUTH
WLAN_STA_UAPSD
WLAN_STA_SP
WLAN_STA_4ADDR_EVENT
WLAN_STA_INSERTED
WLAN_STA_RATE_CONTROL
WLAN_STA_TOFFSET_KNOWN

Definition at line 56 of file kernel-3.2/sta_info.h.

Function Documentation

static void clear_sta_flag	(	struct sta_info *	sta,
		enum ieee80211_sta_info_flags	flag
	)		`[inline, static]`

Definition at line 375 of file kernel-3.2/sta_info.h.

static void for_each_sta_info_type_check	(	struct ieee80211_local *	local,
		const u8 *	addr,
		struct sta_info *	sta,
		struct sta_info *	nxt
	)		`[inline, static]`

Definition at line 435 of file kernel-3.2/sta_info.h.

void ieee80211_assign_tid_tx	(	struct sta_info *	sta,
		int	tid,
		struct tid_ampdu_tx *	tid_tx
	)

Definition at line 138 of file kernel-3.2/agg-tx.c.

void ieee80211_sta_expire	(	struct ieee80211_sub_if_data *	sdata,
		unsigned long	exp_time
	)

Definition at line 1057 of file kernel-3.2/sta_info.c.

void ieee80211_sta_ps_deliver_poll_response ( struct sta_info * sta )

Definition at line 1415 of file kernel-3.2/sta_info.c.

void ieee80211_sta_ps_deliver_uapsd ( struct sta_info * sta )

Definition at line 1431 of file kernel-3.2/sta_info.c.

void ieee80211_sta_ps_deliver_wakeup ( struct sta_info * sta )

Definition at line 1126 of file kernel-3.2/sta_info.c.

static struct tid_ampdu_tx* rcu_dereference_protected_tid_tx	(	struct sta_info *	sta,
		int	tid
	)		`[static, read]`

Definition at line 397 of file kernel-3.2/sta_info.h.

static void set_sta_flag	(	struct sta_info *	sta,
		enum ieee80211_sta_info_flags	flag
	)		`[inline, static]`

Definition at line 369 of file kernel-3.2/sta_info.h.

struct sta_info* sta_info_alloc	(	struct ieee80211_sub_if_data *	sdata,
		u8 *	addr,
		gfp_t	gfp
	)		`[read]`

Definition at line 282 of file kernel-3.2/sta_info.c.

int sta_info_destroy_addr	(	struct ieee80211_sub_if_data *	sdata,
		const u8 *	addr
	)

Definition at line 961 of file kernel-3.2/sta_info.c.

int sta_info_destroy_addr_bss	(	struct ieee80211_sub_if_data *	sdata,
		const u8 *	addr
	)

Definition at line 974 of file kernel-3.2/sta_info.c.

int sta_info_flush	(	struct ieee80211_local *	local,
		struct ieee80211_sub_if_data *	sdata
	)

sta_info_flush - flush matching STA entries from the STA table

Returns the number of removed STA entries.

: local interface data : matching rule for the net device (sta->dev) or NULL to match all STAs

Definition at line 1036 of file kernel-3.2/sta_info.c.

struct sta_info* sta_info_get	(	struct ieee80211_sub_if_data *	sdata,
		const u8 *	addr
	)		`[read]`

Definition at line 94 of file kernel-3.2/sta_info.c.

struct sta_info* sta_info_get_bss	(	struct ieee80211_sub_if_data *	sdata,
		const u8 *	addr
	)		`[read]`

Definition at line 139 of file kernel-3.2/sta_info.c.

struct sta_info* sta_info_get_bss_rx	(	struct ieee80211_sub_if_data *	sdata,
		const u8 *	addr
	)		`[read]`

Definition at line 165 of file kernel-3.2/sta_info.c.

struct sta_info* sta_info_get_by_idx	(	struct ieee80211_sub_if_data *	sdata,
		int	idx
	)		`[read]`

Definition at line 186 of file kernel-3.2/sta_info.c.

struct sta_info* sta_info_get_rx	(	struct ieee80211_sub_if_data *	sdata,
		const u8 *	addr
	)		`[read]`

Definition at line 115 of file kernel-3.2/sta_info.c.

void sta_info_init ( struct ieee80211_local * local )

Definition at line 1010 of file kernel-3.2/sta_info.c.

int sta_info_insert ( struct sta_info * sta )

Definition at line 609 of file kernel-3.2/sta_info.c.

int sta_info_insert_atomic ( struct sta_info * sta )

int sta_info_insert_rcu ( struct sta_info * sta )

Definition at line 560 of file kernel-3.2/sta_info.c.

void sta_info_recalc_tim ( struct sta_info * sta )

Definition at line 673 of file kernel-3.2/sta_info.c.

int sta_info_reinsert ( struct sta_info * sta )

Definition at line 619 of file kernel-3.2/sta_info.c.

void sta_info_stop ( struct ieee80211_local * local )

Definition at line 1022 of file kernel-3.2/sta_info.c.

static enum nl80211_plink_state sta_plink_state ( struct sta_info * sta ) [inline, static]

Definition at line 361 of file kernel-3.2/sta_info.h.

static int test_and_clear_sta_flag	(	struct sta_info *	sta,
		enum ieee80211_sta_info_flags	flag
	)		`[inline, static]`

Definition at line 387 of file kernel-3.2/sta_info.h.

static int test_sta_flag	(	struct sta_info *	sta,
		enum ieee80211_sta_info_flags	flag
	)		`[inline, static]`

Definition at line 381 of file kernel-3.2/sta_info.h.
