#include <linux/gfp.h>
#include <linux/kernel.h>
#include <linux/random.h>
#include "ieee80211_i.h"
#include "rate.h"
#include "mesh.h"

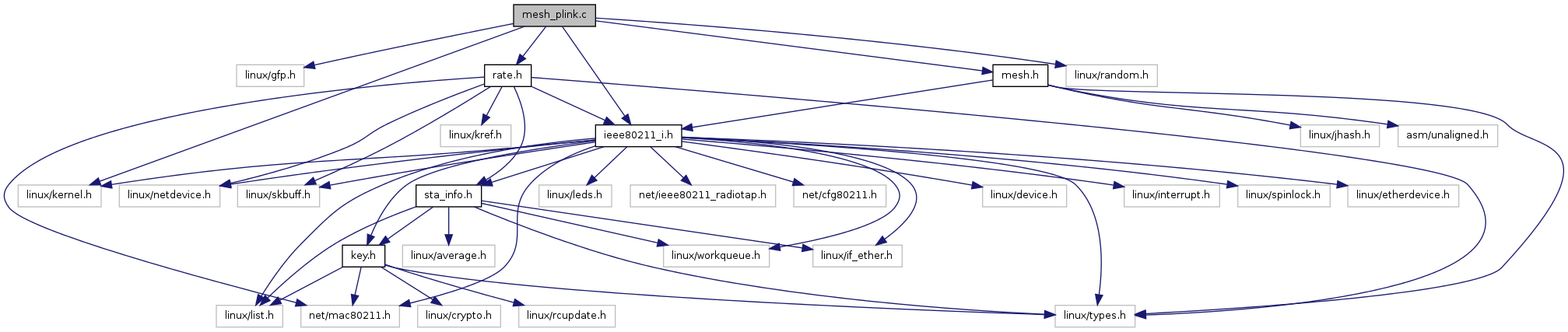

Include dependency graph for kernel-3.2/mesh_plink.c:

Defines
#define	dot11MeshConfirmTimeout(s) (s->u.mesh.mshcfg.dot11MeshConfirmTimeout)
#define	dot11MeshHoldingTimeout(s) (s->u.mesh.mshcfg.dot11MeshHoldingTimeout)
#define	dot11MeshMaxPeerLinks(s) (s->u.mesh.mshcfg.dot11MeshMaxPeerLinks)
#define	dot11MeshMaxRetries(s) (s->u.mesh.mshcfg.dot11MeshMaxRetries)
#define	dot11MeshRetryTimeout(s) (s->u.mesh.mshcfg.dot11MeshRetryTimeout)
#define	mod_plink_timer(s, t)
#define	mpl_dbg(fmt, args...) do { (void)(0); } while (0)
#define	PLINK_GET_LLID(p) (p + 2)
#define	PLINK_GET_PLID(p) (p + 4)
Enumerations
enum	plink_event { PLINK_UNDEFINED, OPN_ACPT, OPN_RJCT, OPN_IGNR, CNF_ACPT, CNF_RJCT, CNF_IGNR, CLS_ACPT, CLS_IGNR, PLINK_UNDEFINED, OPN_ACPT, OPN_RJCT, OPN_IGNR, CNF_ACPT, CNF_RJCT, CNF_IGNR, CLS_ACPT, CLS_IGNR }
Functions
static bool	__mesh_plink_deactivate (struct sta_info *sta)
void	mesh_neighbour_update (u8 hw_addr, u32 rates, struct ieee80211_sub_if_data sdata, struct ieee802_11_elems *elems)
static struct sta_info *	mesh_plink_alloc (struct ieee80211_sub_if_data sdata, u8 hw_addr, u32 rates)
void	mesh_plink_block (struct sta_info *sta)
void	mesh_plink_deactivate (struct sta_info *sta)
static void	mesh_plink_dec_estab_count (struct ieee80211_sub_if_data *sdata)
static int	mesh_plink_frame_tx (struct ieee80211_sub_if_data sdata, enum ieee80211_self_protected_actioncode action, u8 da, __le16 llid, __le16 plid, __le16 reason)
static void	mesh_plink_fsm_restart (struct sta_info *sta)
static void	mesh_plink_inc_estab_count (struct ieee80211_sub_if_data *sdata)
int	mesh_plink_open (struct sta_info *sta)
static void	mesh_plink_timer (unsigned long data)
static void	mesh_plink_timer_set (struct sta_info *sta, int timeout)
void	mesh_rx_plink_frame (struct ieee80211_sub_if_data sdata, struct ieee80211_mgmt mgmt, size_t len, struct ieee80211_rx_status *rx_status)

Define Documentation

#define dot11MeshConfirmTimeout ( s ) (s->u.mesh.mshcfg.dot11MeshConfirmTimeout)

Definition at line 30 of file kernel-3.2/mesh_plink.c.

#define dot11MeshHoldingTimeout ( s ) (s->u.mesh.mshcfg.dot11MeshHoldingTimeout)

Definition at line 31 of file kernel-3.2/mesh_plink.c.

#define dot11MeshMaxPeerLinks ( s ) (s->u.mesh.mshcfg.dot11MeshMaxPeerLinks)

Definition at line 32 of file kernel-3.2/mesh_plink.c.

#define dot11MeshMaxRetries ( s ) (s->u.mesh.mshcfg.dot11MeshMaxRetries)

Definition at line 28 of file kernel-3.2/mesh_plink.c.

#define dot11MeshRetryTimeout ( s ) (s->u.mesh.mshcfg.dot11MeshRetryTimeout)

Definition at line 29 of file kernel-3.2/mesh_plink.c.

#define mod_plink_timer	(	s,
		t
	)

Value:

(mod_timer(&s->plink_timer, \
                                jiffies + HZ * t / 1000))

Definition at line 25 of file kernel-3.2/mesh_plink.c.

#define mpl_dbg	(	fmt,
		args...
	)	do { (void)(0); } while (0)

Definition at line 19 of file kernel-3.2/mesh_plink.c.

#define PLINK_GET_LLID ( p ) (p + 2)

Definition at line 22 of file kernel-3.2/mesh_plink.c.

#define PLINK_GET_PLID ( p ) (p + 4)

Definition at line 23 of file kernel-3.2/mesh_plink.c.

Enumeration Type Documentation

enum plink_event

Enumerator:

PLINK_UNDEFINED
OPN_ACPT
OPN_RJCT
OPN_IGNR
CNF_ACPT
CNF_RJCT
CNF_IGNR
CLS_ACPT
CLS_IGNR
PLINK_UNDEFINED
OPN_ACPT
OPN_RJCT
OPN_IGNR
CNF_ACPT
CNF_RJCT
CNF_IGNR
CLS_ACPT
CLS_IGNR

Definition at line 34 of file kernel-3.2/mesh_plink.c.

Function Documentation

static bool __mesh_plink_deactivate ( struct sta_info * sta ) [static]

__mesh_plink_deactivate - deactivate mesh peer link

: mesh peer link to deactivate

All mesh paths with this peer as next hop will be flushed

Locking: the caller must hold sta->lock

Definition at line 113 of file kernel-3.2/mesh_plink.c.

void mesh_neighbour_update	(	u8 *	hw_addr,
		u32	rates,
		struct ieee80211_sub_if_data *	sdata,
		struct ieee802_11_elems *	elems
	)

Definition at line 245 of file kernel-3.2/mesh_plink.c.

static struct sta_info* mesh_plink_alloc	(	struct ieee80211_sub_if_data *	sdata,
		u8 *	hw_addr,
		u32	rates
	)		`[static, read]`

Definition at line 82 of file kernel-3.2/mesh_plink.c.

void mesh_plink_block ( struct sta_info * sta )

Definition at line 408 of file kernel-3.2/mesh_plink.c.

void mesh_plink_deactivate ( struct sta_info * sta )

mesh_plink_deactivate - deactivate mesh peer link

: mesh peer link to deactivate

All mesh paths with this peer as next hop will be flushed

Definition at line 135 of file kernel-3.2/mesh_plink.c.

static void mesh_plink_dec_estab_count ( struct ieee80211_sub_if_data * sdata ) [inline, static]

Definition at line 58 of file kernel-3.2/mesh_plink.c.

static int mesh_plink_frame_tx	(	struct ieee80211_sub_if_data *	sdata,
		enum ieee80211_self_protected_actioncode	action,
		u8 *	da,
		__le16	llid,
		__le16	plid,
		__le16	reason
	)		`[static]`

Definition at line 152 of file kernel-3.2/mesh_plink.c.

static void mesh_plink_fsm_restart ( struct sta_info * sta ) [inline, static]

mesh_plink_fsm_restart - restart a mesh peer link finite state machine

: mesh peer link to restart

Locking: this function must be called holding sta->lock

Definition at line 71 of file kernel-3.2/mesh_plink.c.

static void mesh_plink_inc_estab_count ( struct ieee80211_sub_if_data * sdata ) [inline, static]

Definition at line 51 of file kernel-3.2/mesh_plink.c.

int mesh_plink_open ( struct sta_info * sta )

Definition at line 383 of file kernel-3.2/mesh_plink.c.

static void mesh_plink_timer ( unsigned long data ) [static]

Definition at line 284 of file kernel-3.2/mesh_plink.c.

static void mesh_plink_timer_set	(	struct sta_info *	sta,
		int	timeout
	)		`[inline, static]`

Definition at line 374 of file kernel-3.2/mesh_plink.c.

void mesh_rx_plink_frame	(	struct ieee80211_sub_if_data *	sdata,
		struct ieee80211_mgmt *	mgmt,
		size_t	len,
		struct ieee80211_rx_status *	rx_status
	)

Definition at line 423 of file kernel-3.2/mesh_plink.c.
