Base class providing direct read/write coefficient access to matrices and arrays. More...
#include <DenseCoeffsBase.h>
Public Types | |
| typedef DenseCoeffsBase < Derived, WriteAccessors > | Base |
| typedef internal::traits < Derived >::Index | Index |
| typedef NumTraits< Scalar >::Real | RealScalar |
| typedef internal::traits < Derived >::Scalar | Scalar |
Public Member Functions | |
| Index | colStride () const |
| Index | innerStride () const |
| Index | outerStride () const |
| Index | rowStride () const |
| Index | stride () const |
Detailed Description
template<typename Derived>
class DenseCoeffsBase< Derived, DirectWriteAccessors >
Base class providing direct read/write coefficient access to matrices and arrays.
- Template Parameters:
-
Derived Type of the derived class DirectWriteAccessors Constant indicating direct access
This class defines functions to work with strides which can be used to access entries directly. This class inherits DenseCoeffsBase<Derived, WriteAccessors> which defines functions to access entries read/write using operator().
- See also:

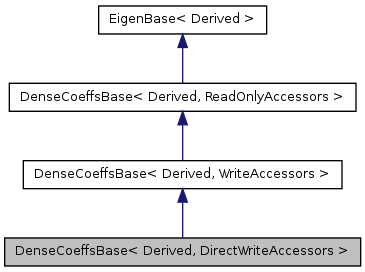

- The class hierarchy
Definition at line 649 of file DenseCoeffsBase.h.
Member Typedef Documentation
| typedef DenseCoeffsBase<Derived, WriteAccessors> DenseCoeffsBase< Derived, DirectWriteAccessors >::Base |
Reimplemented from DenseCoeffsBase< Derived, WriteAccessors >.
Definition at line 654 of file DenseCoeffsBase.h.
| typedef internal::traits<Derived>::Index DenseCoeffsBase< Derived, DirectWriteAccessors >::Index |
Reimplemented from DenseCoeffsBase< Derived, WriteAccessors >.
Definition at line 655 of file DenseCoeffsBase.h.
| typedef NumTraits<Scalar>::Real DenseCoeffsBase< Derived, DirectWriteAccessors >::RealScalar |
Reimplemented from DenseCoeffsBase< Derived, WriteAccessors >.
Definition at line 657 of file DenseCoeffsBase.h.
| typedef internal::traits<Derived>::Scalar DenseCoeffsBase< Derived, DirectWriteAccessors >::Scalar |
Reimplemented from DenseCoeffsBase< Derived, WriteAccessors >.
Definition at line 656 of file DenseCoeffsBase.h.
Member Function Documentation
| Index DenseCoeffsBase< Derived, DirectWriteAccessors >::colStride | ( | ) | const [inline] |
- Returns:
- the pointer increment between two consecutive columns.
- See also:
- innerStride(), outerStride(), rowStride()
Definition at line 702 of file DenseCoeffsBase.h.
| Index DenseCoeffsBase< Derived, DirectWriteAccessors >::innerStride | ( | ) | const [inline] |
- Returns:
- the pointer increment between two consecutive elements within a slice in the inner direction.
- See also:
- outerStride(), rowStride(), colStride()
Definition at line 668 of file DenseCoeffsBase.h.
| Index DenseCoeffsBase< Derived, DirectWriteAccessors >::outerStride | ( | ) | const [inline] |
- Returns:
- the pointer increment between two consecutive inner slices (for example, between two consecutive columns in a column-major matrix).
- See also:
- innerStride(), rowStride(), colStride()
Definition at line 678 of file DenseCoeffsBase.h.
| Index DenseCoeffsBase< Derived, DirectWriteAccessors >::rowStride | ( | ) | const [inline] |
- Returns:
- the pointer increment between two consecutive rows.
- See also:
- innerStride(), outerStride(), colStride()
Definition at line 693 of file DenseCoeffsBase.h.
| Index DenseCoeffsBase< Derived, DirectWriteAccessors >::stride | ( | ) | const [inline] |
Definition at line 684 of file DenseCoeffsBase.h.
The documentation for this class was generated from the following file:
