Public Types | Public Member Functions
DenseCoeffsBase< Derived, WriteAccessors > Class Template Reference

Base class providing read/write coefficient access to matrices and arrays. More...

#include <DenseCoeffsBase.h>

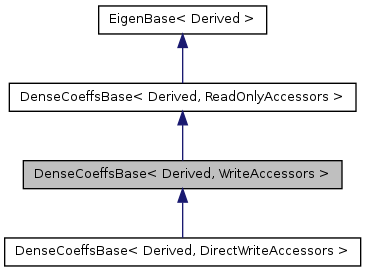

Inheritance diagram for DenseCoeffsBase< Derived, WriteAccessors >:
Inheritance graph
[legend]

List of all members.

Public Types

typedef DenseCoeffsBase
< Derived, ReadOnlyAccessors > 		Base
typedef internal::traits
< Derived >::Index 		Index
typedef
internal::packet_traits
< Scalar >::type 		PacketScalar
typedef NumTraits< Scalar >::Real RealScalar
typedef internal::traits
< Derived >::Scalar 		Scalar
typedef internal::traits
< Derived >::StorageKind 		StorageKind

Public Member Functions

EIGEN_STRONG_INLINE Scalar & coeffRef (Index row, Index col)
EIGEN_STRONG_INLINE Scalar & coeffRef (Index index)
EIGEN_STRONG_INLINE Scalar & coeffRefByOuterInner (Index outer, Index inner)
template<typename OtherDerived >
EIGEN_STRONG_INLINE void copyCoeff (Index row, Index col, const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_STRONG_INLINE void copyCoeff (Index index, const DenseBase< OtherDerived > &other)
template<typename OtherDerived >
EIGEN_STRONG_INLINE void copyCoeffByOuterInner (Index outer, Index inner, const DenseBase< OtherDerived > &other)
template<typename OtherDerived , int StoreMode, int LoadMode>
EIGEN_STRONG_INLINE void copyPacket (Index row, Index col, const DenseBase< OtherDerived > &other)
template<typename OtherDerived , int StoreMode, int LoadMode>
EIGEN_STRONG_INLINE void copyPacket (Index index, const DenseBase< OtherDerived > &other)
template<typename OtherDerived , int StoreMode, int LoadMode>
EIGEN_STRONG_INLINE void copyPacketByOuterInner (Index outer, Index inner, const DenseBase< OtherDerived > &other)
EIGEN_STRONG_INLINE Scalar & operator() (Index row, Index col)
EIGEN_STRONG_INLINE Scalar & operator() (Index index)
EIGEN_STRONG_INLINE Scalar & operator[] (Index index)
EIGEN_STRONG_INLINE Scalar & w ()
template<int StoreMode>
EIGEN_STRONG_INLINE void writePacket (Index row, Index col, const typename internal::packet_traits< Scalar >::type &x)
template<int StoreMode>
EIGEN_STRONG_INLINE void writePacket (Index index, const typename internal::packet_traits< Scalar >::type &x)
template<int StoreMode>
EIGEN_STRONG_INLINE void writePacketByOuterInner (Index outer, Index inner, const typename internal::packet_traits< Scalar >::type &x)
EIGEN_STRONG_INLINE Scalar & x ()
EIGEN_STRONG_INLINE Scalar & y ()
EIGEN_STRONG_INLINE Scalar & z ()

Detailed Description

template<typename Derived>
class DenseCoeffsBase< Derived, WriteAccessors >

Base class providing read/write coefficient access to matrices and arrays.

Template Parameters:
DerivedType of the derived class
WriteAccessorsConstant indicating read/write access

This class defines the non-const operator() function and friends, which can be used to write specific entries of a matrix or array. This class inherits DenseCoeffsBase<Derived, ReadOnlyAccessors> which defines the const variant for reading specific entries.

See also:
DenseCoeffsBase<Derived, DirectAccessors>, The class hierarchy

Definition at line 287 of file DenseCoeffsBase.h.

Member Typedef Documentation

template<typename Derived >
typedef DenseCoeffsBase<Derived, ReadOnlyAccessors> DenseCoeffsBase< Derived, WriteAccessors >::Base

Reimplemented from DenseCoeffsBase< Derived, ReadOnlyAccessors >.

Reimplemented in DenseCoeffsBase< Derived, DirectWriteAccessors >.

Definition at line 291 of file DenseCoeffsBase.h.

template<typename Derived >
typedef internal::traits<Derived>::Index DenseCoeffsBase< Derived, WriteAccessors >::Index

Reimplemented from DenseCoeffsBase< Derived, ReadOnlyAccessors >.

Reimplemented in DenseCoeffsBase< Derived, DirectWriteAccessors >.

Definition at line 294 of file DenseCoeffsBase.h.

template<typename Derived >
typedef internal::packet_traits<Scalar>::type DenseCoeffsBase< Derived, WriteAccessors >::PacketScalar

Reimplemented from DenseCoeffsBase< Derived, ReadOnlyAccessors >.

Definition at line 296 of file DenseCoeffsBase.h.

template<typename Derived >
typedef NumTraits<Scalar>::Real DenseCoeffsBase< Derived, WriteAccessors >::RealScalar

Reimplemented in DenseCoeffsBase< Derived, DirectWriteAccessors >.

Definition at line 297 of file DenseCoeffsBase.h.

template<typename Derived >
typedef internal::traits<Derived>::Scalar DenseCoeffsBase< Derived, WriteAccessors >::Scalar

Reimplemented from DenseCoeffsBase< Derived, ReadOnlyAccessors >.

Reimplemented in DenseCoeffsBase< Derived, DirectWriteAccessors >.

Definition at line 295 of file DenseCoeffsBase.h.

template<typename Derived >
typedef internal::traits<Derived>::StorageKind DenseCoeffsBase< Derived, WriteAccessors >::StorageKind

Reimplemented from DenseCoeffsBase< Derived, ReadOnlyAccessors >.

Definition at line 293 of file DenseCoeffsBase.h.

Member Function Documentation

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::coeffRef ( Index  row,
Index  col
) [inline]

Short version: don't use this function, use operator()(Index,Index) instead.

Long version: this function is similar to operator()(Index,Index), but without the assertion. Use this for limiting the performance cost of debugging code when doing repeated coefficient access. Only use this when it is guaranteed that the parameters row and col are in range.

If EIGEN_INTERNAL_DEBUGGING is defined, an assertion will be made, making this function equivalent to operator()(Index,Index).

See also:
operator()(Index,Index), coeff(Index, Index) const, coeffRef(Index)

Definition at line 327 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::coeffRef ( Index  index) [inline]

Short version: don't use this function, use operator[](Index) instead.

Long version: this function is similar to operator[](Index), but without the assertion. Use this for limiting the performance cost of debugging code when doing repeated coefficient access. Only use this when it is guaranteed that the parameters row and col are in range.

If EIGEN_INTERNAL_DEBUGGING is defined, an assertion will be made, making this function equivalent to operator[](Index).

See also:
operator[](Index), coeff(Index) const, coeffRef(Index,Index)

Definition at line 371 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::coeffRefByOuterInner ( Index  outer,
Index  inner
) [inline]

Definition at line 335 of file DenseCoeffsBase.h.

template<typename Derived >
template<typename OtherDerived >
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::copyCoeff ( Index  row,
Index  col,
const DenseBase< OtherDerived > &  other
) [inline]

Definition at line 489 of file DenseCoeffsBase.h.

template<typename Derived >
template<typename OtherDerived >
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::copyCoeff ( Index  index,
const DenseBase< OtherDerived > &  other
) [inline]

Definition at line 505 of file DenseCoeffsBase.h.

template<typename Derived >
template<typename OtherDerived >
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::copyCoeffByOuterInner ( Index  outer,
Index  inner,
const DenseBase< OtherDerived > &  other
) [inline]

Definition at line 513 of file DenseCoeffsBase.h.

template<typename Derived >
template<typename OtherDerived , int StoreMode, int LoadMode>
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::copyPacket ( Index  row,
Index  col,
const DenseBase< OtherDerived > &  other
) [inline]

Definition at line 530 of file DenseCoeffsBase.h.

template<typename Derived >
template<typename OtherDerived , int StoreMode, int LoadMode>
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::copyPacket ( Index  index,
const DenseBase< OtherDerived > &  other
) [inline]

Definition at line 547 of file DenseCoeffsBase.h.

template<typename Derived >
template<typename OtherDerived , int StoreMode, int LoadMode>
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::copyPacketByOuterInner ( Index  outer,
Index  inner,
const DenseBase< OtherDerived > &  other
) [inline]

Definition at line 556 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::operator() ( Index  row,
Index  col
) [inline]
Returns:
a reference to the coefficient at given the given row and column.
See also:
operator[](Index)

Definition at line 347 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::operator() ( Index  index) [inline]
Returns:
a reference to the coefficient at given index.

This is synonymous to operator[](Index).

This method is allowed only for vector expressions, and for matrix expressions having the LinearAccessBit.

See also:
operator[](Index) const, operator()(Index,Index), x(), y(), z(), w()

Definition at line 405 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::operator[] ( Index  index) [inline]
Returns:
a reference to the coefficient at given index.

This method is allowed only for vector expressions, and for matrix expressions having the LinearAccessBit.

See also:
operator[](Index) const, operator()(Index,Index), x(), y(), z(), w()

Definition at line 385 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::w ( ) [inline]

equivalent to operator[](3).

Definition at line 429 of file DenseCoeffsBase.h.

template<typename Derived >
template<int StoreMode>
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::writePacket ( Index  row,
Index  col,
const typename internal::packet_traits< Scalar >::type &  x
) [inline]

Definition at line 443 of file DenseCoeffsBase.h.

template<typename Derived >
template<int StoreMode>
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::writePacket ( Index  index,
const typename internal::packet_traits< Scalar >::type &  x
) [inline]

Definition at line 472 of file DenseCoeffsBase.h.

template<typename Derived >
template<int StoreMode>
EIGEN_STRONG_INLINE void DenseCoeffsBase< Derived, WriteAccessors >::writePacketByOuterInner ( Index  outer,
Index  inner,
const typename internal::packet_traits< Scalar >::type &  x
) [inline]

Definition at line 454 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::x ( ) [inline]

equivalent to operator[](0).

Definition at line 414 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::y ( ) [inline]

equivalent to operator[](1).

Definition at line 419 of file DenseCoeffsBase.h.

template<typename Derived >
EIGEN_STRONG_INLINE Scalar& DenseCoeffsBase< Derived, WriteAccessors >::z ( ) [inline]

equivalent to operator[](2).

Definition at line 424 of file DenseCoeffsBase.h.
