homogen.cpp File Reference

Homogen transformation functions. More...

#include "utils.h"

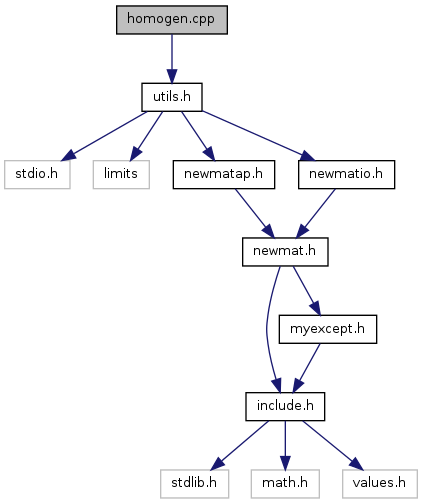

Include dependency graph for homogen.cpp:

Go to the source code of this file.

Functions

ReturnMatrix eulzxz (const ColumnVector &a)
 Euler ZXZ rotation.
ReturnMatrix ieulzxz (const Matrix &R)
 Obtain Roll, Pitch and Yaw from a rotation matrix.
ReturnMatrix irotk (const Matrix &R)
 Obtain axis from a rotation matrix.
ReturnMatrix irpy (const Matrix &R)
 Obtain Roll, Pitch and Yaw from a rotation matrix.
ReturnMatrix rotd (const Real theta, const ColumnVector &k1, const ColumnVector &k2)
 Rotation around an arbitrary line.
ReturnMatrix rotk (const Real theta, const ColumnVector &k)
 Rotation around arbitrary axis.
ReturnMatrix rotx (const Real alpha)
 Rotation around x axis.
ReturnMatrix roty (const Real beta)
 Rotation around x axis.
ReturnMatrix rotz (const Real gamma)
 Rotation around z axis.
ReturnMatrix rpy (const ColumnVector &a)
 Roll Pitch Yaw rotation.
ReturnMatrix trans (const ColumnVector &a)
 Translation.

Variables

static const char rcsid [] = "$Id: homogen.cpp,v 1.15 2006/11/15 18:35:17 gourdeau Exp $"
 RCS/CVS version.

Detailed Description

Homogen transformation functions.

Definition in file homogen.cpp.


Function Documentation

ReturnMatrix eulzxz ( const ColumnVector &  a)

Euler ZXZ rotation.

Definition at line 211 of file homogen.cpp.

ReturnMatrix ieulzxz ( const Matrix &  R)

Obtain Roll, Pitch and Yaw from a rotation matrix.

Definition at line 294 of file homogen.cpp.

ReturnMatrix irotk ( const Matrix &  R)

Obtain axis from a rotation matrix.

Definition at line 253 of file homogen.cpp.

ReturnMatrix irpy ( const Matrix &  R)

Obtain Roll, Pitch and Yaw from a rotation matrix.

Definition at line 271 of file homogen.cpp.

ReturnMatrix rotd ( const Real  theta,
const ColumnVector &  k1,
const ColumnVector &  k2
)

Rotation around an arbitrary line.

Definition at line 240 of file homogen.cpp.

ReturnMatrix rotk ( const Real  theta,
const ColumnVector &  k
)

Rotation around arbitrary axis.

Definition at line 149 of file homogen.cpp.

ReturnMatrix rotx ( const Real  alpha)

Rotation around x axis.

Definition at line 87 of file homogen.cpp.

ReturnMatrix roty ( const Real  beta)

Rotation around x axis.

Definition at line 107 of file homogen.cpp.

ReturnMatrix rotz ( const Real  gamma)

Rotation around z axis.

Definition at line 127 of file homogen.cpp.

ReturnMatrix rpy ( const ColumnVector &  a)

Roll Pitch Yaw rotation.

Definition at line 182 of file homogen.cpp.

ReturnMatrix trans ( const ColumnVector &  a)

Translation.

Definition at line 68 of file homogen.cpp.


Variable Documentation

const char rcsid[] = "$Id: homogen.cpp,v 1.15 2006/11/15 18:35:17 gourdeau Exp $" [static]

RCS/CVS version.

Definition at line 58 of file homogen.cpp.
