ComponentLabeling.h File Reference

#include "vector"
#include "BlobContour.h"
#include "Blob.h"

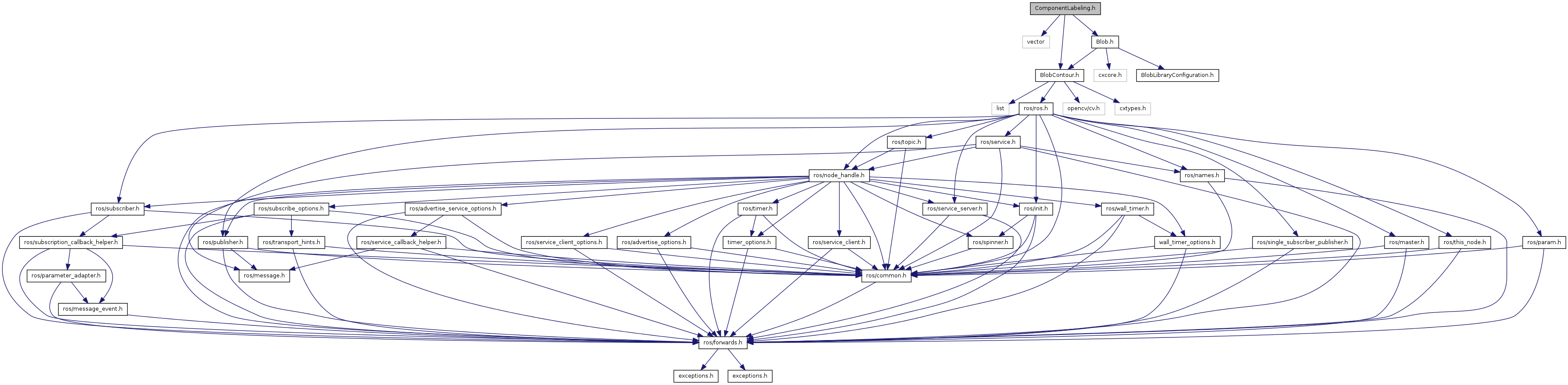

Include dependency graph for ComponentLabeling.h:

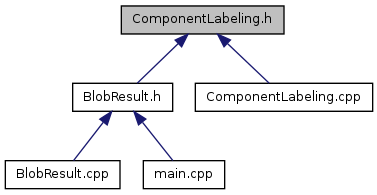

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	_CLASSE_BLOBRESULT_INCLUDED
Typedefs
typedef std::vector< CBlob * >	Blob_vector
	definició de que es un vector de blobs
Functions
bool	ComponentLabeling (IplImage *inputImage, IplImage *maskImage, unsigned char backgroundColor, Blob_vector &blobs)
void	contourTracing (IplImage *image, IplImage *mask, CvPoint contourStart, t_labelType *labels, bool *visitedPoints, t_labelType label, bool internalContour, unsigned char backgroundColor, CBlobContour *currentBlobContour)
CvPoint	tracer (IplImage *image, IplImage *mask, CvPoint P, bool *visitedPoints, short initialMovement, unsigned char backgroundColor, short &movement)

---

Define Documentation

#define _CLASSE_BLOBRESULT_INCLUDED

Definition at line 2 of file ComponentLabeling.h.

---

Typedef Documentation

typedef std::vector<CBlob*> Blob_vector

definició de que es un vector de blobs

Definition at line 10 of file ComponentLabeling.h.

---

Function Documentation

bool ComponentLabeling	(	IplImage *	inputImage,
		IplImage *	maskImage,
		unsigned char	backgroundColor,
		Blob_vector &	blobs
	)

• FUNCIÓ: ComponentLabeling
• FUNCIONALITAT: Calcula els components binaris (blobs) d'una imatge amb connectivitat a 8
• PARÀMETRES:
  • inputImage: image to segment (pixel values different than blobColor are treated as background)
  • maskImage: if not NULL, all the pixels equal to 0 in mask are skipped in input image
  • backgroundColor: color of background (ignored pixels)
  • blobs: blob vector destination
• RESULTAT:
• RESTRICCIONS:
• AUTOR: rborras
• DATA DE CREACIÓ: 2008/04/21
• MODIFICACIÓ: Data. Autor. Descripció.
• NOTA: Algorithm based on "A linear-time component labeling algorithm using contour tracing technique", F.Chang et al

current blob pointer

Definition at line 93 of file ComponentLabeling.cpp.

void contourTracing	(	IplImage *	image,
		IplImage *	maskImage,
		CvPoint	contourStart,
		t_labelType *	labels,
		bool *	visitedPoints,
		t_labelType	label,
		bool	internalContour,
		unsigned char	backgroundColor,
		CBlobContour *	currentBlobcontour
	)

• FUNCIÓ:
• FUNCIONALITAT:
• PARÀMETRES:
• RESULTAT:
• RESTRICCIONS:
• AUTOR: rborras
• DATA DE CREACIÓ: 2008/04/29
• MODIFICACIÓ: Data. Autor. Descripció.

Definition at line 267 of file ComponentLabeling.cpp.

CvPoint tracer	(	IplImage *	image,
		IplImage *	maskImage,
		CvPoint	P,
		bool *	visitedPoints,
		short	initialMovement,
		unsigned char	backgroundColor,
		short &	movement
	)

• FUNCIÓ: tracer
• FUNCIONALITAT: Searches for next point of a contour
• PARÀMETRES:
• RESULTAT:
• RESTRICCIONS:
• AUTOR: rborras
• DATA DE CREACIÓ: 2008/04/30
• MODIFICACIÓ: Data. Autor. Descripció.

Definition at line 345 of file ComponentLabeling.cpp.
