#include "LinearMath/btVector3.h"
#include "LinearMath/btTransform.h"
#include "btManifoldPoint.h"
#include "LinearMath/btAlignedAllocator.h"

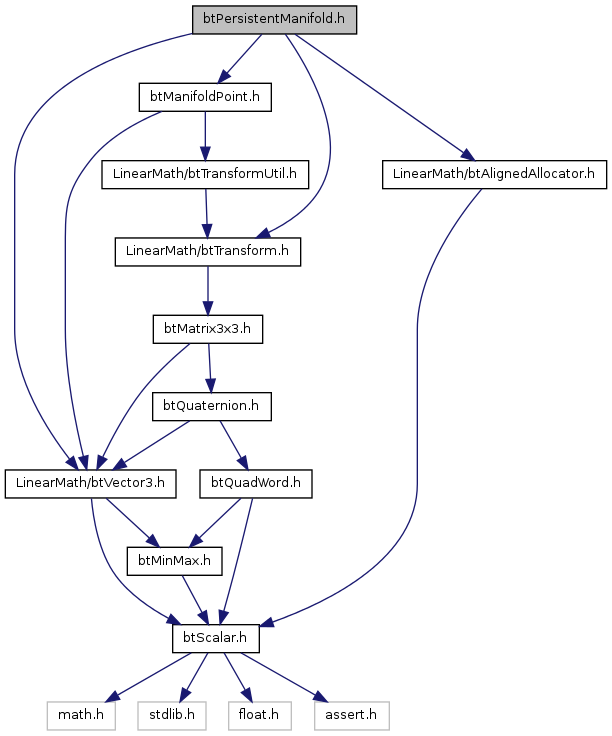

Include dependency graph for btPersistentManifold.h:

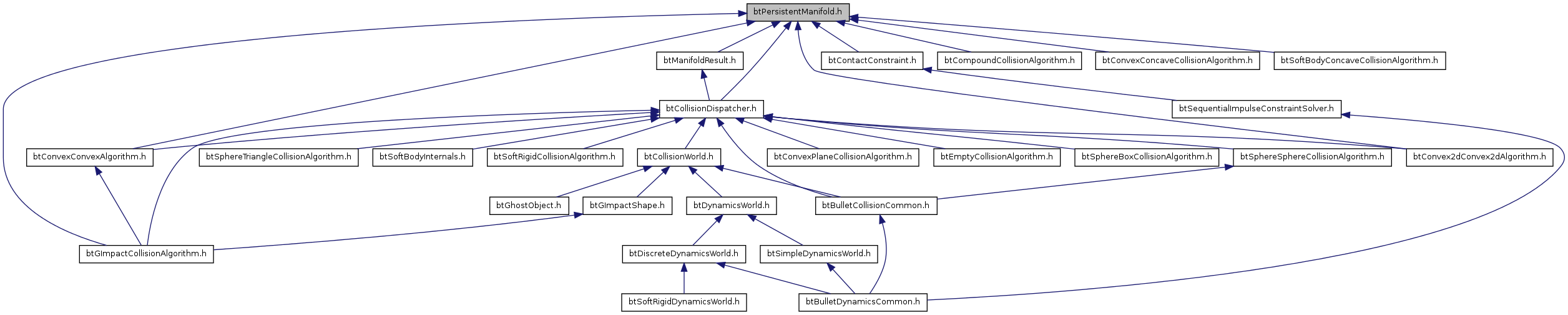

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	MAINTAIN_PERSISTENCY 1
#define	MANIFOLD_CACHE_SIZE 4
Typedefs
typedef bool(*	ContactDestroyedCallback )(void *userPersistentData)
typedef bool(*	ContactProcessedCallback )(btManifoldPoint &cp, void body0, void body1)
Enumerations
enum	btContactManifoldTypes { MIN_CONTACT_MANIFOLD_TYPE = 1024, BT_PERSISTENT_MANIFOLD_TYPE }
Functions
	ATTRIBUTE_ALIGNED128 (class) btPersistentManifold
Variables
btScalar	gContactBreakingThreshold
	maximum contact breaking and merging threshold
ContactDestroyedCallback	gContactDestroyedCallback
ContactProcessedCallback	gContactProcessedCallback

Define Documentation

#define MAINTAIN_PERSISTENCY 1

#define MANIFOLD_CACHE_SIZE 4

Definition at line 42 of file btPersistentManifold.h.

Typedef Documentation

typedef bool(* ContactDestroyedCallback)(void *userPersistentData)

Definition at line 30 of file btPersistentManifold.h.

typedef bool(* ContactProcessedCallback)(btManifoldPoint &cp, void *body0, void *body1)

Definition at line 31 of file btPersistentManifold.h.

Enumeration Type Documentation

enum btContactManifoldTypes

Enumerator:

MIN_CONTACT_MANIFOLD_TYPE
BT_PERSISTENT_MANIFOLD_TYPE

Definition at line 36 of file btPersistentManifold.h.

Function Documentation

ATTRIBUTE_ALIGNED128 ( class )

btPersistentManifold is a contact point cache, it stays persistent as long as objects are overlapping in the broadphase. Those contact points are created by the collision narrow phase. The cache can be empty, or hold 1,2,3 or 4 points. Some collision algorithms (GJK) might only add one point at a time. updates/refreshes old contact points, and throw them away if necessary (distance becomes too large) reduces the cache to 4 points, when more then 4 points are added, using following rules: the contact point with deepest penetration is always kept, and it tries to maximuze the area covered by the points note that some pairs of objects might have more then one contact manifold.

this two body pointers can point to the physics rigidbody class. void* will allow any rigidbody class

sort cached points so most isolated points come first
