Enki::AsebaFeedableEPuck Class Reference

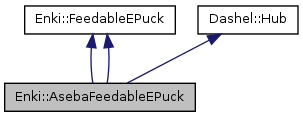

Inheritance diagram for Enki::AsebaFeedableEPuck:

List of all members.

Classes
struct	Variables
Public Member Functions
	AsebaFeedableEPuck (int id)
	AsebaFeedableEPuck (int id)
void	connectionClosed (Dashel::Stream *stream, bool abnormal)
void	connectionCreated (Dashel::Stream *stream)
void	controlStep (double dt)
void	controlStep (double dt)
void	incomingData (Dashel::Stream *stream)
double	toDoubleClamp (sint16 val, double mul, double min, double max)
double	toDoubleClamp (sint16 val, double mul, double min, double max)
virtual	~AsebaFeedableEPuck ()
virtual	~AsebaFeedableEPuck ()
Public Attributes
std::valarray< unsigned short >	bytecode
int	joystick
std::valarray< uint8 >	lastMessageData
uint16	lastMessageSource
int	port
std::valarray< signed short >	stack
Dashel::Stream *	stream
struct Enki::AsebaFeedableEPuck::Variables	variables
AsebaVMState	vm

---

Detailed Description

Definition at line 152 of file challenge.cpp.

---

Constructor & Destructor Documentation

Enki::AsebaFeedableEPuck::AsebaFeedableEPuck

(

int

id

)

[inline]

Definition at line 194 of file challenge.cpp.

virtual Enki::AsebaFeedableEPuck::~AsebaFeedableEPuck

(

)

[inline, virtual]

Definition at line 229 of file challenge.cpp.

Enki::AsebaFeedableEPuck::AsebaFeedableEPuck

(

int

id

)

[inline]

Definition at line 219 of file playground.cpp.

virtual Enki::AsebaFeedableEPuck::~AsebaFeedableEPuck

(

)

[inline, virtual]

Definition at line 241 of file playground.cpp.

---

Member Function Documentation

void Enki::AsebaFeedableEPuck::connectionClosed	(	Dashel::Stream *	stream,
		bool	abnormal
	)		[inline, virtual]

Reimplemented from Dashel::Hub.

Definition at line 268 of file challenge.cpp.

void Enki::AsebaFeedableEPuck::connectionCreated

(

Dashel::Stream *

stream

)

[inline, virtual]

Reimplemented from Dashel::Hub.

Definition at line 235 of file challenge.cpp.

void Enki::AsebaFeedableEPuck::controlStep

(

double

dt

)

[inline, virtual]

Reimplemented from Enki::FeedableEPuck.

Definition at line 257 of file playground.cpp.

void Enki::AsebaFeedableEPuck::controlStep

(

double

dt

)

[inline, virtual]

Reimplemented from Enki::FeedableEPuck.

Definition at line 292 of file challenge.cpp.

void Enki::AsebaFeedableEPuck::incomingData

(

Dashel::Stream *

stream

)

[inline, virtual]

Reimplemented from Dashel::Hub.

Definition at line 250 of file challenge.cpp.

double Enki::AsebaFeedableEPuck::toDoubleClamp	(	sint16	val,
		double	mul,
		double	min,
		double	max
	)		[inline]

Definition at line 247 of file playground.cpp.

double Enki::AsebaFeedableEPuck::toDoubleClamp	(	sint16	val,
		double	mul,
		double	min,
		double	max
	)		[inline]

Definition at line 282 of file challenge.cpp.

---

Member Data Documentation

std::valarray< unsigned short > Enki::AsebaFeedableEPuck::bytecode

Definition at line 157 of file challenge.cpp.

int Enki::AsebaFeedableEPuck::joystick

Definition at line 195 of file playground.cpp.

std::valarray<uint8> Enki::AsebaFeedableEPuck::lastMessageData

Definition at line 191 of file challenge.cpp.

uint16 Enki::AsebaFeedableEPuck::lastMessageSource

Definition at line 190 of file challenge.cpp.

int Enki::AsebaFeedableEPuck::port

Definition at line 188 of file challenge.cpp.

std::valarray< signed short > Enki::AsebaFeedableEPuck::stack

Definition at line 158 of file challenge.cpp.

Dashel::Stream* Enki::AsebaFeedableEPuck::stream

Definition at line 155 of file challenge.cpp.

struct Enki::AsebaFeedableEPuck::Variables Enki::AsebaFeedableEPuck::variables

AsebaVMState Enki::AsebaFeedableEPuck::vm

Definition at line 156 of file challenge.cpp.

---

The documentation for this class was generated from the following files:

• challenge.cpp
• playground.cpp
