Aseba::BootloaderInterface Class Reference

Manage interactions with an aseba-compatible bootloader. More...

#include <BootloaderInterface.h>

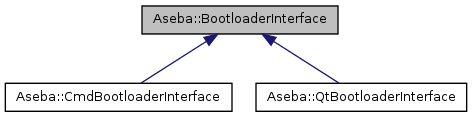

Inheritance diagram for Aseba::BootloaderInterface:
Inheritance graph
[legend]

List of all members.

Classes

struct  Error
 An error in link with the bootloader. More...

Public Member Functions

 BootloaderInterface (Dashel::Stream *stream, int dest)
 Create an interface to bootloader with id dest using a socket.
int getPageSize () const
 Return the size of a page.
void readHex (const std::string &fileName)
 Read an hex file and write it to fileName.
bool readPage (unsigned pageNumber, uint8 *data)
 Read a page.
bool readPageSimple (unsigned pageNumber, uint8 *data)
 Read a page, simplified protocol.
void writeHex (const std::string &fileName, bool reset, bool simple)
 Write an hex file.
bool writePage (unsigned pageNumber, const uint8 *data, bool simple)
 Write a page, if simple is true, use simplified protocol, otherwise use complete protocol.

Protected Member Functions

virtual void errorWritePageNonFatal (unsigned pageNumber)
 Warn about an error but do not quit.
virtual void writeHexEnteringBootloader ()
virtual void writeHexExitingBootloader ()
virtual void writeHexGotDescription (unsigned pagesCount)
virtual void writeHexStart (const std::string &fileName, bool reset, bool simple)
virtual void writeHexWritten ()
virtual void writePageFailure ()
virtual void writePageStart (unsigned pageNumber, const uint8 *data, bool simple)
virtual void writePageSuccess ()
virtual void writePageWaitAck ()

Protected Attributes

int dest
unsigned pagesCount
unsigned pageSize
unsigned pagesStart
Dashel::Streamstream

Detailed Description

Manage interactions with an aseba-compatible bootloader.

There are two versions of the bootloader: the complete and the simple. The complete version works on any Aseba network including over switches as it transmits all data using the Aseba message protocol. The simple version requires direct access to the device to be flashed, because it breaks the Aseba message protocol for page transmission.

Definition at line 46 of file BootloaderInterface.h.


Constructor & Destructor Documentation

Create an interface to bootloader with id dest using a socket.

Definition at line 36 of file BootloaderInterface.cpp.


Member Function Documentation

virtual void Aseba::BootloaderInterface::errorWritePageNonFatal ( unsigned  pageNumber) [inline, protected, virtual]

Warn about an error but do not quit.

Reimplemented in Aseba::CmdBootloaderInterface, and Aseba::QtBootloaderInterface.

Definition at line 97 of file BootloaderInterface.h.

Return the size of a page.

Definition at line 62 of file BootloaderInterface.h.

void Aseba::BootloaderInterface::readHex ( const std::string &  fileName)

Read an hex file and write it to fileName.

Definition at line 340 of file BootloaderInterface.cpp.

bool Aseba::BootloaderInterface::readPage ( unsigned  pageNumber,
uint8 data
)

Read a page.

Definition at line 46 of file BootloaderInterface.cpp.

bool Aseba::BootloaderInterface::readPageSimple ( unsigned  pageNumber,
uint8 data
)

Read a page, simplified protocol.

Definition at line 97 of file BootloaderInterface.cpp.

void Aseba::BootloaderInterface::writeHex ( const std::string &  fileName,
bool  reset,
bool  simple
)

Write an hex file.

Definition at line 207 of file BootloaderInterface.cpp.

virtual void Aseba::BootloaderInterface::writeHexEnteringBootloader ( ) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface.

Definition at line 89 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writeHexExitingBootloader ( ) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface.

Definition at line 92 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writeHexGotDescription ( unsigned  pagesCount) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface, and Aseba::QtBootloaderInterface.

Definition at line 90 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writeHexStart ( const std::string &  fileName,
bool  reset,
bool  simple
) [inline, protected, virtual]

Definition at line 88 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writeHexWritten ( ) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface.

Definition at line 91 of file BootloaderInterface.h.

bool Aseba::BootloaderInterface::writePage ( unsigned  pageNumber,
const uint8 data,
bool  simple
)

Write a page, if simple is true, use simplified protocol, otherwise use complete protocol.

Definition at line 109 of file BootloaderInterface.cpp.

virtual void Aseba::BootloaderInterface::writePageFailure ( ) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface.

Definition at line 86 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writePageStart ( unsigned  pageNumber,
const uint8 data,
bool  simple
) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface, and Aseba::QtBootloaderInterface.

Definition at line 83 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writePageSuccess ( ) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface.

Definition at line 85 of file BootloaderInterface.h.

virtual void Aseba::BootloaderInterface::writePageWaitAck ( ) [inline, protected, virtual]

Reimplemented in Aseba::CmdBootloaderInterface.

Definition at line 84 of file BootloaderInterface.h.


Member Data Documentation

Definition at line 102 of file BootloaderInterface.h.

Reimplemented in Aseba::QtBootloaderInterface.

Definition at line 105 of file BootloaderInterface.h.

Definition at line 103 of file BootloaderInterface.h.

Definition at line 104 of file BootloaderInterface.h.

Definition at line 101 of file BootloaderInterface.h.


The documentation for this class was generated from the following files:
