Draw.h File Reference

This file implements a collection of functions that are used to visualize lines, contours and corners for debugging purposes. More...

#include "Alvar.h"
#include "Util.h"
#include "Camera.h"
#include "Line.h"
#include <sstream>

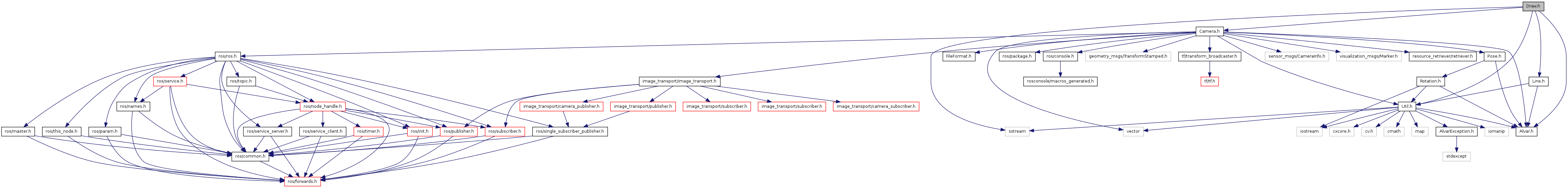

Include dependency graph for Draw.h:

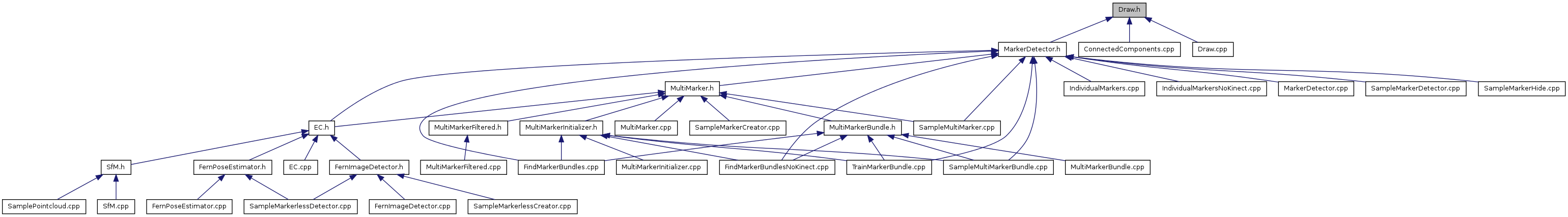

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	alvar
	Main ALVAR namespace.
Functions
void ALVAR_EXPORT	alvar::BuildHideTexture (IplImage *image, IplImage *hide_texture, Camera *cam, double gl_modelview[16], PointDouble topleft, PointDouble botright)
	This function is used to construct a texture image which is needed to hide a marker from the original video frame. See SampleMarkerHide.cpp for example implementation.
template<class PointType >
void	alvar::DrawBB (IplImage *image, const std::vector< PointType > &points, CvScalar color, std::string label="")
	Draws the bounding box of a connected component (Blob).
void ALVAR_EXPORT	alvar::DrawCircles (IplImage *image, const CvSeq *contour, int radius, CvScalar color=CV_RGB(255, 0, 0))
	Draws circles to the contour points that are obtained by Labeling class.
void ALVAR_EXPORT	alvar::DrawCVEllipse (IplImage *image, CvBox2D &ellipse, CvScalar color, bool fill=false, double par=0)
	Draws OpenCV ellipse.
void ALVAR_EXPORT	alvar::DrawLine (IplImage *image, const Line line, CvScalar color=CV_RGB(0, 255, 0))
	Draws a line.
template<class PointType >
void	alvar::DrawLines (IplImage *image, const std::vector< PointType > &points, CvScalar color, bool loop=true)
	Draws lines between consecutive points stored in vector (polyline).
void ALVAR_EXPORT	alvar::DrawLines (IplImage *image, const CvSeq *contour, CvScalar color=CV_RGB(255, 0, 0))
	Draws lines between consecutive contour points.
void ALVAR_EXPORT	alvar::DrawPoints (IplImage *image, const std::vector< CvPoint > &points, CvScalar color)
	Draws a set of points.
void ALVAR_EXPORT	alvar::DrawPoints (IplImage *image, const CvSeq *contour, CvScalar color=CV_RGB(255, 0, 0))
	Draws points of the contour that is obtained by Labeling class.
template<class PointType >
void	alvar::DrawPoints (IplImage *image, const std::vector< PointType > &points, CvScalar color, int radius=1)
	Draws circles to the array of points.
void ALVAR_EXPORT	alvar::DrawTexture (IplImage *image, IplImage *texture, Camera *cam, double gl_modelview[16], PointDouble topleft, PointDouble botright)
	Draws the texture generated by BuildHideTexture to given video frame. For better performance, use OpenGL instead. See SampleMarkerHide.cpp for example implementation.

---

Detailed Description

This file implements a collection of functions that are used to visualize lines, contours and corners for debugging purposes.

Definition in file Draw.h.
