Classes | Public Types | Public Member Functions | Protected Types | Protected Member Functions | Static Protected Member Functions | Protected Attributes | List of all members
StackWalker Class Referenceabstract

A class that can help with walking the stack for debugging purposes (Windows version) More...

#include <stackwalker.h>

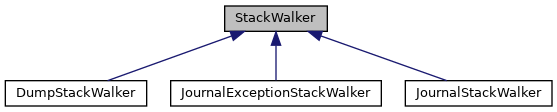

Inheritance diagram for StackWalker:
Inheritance graph
[legend]

Classes

struct  CallstackEntry
 Container for each Callstack-Entry. More...


Public Types

typedef BOOL(__stdcall * PReadProcessMemoryRoutine) (HANDLE hProcess, DWORD64 qwBaseAddress, PVOID lpBuffer, DWORD nSize, LPDWORD lpNumberOfBytesRead, LPVOID pUserData)

enum  StackWalkOptions {
  RetrieveNone = 0, RetrieveSymbol = 1, RetrieveLine = 2, RetrieveModuleInfo = 4,
  RetrieveFileVersion = 8, RetrieveVerbose = 0xF, SymBuildPath = 0x10, SymUseSymSrv = 0x20,
  SymAll = 0x30, OptionsAll = 0x3F
}


Public Member Functions

BOOL LoadModules ()

virtual void OnOutput (LPCSTR)=0

void ShowCallstack ()

BOOL ShowCallstack (HANDLE hThread=GetCurrentThread(), const CONTEXT *context=NULL, PReadProcessMemoryRoutine readMemoryFunction=NULL, LPVOID pUserData=NULL)

 StackWalker ()

 StackWalker (DWORD dwProcessId, HANDLE hProcess)

 StackWalker (int options=(int) OptionsAll, LPCSTR szSymPath=NULL, DWORD dwProcessId=GetCurrentProcessId(), HANDLE hProcess=GetCurrentProcess())

virtual ~StackWalker ()

virtual ~StackWalker ()


Protected Types

enum  { STACKWALK_MAX_NAMELEN = 1024 }

enum  CallstackEntryType { firstEntry, nextEntry, lastEntry }


Protected Member Functions

virtual void OnCallstackEntry (CallstackEntryType eType, CallstackEntry &entry)

virtual void OnDbgHelpErr (LPCSTR szFuncName, DWORD gle, DWORD64 addr)

virtual void OnLoadModule (LPCSTR img, LPCSTR mod, DWORD64 baseAddr, DWORD size, DWORD result, LPCSTR symType, LPCSTR pdbName, ULONGLONG fileVersion)

virtual void OnOutput (LPCSTR szText)

virtual void OnSymInit (LPCSTR szSearchPath, DWORD symOptions, LPCSTR szUserName)

StackWalker & operator= (StackWalker const &)=delete

 StackWalker (StackWalker const &)=delete


Static Protected Member Functions

static BOOL __stdcall myReadProcMem (HANDLE hProcess, DWORD64 qwBaseAddress, PVOID lpBuffer, DWORD nSize, LPDWORD lpNumberOfBytesRead)


Protected Attributes

DWORD m_dwProcessId

HANDLE m_hProcess

BOOL m_modulesLoaded

int m_options

StackWalkerInternal * m_sw

LPSTR m_szSymPath

friend StackWalkerInternal


Detailed Description

A class that can help with walking the stack for debugging purposes (Windows version)

A class that can help with walking the stack for debugging purposes (Linux version)

Definition at line 98 of file stackwalker.h.

Member Typedef Documentation

◆ PReadProcessMemoryRoutine

typedef BOOL(__stdcall* StackWalker::PReadProcessMemoryRoutine) (HANDLE hProcess, DWORD64 qwBaseAddress, PVOID lpBuffer, DWORD nSize, LPDWORD lpNumberOfBytesRead, LPVOID pUserData)

Definition at line 142 of file stackwalker.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
protected
Enumerator
STACKWALK_MAX_NAMELEN

Definition at line 160 of file stackwalker.h.

◆ CallstackEntryType

enum StackWalker::CallstackEntryType
protected
Enumerator
firstEntry
nextEntry
lastEntry

Definition at line 180 of file stackwalker.h.

◆ StackWalkOptions

enum StackWalker::StackWalkOptions
Enumerator
RetrieveNone
RetrieveSymbol
RetrieveLine
RetrieveModuleInfo
RetrieveFileVersion
RetrieveVerbose
SymBuildPath
SymUseSymSrv
SymAll
OptionsAll

Definition at line 101 of file stackwalker.h.

Constructor & Destructor Documentation

◆ StackWalker() [1/4]

StackWalker::StackWalker ( int  options = (int) OptionsAll,
LPCSTR  szSymPath = NULL,
DWORD  dwProcessId = GetCurrentProcessId(),
HANDLE  hProcess = GetCurrentProcess()
)

Definition at line 825 of file stackwalker.cpp.

◆ StackWalker() [2/4]

StackWalker::StackWalker ( DWORD  dwProcessId,
HANDLE  hProcess
)

Definition at line 816 of file stackwalker.cpp.

◆ ~StackWalker() [1/2]

StackWalker::~StackWalker ( )
virtual

Definition at line 841 of file stackwalker.cpp.

◆ StackWalker() [3/4]

StackWalker::StackWalker ( StackWalker const &  )
protecteddelete

◆ StackWalker() [4/4]

StackWalker::StackWalker ( )

Definition at line 96 of file stackwalker_linux.cpp.

◆ ~StackWalker() [2/2]

virtual StackWalker::~StackWalker ( )
virtual

Member Function Documentation

◆ LoadModules()

BOOL StackWalker::LoadModules ( )

Definition at line 851 of file stackwalker.cpp.

◆ myReadProcMem()

BOOL __stdcall StackWalker::myReadProcMem ( HANDLE  hProcess,
DWORD64  qwBaseAddress,
PVOID  lpBuffer,
DWORD  nSize,
LPDWORD  lpNumberOfBytesRead
)
staticprotected

Definition at line 1201 of file stackwalker.cpp.

◆ OnCallstackEntry()

void StackWalker::OnCallstackEntry ( CallstackEntryType  eType,
CallstackEntry &  entry
)
protectedvirtual

Definition at line 1237 of file stackwalker.cpp.

◆ OnDbgHelpErr()

void StackWalker::OnDbgHelpErr ( LPCSTR  szFuncName,
DWORD  gle,
DWORD64  addr
)
protectedvirtual

Definition at line 1261 of file stackwalker.cpp.

◆ OnLoadModule()

void StackWalker::OnLoadModule ( LPCSTR  img,
LPCSTR  mod,
DWORD64  baseAddr,
DWORD  size,
DWORD  result,
LPCSTR  symType,
LPCSTR  pdbName,
ULONGLONG  fileVersion
)
protectedvirtual

Definition at line 1221 of file stackwalker.cpp.

◆ OnOutput() [1/2]

void StackWalker::OnOutput ( LPCSTR  szText)
protectedvirtual

Reimplemented in JournalStackWalker, DumpStackWalker, and JournalExceptionStackWalker.

Definition at line 1300 of file stackwalker.cpp.

◆ OnOutput() [2/2]

virtual void StackWalker::OnOutput ( LPCSTR  )
pure virtual

Implemented in JournalStackWalker, DumpStackWalker, and JournalExceptionStackWalker.

◆ OnSymInit()

void StackWalker::OnSymInit ( LPCSTR  szSearchPath,
DWORD  symOptions,
LPCSTR  szUserName
)
protectedvirtual

Definition at line 1268 of file stackwalker.cpp.

◆ operator=()

StackWalker& StackWalker::operator= ( StackWalker const &  )
protecteddelete

◆ ShowCallstack() [1/2]

void StackWalker::ShowCallstack ( )

Definition at line 104 of file stackwalker_linux.cpp.

◆ ShowCallstack() [2/2]

BOOL StackWalker::ShowCallstack ( HANDLE  hThread = GetCurrentThread(),
const CONTEXT *  context = NULL,
PReadProcessMemoryRoutine  readMemoryFunction = NULL,
LPVOID  pUserData = NULL
)

Definition at line 981 of file stackwalker.cpp.

Member Data Documentation

◆ m_dwProcessId

DWORD StackWalker::m_dwProcessId
protected

Definition at line 190 of file stackwalker.h.

◆ m_hProcess

HANDLE StackWalker::m_hProcess
protected

Definition at line 189 of file stackwalker.h.

◆ m_modulesLoaded

BOOL StackWalker::m_modulesLoaded
protected

Definition at line 191 of file stackwalker.h.

◆ m_options

int StackWalker::m_options
protected

Definition at line 194 of file stackwalker.h.

◆ m_sw

StackWalkerInternal* StackWalker::m_sw
protected

Definition at line 188 of file stackwalker.h.

◆ m_szSymPath

LPSTR StackWalker::m_szSymPath
protected

Definition at line 192 of file stackwalker.h.

◆ StackWalkerInternal

friend StackWalker::StackWalkerInternal
protected

Definition at line 198 of file stackwalker.h.

The documentation for this class was generated from the following files:

xsens_mti_driver
Author(s):
autogenerated on Sun Sep 3 2023 02:43:22
