#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <sys/ioctl.h>
#include <sys/mman.h>
#include <signal.h>
#include <linux/types.h>
#include <linux/spi/spidev.h>
#include <time.h>
#include <math.h>
#include "mailbox.h"
#include "clk.h"
#include "gpio.h"
#include "dma.h"
#include "pwm.h"
#include "pcm.h"
#include "rpihw.h"
#include "ws2811.h"

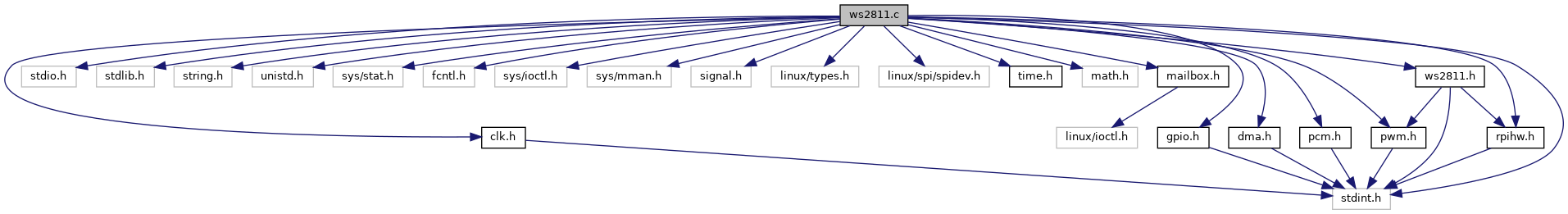

Include dependency graph for ws2811.c:

Classes
struct	videocore_mbox

struct	ws2811_device

Macros
#define	BUS_TO_PHYS(x) ((x)&~0xC0000000)

#define	LED_BIT_COUNT(leds, freq)

#define	LED_COLOURS 4

#define	LED_RESET_uS 55

#define	LED_RESET_WAIT_TIME 300

#define	NONE 0

#define	OSC_FREQ 19200000

#define	OSC_FREQ_PI4 54000000

#define	PCM 2

#define	PCM_BYTE_COUNT(leds, freq) ((((LED_BIT_COUNT(leds, freq) >> 3) & ~0x7) + 4) + 4)

#define	PWM 1

#define	PWM_BYTE_COUNT(leds, freq)

#define	SPI 3

#define	SYMBOL_HIGH 0x6

#define	SYMBOL_HIGH_INV 0x1

#define	SYMBOL_LOW 0x4

#define	SYMBOL_LOW_INV 0x3

Typedefs
typedef struct videocore_mbox	videocore_mbox_t

typedef struct ws2811_device	ws2811_device_t

Functions
static uint32_t	addr_to_bus (ws2811_device_t device, const volatile void virt)

static int	check_hwver_and_gpionum (ws2811_t *ws2811)

static void	dma_start (ws2811_t *ws2811)

static uint64_t	get_microsecond_timestamp ()

static int	gpio_init (ws2811_t *ws2811)

static int	map_registers (ws2811_t *ws2811)

static int	max_channel_led_count (ws2811_t *ws2811)

void	pcm_raw_init (ws2811_t *ws2811)

void	pwm_raw_init (ws2811_t *ws2811)

static int	set_driver_mode (ws2811_t *ws2811, int gpionum)

static int	setup_pcm (ws2811_t *ws2811)

static int	setup_pwm (ws2811_t *ws2811)

static ws2811_return_t	spi_init (ws2811_t *ws2811)

static ws2811_return_t	spi_transfer (ws2811_t *ws2811)

static void	stop_pcm (ws2811_t *ws2811)

static void	stop_pwm (ws2811_t *ws2811)

static void	unmap_registers (ws2811_t *ws2811)

void	ws2811_cleanup (ws2811_t *ws2811)

void	ws2811_fini (ws2811_t *ws2811)

const char *	ws2811_get_return_t_str (const ws2811_return_t state)

ws2811_return_t	ws2811_init (ws2811_t *ws2811)

ws2811_return_t	ws2811_render (ws2811_t *ws2811)

void	ws2811_set_custom_gamma_factor (ws2811_t *ws2811, double gamma_factor)

ws2811_return_t	ws2811_wait (ws2811_t *ws2811)

Macro Definition Documentation

◆ BUS_TO_PHYS

#define BUS_TO_PHYS ( x ) ((x)&~0xC0000000)

Definition at line 56 of file ws2811.c.

◆ LED_BIT_COUNT

#define LED_BIT_COUNT	(	leds,
		freq
	)

Value:

((leds * LED_COLOURS * 8 * 3) + ((LED_RESET_uS * \

(freq * 3)) / 1000000))

Definition at line 64 of file ws2811.c.

◆ LED_COLOURS

#define LED_COLOURS 4

Definition at line 62 of file ws2811.c.

◆ LED_RESET_uS

#define LED_RESET_uS 55

Definition at line 63 of file ws2811.c.

◆ LED_RESET_WAIT_TIME

#define LED_RESET_WAIT_TIME 300

Definition at line 68 of file ws2811.c.

◆ NONE

#define NONE 0

Definition at line 84 of file ws2811.c.

◆ OSC_FREQ

#define OSC_FREQ 19200000

Definition at line 58 of file ws2811.c.

◆ OSC_FREQ_PI4

#define OSC_FREQ_PI4 54000000

Definition at line 59 of file ws2811.c.

◆ PCM

#define PCM 2

Definition at line 86 of file ws2811.c.

◆ PCM_BYTE_COUNT

#define PCM_BYTE_COUNT	(	leds,
		freq
	)	((((LED_BIT_COUNT(leds, freq) >> 3) & ~0x7) + 4) + 4)

Definition at line 73 of file ws2811.c.

◆ PWM

#define PWM 1

Definition at line 85 of file ws2811.c.

◆ PWM_BYTE_COUNT

#define PWM_BYTE_COUNT	(	leds,
		freq
	)

Value:

(((((LED_BIT_COUNT(leds, freq) >> 3) & ~0x7) + 4) + 4) * \

RPI_PWM_CHANNELS)

Definition at line 71 of file ws2811.c.

◆ SPI

#define SPI 3

Definition at line 87 of file ws2811.c.

◆ SYMBOL_HIGH

#define SYMBOL_HIGH 0x6

Definition at line 76 of file ws2811.c.

◆ SYMBOL_HIGH_INV

#define SYMBOL_HIGH_INV 0x1

Definition at line 80 of file ws2811.c.

◆ SYMBOL_LOW

#define SYMBOL_LOW 0x4

Definition at line 77 of file ws2811.c.

◆ SYMBOL_LOW_INV

#define SYMBOL_LOW_INV 0x3

Definition at line 81 of file ws2811.c.

Typedef Documentation

◆ videocore_mbox_t

typedef struct videocore_mbox videocore_mbox_t

◆ ws2811_device_t

typedef struct ws2811_device ws2811_device_t

Function Documentation

◆ addr_to_bus()

static uint32_t addr_to_bus	(	ws2811_device_t *	device,
		const volatile void *	virt
	)

static

Given a userspace address pointer, return the matching bus address used by DMA. Note: The bus address is not the same as the CPU physical address.

Parameters

addr	Userspace virtual address pointer.

Returns: Bus address for use by DMA.

Definition at line 276 of file ws2811.c.

◆ check_hwver_and_gpionum()

static int check_hwver_and_gpionum ( ws2811_t * ws2811 )

static

Definition at line 692 of file ws2811.c.

◆ dma_start()

static void dma_start ( ws2811_t * ws2811 )

static

Start the DMA feeding the PWM FIFO. This will stream the entire DMA buffer out of both PWM channels.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 496 of file ws2811.c.

◆ get_microsecond_timestamp()

static uint64_t get_microsecond_timestamp ( )

static

Provides monotonic timestamp in microseconds.

Returns: Current timestamp in microseconds or 0 on error.

Definition at line 123 of file ws2811.c.

◆ gpio_init()

static int gpio_init ( ws2811_t * ws2811 )

static

Initialize the application selected GPIO pins for PWM/PCM operation.

Parameters

ws2811 ws2811 instance pointer.

Returns: 0 on success, -1 on unsupported pin

Definition at line 529 of file ws2811.c.

◆ map_registers()

static int map_registers ( ws2811_t * ws2811 )

static

Map all devices into userspace memory. Not called for SPI

Parameters

ws2811 ws2811 instance pointer.

Returns: 0 on success, -1 otherwise.

Definition at line 164 of file ws2811.c.

◆ max_channel_led_count()

static int max_channel_led_count ( ws2811_t * ws2811 )

static

Iterate through the channels and find the largest led count.

Parameters

ws2811 ws2811 instance pointer.

Returns: Maximum number of LEDs in all channels.

Definition at line 141 of file ws2811.c.

◆ pcm_raw_init()

void pcm_raw_init ( ws2811_t * ws2811 )

Initialize the PCM DMA buffer with all zeros. The DMA buffer length is assumed to be a word multiple.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 602 of file ws2811.c.

◆ pwm_raw_init()

void pwm_raw_init ( ws2811_t * ws2811 )

Initialize the PWM DMA buffer with all zeros, inverted operation will be handled by hardware. The DMA buffer length is assumed to be a word multiple.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 574 of file ws2811.c.

◆ set_driver_mode()

static int set_driver_mode	(	ws2811_t *	ws2811,
		int	gpionum
	)

static

Definition at line 664 of file ws2811.c.

◆ setup_pcm()

static int setup_pcm ( ws2811_t * ws2811 )

static

Setup the PCM controller with one 32-bit channel in a 32-bit frame using DMA to feed the PCM FIFO.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 422 of file ws2811.c.

◆ setup_pwm()

static int setup_pwm ( ws2811_t * ws2811 )

static

Setup the PWM controller in serial mode on both channels using DMA to feed the PWM FIFO.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 340 of file ws2811.c.

◆ spi_init()

static ws2811_return_t spi_init ( ws2811_t * ws2811 )

static

Definition at line 752 of file ws2811.c.

◆ spi_transfer()

static ws2811_return_t spi_transfer ( ws2811_t * ws2811 )

static

Definition at line 859 of file ws2811.c.

◆ stop_pcm()

static void stop_pcm ( ws2811_t * ws2811 )

static

Stop the PCM controller.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 316 of file ws2811.c.

◆ stop_pwm()

static void stop_pwm ( ws2811_t * ws2811 )

static

Stop the PWM controller.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 292 of file ws2811.c.

◆ unmap_registers()

static void unmap_registers ( ws2811_t * ws2811 )

static

Unmap all devices from virtual memory.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 238 of file ws2811.c.

◆ ws2811_cleanup()

void ws2811_cleanup ( ws2811_t * ws2811 )

Cleanup previously allocated device memory and buffers.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 622 of file ws2811.c.

◆ ws2811_fini()

void ws2811_fini ( ws2811_t * ws2811 )

Shut down DMA, PWM, and cleanup memory.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 1079 of file ws2811.c.

◆ ws2811_get_return_t_str()

const char* ws2811_get_return_t_str ( const ws2811_return_t state )

Definition at line 1273 of file ws2811.c.

◆ ws2811_init()

ws2811_return_t ws2811_init ( ws2811_t * ws2811 )

Allocate and initialize memory, buffers, pages, PWM, DMA, and GPIO.

Parameters

ws2811 ws2811 instance pointer.

Returns: 0 on success, -1 otherwise.

Definition at line 894 of file ws2811.c.

◆ ws2811_render()

ws2811_return_t ws2811_render ( ws2811_t * ws2811 )

Render the DMA buffer from the user supplied LED arrays and start the DMA controller. This will update all LEDs on both PWM channels.

Parameters

ws2811 ws2811 instance pointer.

Returns: None

Definition at line 1138 of file ws2811.c.

◆ ws2811_set_custom_gamma_factor()

void ws2811_set_custom_gamma_factor	(	ws2811_t *	ws2811,
		double	gamma_factor
	)

Definition at line 1287 of file ws2811.c.

◆ ws2811_wait()

ws2811_return_t ws2811_wait ( ws2811_t * ws2811 )

Wait for any executing DMA operation to complete before returning.

Parameters

ws2811 ws2811 instance pointer.

Returns: 0 on success, -1 on DMA competion error

Definition at line 1106 of file ws2811.c.
