#include <stdlib.h>
#include <stdint.h>
#include <boost/shared_ptr.hpp>
#include <wge100_camera/wge100lib.h>

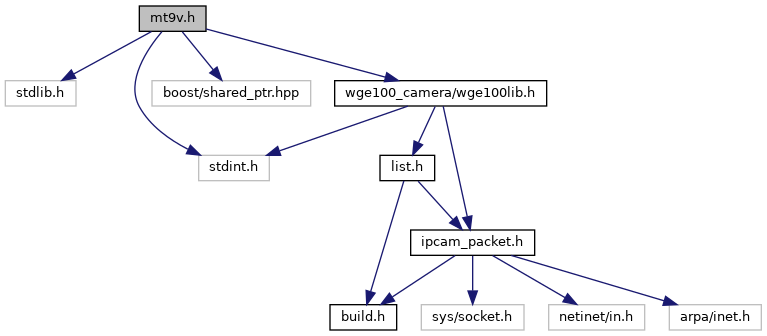

Include dependency graph for mt9v.h:

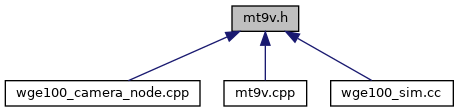

This graph shows which files directly or indirectly include this file:

Classes
class	MT9VImager

struct	MT9VMode

Macros
#define	MT9V_CK_FREQ 16e6

#define	MT9V_COMPANDING_MODE 0x1C

#define	MT9V_NUM_MODES 10

#define	MT9V_REG_AGC_AEC_ENABLE 0xAF

#define	MT9V_REG_ANALOG_GAIN 0x35

#define	MT9V_REG_HORIZONTAL_BLANKING 0x05

#define	MT9V_REG_TOTAL_SHUTTER_WIDTH 0x0B

#define	MT9V_REG_VERTICAL_BLANKING 0x06

#define	MT9V_REG_WINDOW_WIDTH 0x04

#define	MT9VMODE_320x240x25b2 9

#define	MT9VMODE_320x240x30b2 8

#define	MT9VMODE_320x240x50b2 7

#define	MT9VMODE_320x240x60b2 6

#define	MT9VMODE_640x480x12_5b1 5

#define	MT9VMODE_640x480x15b1 4

#define	MT9VMODE_640x480x25b1 3

#define	MT9VMODE_640x480x30b1 2

#define	MT9VMODE_752x480x12_5b1 1

#define	MT9VMODE_752x480x15b1 0

Typedefs
typedef boost::shared_ptr< MT9VImager >	MT9VImagerPtr

Variables
const struct MT9VMode	MT9VModes [MT9V_NUM_MODES]

Macro Definition Documentation

◆ MT9V_CK_FREQ

#define MT9V_CK_FREQ 16e6

Definition at line 51 of file mt9v.h.

◆ MT9V_COMPANDING_MODE

#define MT9V_COMPANDING_MODE 0x1C

Definition at line 49 of file mt9v.h.

◆ MT9V_NUM_MODES

#define MT9V_NUM_MODES 10

Definition at line 66 of file mt9v.h.

◆ MT9V_REG_AGC_AEC_ENABLE

#define MT9V_REG_AGC_AEC_ENABLE 0xAF

Definition at line 48 of file mt9v.h.

◆ MT9V_REG_ANALOG_GAIN

#define MT9V_REG_ANALOG_GAIN 0x35

Definition at line 47 of file mt9v.h.

◆ MT9V_REG_HORIZONTAL_BLANKING

#define MT9V_REG_HORIZONTAL_BLANKING 0x05

Definition at line 44 of file mt9v.h.

◆ MT9V_REG_TOTAL_SHUTTER_WIDTH

#define MT9V_REG_TOTAL_SHUTTER_WIDTH 0x0B

Definition at line 46 of file mt9v.h.

◆ MT9V_REG_VERTICAL_BLANKING

#define MT9V_REG_VERTICAL_BLANKING 0x06

Definition at line 45 of file mt9v.h.

◆ MT9V_REG_WINDOW_WIDTH

#define MT9V_REG_WINDOW_WIDTH 0x04

Definition at line 43 of file mt9v.h.

◆ MT9VMODE_320x240x25b2

#define MT9VMODE_320x240x25b2 9

Definition at line 65 of file mt9v.h.

◆ MT9VMODE_320x240x30b2

#define MT9VMODE_320x240x30b2 8

Definition at line 64 of file mt9v.h.

◆ MT9VMODE_320x240x50b2

#define MT9VMODE_320x240x50b2 7

Definition at line 63 of file mt9v.h.

◆ MT9VMODE_320x240x60b2

#define MT9VMODE_320x240x60b2 6

Definition at line 62 of file mt9v.h.

◆ MT9VMODE_640x480x12_5b1

#define MT9VMODE_640x480x12_5b1 5

Definition at line 61 of file mt9v.h.

◆ MT9VMODE_640x480x15b1

#define MT9VMODE_640x480x15b1 4

Definition at line 60 of file mt9v.h.

◆ MT9VMODE_640x480x25b1

#define MT9VMODE_640x480x25b1 3

Definition at line 59 of file mt9v.h.

◆ MT9VMODE_640x480x30b1

#define MT9VMODE_640x480x30b1 2

Definition at line 58 of file mt9v.h.

◆ MT9VMODE_752x480x12_5b1

#define MT9VMODE_752x480x12_5b1 1

Definition at line 57 of file mt9v.h.

◆ MT9VMODE_752x480x15b1

#define MT9VMODE_752x480x15b1 0

Definition at line 56 of file mt9v.h.

Typedef Documentation

◆ MT9VImagerPtr

typedef boost::shared_ptr<MT9VImager> MT9VImagerPtr

Definition at line 79 of file mt9v.h.

Variable Documentation

◆ MT9VModes

const struct MT9VMode MT9VModes[MT9V_NUM_MODES]

Definition at line 41 of file mt9v.cpp.
