EwokPlus25 low level Driver wait function definitions. More...

#include "vl53l1_platform.h"

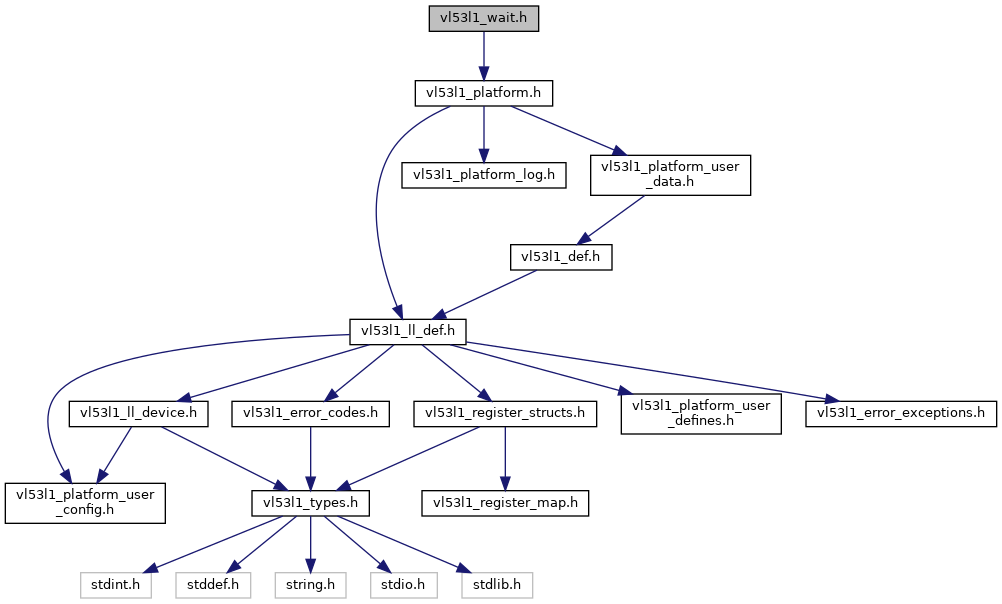

Include dependency graph for vl53l1_wait.h:

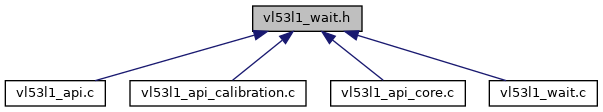

This graph shows which files directly or indirectly include this file:

Functions
VL53L1_Error	VL53L1_is_boot_complete (VL53L1_DEV Dev, uint8_t *pready)
	Reads FIRMWARE__SYSTEM_STATUS register to detect if the firmware was finished booting. More...

VL53L1_Error	VL53L1_is_firmware_ready (VL53L1_DEV Dev, uint8_t *pready)
	Reads FIRMWARE__SYSTEM_STATUS register to detect if the firmware is ready for ranging. More...

VL53L1_Error	VL53L1_is_new_data_ready (VL53L1_DEV Dev, uint8_t *pready)
	Reads bit 0 of VL53L1_GPIO__TIO_HV_STATUS register to determine if new range data is ready (available). More...

VL53L1_Error	VL53L1_poll_for_boot_completion (VL53L1_DEV Dev, uint32_t timeout_ms)
	Waits (polls) for initial firmware boot to finish. More...

VL53L1_Error	VL53L1_poll_for_firmware_ready (VL53L1_DEV Dev, uint32_t timeout_ms)
	Waits (polls) for initial firmware ready. More...

VL53L1_Error	VL53L1_poll_for_range_completion (VL53L1_DEV Dev, uint32_t timeout_ms)
	Polls bit 0 of VL53L1_GPIO__TIO_HV_STATUS register to determine the state of the GPIO (Interrupt) pin. More...

VL53L1_Error	VL53L1_wait_for_boot_completion (VL53L1_DEV Dev)
	Wait for initial firmware boot to finish. More...

VL53L1_Error	VL53L1_wait_for_firmware_ready (VL53L1_DEV Dev)
	Waits for initial firmware ready. More...

VL53L1_Error	VL53L1_wait_for_range_completion (VL53L1_DEV Dev)
	Waits for the next ranging interrupt. More...

VL53L1_Error	VL53L1_wait_for_test_completion (VL53L1_DEV Dev)
	Waits for a device test mode to complete. More...

Detailed Description

EwokPlus25 low level Driver wait function definitions.

Definition in file vl53l1_wait.h.

Function Documentation

◆ VL53L1_is_boot_complete()

VL53L1_Error VL53L1_is_boot_complete	(	VL53L1_DEV	Dev,
		uint8_t *	pready
	)

Reads FIRMWARE__SYSTEM_STATUS register to detect if the firmware was finished booting.

Parameters

[in]	Dev	: Device handle
[out]	pready	: pointer to data ready flag 0 = boot not complete 1 = boot complete

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Determines if the firmware finished booting by reading bit 0 of firmware__system_status register

Definition at line 297 of file vl53l1_wait.c.

◆ VL53L1_is_firmware_ready()

VL53L1_Error VL53L1_is_firmware_ready	(	VL53L1_DEV	Dev,
		uint8_t *	pready
	)

Reads FIRMWARE__SYSTEM_STATUS register to detect if the firmware is ready for ranging.

Parameters

[in]	Dev	: Device handle
[out]	pready	: pointer to data ready flag 0 = firmware not ready 1 = firmware ready

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Determines if the firmware is ready to range

Definition at line 341 of file vl53l1_wait.c.

◆ VL53L1_is_new_data_ready()

VL53L1_Error VL53L1_is_new_data_ready	(	VL53L1_DEV	Dev,
		uint8_t *	pready
	)

Reads bit 0 of VL53L1_GPIO__TIO_HV_STATUS register to determine if new range data is ready (available).

Interrupt may be either active high or active low. The behaviour of bit 0 of the VL53L1_GPIO__TIO_HV_STATUS register is the same as the interrupt signal generated on the GPIO pin.

pdev->stat_cfg.gpio_hv_mux_ctrl bit 4 is used to select required check level

Parameters

[in]	Dev	: Device handle
[out]	pready	: pointer to data ready flag 0 = data not ready 1 = new range data available

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Determines if new range data is ready by reading bit 0 of VL53L1_GPIO__TIO_HV_STATUS to determine the current state of output interrupt pin

Definition at line 366 of file vl53l1_wait.c.

◆ VL53L1_poll_for_boot_completion()

VL53L1_Error VL53L1_poll_for_boot_completion	(	VL53L1_DEV	Dev,
		uint32_t	timeout_ms
	)

Waits (polls) for initial firmware boot to finish.

After power on or a device reset via XSHUTDOWN EwokPlus25 firmware takes about 2ms to boot. During this boot sequence elected NVM data is copied to the device's Host & MCU G02 registers

This function polls the FIRMWARE__SYSTEM_STATUS register to detect when firmware is ready.

Polling is implemented using VL53L1_WaitValueMaskEx()

Parameters

[in]	Dev	: Device handle
[in]	timeout_ms	: Wait timeout in [ms]

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Polls the bit 0 of the FIRMWARE__SYSTEM_STATUS register to see if the firmware is ready.

Definition at line 416 of file vl53l1_wait.c.

◆ VL53L1_poll_for_firmware_ready()

VL53L1_Error VL53L1_poll_for_firmware_ready	(	VL53L1_DEV	Dev,
		uint32_t	timeout_ms
	)

Waits (polls) for initial firmware ready.

Polling is implemented using VL53L1_WaitValueMaskEx()

Parameters

[in]	Dev	: Device handle
[in]	timeout_ms	: Wait timeout in [ms]

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Polls the bit 0 of the FIRMWARE__SYSTEM_STATUS register to see if the firmware is ready.

Definition at line 458 of file vl53l1_wait.c.

◆ VL53L1_poll_for_range_completion()

VL53L1_Error VL53L1_poll_for_range_completion	(	VL53L1_DEV	Dev,
		uint32_t	timeout_ms
	)

Polls bit 0 of VL53L1_GPIO__TIO_HV_STATUS register to determine the state of the GPIO (Interrupt) pin.

Interrupt may be either active high or active low. The behaviour of bit 0 of the VL53L1_GPIO__TIO_HV_STATUS register is the same as the interrupt signal generated on the GPIO pin.

pdev->stat_cfg.gpio_hv_mux_ctrl bit 4 is used to select required check level

Polling is implemented using VL53L1_WaitValueMaskEx()

Parameters

[in]	Dev	: Device handle
[in]	timeout_ms	: Wait timeout in [ms]

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Polls bit 0 of VL53L1_GPIO__TIO_HV_STATUS to determine the state of output interrupt pin

Interrupt may be either active high or active low. Use active_high to select the required level check

Definition at line 516 of file vl53l1_wait.c.

◆ VL53L1_wait_for_boot_completion()

VL53L1_Error VL53L1_wait_for_boot_completion ( VL53L1_DEV Dev )

Wait for initial firmware boot to finish.

Calls VL53L1_poll_for_boot_completion()

Parameters

[in] Dev : Device handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 88 of file vl53l1_wait.c.

◆ VL53L1_wait_for_firmware_ready()

VL53L1_Error VL53L1_wait_for_firmware_ready ( VL53L1_DEV Dev )

Waits for initial firmware ready.

Only waits to see if the firmware is ready in timed and single shot modes.

Calls VL53L1_poll_for_firmware_ready()

Parameters

[in] Dev : Device handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 136 of file vl53l1_wait.c.

◆ VL53L1_wait_for_range_completion()

VL53L1_Error VL53L1_wait_for_range_completion ( VL53L1_DEV Dev )

Waits for the next ranging interrupt.

Calls VL53L1_poll_for_range_completion()

Parameters

[in] Dev : Device handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 201 of file vl53l1_wait.c.

◆ VL53L1_wait_for_test_completion()

VL53L1_Error VL53L1_wait_for_test_completion ( VL53L1_DEV Dev )

Waits for a device test mode to complete.

Calls VL53L1_poll_for_test_completion()

Parameters

[in] Dev : Device Handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 248 of file vl53l1_wait.c.
