vl53l1x: vl53l1_register_settings.h File Reference

Device register setting defines. More...

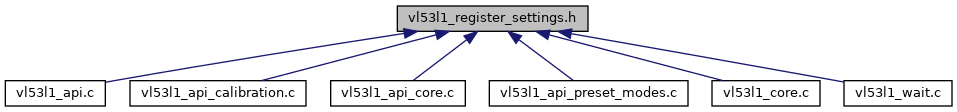

This graph shows which files directly or indirectly include this file:

Macros
#define	VL53L1_CLEAR_ERROR_INT 0x02

#define	VL53L1_CLEAR_RANGE_INT 0x01

#define	VL53L1_DEVICEMEASUREMENTMODE_MODE_MASK 0xF0

#define	VL53L1_DEVICEMEASUREMENTMODE_STOP_MASK 0x0F

#define	VL53L1_DEVICEREADOUTMODE_DUAL_SD (0x01 << 2)

#define	VL53L1_DEVICEREADOUTMODE_SINGLE_SD (0x00 << 2)

#define	VL53L1_DEVICEREADOUTMODE_SPLIT_MANUAL (0x03 << 2)

#define	VL53L1_DEVICEREADOUTMODE_SPLIT_READOUT (0x02 << 2)

#define	VL53L1_DEVICESCHEDULERMODE_HISTOGRAM 0x02

#define	VL53L1_DEVICESCHEDULERMODE_PSEUDO_SOLO 0x00

#define	VL53L1_DEVICESCHEDULERMODE_STREAMING 0x01

#define	VL53L1_DSS_CONTROL__MODE_BLOCKSELECT 0x03

#define	VL53L1_DSS_CONTROL__MODE_DISABLED 0x00

#define	VL53L1_DSS_CONTROL__MODE_EFFSPADS 0x02

#define	VL53L1_DSS_CONTROL__MODE_TARGET_RATE 0x01

#define	VL53L1_DSS_CONTROL__ROI_INTERSECT 0x10

#define	VL53L1_DSS_CONTROL__ROI_SUBTRACT 0x20

#define	VL53L1_EWOK_I2C_DEV_ADDR_DEFAULT 0x29

#define	VL53L1_GROUPEDPARAMETERHOLD_ID_MASK 0x02

#define	VL53L1_INTERRUPT_CONFIG_IN_WINDOW 0x03

#define	VL53L1_INTERRUPT_CONFIG_LEVEL_HIGH 0x01

#define	VL53L1_INTERRUPT_CONFIG_LEVEL_LOW 0x00

#define	VL53L1_INTERRUPT_CONFIG_NEW_SAMPLE_READY 0x20

#define	VL53L1_INTERRUPT_CONFIG_OUT_OF_WINDOW 0x02

#define	VL53L1_INTERRUPT_STATUS__GPH_ID_INT_STATUS_MASK 0x20

#define	VL53L1_INTERRUPT_STATUS__INT_ERROR_STATUS_MASK 0x18

#define	VL53L1_INTERRUPT_STATUS__INT_STATUS_MASK 0x07

#define	VL53L1_LASER_SAFETY__KEY_VALUE 0x6C

#define	VL53L1_OSC_FREQ_SET_DEFAULT 0x00

#define	VL53L1_OSC_FREQUENCY 0x00

#define	VL53L1_OSC_TRIM_DEFAULT 0x00

#define	VL53L1_RANGE_HISTOGRAM_BOTH 0x18

#define	VL53L1_RANGE_HISTOGRAM_INIT 0x20

#define	VL53L1_RANGE_HISTOGRAM_REF 0x08

#define	VL53L1_RANGE_HISTOGRAM_RET 0x10

#define	VL53L1_RANGE_STATUS__GPH_ID_RANGE_STATUS_MASK 0x80

#define	VL53L1_RANGE_STATUS__MAX_THRESHOLD_HIT_MASK 0x20

#define	VL53L1_RANGE_STATUS__MIN_THRESHOLD_HIT_MASK 0x40

#define	VL53L1_RANGE_STATUS__RANGE_STATUS_MASK 0x1F

#define	VL53L1_RANGE_VHV_INIT 0x40

#define	VL53L1_RANGING_CORE__SPAD_READOUT__CALIB_PULSES 0xF5

#define	VL53L1_RANGING_CORE__SPAD_READOUT__REFERENCE_ARRAY_ONLY 0x55

#define	VL53L1_RANGING_CORE__SPAD_READOUT__RETURN_ARRAY_ONLY 0x05

#define	VL53L1_RANGING_CORE__SPAD_READOUT__RETURN_SPLIT_ARRAY 0x25

#define	VL53L1_RANGING_CORE__SPAD_READOUT__STANDARD 0x45

#define	VL53L1_RESULT_RANGE_STATUS 0x1F

#define	VL53L1_SEQUENCE_DSS1_EN 0x08

#define	VL53L1_SEQUENCE_DSS2_EN 0x10

#define	VL53L1_SEQUENCE_MM1_EN 0x20

#define	VL53L1_SEQUENCE_MM2_EN 0x40

#define	VL53L1_SEQUENCE_PHASECAL_EN 0x02

#define	VL53L1_SEQUENCE_RANGE_EN 0x80

#define	VL53L1_SEQUENCE_REFERENCE_PHASE_EN 0x04

#define	VL53L1_SEQUENCE_VHV_EN 0x01

#define	VL53L1_SYSTEM__SEED_CONFIG__EVEN_UPDATE_ONLY 0x02

#define	VL53L1_SYSTEM__SEED_CONFIG__MANUAL 0x00

#define	VL53L1_SYSTEM__SEED_CONFIG__STANDARD 0x01

Detailed Description

Device register setting defines.

Definition in file vl53l1_register_settings.h.
