EwokPlus compile time user modifiable configuration. More...

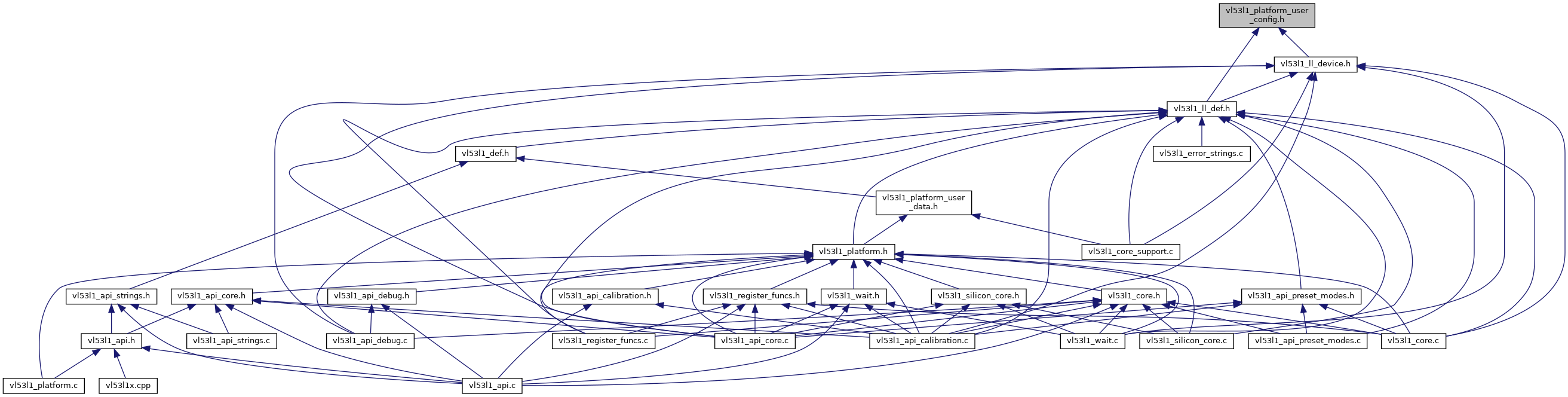

Go to the source code of this file.
Macros | |
| #define | VL53L1_BOOT_COMPLETION_POLLING_TIMEOUT_MS 500 |
| #define | VL53L1_BYTES_PER_DWORD 4 |
| #define | VL53L1_BYTES_PER_WORD 2 |
| #define | VL53L1_GAIN_FACTOR__STANDARD_DEFAULT 0x0800 |
| #define | VL53L1_MAX_RANGE_RESULTS 2 |
| #define | VL53L1_MAX_STRING_LENGTH 512 |
| #define | VL53L1_MAX_USER_ZONES 169 |
| #define | VL53L1_OFFSET_CAL_MAX_PRE_PEAK_RATE_MCPS 0x1900 |
| #define | VL53L1_OFFSET_CAL_MAX_SIGMA_MM 0x0040 |
| #define | VL53L1_OFFSET_CAL_MIN_EFFECTIVE_SPADS 0x0500 |
| #define | VL53L1_POLLING_DELAY_MS 1 |
| #define | VL53L1_RANGE_COMPLETION_POLLING_TIMEOUT_MS 2000 |
| #define | VL53L1_TEST_COMPLETION_POLLING_TIMEOUT_MS 60000 |
| #define | VL53L1_TUNINGPARM_PRIVATE_PAGE_BASE_ADDRESS 0xC000 |
| #define | VL53L1_TUNINGPARM_PUBLIC_PAGE_BASE_ADDRESS 0x8000 |
Detailed Description
EwokPlus compile time user modifiable configuration.
Definition in file vl53l1_platform_user_config.h.
Macro Definition Documentation
◆ VL53L1_BOOT_COMPLETION_POLLING_TIMEOUT_MS
| #define VL53L1_BOOT_COMPLETION_POLLING_TIMEOUT_MS 500 |
Definition at line 77 of file vl53l1_platform_user_config.h.
◆ VL53L1_BYTES_PER_DWORD
| #define VL53L1_BYTES_PER_DWORD 4 |
Definition at line 74 of file vl53l1_platform_user_config.h.
◆ VL53L1_BYTES_PER_WORD
| #define VL53L1_BYTES_PER_WORD 2 |
Definition at line 73 of file vl53l1_platform_user_config.h.
◆ VL53L1_GAIN_FACTOR__STANDARD_DEFAULT
| #define VL53L1_GAIN_FACTOR__STANDARD_DEFAULT 0x0800 |
Default standard ranging gain correction factor 1.11 format. 1.0 = 0x0800, 0.980 = 0x07D7
Definition at line 89 of file vl53l1_platform_user_config.h.
◆ VL53L1_MAX_RANGE_RESULTS
| #define VL53L1_MAX_RANGE_RESULTS 2 |
Allocates storage for return and reference restults
Definition at line 111 of file vl53l1_platform_user_config.h.
◆ VL53L1_MAX_STRING_LENGTH
| #define VL53L1_MAX_STRING_LENGTH 512 |
Definition at line 115 of file vl53l1_platform_user_config.h.
◆ VL53L1_MAX_USER_ZONES
| #define VL53L1_MAX_USER_ZONES 169 |
Max number of user Zones - maximal limitation from FW stream divide - value of 254
Definition at line 107 of file vl53l1_platform_user_config.h.
◆ VL53L1_OFFSET_CAL_MAX_PRE_PEAK_RATE_MCPS
| #define VL53L1_OFFSET_CAL_MAX_PRE_PEAK_RATE_MCPS 0x1900 |
Max Limit for the pre range peak rate during offset calibration Format 9.7 0x1900 -> 50.0 Mcps. If larger then in pile up
Definition at line 97 of file vl53l1_platform_user_config.h.
◆ VL53L1_OFFSET_CAL_MAX_SIGMA_MM
| #define VL53L1_OFFSET_CAL_MAX_SIGMA_MM 0x0040 |
Max sigma estimate limit during offset calibration Check applies to pre-range, mm1 and mm2 ranges Format 14.2 0x0040 -> 16.0mm.
Definition at line 102 of file vl53l1_platform_user_config.h.
◆ VL53L1_OFFSET_CAL_MIN_EFFECTIVE_SPADS
| #define VL53L1_OFFSET_CAL_MIN_EFFECTIVE_SPADS 0x0500 |
Lower Limit for the MM1 effective SPAD count during offset calibration Format 8.8 0x0500 -> 5.0 effective SPADs
Definition at line 93 of file vl53l1_platform_user_config.h.
◆ VL53L1_POLLING_DELAY_MS
| #define VL53L1_POLLING_DELAY_MS 1 |
Definition at line 81 of file vl53l1_platform_user_config.h.
◆ VL53L1_RANGE_COMPLETION_POLLING_TIMEOUT_MS
| #define VL53L1_RANGE_COMPLETION_POLLING_TIMEOUT_MS 2000 |
Definition at line 78 of file vl53l1_platform_user_config.h.
◆ VL53L1_TEST_COMPLETION_POLLING_TIMEOUT_MS
| #define VL53L1_TEST_COMPLETION_POLLING_TIMEOUT_MS 60000 |
Definition at line 79 of file vl53l1_platform_user_config.h.
◆ VL53L1_TUNINGPARM_PRIVATE_PAGE_BASE_ADDRESS
| #define VL53L1_TUNINGPARM_PRIVATE_PAGE_BASE_ADDRESS 0xC000 |
Definition at line 87 of file vl53l1_platform_user_config.h.
◆ VL53L1_TUNINGPARM_PUBLIC_PAGE_BASE_ADDRESS
| #define VL53L1_TUNINGPARM_PUBLIC_PAGE_BASE_ADDRESS 0x8000 |
Definition at line 86 of file vl53l1_platform_user_config.h.
