EwokPlus25 low level API function definitions. More...

#include "vl53l1_platform.h"

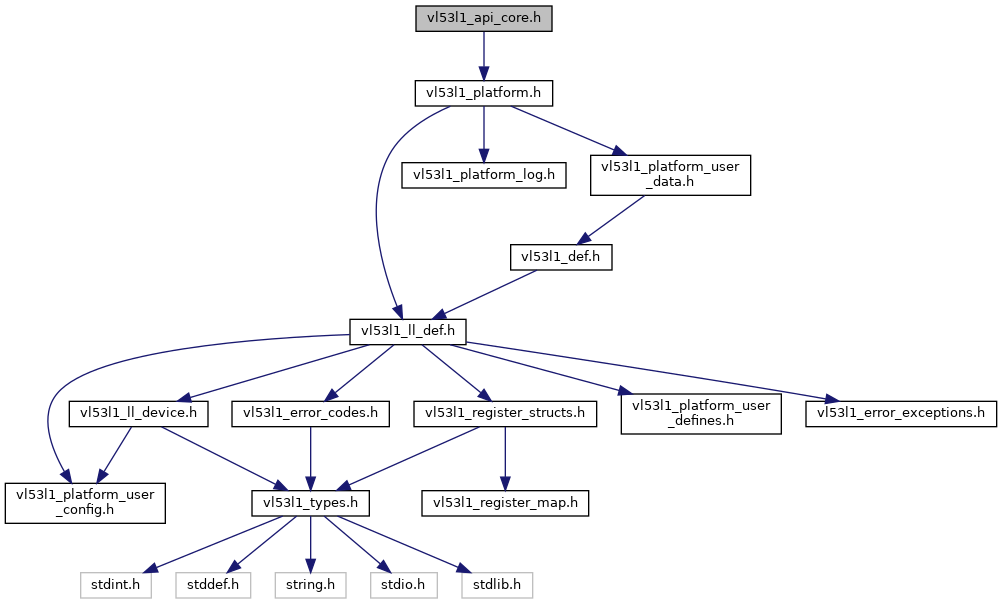

Include dependency graph for vl53l1_api_core.h:

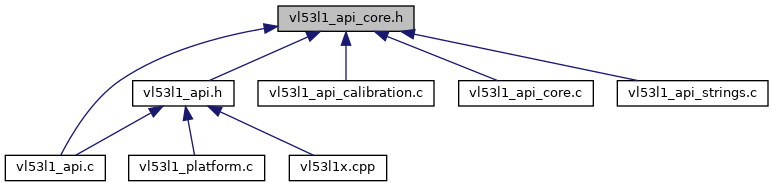

This graph shows which files directly or indirectly include this file:

Functions
VL53L1_Error	VL53L1_clear_interrupt_and_enable_next_range (VL53L1_DEV Dev, uint8_t measurement_mode)
	Sends the ranging handshake to clear the interrupt allow the device to move onto the next range. More...

void	VL53L1_copy_sys_and_core_results_to_range_results (int32_t gain_factor, VL53L1_system_results_t psys, VL53L1_core_results_t pcore, VL53L1_range_results_t *presults)
	Copies system and core results to range results data structure. More...

VL53L1_Error	VL53L1_data_init (VL53L1_DEV Dev, uint8_t read_p2p_data)
	Get LL Driver version information. More...

VL53L1_Error	VL53L1_disable_xtalk_compensation (VL53L1_DEV Dev)
	Simple function to disable xtalk compensation. More...

VL53L1_Error	VL53L1_enable_xtalk_compensation (VL53L1_DEV Dev)
	Simple function to enable xtalk compensation. More...

VL53L1_Error	VL53L1_get_calibration_repeat_period (VL53L1_DEV Dev, uint16_t *pcal_config__repeat_period)
	Gets the current 12-bit calibration repeat period value. More...

VL53L1_Error	VL53L1_get_device_results (VL53L1_DEV Dev, VL53L1_DeviceResultsLevel device_result_level, VL53L1_range_results_t *prange_results)
	Get device system results, updates GPH registers and clears interrupt and configures SYSTEM__MODE_START based on the input measurement mode. More...

VL53L1_Error	VL53L1_get_GPIO_interrupt_config (VL53L1_DEV Dev, VL53L1_GPIO_interrupt_config_t *pintconf)
	Retrieves the GPIO interrupt config structure currently programmed into the API. More...

VL53L1_Error	VL53L1_get_inter_measurement_period_ms (VL53L1_DEV Dev, uint32_t *pinter_measurement_period_ms)
	Gets inter measurement period from the VL53L1_timing_config_t structure. More...

VL53L1_Error	VL53L1_get_interrupt_polarity (VL53L1_DEV Dev, VL53L1_DeviceInterruptPolarity *pinterrupt_polarity)
	Get the interrupt polarity bit state. More...

VL53L1_Error	VL53L1_get_lite_min_count_rate (VL53L1_DEV Dev, uint16_t *plite_mincountrate)
	Get function for Lite Mode Minimum Count Rate parameter, used to filter and validate ranges based on signal rate. More...

VL53L1_Error	VL53L1_get_lite_sigma_threshold (VL53L1_DEV Dev, uint16_t *plite_sigma)
	Get function for Lite Mode Max Sigma Threshold parameter, used to filter and validate ranges based on estimated sigma level. More...

VL53L1_Error	VL53L1_get_lite_xtalk_margin_kcps (VL53L1_DEV Dev, int16_t *pxtalk_margin)
	Get function for Xtalk Margin setting Histogram Mode version. More...

VL53L1_Error	VL53L1_get_measurement_results (VL53L1_DEV Dev, VL53L1_DeviceResultsLevel device_result_level)
	Get range measurement result data. More...

VL53L1_Error	VL53L1_get_mode_mitigation_roi (VL53L1_DEV Dev, VL53L1_user_zone_t *pmm_roi)
	Gets the current mode mitigation zone (ROI) configuration structure data. More...

VL53L1_Error	VL53L1_get_offset_calibration_mode (VL53L1_DEV Dev, VL53L1_OffsetCalibrationMode *poffset_cal_mode)
	Get function for offset calibration mode. More...

VL53L1_Error	VL53L1_get_offset_correction_mode (VL53L1_DEV Dev, VL53L1_OffsetCorrectionMode *poffset_cor_mode)
	Get function for offset correction mode. More...

VL53L1_Error	VL53L1_get_part_to_part_data (VL53L1_DEV Dev, VL53L1_calibration_data_t *pcal_data)
	Gets the customer part to part data. More...

VL53L1_Error	VL53L1_get_preset_mode_timing_cfg (VL53L1_DEV Dev, VL53L1_DevicePresetModes device_preset_mode, uint16_t pdss_config__target_total_rate_mcps, uint32_t pphasecal_config_timeout_us, uint32_t pmm_config_timeout_us, uint32_t prange_config_timeout_us)
	Gets the requested preset mode configuration tuning parameters. More...

VL53L1_Error	VL53L1_get_range_ignore_threshold (VL53L1_DEV Dev, uint8_t prange_ignore_thresh_mult, uint16_t prange_ignore_threshold_mcps_internal, uint16_t *prange_ignore_threshold_mcps_current)
	Get the Range Ignore Threshold Rate value. More...

VL53L1_Error	VL53L1_get_refspadchar_config_struct (VL53L1_DEV Dev, VL53L1_refspadchar_config_t *pdata)
	Set the Ref spad char cfg struct internal to pdev. More...

VL53L1_Error	VL53L1_get_sequence_config_bit (VL53L1_DEV Dev, VL53L1_DeviceSequenceConfig bit_id, uint8_t *pvalue)
	Get system sequence config bit value. More...

VL53L1_Error	VL53L1_get_timeouts_us (VL53L1_DEV Dev, uint32_t pphasecal_config_timeout_us, uint32_t pmm_config_timeout_us, uint32_t *prange_config_timeout_us)
	Gets the phasecal, mode mitigation and ranging timeouts for the VL53L1_timing_config_t structure. More...

VL53L1_Error	VL53L1_get_tuning_parm (VL53L1_DEV Dev, VL53L1_TuningParms tuning_parm_key, int32_t *ptuning_parm_value)
	Generic Tuning Parameter extraction function. More...

VL53L1_Error	VL53L1_get_user_zone (VL53L1_DEV Dev, VL53L1_user_zone_t *puser_zone)
	Gets the current user zone (ROI) configuration structure data. More...

VL53L1_Error	VL53L1_get_vhv_config (VL53L1_DEV Dev, uint8_t pvhv_init_en, uint8_t pvhv_init_value)
	Get function for VHV Config values extracts two parms from individual internal byte. More...

VL53L1_Error	VL53L1_get_vhv_loopbound (VL53L1_DEV Dev, uint8_t *pvhv_loopbound)
	Get function for VHV loopbound config. More...

void	VL53L1_get_xtalk_compensation_enable (VL53L1_DEV Dev, uint8_t *pcrosstalk_compensation_enable)
	Simple function to retrieve xtalk compensation status. More...

VL53L1_Error	VL53L1_init_and_start_range (VL53L1_DEV Dev, uint8_t measurement_mode, VL53L1_DeviceConfigLevel device_config_level)
	Builds and sends the I2C buffer to initialize the device and start a range measurement. More...

VL53L1_Error	VL53L1_read_p2p_data (VL53L1_DEV Dev)
	For C-API one time initialization only reads device G02 registers containing data copied from NVM. More...

VL53L1_Error	VL53L1_restore_xtalk_nvm_default (VL53L1_DEV Dev)
	Function to restore the plane_offset, x gradient and y gradient values to original NVM values. More...

VL53L1_Error	VL53L1_set_calibration_repeat_period (VL53L1_DEV Dev, uint16_t cal_config__repeat_period)
	Sets the 12-bit calibration repeat period value. More...

VL53L1_Error	VL53L1_set_GPIO_interrupt_config (VL53L1_DEV Dev, VL53L1_GPIO_Interrupt_Mode intr_mode_distance, VL53L1_GPIO_Interrupt_Mode intr_mode_rate, uint8_t intr_new_measure_ready, uint8_t intr_no_target, uint8_t intr_combined_mode, uint16_t thresh_distance_high, uint16_t thresh_distance_low, uint16_t thresh_rate_high, uint16_t thresh_rate_low)
	Configure the GPIO interrupt config, from the given input. More...

VL53L1_Error	VL53L1_set_GPIO_interrupt_config_struct (VL53L1_DEV Dev, VL53L1_GPIO_interrupt_config_t intconf)
	Configure the GPIO interrupt config, from the given structure. More...

VL53L1_Error	VL53L1_set_inter_measurement_period_ms (VL53L1_DEV Dev, uint32_t inter_measurement_period_ms)
	Gets the tuning parm part to part data. More...

VL53L1_Error	VL53L1_set_interrupt_polarity (VL53L1_DEV Dev, VL53L1_DeviceInterruptPolarity interrupt_polarity)
	Set the interrupt polarity bit in. More...

VL53L1_Error	VL53L1_set_lite_min_count_rate (VL53L1_DEV Dev, uint16_t lite_mincountrate)
	Set function for Lite Mode Minimum Count Rate parameter, used to filter and validate ranges based on signal rate. More...

VL53L1_Error	VL53L1_set_lite_sigma_threshold (VL53L1_DEV Dev, uint16_t lite_sigma)
	Set function for Lite Mode Max Sigma Threshold parameter, used to filter and validate ranges based on estimated sigma level. More...

VL53L1_Error	VL53L1_set_lite_xtalk_margin_kcps (VL53L1_DEV Dev, int16_t xtalk_margin)
	Set function for Xtalk Margin setting Histogram Mode version. More...

VL53L1_Error	VL53L1_set_offset_calibration_mode (VL53L1_DEV Dev, VL53L1_OffsetCalibrationMode offset_cal_mode)
	Set function for offset calibration mode. More...

VL53L1_Error	VL53L1_set_offset_correction_mode (VL53L1_DEV Dev, VL53L1_OffsetCalibrationMode offset_cor_mode)
	Set function for offset correction mode. More...

VL53L1_Error	VL53L1_set_part_to_part_data (VL53L1_DEV Dev, VL53L1_calibration_data_t *pcal_data)
	Sets the customer part to part data. More...

VL53L1_Error	VL53L1_set_preset_mode (VL53L1_DEV Dev, VL53L1_DevicePresetModes device_preset_mode, uint16_t dss_config__target_total_rate_mcps, uint32_t phasecal_config_timeout_us, uint32_t mm_config_timeout_us, uint32_t range_config_timeout_us, uint32_t inter_measurement_period_ms)
	Initialises the configuration data structures for the selected preset mode. More...

VL53L1_Error	VL53L1_set_range_ignore_threshold (VL53L1_DEV Dev, uint8_t range_ignore_thresh_mult, uint16_t range_ignore_threshold_mcps)
	Set the Range Ignore Threshold Rate value. More...

VL53L1_Error	VL53L1_set_refspadchar_config_struct (VL53L1_DEV Dev, VL53L1_refspadchar_config_t *pdata)
	Extract the Ref spad char cfg struct from pdev. More...

VL53L1_Error	VL53L1_set_sequence_config_bit (VL53L1_DEV Dev, VL53L1_DeviceSequenceConfig bit_id, uint8_t value)
	Set system sequence config bit value. More...

VL53L1_Error	VL53L1_set_timeouts_us (VL53L1_DEV Dev, uint32_t phasecal_config_timeout_us, uint32_t mm_config_timeout_us, uint32_t range_config_timeout_us)
	Sets the phasecal, mode mitigation and ranging timeouts in the VL53L1_timing_config_t structure. More...

VL53L1_Error	VL53L1_set_tuning_parm (VL53L1_DEV Dev, VL53L1_TuningParms tuning_parm_key, int32_t tuning_parm_value)
	Generic Tuning Parameter set function. More...

VL53L1_Error	VL53L1_set_user_zone (VL53L1_DEV Dev, VL53L1_user_zone_t *puser_zone)
	Sets the current user Zone (ROI) configuration structure data. More...

VL53L1_Error	VL53L1_set_vhv_config (VL53L1_DEV Dev, uint8_t vhv_init_en, uint8_t vhv_init_value)
	Set function for VHV Config values sets two parms into individual internal byte. More...

VL53L1_Error	VL53L1_set_vhv_loopbound (VL53L1_DEV Dev, uint8_t vhv_loopbound)
	Set function for VHV loopbound config. More...

VL53L1_Error	VL53L1_software_reset (VL53L1_DEV Dev)
	Performs device software reset and then waits for the firmware to finish booting. More...

VL53L1_Error	VL53L1_stop_range (VL53L1_DEV Dev)
	Sends an abort command to stop the in progress range. Also clears all of the measurement mode bits. More...

Detailed Description

EwokPlus25 low level API function definitions.

Definition in file vl53l1_api_core.h.

Function Documentation

◆ VL53L1_clear_interrupt_and_enable_next_range()

VL53L1_Error VL53L1_clear_interrupt_and_enable_next_range	(	VL53L1_DEV	Dev,
		uint8_t	measurement_mode
	)

Sends the ranging handshake to clear the interrupt allow the device to move onto the next range.

updates GPH registers and clears interrupt and configures SYSTEM__MODE_START register based on the input measurement mode

Internally uses the following functions:

VLS3L1_init_and_start_range()

The system_control register group is always written as the last register of this group SYSTEM__MODE_START decides what happens next ...

Parameters

[in]	Dev	: Device Handle
[in]	measurement_mode	: Options: VL53L1_DEVICEMEASUREMENTMODE_STOP VL53L1_DEVICEMEASUREMENTMODE_SINGLESHOT VL53L1_DEVICEMEASUREMENTMODE_BACKTOBACK VL53L1_DEVICEMEASUREMENTMODE_TIMED

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2397 of file vl53l1_api_core.c.

◆ VL53L1_copy_sys_and_core_results_to_range_results()

void VL53L1_copy_sys_and_core_results_to_range_results	(	int32_t	gain_factor,
		VL53L1_system_results_t *	psys,
		VL53L1_core_results_t *	pcore,
		VL53L1_range_results_t *	presults
	)

Copies system and core results to range results data structure.

Parameters

[in]	gain_factor	: gain correction factor 1.11 format
[in]	psys	: pointer to VL53L1_system_results_t
[in]	pcore	: pointer to VL53L1_core_results_t
[out]	presults	: pointer to VL53L1_range_results_t

Definition at line 2432 of file vl53l1_api_core.c.

◆ VL53L1_data_init()

VL53L1_Error VL53L1_data_init	(	VL53L1_DEV	Dev,
		uint8_t	read_p2p_data
	)

Get LL Driver version information.

Parameters

[in]	Dev	: Device handle
[out]	pversion	: pointer to VL53L1_ll_version_t

Returns: VL53L1_ERROR_NONE Success

Initialises pdev structure and optionally read the part to part information form he device G02 registers

Important: VL53L1_platform_initialise() must called before calling this function

Parameters

[in]	Dev	: Device handle
[out]	read_p2p_data	: if > 0 then reads and caches P2P data

Returns: VL53L1_ERROR_NONE Success

Definition at line 152 of file vl53l1_api_core.c.

◆ VL53L1_disable_xtalk_compensation()

VL53L1_Error VL53L1_disable_xtalk_compensation ( VL53L1_DEV Dev )

Simple function to disable xtalk compensation.

Disables xtalk compensation from hist post processing, and clears settings to device

Parameters

[in] Dev : Device Handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Currently a very simple function to clear customer xtalk parms and apply to device

Definition at line 1611 of file vl53l1_api_core.c.

◆ VL53L1_enable_xtalk_compensation()

VL53L1_Error VL53L1_enable_xtalk_compensation ( VL53L1_DEV Dev )

Simple function to enable xtalk compensation.

Applies xtalk compensation to hist post processing, and applies settings to device,

Parameters

[in] Dev : Device Handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Currently a very simple function to copy private xtalk parms into customer section and apply to device

Definition at line 1452 of file vl53l1_api_core.c.

◆ VL53L1_get_calibration_repeat_period()

VL53L1_Error VL53L1_get_calibration_repeat_period	(	VL53L1_DEV	Dev,
		uint16_t *	pcal_config__repeat_period
	)

Gets the current 12-bit calibration repeat period value.

Parameters

[in]	Dev	: Device handle
[out]	pcal_config__repeat_period	: current calibration config repeat period

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting calibration repeat period

Definition at line 792 of file vl53l1_api_core.c.

◆ VL53L1_get_device_results()

VL53L1_Error VL53L1_get_device_results	(	VL53L1_DEV	Dev,
		VL53L1_DeviceResultsLevel	device_result_level,
		VL53L1_range_results_t *	prange_results
	)

Get device system results, updates GPH registers and clears interrupt and configures SYSTEM__MODE_START based on the input measurement mode.

Internally uses the following functions:

VL53L1_get_measurement_results()
VLS3L1_init_and_start_range()

The system_control register group is always written as the last register of this group SYSTEM__MODE_START decides what happens next ...

Parameters

[in]	Dev	: Device Handle
[in]	device_result_level	: Options: VL53L1_DEVICERESULTSLEVEL_FULL VL53L1_DEVICERESULTSLEVEL_UPTO_CORE VL53L1_DEVICERESULTSLEVEL_SYSTEM_RESULTS
[out]	prange_results	: pointer to VL53L1_range_results_t

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2298 of file vl53l1_api_core.c.

◆ VL53L1_get_GPIO_interrupt_config()

VL53L1_Error VL53L1_get_GPIO_interrupt_config	(	VL53L1_DEV	Dev,
		VL53L1_GPIO_interrupt_config_t *	pintconf
	)

Retrieves the GPIO interrupt config structure currently programmed into the API.

Parameters

[in]	Dev	: Device Handle
[out]	pintconf	: output pointer to structure (note, pointer)

Definition at line 2687 of file vl53l1_api_core.c.

◆ VL53L1_get_inter_measurement_period_ms()

VL53L1_Error VL53L1_get_inter_measurement_period_ms	(	VL53L1_DEV	Dev,
		uint32_t *	pinter_measurement_period_ms
	)

Gets inter measurement period from the VL53L1_timing_config_t structure.

Uses the pdev->dbg_results.result__osc_calibrate_val value convert into [ms]

Parameters

[in]	Dev	: Device handle
[out]	pinter_measurement_period_ms	: current inter measurement period in [ms]

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting the inter measurement period

Definition at line 629 of file vl53l1_api_core.c.

◆ VL53L1_get_interrupt_polarity()

VL53L1_Error VL53L1_get_interrupt_polarity	(	VL53L1_DEV	Dev,
		VL53L1_DeviceInterruptPolarity *	pinterrupt_polarity
	)

Get the interrupt polarity bit state.

Parameters

[in]	Dev	: Device handle
[out]	pinterrupt_polarity	: Interrupt Polarity Bit value

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting interrupt polarity

Definition at line 1029 of file vl53l1_api_core.c.

◆ VL53L1_get_lite_min_count_rate()

VL53L1_Error VL53L1_get_lite_min_count_rate	(	VL53L1_DEV	Dev,
		uint16_t *	plite_mincountrate
	)

Get function for Lite Mode Minimum Count Rate parameter, used to filter and validate ranges based on signal rate.

Note: the min count rate value is overwritten when setting preset modes, and should only be altered after preset mode has been selected when running Lite Mode.

Parameters

[in]	Dev	: Device Handle
[out]	plite_mincountrate	: Output pointer for uint16_t min count rate\ in fixed point 9.7 Mcps

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1712 of file vl53l1_api_core.c.

◆ VL53L1_get_lite_sigma_threshold()

VL53L1_Error VL53L1_get_lite_sigma_threshold	(	VL53L1_DEV	Dev,
		uint16_t *	plite_sigma
	)

Get function for Lite Mode Max Sigma Threshold parameter, used to filter and validate ranges based on estimated sigma level.

Note: the sigma thresh value is overwritten when setting preset modes, and should only be altered after preset mode has been selected when running Lite Mode.

Parameters

[in]	Dev	: Device Handle
[out]	plite_sigma	: Output pointer for uint16_t sigma thresh\ in fixed point 14.2 mm

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1661 of file vl53l1_api_core.c.

◆ VL53L1_get_lite_xtalk_margin_kcps()

VL53L1_Error VL53L1_get_lite_xtalk_margin_kcps	(	VL53L1_DEV	Dev,
		int16_t *	pxtalk_margin
	)

Get function for Xtalk Margin setting Histogram Mode version.

Parameters

[in]	Dev	: Device Handle
[out]	pxtalk_margin	: output pointer for int16_t xtalk_margin factor \ in fixed point 7.9 Kcps.

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1539 of file vl53l1_api_core.c.

◆ VL53L1_get_measurement_results()

VL53L1_Error VL53L1_get_measurement_results	(	VL53L1_DEV	Dev,
		VL53L1_DeviceResultsLevel	device_result_level
	)

Get range measurement result data.

Reads the required number of registers as single multi byte read transaction and decodes the data into the data structures

range_result_level controls which result data is read back from the device

Full
- both system and core results are read back
System Results
- only system results are read back
- only the system_results structure is updated in this case

Parameters

[in]	Dev	: Device Handle
[in]	device_result_level	: Options: VL53L1_DEVICERESULTSLEVEL_FULL VL53L1_DEVICERESULTSLEVEL_UPTO_CORE VL53L1_DEVICERESULTSLEVEL_SYSTEM_RESULTS

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2199 of file vl53l1_api_core.c.

◆ VL53L1_get_mode_mitigation_roi()

VL53L1_Error VL53L1_get_mode_mitigation_roi	(	VL53L1_DEV	Dev,
		VL53L1_user_zone_t *	pmm_roi
	)

Gets the current mode mitigation zone (ROI) configuration structure data.

Parameters

[in]	Dev	: Device handle
[out]	pmm_roi	: pointer to user zone (ROI) data structure

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting the mode mitigation ROI

Definition at line 1115 of file vl53l1_api_core.c.

◆ VL53L1_get_offset_calibration_mode()

VL53L1_Error VL53L1_get_offset_calibration_mode	(	VL53L1_DEV	Dev,
		VL53L1_OffsetCalibrationMode *	poffset_cal_mode
	)

Get function for offset calibration mode.

Parameters

[in]	Dev	: Device Handle
[out]	poffset_cal_mode	: output pointer for calibration mode

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2753 of file vl53l1_api_core.c.

◆ VL53L1_get_offset_correction_mode()

VL53L1_Error VL53L1_get_offset_correction_mode	(	VL53L1_DEV	Dev,
		VL53L1_OffsetCorrectionMode *	poffset_cor_mode
	)

Get function for offset correction mode.

Parameters

[in]	Dev	: Device Handle
[out]	poffset_cor_mode	: output pointer for correction mode

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2799 of file vl53l1_api_core.c.

◆ VL53L1_get_part_to_part_data()

VL53L1_Error VL53L1_get_part_to_part_data	(	VL53L1_DEV	Dev,
		VL53L1_calibration_data_t *	pcal_data
	)

Gets the customer part to part data.

Just an internal memory copy

Parameters

[in]	Dev	: Device handle
[out]	pcal_data	: pointer to VL53L1_calibration_data_t

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Uses memcpy to copy pdev->customer to output data

Definition at line 533 of file vl53l1_api_core.c.

◆ VL53L1_get_preset_mode_timing_cfg()

VL53L1_Error VL53L1_get_preset_mode_timing_cfg	(	VL53L1_DEV	Dev,
		VL53L1_DevicePresetModes	device_preset_mode,
		uint16_t *	pdss_config__target_total_rate_mcps,
		uint32_t *	pphasecal_config_timeout_us,
		uint32_t *	pmm_config_timeout_us,
		uint32_t *	prange_config_timeout_us
	)

Gets the requested preset mode configuration tuning parameters.

Function Added as part of Patch_TuningParmPresetModeAddition_11839

Parameters

[in]	Dev	: Device Handle
[in]	device_preset_mode	: selected device preset mode
[out]	pdss_config__target_total_rate_mcps	: dss rate output value
[out]	pphasecal_config_timeout_us	: phasecal timeout output value
[out]	pmm_config_timeout_us	: mm timeout output value
[out]	prange_config_timeout_us	: range timeout output value

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1159 of file vl53l1_api_core.c.

◆ VL53L1_get_range_ignore_threshold()

VL53L1_Error VL53L1_get_range_ignore_threshold	(	VL53L1_DEV	Dev,
		uint8_t *	prange_ignore_thresh_mult,
		uint16_t *	prange_ignore_threshold_mcps_internal,
		uint16_t *	prange_ignore_threshold_mcps_current
	)

Get the Range Ignore Threshold Rate value.

Parameters

[in]	Dev	: Device handle
[out]	prange_ignore_thresh_mult	: \ Range ignore threshold internal multiplier value in \ 3.5 fractional format.
[out]	prange_ignore_threshold_mcps_internal	: \ Range Ignore Threshold Rate value generated from \ current xtalk parms
[out]	prange_ignore_threshold_mcps_current	: \ Range Ignore Threshold Rate value generated from \ device static config struct

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for retrieving Range Ignore Threshold

Returns both the calculated internal value
and the value currently applied to device reg settings

Values both in fixed point 3.13 Mcps per spad

Definition at line 995 of file vl53l1_api_core.c.

◆ VL53L1_get_refspadchar_config_struct()

VL53L1_Error VL53L1_get_refspadchar_config_struct	(	VL53L1_DEV	Dev,
		VL53L1_refspadchar_config_t *	pdata
	)

Set the Ref spad char cfg struct internal to pdev.

Parameters

[in]	Dev	: Device handle
[in]	pdata	: Input pointer to VL53L1_refspadchar_config_t

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 942 of file vl53l1_api_core.c.

◆ VL53L1_get_sequence_config_bit()

VL53L1_Error VL53L1_get_sequence_config_bit	(	VL53L1_DEV	Dev,
		VL53L1_DeviceSequenceConfig	bit_id,
		uint8_t *	pvalue
	)

Get system sequence config bit value.

Parameters

[in]	Dev	: Device handle
[in]	bit_id	: VL53L1_DeviceSequenceConfig bit id
[out]	pvalue	: Output Bit value = 0 or 1

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting sequence config enable bits

Definition at line 850 of file vl53l1_api_core.c.

◆ VL53L1_get_timeouts_us()

VL53L1_Error VL53L1_get_timeouts_us	(	VL53L1_DEV	Dev,
		uint32_t *	pphasecal_config_timeout_us,
		uint32_t *	pmm_config_timeout_us,
		uint32_t *	prange_config_timeout_us
	)

Gets the phasecal, mode mitigation and ranging timeouts for the VL53L1_timing_config_t structure.

Uses the pdev->stat_nvm.osc_measured__fast_osc__frequency convert into [us]

Parameters

[in]	Dev	: Device handle
[out]	pphasecal_config_timeout_us	: current Phase Cal Timeout in [us]
[out]	pmm_config_timeout_us	: current MM Timeout in [us]
[out]	prange_config_timeout_us	: current Ranging Timeout in [us]

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting the MM and range timeouts

Definition at line 699 of file vl53l1_api_core.c.

◆ VL53L1_get_tuning_parm()

VL53L1_Error VL53L1_get_tuning_parm	(	VL53L1_DEV	Dev,
		VL53L1_TuningParms	tuning_parm_key,
		int32_t *	ptuning_parm_value
	)

Generic Tuning Parameter extraction function.

User passes a key input to retrieve a specific tuning parameter value, this will be cast to the int32_t type and output via the ptuning_parm_value pointer

If the key does not match any tuning parameter, status is returned with VL53L1_ERROR_INVALID_PARAMS

Patch_AddedTuningParms_11761

Parameters

[in]	Dev	: Device Handle
[in]	tuning_parm_key	: Key value to access specific tuning parm
[out]	ptuning_parm_value	: Pointer to output int32_t type, retrieves \ requested tuning parm

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 3004 of file vl53l1_api_core.c.

◆ VL53L1_get_user_zone()

VL53L1_Error VL53L1_get_user_zone	(	VL53L1_DEV	Dev,
		VL53L1_user_zone_t *	puser_zone
	)

Gets the current user zone (ROI) configuration structure data.

Parameters

[in]	Dev	: Device handle
[out]	puser_zone	: pointer to user zone (ROI) data structure

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for getting the user ROI

Definition at line 1083 of file vl53l1_api_core.c.

◆ VL53L1_get_vhv_config()

VL53L1_Error VL53L1_get_vhv_config	(	VL53L1_DEV	Dev,
		uint8_t *	pvhv_init_en,
		uint8_t *	pvhv_init_value
	)

Get function for VHV Config values extracts two parms from individual internal byte.

init_en - enables use of the init value instead of latest setting init_value - custom vhv setting or populated from nvm

Parameters

[in]	Dev	: Device Handle
[out]	pvhv_init_en	: Output pointer to uint8_t value
[out]	pvhv_init_value	: Output pointer to uint8_t value

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

< info:

msb = 7
lsb = 0
i2c_size = 1

fields:

[7] = vhv0_init_enable
[5:0] = vhv0_init_value

Definition at line 1822 of file vl53l1_api_core.c.

◆ VL53L1_get_vhv_loopbound()

VL53L1_Error VL53L1_get_vhv_loopbound	(	VL53L1_DEV	Dev,
		uint8_t *	pvhv_loopbound
	)

Get function for VHV loopbound config.

Loopbound sets the number of +/- vhv settings to try around the vhv init value during vhv search i.e. if init_value = 10 and loopbound = 2 vhv search will run from 10-2 to 10+2 8 to 12.

Parameters

[in]	Dev	: Device Handle
[out]	pvhv_loopbound	: pointer to byte to extract loopbound

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1764 of file vl53l1_api_core.c.

◆ VL53L1_get_xtalk_compensation_enable()

void VL53L1_get_xtalk_compensation_enable	(	VL53L1_DEV	Dev,
		uint8_t *	pcrosstalk_compensation_enable
	)

Simple function to retrieve xtalk compensation status.

Parameters

[in]	Dev	: Device Handle
[out]	pcrosstalk_compensation_enable	: pointer to \ uint8 type, returns crosstalk compensation status \ where 0 means disabled and 1 means enabled.

Currently a very simple function to return

this flags whether xtalk compensation is enabled for all modes or not.

#1 - Enabled #0 - Disabled

Definition at line 1512 of file vl53l1_api_core.c.

◆ VL53L1_init_and_start_range()

VL53L1_Error VL53L1_init_and_start_range	(	VL53L1_DEV	Dev,
		uint8_t	measurement_mode,
		VL53L1_DeviceConfigLevel	device_config_level
	)

Builds and sends the I2C buffer to initialize the device and start a range measurement.

The device_config_level input controls the level of initialization applied to the device

System control only
Dynamic Onwards
- dynamic_config and system_control
Static Onwards
- static_config, dynamic_config & system_control
- software standby mode only
Customer Onwards
- customer_nvm_managed, static_config, dynamic_config & system_control
- software standby mode only
Full
- static_nvm_managed, customer_nvm_managed, static_config, dynamic_config & system_control
- software standby mode only

The system_control register group is always written as the last register of this group SYSTEM__MODE_START decides what happens next ...

Parameters

[in]	Dev	: Device handle
[in]	measurement_mode	: Options: VL53L1_DEVICEMEASUREMENTMODE_STOP VL53L1_DEVICEMEASUREMENTMODE_SINGLESHOT VL53L1_DEVICEMEASUREMENTMODE_BACKTOBACK VL53L1_DEVICEMEASUREMENTMODE_TIMED
[in]	device_config_level	: Options: VL53L1_DEVICECONFIGLEVEL_SYSTEM_CONTROL VL53L1_DEVICECONFIGLEVEL_DYNAMIC_ONWARDS VL53L1_DEVICECONFIGLEVEL_TIMING_ONWARDS VL53L1_DEVICECONFIGLEVEL_STATIC_ONWARDS VL53L1_DEVICECONFIGLEVEL_CUSTOMER_ONWARDS VL53L1_DEVICECONFIGLEVEL_FULL

The system_control register group is always written as the last register of this group SYSTEM__MODE_START decides what happens next ..

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1889 of file vl53l1_api_core.c.

◆ VL53L1_read_p2p_data()

VL53L1_Error VL53L1_read_p2p_data ( VL53L1_DEV Dev )

For C-API one time initialization only reads device G02 registers containing data copied from NVM.

Contains the key NVM data e.g identification info fast oscillator freq, max trim and laser safety info

Function all only be called after the device has finished booting

Parameters

[in] Dev : Device handle

Returns: VL53L1_ERROR_NONE Success

Definition at line 313 of file vl53l1_api_core.c.

◆ VL53L1_restore_xtalk_nvm_default()

VL53L1_Error VL53L1_restore_xtalk_nvm_default ( VL53L1_DEV Dev )

Function to restore the plane_offset, x gradient and y gradient values to original NVM values.

This function does not recalculate all xtalk parms derived from the rates in question. In order to ensure correct ranging, a call to VL53L1_enable_xtalk_compensation should always be called prior to starting the ranging process.

Parameters

[in] Dev : Device Handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1585 of file vl53l1_api_core.c.

◆ VL53L1_set_calibration_repeat_period()

VL53L1_Error VL53L1_set_calibration_repeat_period	(	VL53L1_DEV	Dev,
		uint16_t	cal_config__repeat_period
	)

Sets the 12-bit calibration repeat period value.

Sets the repeat period for VHV and phasecal in ranges. Setting to zero to disables the repeat, but the VHV and PhaseCal is still run on the very first range in this case.

Only even values should be set

The max value is 4094 i.e. every

Parameters

[in]	Dev	: Device handle
[in]	cal_config__repeat_period	: current calibration config repeat period

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting calibration repeat period

Definition at line 773 of file vl53l1_api_core.c.

◆ VL53L1_set_GPIO_interrupt_config()

VL53L1_Error VL53L1_set_GPIO_interrupt_config	(	VL53L1_DEV	Dev,
		VL53L1_GPIO_Interrupt_Mode	intr_mode_distance,
		VL53L1_GPIO_Interrupt_Mode	intr_mode_rate,
		uint8_t	intr_new_measure_ready,
		uint8_t	intr_no_target,
		uint8_t	intr_combined_mode,
		uint16_t	thresh_distance_high,
		uint16_t	thresh_distance_low,
		uint16_t	thresh_rate_high,
		uint16_t	thresh_rate_low
	)

Configure the GPIO interrupt config, from the given input.

Parameters

[in]	Dev	: Device Handle
[in]	intr_mode_distance	: distance interrupt mode
[in]	intr_mode_rate	: rate interrupt mode
[in]	intr_new_measure_ready	: trigger when new interrupt ready
[in]	intr_no_target	: trigger when no target found
[in]	intr_combined_mode	: switch on combined mode
[in]	thresh_distance_high	: High distance threshold in mm
[in]	thresh_distance_low	: Low distance threshold in mm
[in]	thresh_rate_high	: High rate threshold in 9.7 Mcps
[in]	thresh_rate_low	: Low rate threshold in 9.7 Mcps

Definition at line 2607 of file vl53l1_api_core.c.

◆ VL53L1_set_GPIO_interrupt_config_struct()

VL53L1_Error VL53L1_set_GPIO_interrupt_config_struct	(	VL53L1_DEV	Dev,
		VL53L1_GPIO_interrupt_config_t	intconf
	)

Configure the GPIO interrupt config, from the given structure.

Parameters

[in]	Dev	: Device Handle
[in]	intconf	: input structure (note, not a pointer)

Definition at line 2656 of file vl53l1_api_core.c.

◆ VL53L1_set_inter_measurement_period_ms()

VL53L1_Error VL53L1_set_inter_measurement_period_ms	(	VL53L1_DEV	Dev,
		uint32_t	inter_measurement_period_ms
	)

Gets the tuning parm part to part data.

Just an internal copy

Parameters

[in]	Dev	: Device handle
[out]	ptun_data	: pointer to VL53L1_tuning_parameters_t

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Sets the inter measurement period in the VL53L1_timing_config_t structure

Uses the pdev->dbg_results.result__osc_calibrate_val value convert from [ms]

Parameters

[in]	Dev	: Device handle
[in]	inter_measurement_period_ms	: requested inter measurement period in [ms]

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting the inter measurement period

Definition at line 600 of file vl53l1_api_core.c.

◆ VL53L1_set_interrupt_polarity()

VL53L1_Error VL53L1_set_interrupt_polarity	(	VL53L1_DEV	Dev,
		VL53L1_DeviceInterruptPolarity	interrupt_polarity
	)

Set the interrupt polarity bit in.

Parameters

[in]	Dev	: Device handle
[in]	interrupt_polarity	: Interrupt Polarity

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting interrupt polarity

Definition at line 887 of file vl53l1_api_core.c.

◆ VL53L1_set_lite_min_count_rate()

VL53L1_Error VL53L1_set_lite_min_count_rate	(	VL53L1_DEV	Dev,
		uint16_t	lite_mincountrate
	)

Set function for Lite Mode Minimum Count Rate parameter, used to filter and validate ranges based on signal rate.

Note: the min count rate value is overwritten when setting preset modes, and should only be altered after preset mode has been selected when running Lite Mode.

Parameters

[in]	Dev	: Device Handle
[in]	lite_mincountrate	: Input uint16_t min count rate in fixed point 9.7 Mcps

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1738 of file vl53l1_api_core.c.

◆ VL53L1_set_lite_sigma_threshold()

VL53L1_Error VL53L1_set_lite_sigma_threshold	(	VL53L1_DEV	Dev,
		uint16_t	lite_sigma
	)

Set function for Lite Mode Max Sigma Threshold parameter, used to filter and validate ranges based on estimated sigma level.

Note: the sigma thresh value is overwritten when setting preset modes, and should only be altered after preset mode has been selected when running Lite Mode.

Parameters

[in]	Dev	: Device Handle
[in]	lite_sigma	: Input uint16_t sigma thresh\ in fixed point 14.2 mm

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1687 of file vl53l1_api_core.c.

◆ VL53L1_set_lite_xtalk_margin_kcps()

VL53L1_Error VL53L1_set_lite_xtalk_margin_kcps	(	VL53L1_DEV	Dev,
		int16_t	xtalk_margin
	)

Set function for Xtalk Margin setting Histogram Mode version.

Parameters

[in]	Dev	: Device Handle
[in]	xtalk_margin	: Input int16_t xtalk_margin factor \ in fixed point 7.9 Kcps.

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1562 of file vl53l1_api_core.c.

◆ VL53L1_set_offset_calibration_mode()

VL53L1_Error VL53L1_set_offset_calibration_mode	(	VL53L1_DEV	Dev,
		VL53L1_OffsetCalibrationMode	offset_cal_mode
	)

Set function for offset calibration mode.

Parameters

[in]	Dev	: Device Handle
[in]	offset_cal_mode	: input calibration mode

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2730 of file vl53l1_api_core.c.

◆ VL53L1_set_offset_correction_mode()

VL53L1_Error VL53L1_set_offset_correction_mode	(	VL53L1_DEV	Dev,
		VL53L1_OffsetCalibrationMode	offset_cor_mode
	)

Set function for offset correction mode.

Parameters

[in]	Dev	: Device Handle
[in]	offset_cor_mode	: input correction mode

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2776 of file vl53l1_api_core.c.

◆ VL53L1_set_part_to_part_data()

VL53L1_Error VL53L1_set_part_to_part_data	(	VL53L1_DEV	Dev,
		VL53L1_calibration_data_t *	pcal_data
	)

Sets the customer part to part data.

Important: does not apply the settings to the device. Updates the following structures in the device structure

Just an internal memcpy to

Parameters

[in]	Dev	: Device handle
[in]	pcal_data	: pointer to VL53L1_calibration_data_t

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Uses memcpy to copy input data to pdev->customer

Definition at line 449 of file vl53l1_api_core.c.

◆ VL53L1_set_preset_mode()

VL53L1_Error VL53L1_set_preset_mode	(	VL53L1_DEV	Dev,
		VL53L1_DevicePresetModes	device_preset_mode,
		uint16_t	dss_config__target_total_rate_mcps,
		uint32_t	phasecal_config_timeout_us,
		uint32_t	mm_config_timeout_us,
		uint32_t	range_config_timeout_us,
		uint32_t	inter_measurement_period_ms
	)

Initialises the configuration data structures for the selected preset mode.

Important: does not apply the settings to the device. Updates the following structures in the device structure

static config : pdev->stat_cfg
dynamic config : pdev->dyn_cfg
system_control :pdev->sys_ctrl

Uses osc_measured__fast_osc__frequency in pdev->stat_nvm to convert the input timeouts in [us] to internal macro period timeout values.

Please call VL53L1_init_and_start_range() to update device and start a range

Parameters

[in]	Dev	: Device handle
[in]	device_preset_mode	: selected device preset mode
[in]	dss_config__target_total_rate_mcps	: DSS target rate in 9.7 format e.g 0x0A00 -> 20.0 Mcps
[in]	phasecal_config_timeout_us	: requested Phase Cal Timeout e.g. 1000us
[in]	mm_config_timeout_us	: requested MM Timeout e.g. 2000us
[in]	range_config_timeout_us	: requested Ranging Timeout e.g 10000us
[in]	inter_measurement_period_ms	: requested timed mode repeat rate e.g 100ms

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Initializes static and dynamic data structures for the provided preset mode

Definition at line 1230 of file vl53l1_api_core.c.

◆ VL53L1_set_range_ignore_threshold()

VL53L1_Error VL53L1_set_range_ignore_threshold	(	VL53L1_DEV	Dev,
		uint8_t	range_ignore_thresh_mult,
		uint16_t	range_ignore_threshold_mcps
	)

Set the Range Ignore Threshold Rate value.

Parameters

[in]	Dev	: Device handle
[in]	range_ignore_thresh_mult	: Input RIT Mult value, in \ 3.5 fractional value
[in]	range_ignore_threshold_mcps	: Range Ignore Threshold value

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting Range Ignore Threshold

Definition at line 972 of file vl53l1_api_core.c.

◆ VL53L1_set_refspadchar_config_struct()

VL53L1_Error VL53L1_set_refspadchar_config_struct	(	VL53L1_DEV	Dev,
		VL53L1_refspadchar_config_t *	pdata
	)

Extract the Ref spad char cfg struct from pdev.

Parameters

[in]	Dev	: Device handle
[out]	pdata	: Output pointer to VL53L1_refspadchar_config_t

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 911 of file vl53l1_api_core.c.

◆ VL53L1_set_sequence_config_bit()

VL53L1_Error VL53L1_set_sequence_config_bit	(	VL53L1_DEV	Dev,
		VL53L1_DeviceSequenceConfig	bit_id,
		uint8_t	value
	)

Set system sequence config bit value.

Parameters

[in]	Dev	: Device handle
[in]	bit_id	: VL53L1_DeviceSequenceConfig bit id
[in]	value	: Input Bit value = 0 or 1

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting sequence config enable bits

Definition at line 811 of file vl53l1_api_core.c.

◆ VL53L1_set_timeouts_us()

VL53L1_Error VL53L1_set_timeouts_us	(	VL53L1_DEV	Dev,
		uint32_t	phasecal_config_timeout_us,
		uint32_t	mm_config_timeout_us,
		uint32_t	range_config_timeout_us
	)

Sets the phasecal, mode mitigation and ranging timeouts in the VL53L1_timing_config_t structure.

Uses the pdev->stat_nvm.osc_measured__fast_osc__frequency value convert from [us]

Parameters

[in]	Dev	: Device handle
[in]	phasecal_config_timeout_us	: requested Phase Cal Timeout e.g. 1000us
[in]	mm_config_timeout_us	: requested MM Timeout e.g. 2000us
[in]	range_config_timeout_us	: requested Ranging Timeout e.g 13000us

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting the MM and range timeouts

Definition at line 657 of file vl53l1_api_core.c.

◆ VL53L1_set_tuning_parm()

VL53L1_Error VL53L1_set_tuning_parm	(	VL53L1_DEV	Dev,
		VL53L1_TuningParms	tuning_parm_key,
		int32_t	tuning_parm_value
	)

Generic Tuning Parameter set function.

User passes a key input to set a specific tuning parameter value, this will be cast to the internal data type from the input int32_t data type.

If the key does not match any tuning parameter, status is returned with VL53L1_ERROR_INVALID_PARAMS

Patch_AddedTuningParms_11761

Parameters

[in]	Dev	: Device Handle
[in]	tuning_parm_key	: Key value to access specific tuning parm
[in]	tuning_parm_value	: Input tuning parm value of int32_t type, \ sets requested tuning parm.

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 3266 of file vl53l1_api_core.c.

◆ VL53L1_set_user_zone()

VL53L1_Error VL53L1_set_user_zone	(	VL53L1_DEV	Dev,
		VL53L1_user_zone_t *	puser_zone
	)

Sets the current user Zone (ROI) configuration structure data.

Parameters

[in]	Dev	: Device handle
[in]	puser_zone	: pointer to user Zone (ROI) data structure

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Convenience function for setting the user ROI

Definition at line 1050 of file vl53l1_api_core.c.

◆ VL53L1_set_vhv_config()

VL53L1_Error VL53L1_set_vhv_config	(	VL53L1_DEV	Dev,
		uint8_t	vhv_init_en,
		uint8_t	vhv_init_value
	)

Set function for VHV Config values sets two parms into individual internal byte.

init_en - enables use of the init value instead of latest setting init_value - custom vhv setting or populated from nvm

Parameters

[in]	Dev	: Device Handle
[in]	vhv_init_en	: input init_en setting
[in]	vhv_init_value	: input vhv custom value

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1861 of file vl53l1_api_core.c.

◆ VL53L1_set_vhv_loopbound()

VL53L1_Error VL53L1_set_vhv_loopbound	(	VL53L1_DEV	Dev,
		uint8_t	vhv_loopbound
	)

Set function for VHV loopbound config.

Loopbound sets the number of +/- vhv settings to try around the vhv init value during vhv search i.e. if init_value = 10 and loopbound = 2 vhv search will run from 10-2 to 10+2 8 to 12.

Parameters

[in]	Dev	: Device Handle
[in]	vhv_loopbound	: input loopbound value

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 1790 of file vl53l1_api_core.c.

◆ VL53L1_software_reset()

VL53L1_Error VL53L1_software_reset ( VL53L1_DEV Dev )

Performs device software reset and then waits for the firmware to finish booting.

Parameters

[in] Dev : Device handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Sets and clears the software reset register VL53L1_SOFT_RESET. and waits for the firmware to boot

Definition at line 406 of file vl53l1_api_core.c.

◆ VL53L1_stop_range()

VL53L1_Error VL53L1_stop_range ( VL53L1_DEV Dev )

Sends an abort command to stop the in progress range. Also clears all of the measurement mode bits.

Parameters

[in] Dev : Device handle

Returns: VL53L1_ERROR_NONE Success; "Other error code" See VL53L1_Error

Definition at line 2159 of file vl53l1_api_core.c.

Functions

Detailed Description

Function Documentation

◆ VL53L1_clear_interrupt_and_enable_next_range()

◆ VL53L1_copy_sys_and_core_results_to_range_results()

◆ VL53L1_data_init()

◆ VL53L1_disable_xtalk_compensation()

◆ VL53L1_enable_xtalk_compensation()

◆ VL53L1_get_calibration_repeat_period()

◆ VL53L1_get_device_results()

◆ VL53L1_get_GPIO_interrupt_config()

◆ VL53L1_get_inter_measurement_period_ms()

◆ VL53L1_get_interrupt_polarity()

◆ VL53L1_get_lite_min_count_rate()

◆ VL53L1_get_lite_sigma_threshold()

◆ VL53L1_get_lite_xtalk_margin_kcps()

◆ VL53L1_get_measurement_results()

◆ VL53L1_get_mode_mitigation_roi()

◆ VL53L1_get_offset_calibration_mode()

◆ VL53L1_get_offset_correction_mode()

◆ VL53L1_get_part_to_part_data()

◆ VL53L1_get_preset_mode_timing_cfg()

◆ VL53L1_get_range_ignore_threshold()

◆ VL53L1_get_refspadchar_config_struct()

◆ VL53L1_get_sequence_config_bit()

◆ VL53L1_get_timeouts_us()

◆ VL53L1_get_tuning_parm()

◆ VL53L1_get_user_zone()

◆ VL53L1_get_vhv_config()

◆ VL53L1_get_vhv_loopbound()

◆ VL53L1_get_xtalk_compensation_enable()

◆ VL53L1_init_and_start_range()

◆ VL53L1_read_p2p_data()

◆ VL53L1_restore_xtalk_nvm_default()

◆ VL53L1_set_calibration_repeat_period()

◆ VL53L1_set_GPIO_interrupt_config()

◆ VL53L1_set_GPIO_interrupt_config_struct()

◆ VL53L1_set_inter_measurement_period_ms()

◆ VL53L1_set_interrupt_polarity()

◆ VL53L1_set_lite_min_count_rate()

◆ VL53L1_set_lite_sigma_threshold()

◆ VL53L1_set_lite_xtalk_margin_kcps()

◆ VL53L1_set_offset_calibration_mode()

◆ VL53L1_set_offset_correction_mode()

◆ VL53L1_set_part_to_part_data()

◆ VL53L1_set_preset_mode()

◆ VL53L1_set_range_ignore_threshold()

◆ VL53L1_set_refspadchar_config_struct()

◆ VL53L1_set_sequence_config_bit()

◆ VL53L1_set_timeouts_us()

◆ VL53L1_set_tuning_parm()

◆ VL53L1_set_user_zone()

◆ VL53L1_set_vhv_config()

◆ VL53L1_set_vhv_loopbound()

◆ VL53L1_software_reset()

◆ VL53L1_stop_range()
