VL53L1 cut1.0 Device Specific Defines. More...

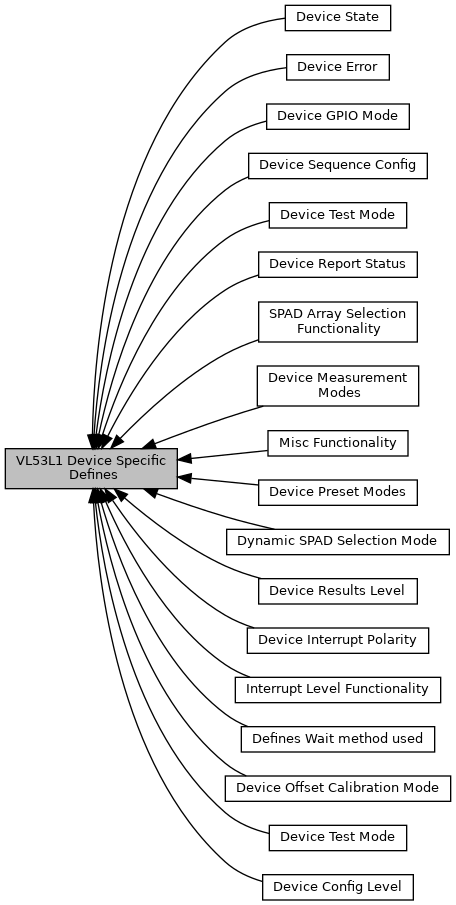

Collaboration diagram for VL53L1 Device Specific Defines:
Modules | |
| Defines Wait method used | |
| For example blocking versus non blocking. | |
| Device State | |
| Defines all possible device states for the device. | |
| Device Preset Modes | |
| Defines all possible device preset modes. The integer values are kept the same as main EwokPlus driver branch. | |
| Device Measurement Modes | |
| Defines all possible measurement modes for the device. | |
| Device Offset Calibration Mode | |
| Defines possible offset calibration modes for the device. | |
| Device Sequence Config | |
| Individual bit enables for each stage in the ranging scheduler The values below encode the bit shift for each bit. | |
| Device Interrupt Polarity | |
| Device Interrupt Polarity. | |
| Device GPIO Mode | |
| Device Gpio Mode. | |
| Device Error | |
| Device Error code in the range status. | |
| Device Report Status | |
| Device Report Status code. | |
| Dynamic SPAD Selection Mode | |
| Selects the device Dynamic SPAD Selection Mode. | |
| Device Config Level | |
| Defines the contents of the config & start range I2C multi byte transaction. | |
| Device Results Level | |
| Defines the contents of the read results I2C multi byte transaction. | |
| Device Test Mode | |
| Values below match the the TEST_MODE__CTRL register do not change. | |
| Device Test Mode | |
| SPAD Array Selection Functionality | |
| SPAD array selection definitions. | |
| Interrupt Level Functionality | |
| Interrupt Output Level types. | |
| Misc Functionality | |
| API core specific definitions. | |
Detailed Description
VL53L1 cut1.0 Device Specific Defines.
