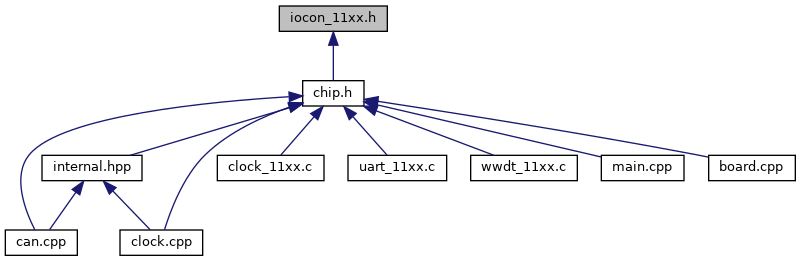

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | LPC_IOCON_T |
Macros | |
| #define | FUNC0 0x0 |
| #define | FUNC1 0x1 |
| #define | FUNC2 0x2 |
| #define | FUNC3 0x3 |
| #define | FUNC4 0x4 |
| #define | FUNC5 0x5 |
| #define | FUNC6 0x6 |
| #define | FUNC7 0x7 |
| #define | IOCON_ADMODE_EN (0x0 << 7) |
| #define | IOCON_DIGMODE_EN (0x1 << 7) |
| #define | IOCON_FASTI2C_EN (0x2 << 8) |
| #define | IOCON_FILT_DIS (0x1 << 8) |
| #define | IOCON_FUNC0 0x0 |
| #define | IOCON_FUNC1 0x1 |
| #define | IOCON_FUNC2 0x2 |
| #define | IOCON_FUNC3 0x3 |
| #define | IOCON_FUNC4 0x4 |
| #define | IOCON_FUNC5 0x5 |
| #define | IOCON_FUNC6 0x6 |
| #define | IOCON_FUNC7 0x7 |
| #define | IOCON_HYS_EN (0x1 << 5) |
| #define | IOCON_INV_EN (0x1 << 6) |
| #define | IOCON_MODE_INACT (0x0 << 3) |
| #define | IOCON_MODE_PULLDOWN (0x1 << 3) |
| #define | IOCON_MODE_PULLUP (0x2 << 3) |
| #define | IOCON_MODE_REPEATER (0x3 << 3) |
| #define | IOCON_OPENDRAIN_EN (0x1 << 10) |
| #define | IOCON_SFI2C_EN (0x0 << 8) |
| #define | IOCON_STDI2C_EN (0x1 << 8) |
| #define | MD_ADMODE (0x0 << 7) |
| #define | MD_BUK (0x3 << 3) |
| #define | MD_DIGMODE (0x1 << 7) |
| #define | MD_DISFIL (0x0 << 8) |
| #define | MD_ENFIL (0x1 << 8) |
| #define | MD_FASTI2C (0x2 << 8) |
| #define | MD_HYS (0x1 << 5) |
| #define | MD_INV (0x1 << 6) |
| #define | MD_OPENDRAIN (0x1 << 10) |
| #define | MD_PDN (0x1 << 3) |
| #define | MD_PLN (0x0 << 3) |
| #define | MD_PUP (0x2 << 3) |
| #define | MD_SFI2C (0x0 << 8) |
| #define | MD_STDI2C (0x1 << 8) |
Typedefs | |
| typedef enum CHIP_IOCON_PIN_LOC | CHIP_IOCON_PIN_LOC_T |
| LPC11XX Pin location select. More... | |
| typedef enum CHIP_IOCON_PIO | CHIP_IOCON_PIO_T |
| IO Configuration Unit register block structure. More... | |
Enumerations | |
| enum | CHIP_IOCON_PIN_LOC { IOCON_SCKLOC_PIO0_10 = (0xB0), IOCON_SCKLOC_PIO2_11 = (0xB0 | 1), IOCON_SCKLOC_PIO0_6 = (0xB0 | 2), IOCON_DSRLOC_PIO2_1 = (0xB4), IOCON_DSRLOC_PIO3_1 = (0xB4 | 1), IOCON_DCDLOC_PIO2_2 = (0xB8), IOCON_DCDLOC_PIO3_2 = (0xB8 | 1), IOCON_RILOC_PIO2_3 = (0xBC), IOCON_RILOC_PIO3_3 = (0xBC | 1) } |
| LPC11XX Pin location select. More... | |
| enum | CHIP_IOCON_PIO { IOCON_PIO0_0 = (0x00C >> 2), IOCON_PIO0_1 = (0x010 >> 2), IOCON_PIO0_2 = (0x01C >> 2), IOCON_PIO0_3 = (0x02C >> 2), IOCON_PIO0_4 = (0x030 >> 2), IOCON_PIO0_5 = (0x034 >> 2), IOCON_PIO0_6 = (0x04C >> 2), IOCON_PIO0_7 = (0x050 >> 2), IOCON_PIO0_8 = (0x060 >> 2), IOCON_PIO0_9 = (0x064 >> 2), IOCON_PIO0_10 = (0x070 >> 2), IOCON_PIO0_11 = (0x074 >> 2), IOCON_PIO1_0 = (0x078 >> 2), IOCON_PIO1_1 = (0x07C >> 2), IOCON_PIO1_2 = (0x080 >> 2), IOCON_PIO1_3 = (0x090 >> 2), IOCON_PIO1_4 = (0x094 >> 2), IOCON_PIO1_5 = (0x0A0 >> 2), IOCON_PIO1_6 = (0x0A4 >> 2), IOCON_PIO1_7 = (0x0A8 >> 2), IOCON_PIO1_8 = (0x014 >> 2), IOCON_PIO1_9 = (0x038 >> 2), IOCON_PIO1_10 = (0x06C >> 2), IOCON_PIO1_11 = (0x098 >> 2), IOCON_PIO2_0 = (0x008 >> 2), IOCON_PIO2_1 = (0x028 >> 2), IOCON_PIO2_2 = (0x05C >> 2), IOCON_PIO2_3 = (0x08C >> 2), IOCON_PIO2_4 = (0x040 >> 2), IOCON_PIO2_5 = (0x044 >> 2), IOCON_PIO2_6 = (0x000 >> 2), IOCON_PIO2_7 = (0x020 >> 2), IOCON_PIO2_8 = (0x024 >> 2), IOCON_PIO2_9 = (0x054 >> 2), IOCON_PIO2_10 = (0x058 >> 2), IOCON_PIO2_11 = (0x070 >> 2), IOCON_PIO3_0 = (0x084 >> 2), IOCON_PIO3_1 = (0x088 >> 2), IOCON_PIO3_2 = (0x09C >> 2), IOCON_PIO3_3 = (0x0AC >> 2), IOCON_PIO3_4 = (0x03C >> 2), IOCON_PIO3_5 = (0x048 >> 2) } |
| IO Configuration Unit register block structure. More... | |
Functions | |
| STATIC INLINE void | Chip_IOCON_PinLocSel (LPC_IOCON_T *pIOCON, CHIP_IOCON_PIN_LOC_T sel) |
| Select pin location. More... | |
| STATIC INLINE void | Chip_IOCON_PinMux (LPC_IOCON_T *pIOCON, CHIP_IOCON_PIO_T pin, uint16_t mode, uint8_t func) |
| I/O Control pin mux. More... | |
| STATIC INLINE void | Chip_IOCON_PinMuxSet (LPC_IOCON_T *pIOCON, CHIP_IOCON_PIO_T pin, uint32_t modefunc) |
| Sets I/O Control pin mux. More... | |
