pyuavcan_v0.dsdl.parser.Type Class Reference

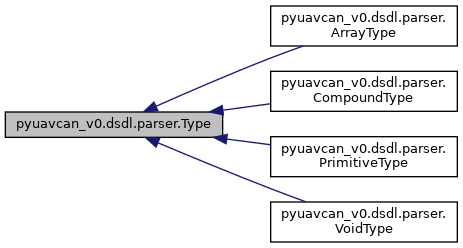

Inheritance diagram for pyuavcan_v0.dsdl.parser.Type:

Public Member Functions
def	__init__ (self, full_name, category)
def	__str__ (self)
def	get_data_type_signature (self)
def	get_max_bitlen (self)
def	get_min_bitlen (self)
def	get_normalized_definition (self)

Public Attributes
	category
	full_name

Static Public Attributes
int	CATEGORY_ARRAY = 1
int	CATEGORY_COMPOUND = 2
int	CATEGORY_PRIMITIVE = 0
int	CATEGORY_VOID = 3

Static Private Attributes
def	__repr__ = __str__

Detailed Description

Common type description. The specialized type description classes inherit from this one.
Fields:
    full_name    Full type name string, e.g. "pyuavcan_v0.protocol.NodeStatus"
    category     Any CATEGORY_*

Definition at line 40 of file parser.py.

Constructor & Destructor Documentation

__init__()

def pyuavcan_v0.dsdl.parser.Type.__init__	(		self,
			full_name,
			category
	)

Definition at line 52 of file parser.py.

Member Function Documentation

__str__()

def pyuavcan_v0.dsdl.parser.Type.__str__

(

self

)

Definition at line 56 of file parser.py.

get_data_type_signature()

def pyuavcan_v0.dsdl.parser.Type.get_data_type_signature

(

self

)

Reimplemented in pyuavcan_v0.dsdl.parser.CompoundType, and pyuavcan_v0.dsdl.parser.ArrayType.

Definition at line 59 of file parser.py.

get_max_bitlen()

def pyuavcan_v0.dsdl.parser.Type.get_max_bitlen

(

self

)

Reimplemented in pyuavcan_v0.dsdl.parser.VoidType, pyuavcan_v0.dsdl.parser.ArrayType, and pyuavcan_v0.dsdl.parser.PrimitiveType.

Definition at line 65 of file parser.py.

get_min_bitlen()

def pyuavcan_v0.dsdl.parser.Type.get_min_bitlen

(

self

)

Reimplemented in pyuavcan_v0.dsdl.parser.VoidType, pyuavcan_v0.dsdl.parser.ArrayType, and pyuavcan_v0.dsdl.parser.PrimitiveType.

Definition at line 68 of file parser.py.

get_normalized_definition()

def pyuavcan_v0.dsdl.parser.Type.get_normalized_definition

(

self

)

Reimplemented in pyuavcan_v0.dsdl.parser.VoidType, pyuavcan_v0.dsdl.parser.CompoundType, pyuavcan_v0.dsdl.parser.ArrayType, and pyuavcan_v0.dsdl.parser.PrimitiveType.

Definition at line 62 of file parser.py.

Member Data Documentation

__repr__

def pyuavcan_v0.dsdl.parser.Type.__repr__ = __str__

staticprivate

Definition at line 71 of file parser.py.

category

pyuavcan_v0.dsdl.parser.Type.category

Definition at line 54 of file parser.py.

CATEGORY_ARRAY

int pyuavcan_v0.dsdl.parser.Type.CATEGORY_ARRAY = 1

static

Definition at line 48 of file parser.py.

CATEGORY_COMPOUND

int pyuavcan_v0.dsdl.parser.Type.CATEGORY_COMPOUND = 2

static

Definition at line 49 of file parser.py.

CATEGORY_PRIMITIVE

int pyuavcan_v0.dsdl.parser.Type.CATEGORY_PRIMITIVE = 0

static

Definition at line 47 of file parser.py.

CATEGORY_VOID

int pyuavcan_v0.dsdl.parser.Type.CATEGORY_VOID = 3

static

Definition at line 50 of file parser.py.

full_name

pyuavcan_v0.dsdl.parser.Type.full_name

Definition at line 53 of file parser.py.

---

The documentation for this class was generated from the following file:

• parser.py
