Base object for writers. To create a new writer, you have to do the following steps: More...

#include <Writer.h>

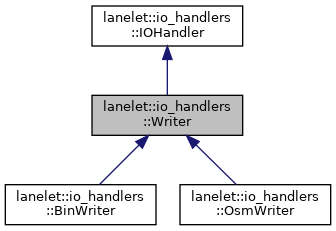

Inheritance diagram for lanelet::io_handlers::Writer:

[legend]

Public Types
using	Ptr = std::shared_ptr< Writer >

Public Types inherited from lanelet::io_handlers::IOHandler
using	Ptr = std::shared_ptr< IOHandler >

Public Member Functions
	IOHandler ()=default

	IOHandler (const Projector &projector, const io::Configuration &config=io::Configuration())

virtual void	write (const std::string &filename, const LaneletMap &laneletMap, ErrorMessages &errors, const io::Configuration &params=io::Configuration()) const =0

	Writer ()=default

Public Member Functions inherited from lanelet::io_handlers::IOHandler
io::Configuration	config ()

	IOHandler (const Projector &projector, const io::Configuration &config=io::Configuration())

const Projector &	projector () const

virtual	~IOHandler ()=default

Private Member Functions
void	handleDefaultProjector () const final
	using a default projector is not allowed. The implementations define how this issue is handled. More...

Additional Inherited Members
Static Public Member Functions inherited from lanelet::io_handlers::IOHandler
static constexpr const char *	extension ()
	returns the extension supported by this parser More...

static constexpr const char *	name ()
	returns the name of this handler. Must not be empty for child classes More...

Protected Member Functions inherited from lanelet::io_handlers::IOHandler
	IOHandler ()=default

Detailed Description

Base object for writers. To create a new writer, you have to do the following steps:

Inherit from this writer
Overload the parse()-function, the name()-function (from IOHandler) and optionally the extension()-function (from IOHandler)
Inherit the constructors (using Writer::Writer)
register your writer using the Registerwriter object

Definition at line 22 of file Writer.h.

Member Typedef Documentation

◆ Ptr

using lanelet::io_handlers::Writer::Ptr = std::shared_ptr<Writer>

Definition at line 26 of file Writer.h.

Constructor & Destructor Documentation

◆ Writer()

lanelet::io_handlers::Writer::Writer ( )

default

Member Function Documentation

◆ handleDefaultProjector()

void lanelet::io_handlers::Writer::handleDefaultProjector ( ) const

inlinefinalprivatevirtual

using a default projector is not allowed. The implementations define how this issue is handled.

Implements lanelet::io_handlers::IOHandler.

Definition at line 33 of file Writer.h.

◆ IOHandler() [1/2]

lanelet::io_handlers::IOHandler::IOHandler

default

◆ IOHandler() [2/2]

lanelet::io_handlers::IOHandler::IOHandler

inlineexplicit

Definition at line 16 of file IoHandler.h.

◆ write()

virtual void lanelet::io_handlers::Writer::write	(	const std::string &	filename,
		const LaneletMap &	laneletMap,
		ErrorMessages &	errors,
		const io::Configuration &	params = `io::Configuration()`
	)		const

pure virtual

Implemented in lanelet::io_handlers::OsmWriter, and lanelet::io_handlers::BinWriter.

The documentation for this class was generated from the following file:

Writer.h
